Dayton Audio - Binding Post Pair Direct Type - BPA-38NI
Dayton Audio - Binding Post Pair Direct Type - BPA-38NI
Regular price
$22.95
Regular price
Sale price
$22.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

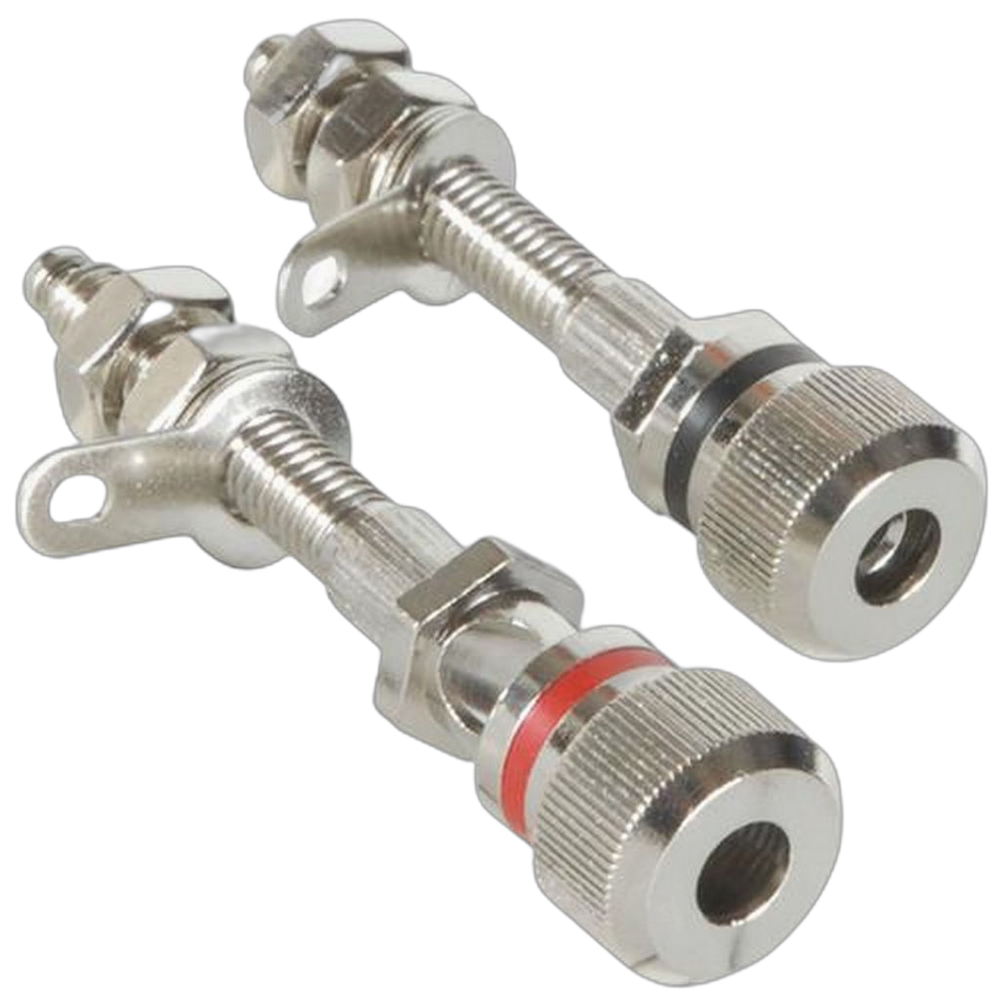

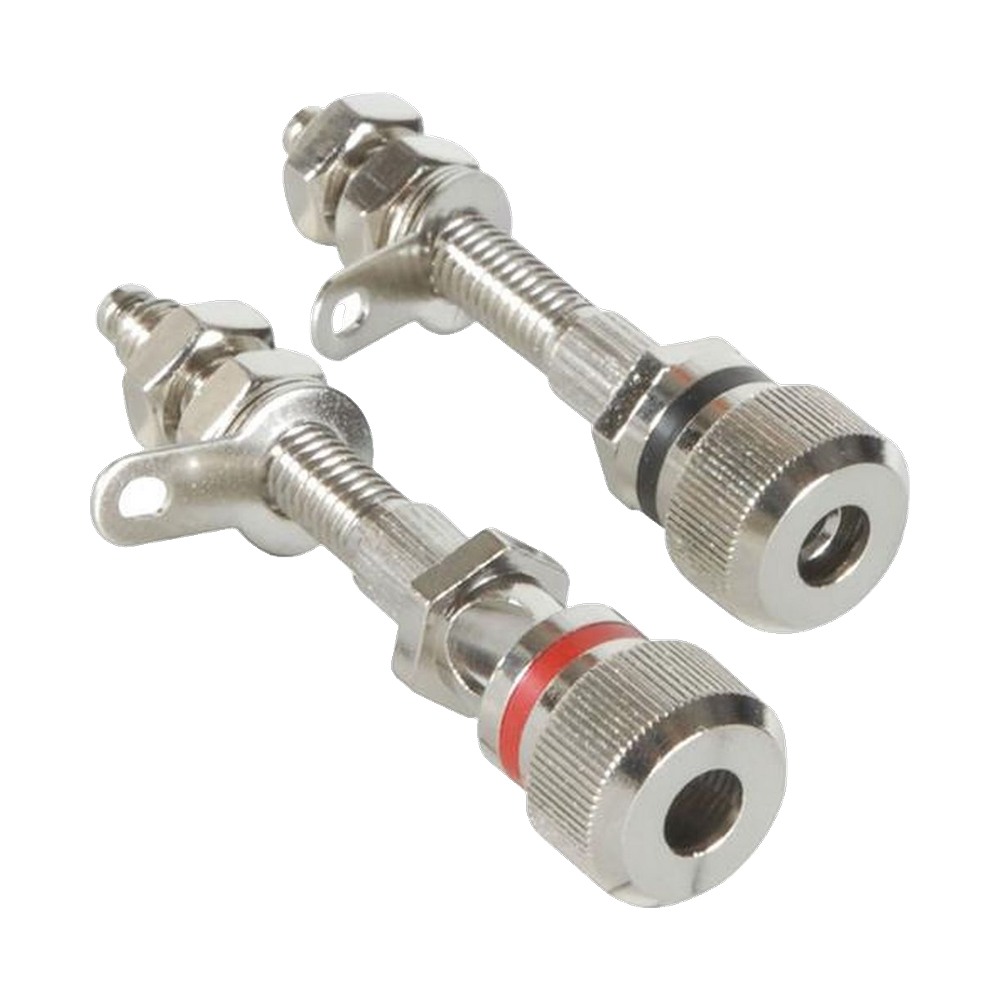

Accept bare wire up to 8 gauge 4mm Plugs. Suit speaker cabinets with walls up to 25mm (1") thick. Overall length is 57mm (2-1/4"). Sold packaged in pairs, one Red and one Black.
Specifications
| Type | Nickel plated |
|---|---|
| Manufacturer | Dayton Audio |
| Hole | 6.35mm (1/4") |
Specifications
Specifications
Mounting
| Hole per post | 6.35 mm (1/4") |
|---|---|
| Fitting | Tapped into the hole: the knurled shank stops the post turning and seals the hole |
| Panel thickness | 9.5 – 25.4 mm (3/8" – 1") |
| Depth inside the box | 39 mm (computed from the drawing) |
Size
| Overall length | 57 mm (2-1/4") |
|---|---|
| Knob | Ă˜15 mm, 15 mm tall |
| Rear stem | M6 Ă— 1, 31 mm behind the knurl; 11 mm nut |
- Figures from Dayton Audio's product page and mechanical drawing (1/2026).
- Depth inside the box is computed from the drawing: the knurled shank and the rear stem, from the outside face.
