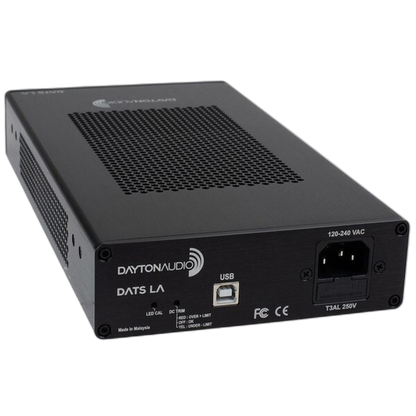

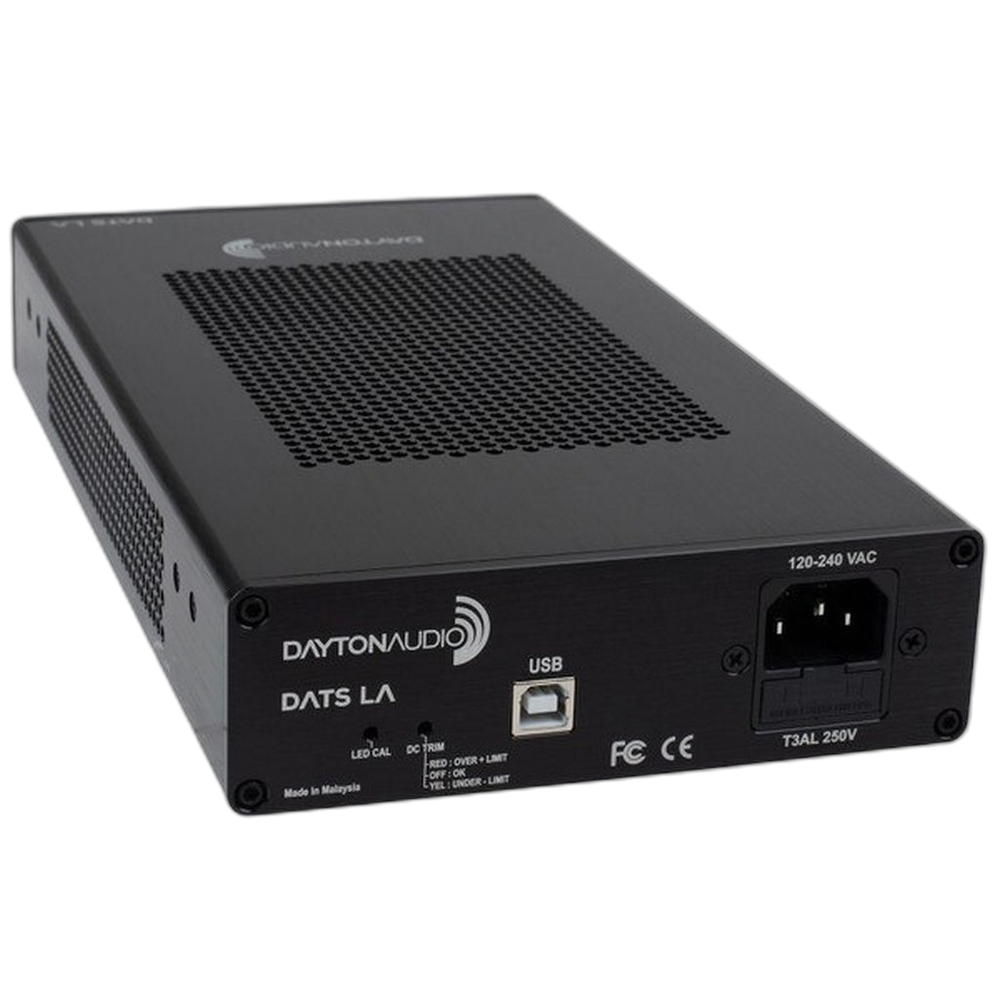

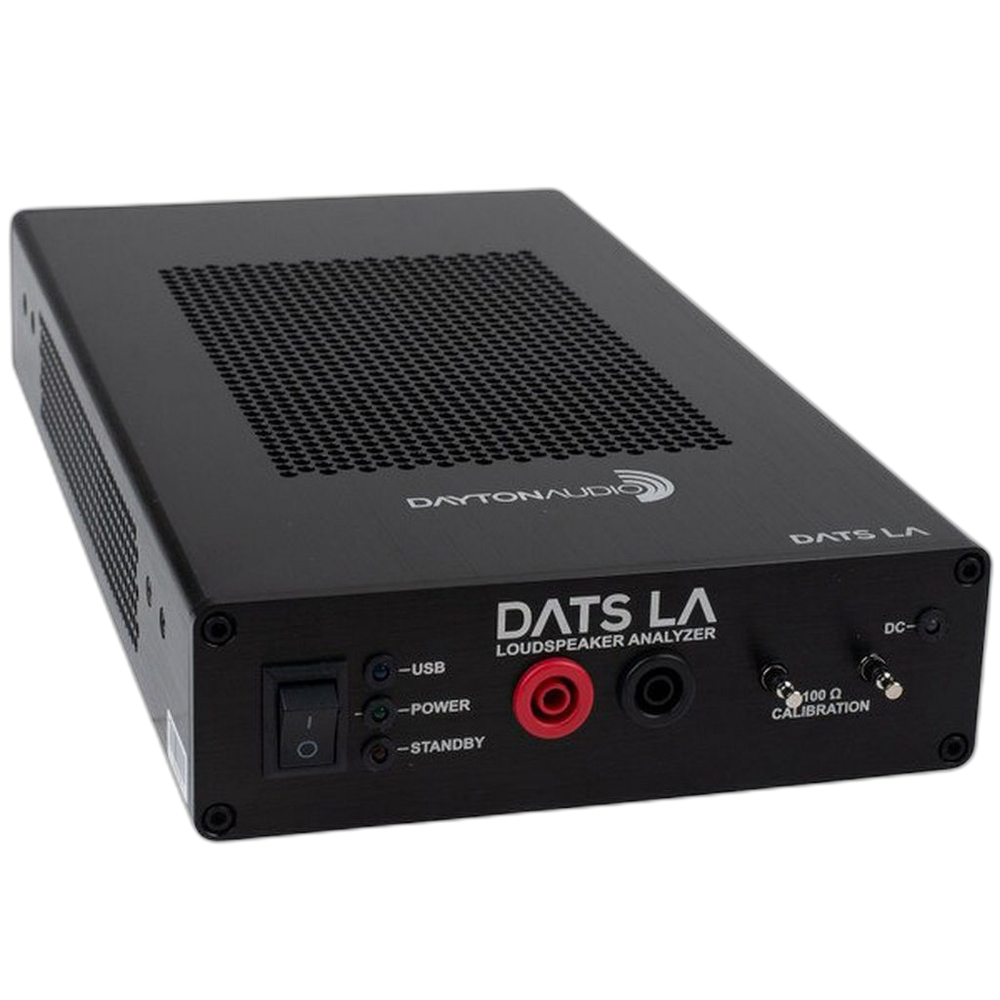

Dayton Audio - Loudspeaker Analyser - DATS-LA

Description

When selecting a speaker driver, spec sheets can only get you so far; nothing replaces precision measurement. This is why the DATS LA is a critical tool for any serious speaker builder. With a built-in 100W amplifier, the DATS LA provides complete small and large T/S measurements in seconds, but it does much more than that. Utilising its patented DC-bias testing method, the DATS LA also reveals BL and KMS Symmetry in easy to read graphs, right in the software. Other systems require careful calibration, training and a lot of time to test just a single driver. The DATS LA will do all this in mere minutes.

Features

• A cutting-edge hardware and software suite capable of evaluating both linear and non-linear aspects of loudspeakers.
• Utilises a patented technique for measuring loudspeaker non-linearity and asymmetry through multiple DC biased sweeps.
• By precisely controlling the DC bias and employing a unique data processing method, DATS LA provides insightful data for optimising loudspeaker motors and suspensions.
• A robust 100-watt AC/DC amplifier facilitates precise measurement of drivers' small or large signal parameters under varying input levels.
• Compact and durable design can be easily transported and used anywhere, without sacrificing reliability or accuracy.
• Provides functionality equivalent to industry standard loudspeaker testing systems, but at a fraction of the cost.
• A critical tool for speaker designers, engineers, and researchers looking to push the boundaries of driver development and performance.
