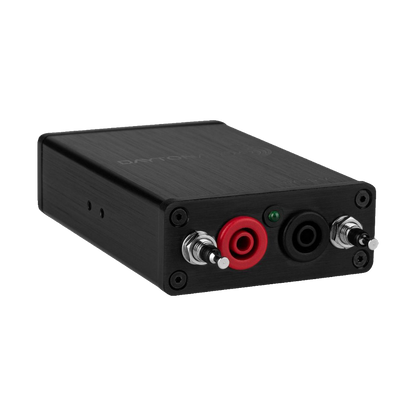

Dayton Audio - Test System - DATS-V3

Description:

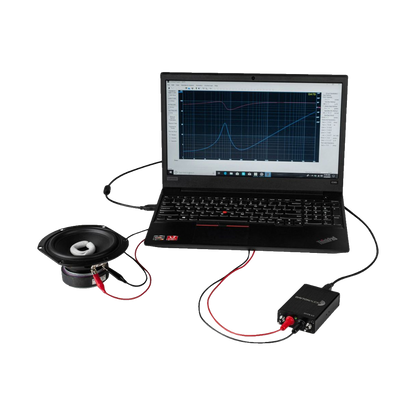

Accurate measurement of loudspeaker electromechanical parameters includes Fs, Qts, Vas, and many more. High-resolution impedance response measurements 1 Hz to 20,000 Hz. Software signal generator. Oscilloscope software mode with dual traces, time and amplitude scales.

• DATS Linearity Test for comparing parameters and impedance plots at multiple drive levels

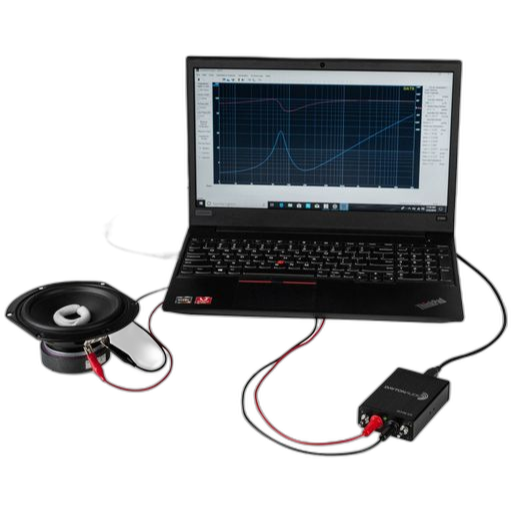

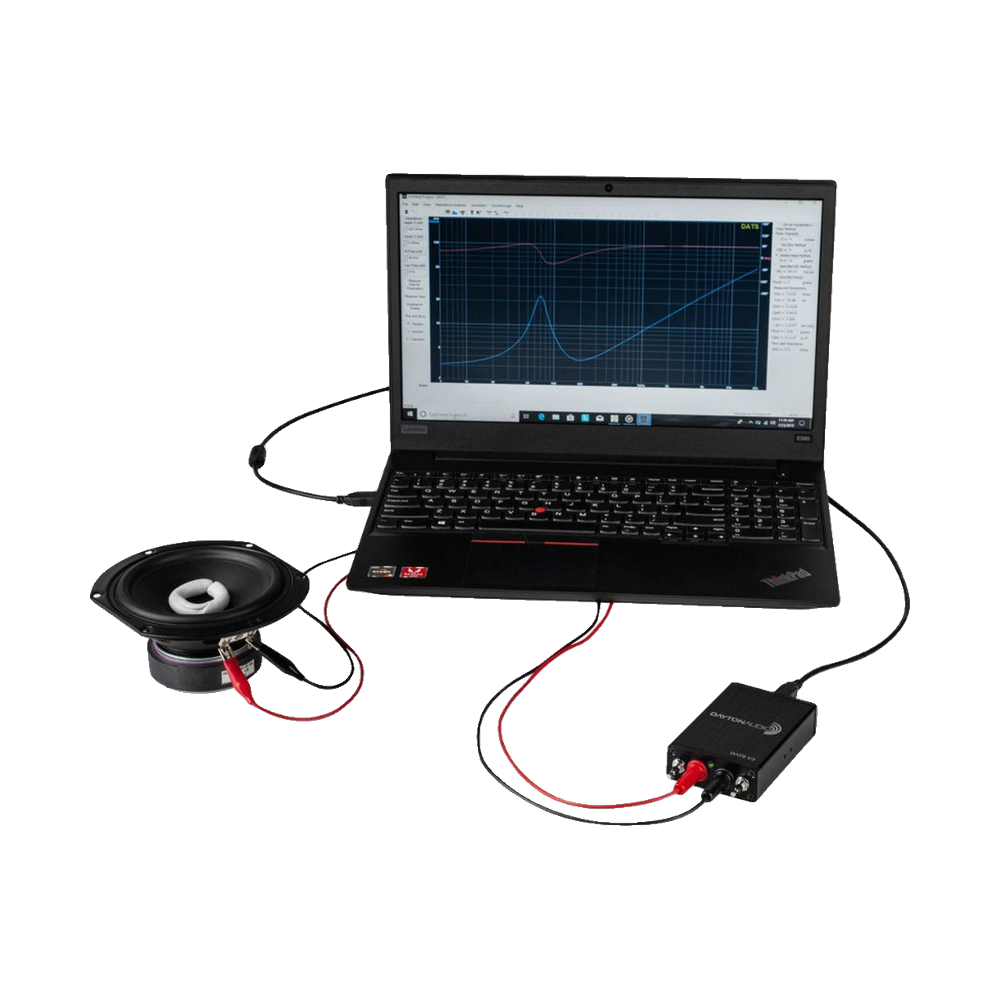

• Accurate measurement of loudspeaker electromechanical parameters for box design
• Measurement of Thiele and Small parameters (Fs, Qts, Vas, and much, much more)
• Measurement of Wright Model parameters (Kr, Xr, Ki, Xi) for simulation software
• Precise, high-resolution impedance response with 30,000 data points (1Hz to 20,000Hz)
• Save and compare up to 20 impedance graphs simultaneously within one test file
• Integrated quality control feature set provides pass/fail parameter measurement
• Sensitive rub and buzz detection reveals hidden flaws in individual drivers
• Software signal generator with selectable waveform, frequency, and amplitude
• Oscilloscope software mode with dual traces, plus adjustable time and amplitude scales
• Oscilloscope and generator modes are compatible with other audio interfaces
• Generates sine, square, triangle, saw tooth, impulse, pink noise, and log sweeps
• Quality test interface hardware assembled using precision SMT components and automation
• High-quality alligator clip leads minimise contact resistance for improved consistency
• Includes method for calculating Vas from specified Mmd
• Faster-than-ever hardware startup time virtually eliminates warm-up/cool-down
• Rugged build with detachable 4mm banana test leads and built-in precision calibration
• V3 has even tighter tolerances on internal components for more precise measurements
• Increased output capability for greater dynamics with more accurate measurements

What’s in the box?

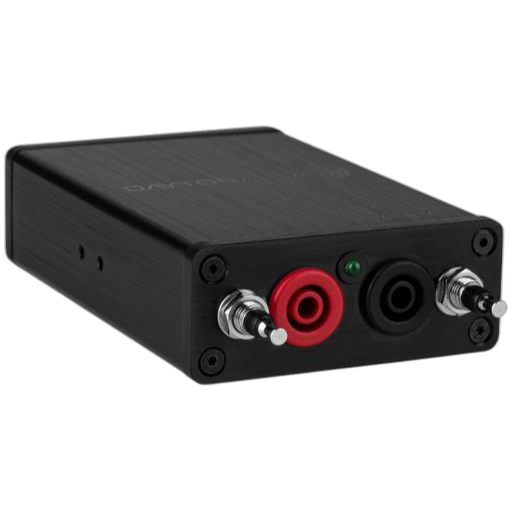

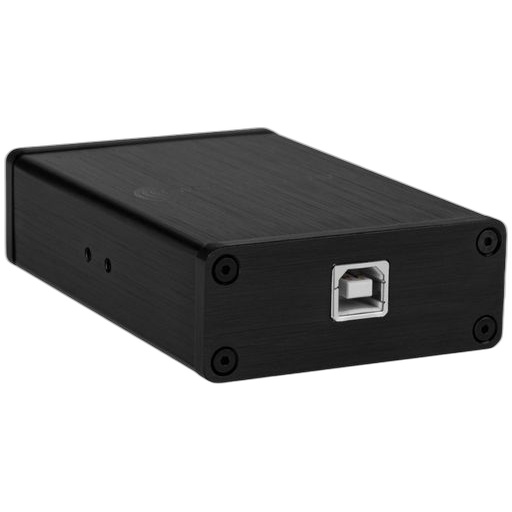

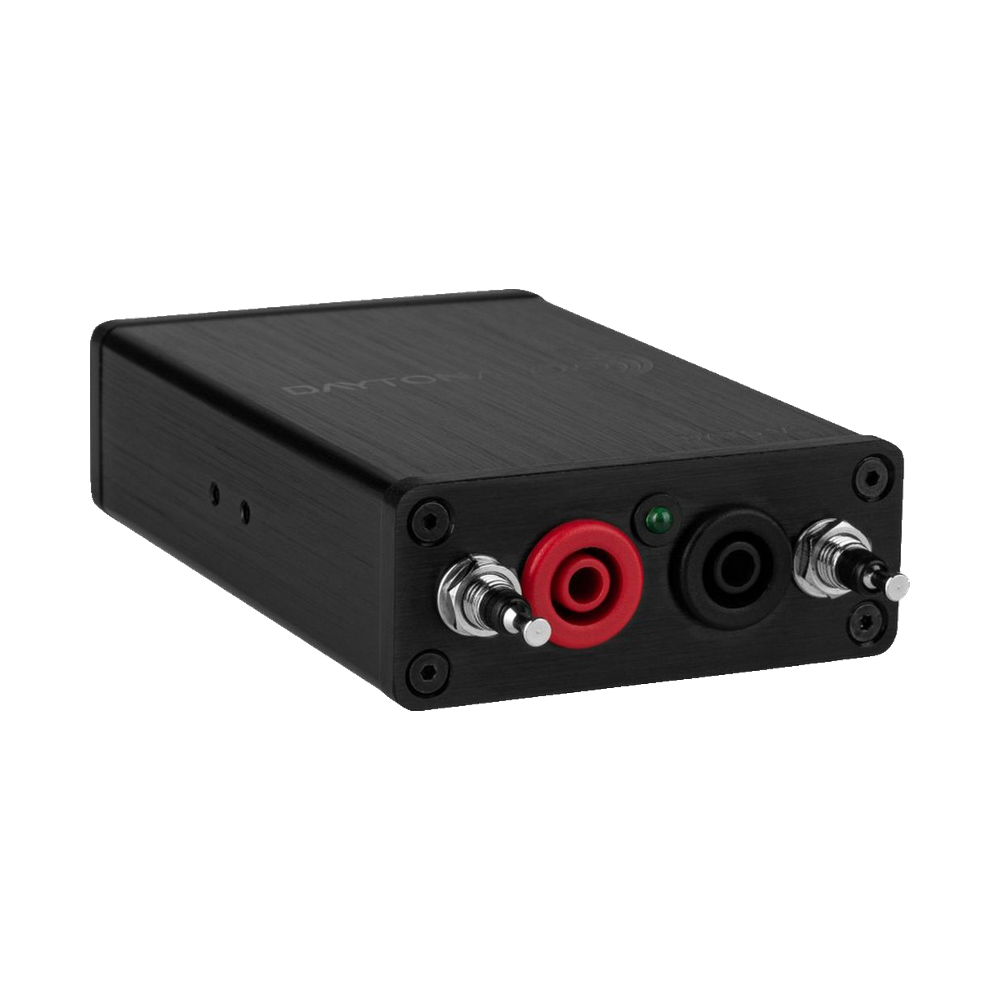

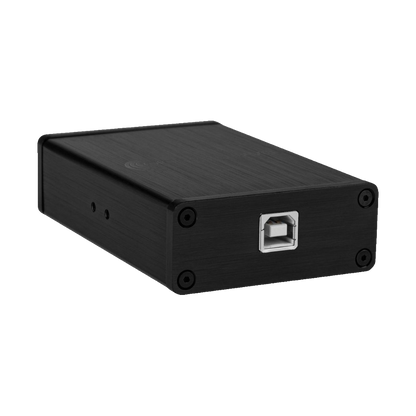

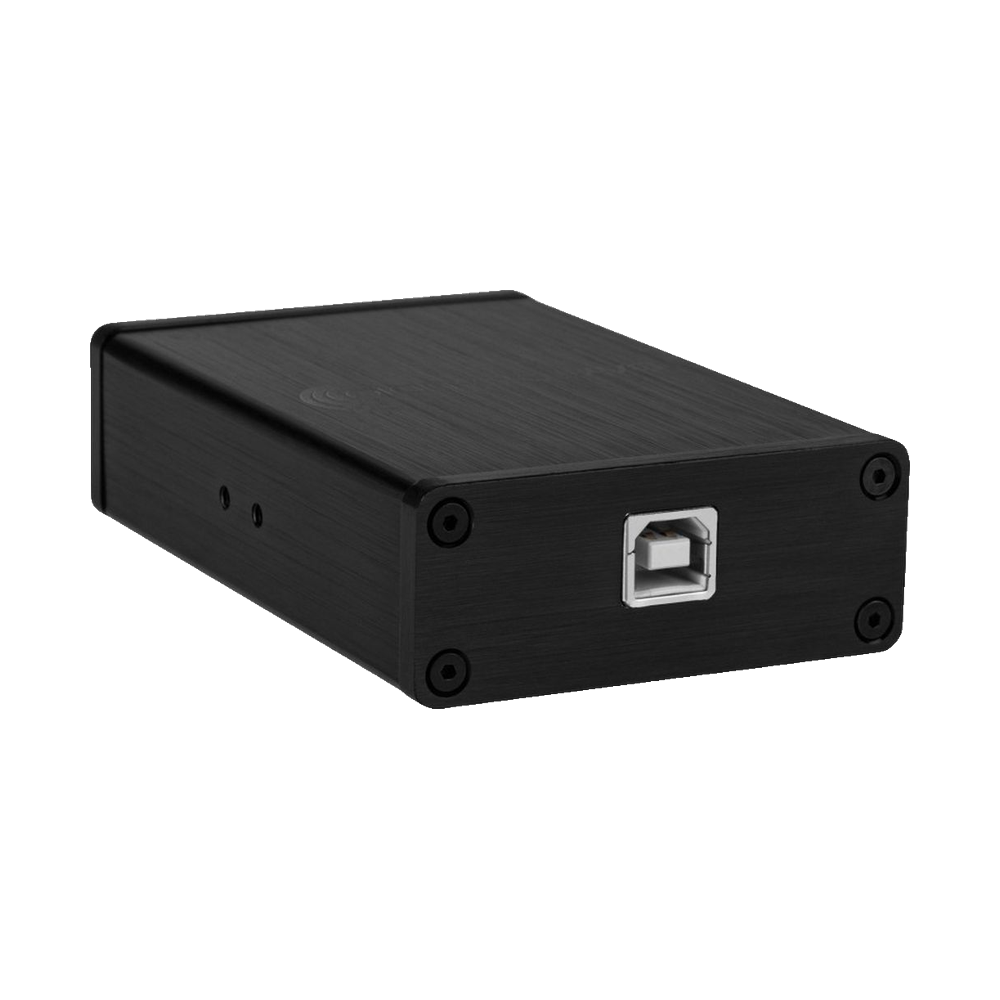

• DATS V3 measurement interface
• USB Cable
• Alligator test leads
• Software download instructions and a quick start sheet
