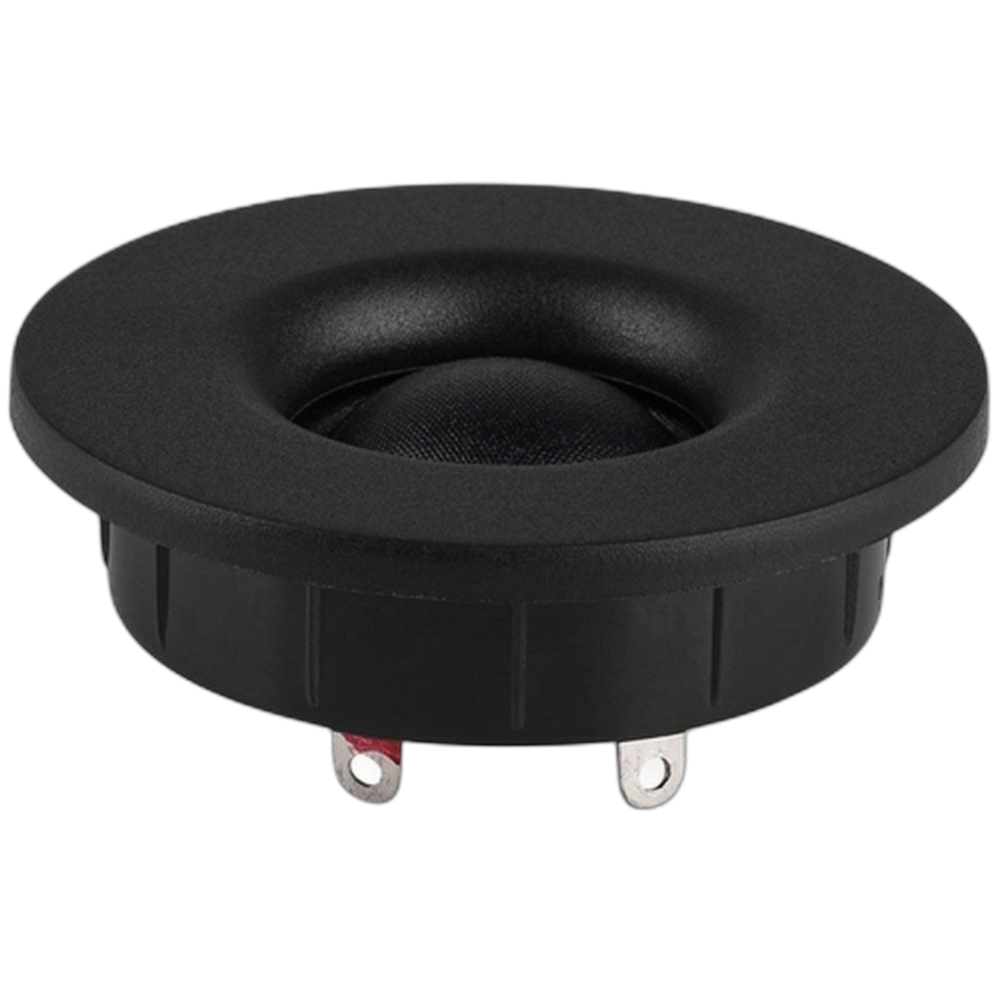

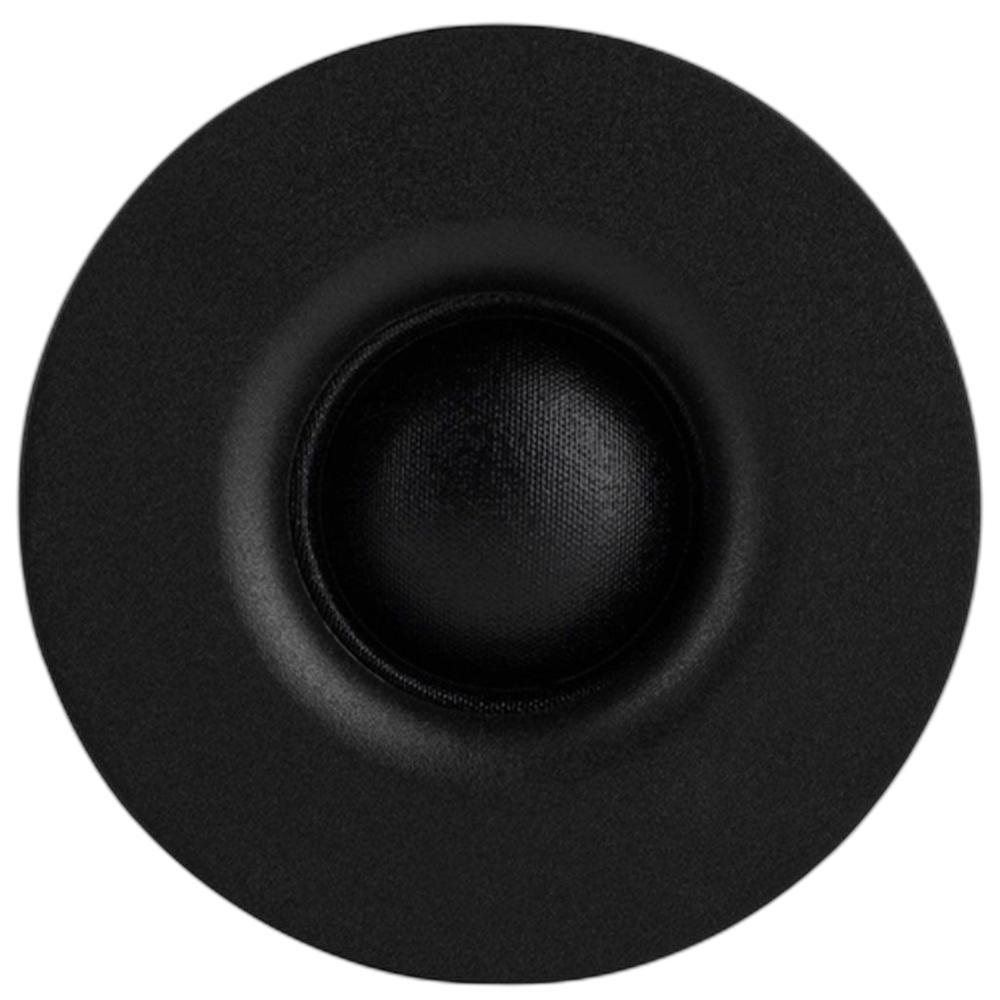

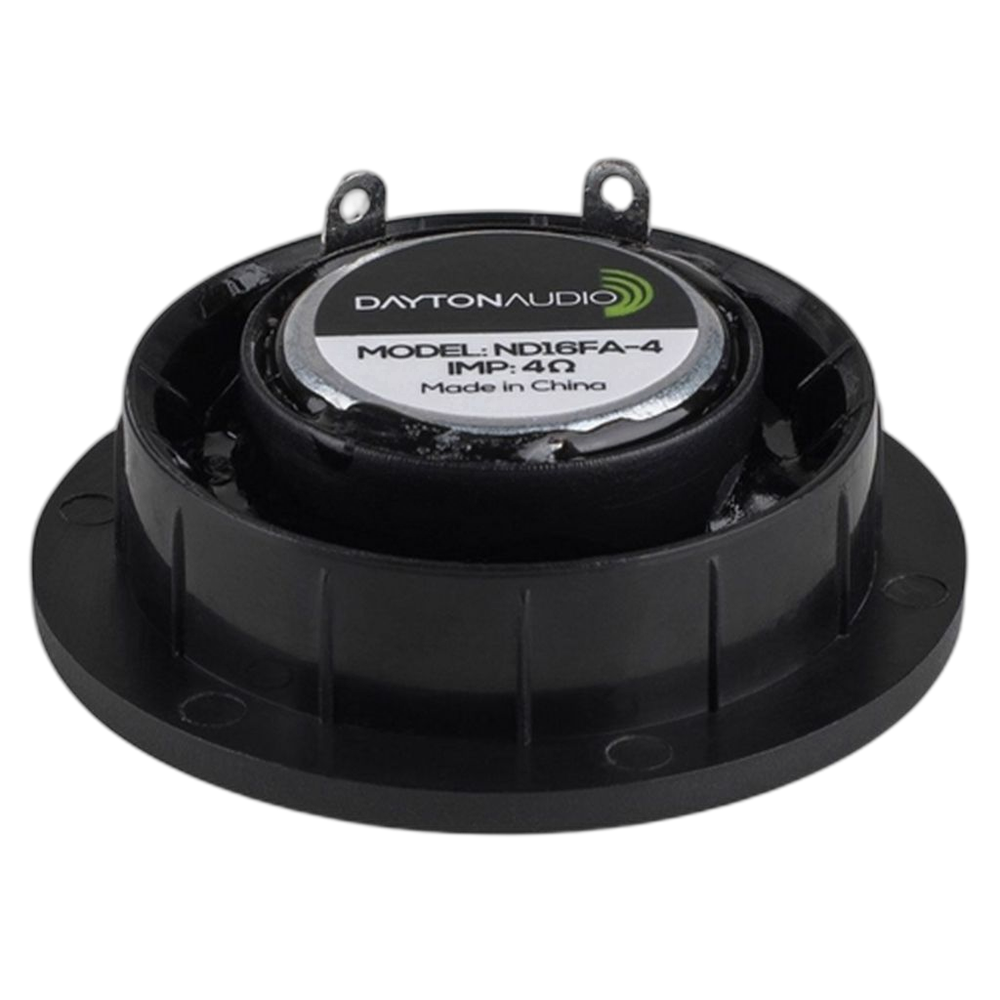

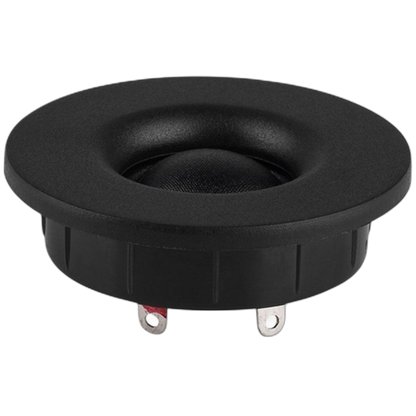

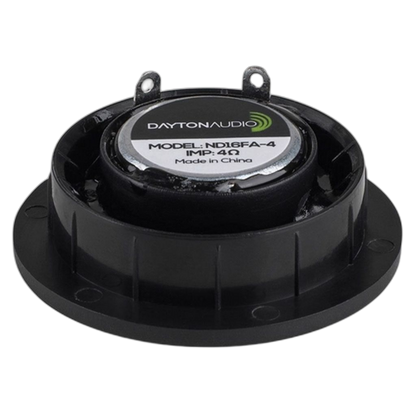

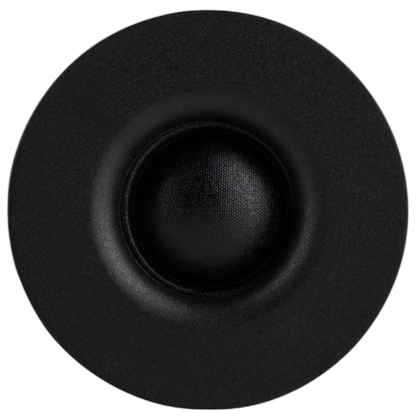

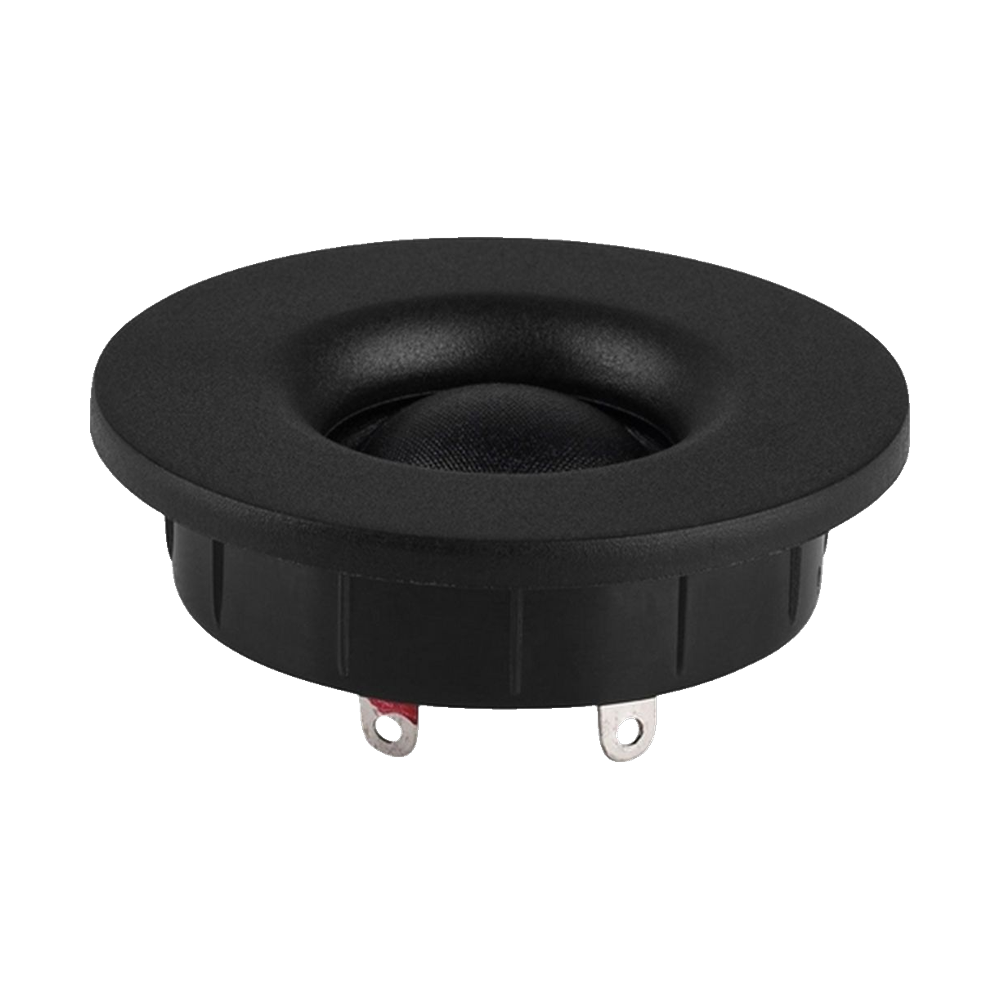

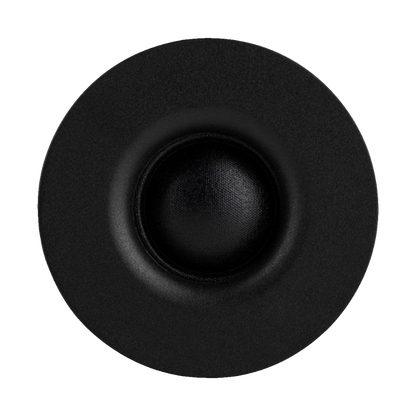

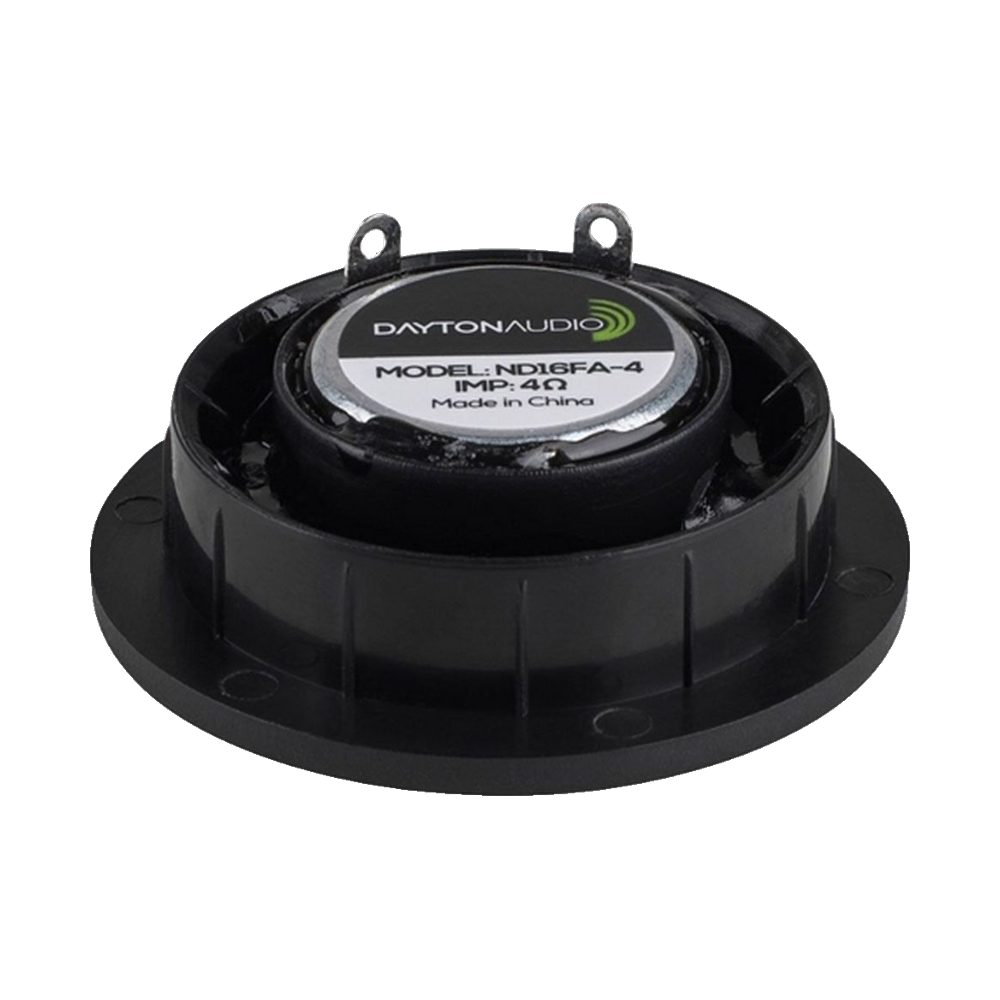

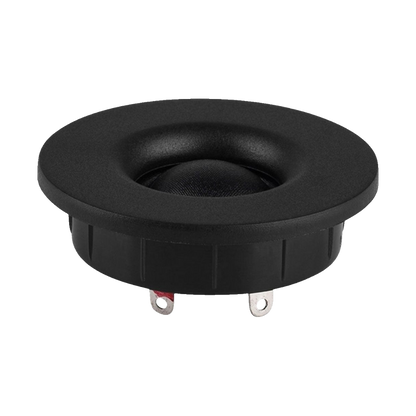

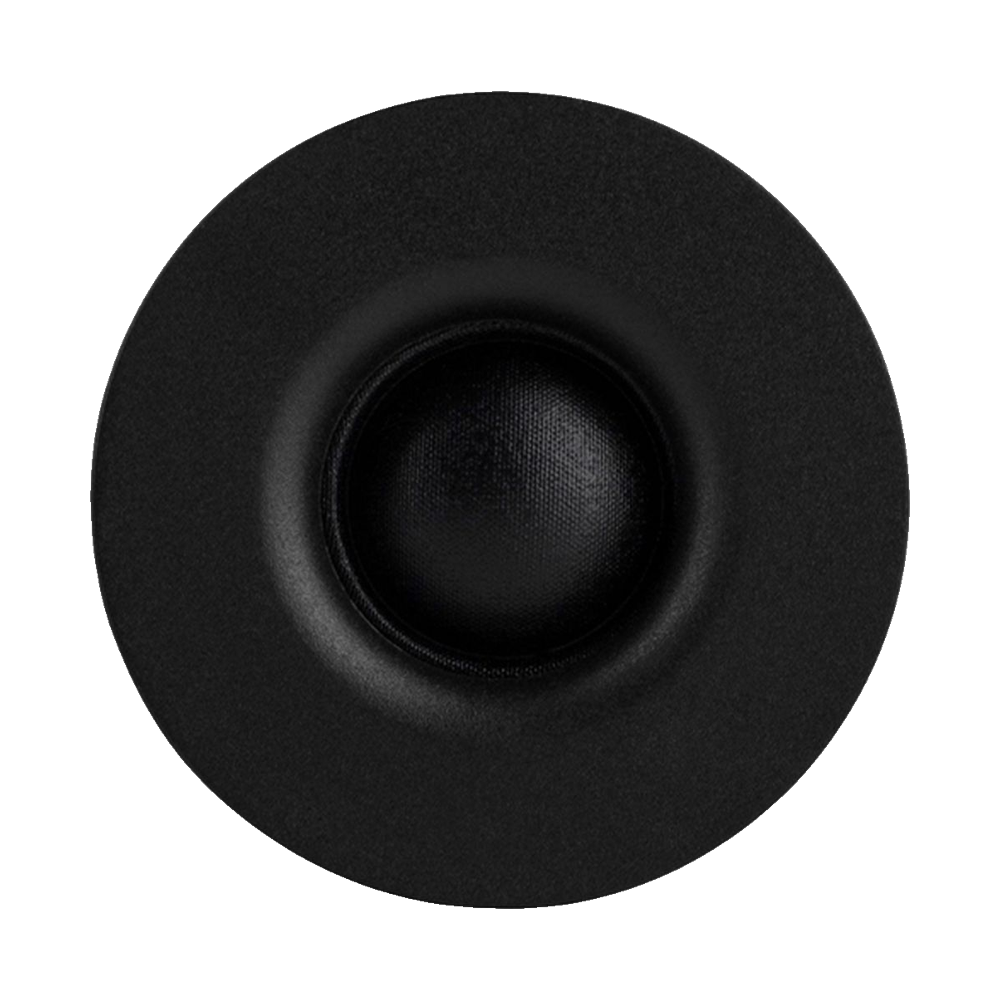

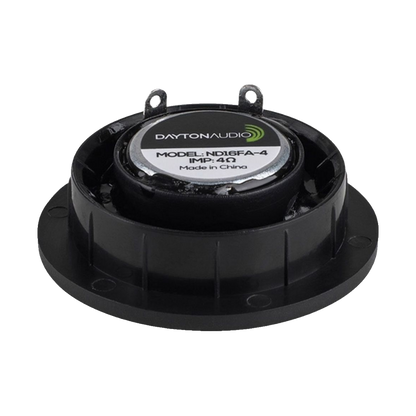

Dayton Audio - ⅝" Tweeter Neo - ND16FA-4
Dayton Audio - ⅝" Tweeter Neo - ND16FA-4
Couldn't load pickup availability
Description

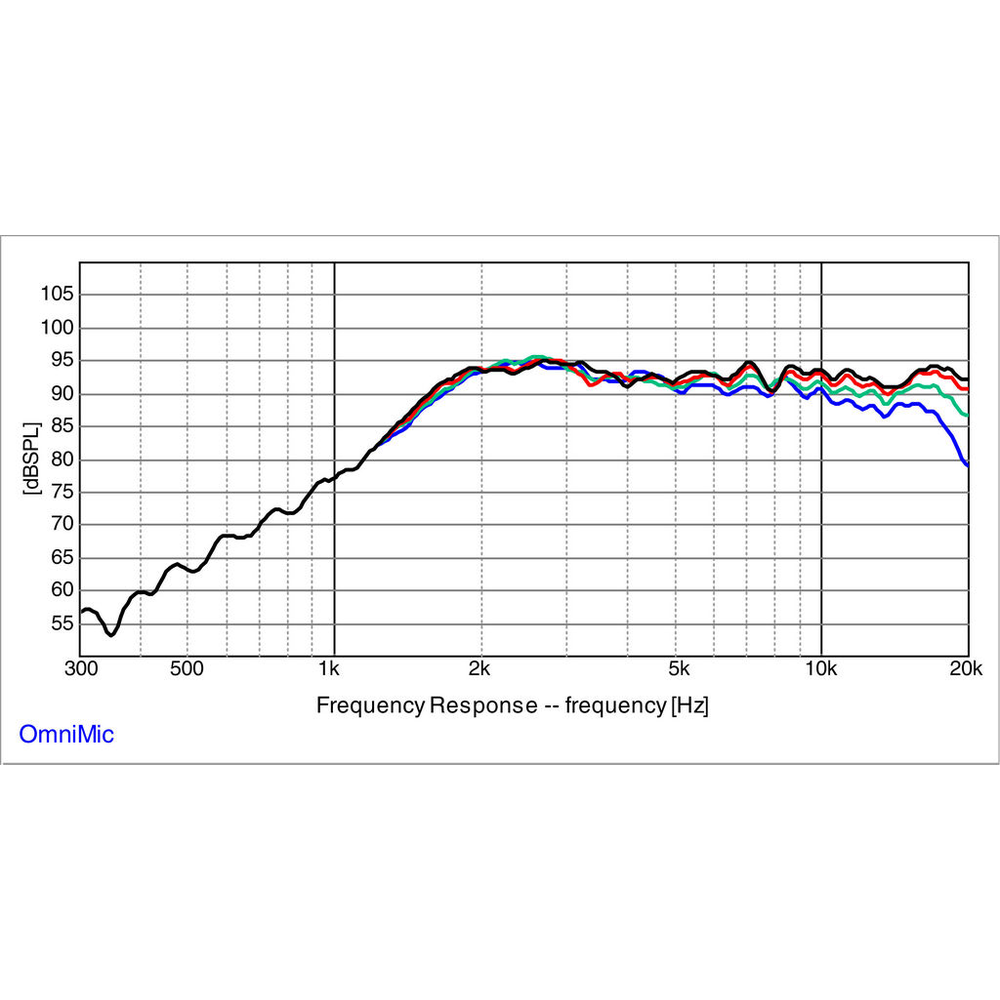

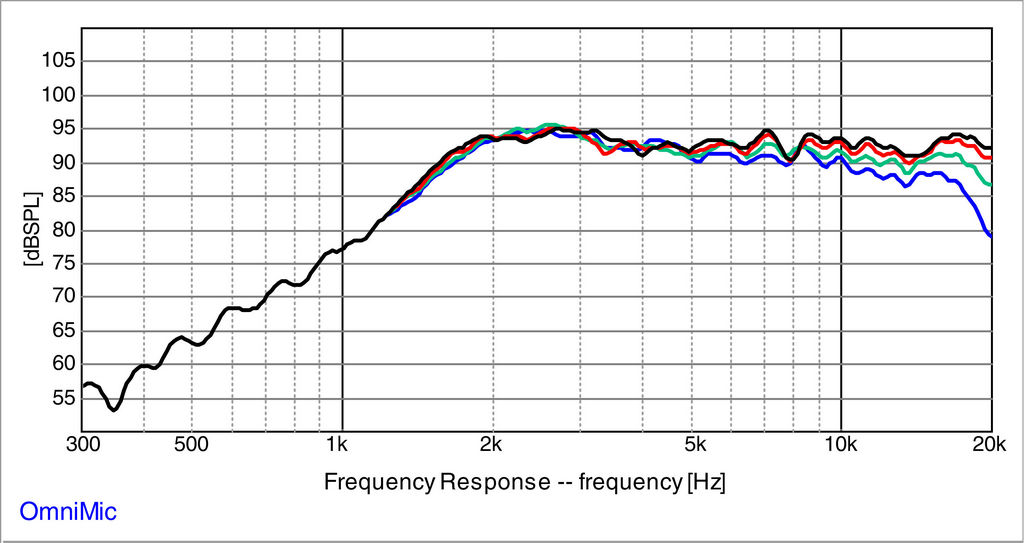

Dayton Audios ND16FA-4 5/8" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,000 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers. - The versatile ND16FA-4 5/8" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The compact faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.
Features
- Ferrofluid enhances power handling and helps damp resonance
- Powerful neodymium motor keeps tweeter small with impressive efficiency
- Compact faceplate is perfect for minimal center-to-center distances
- Easy installation, front mount pressfit design
Specifications
| Manufacturer | Dayton Audio |
|---|---|
| Type | Tweeter |
| Colour | Black |
| Coil | 16 mm |

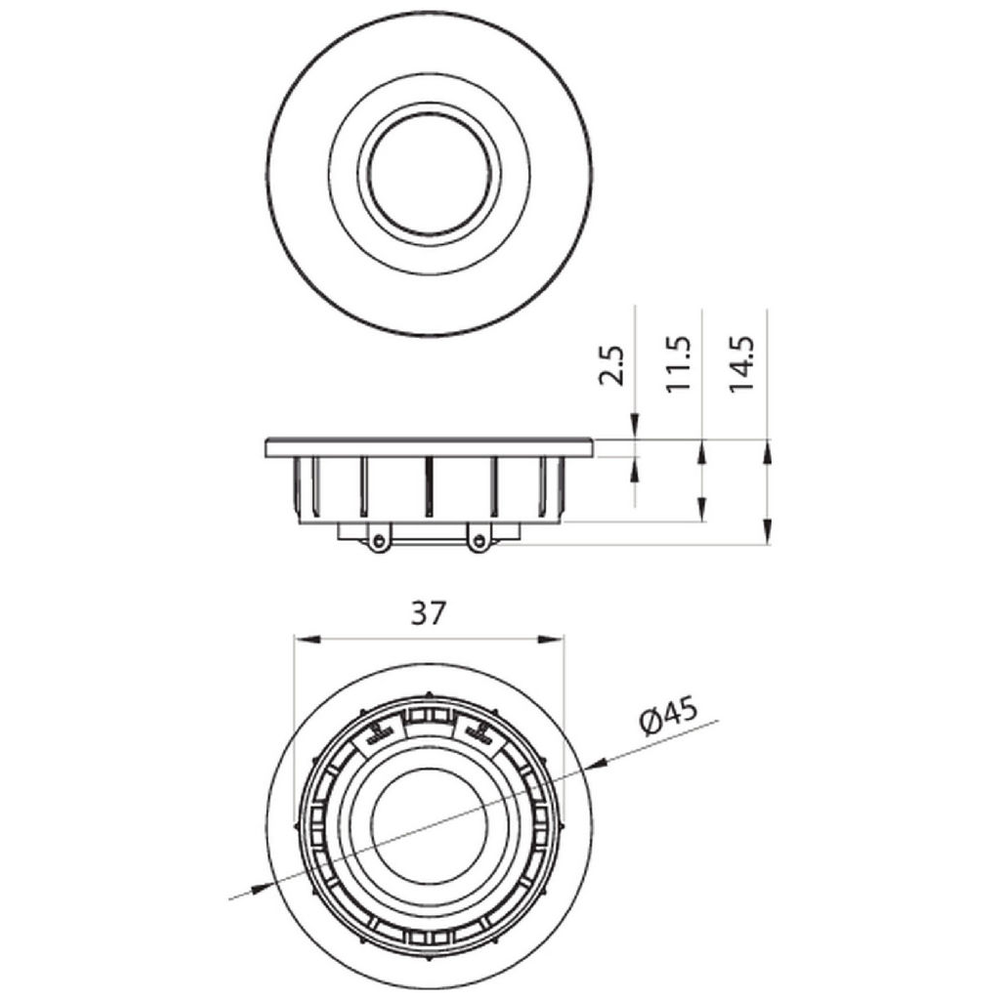

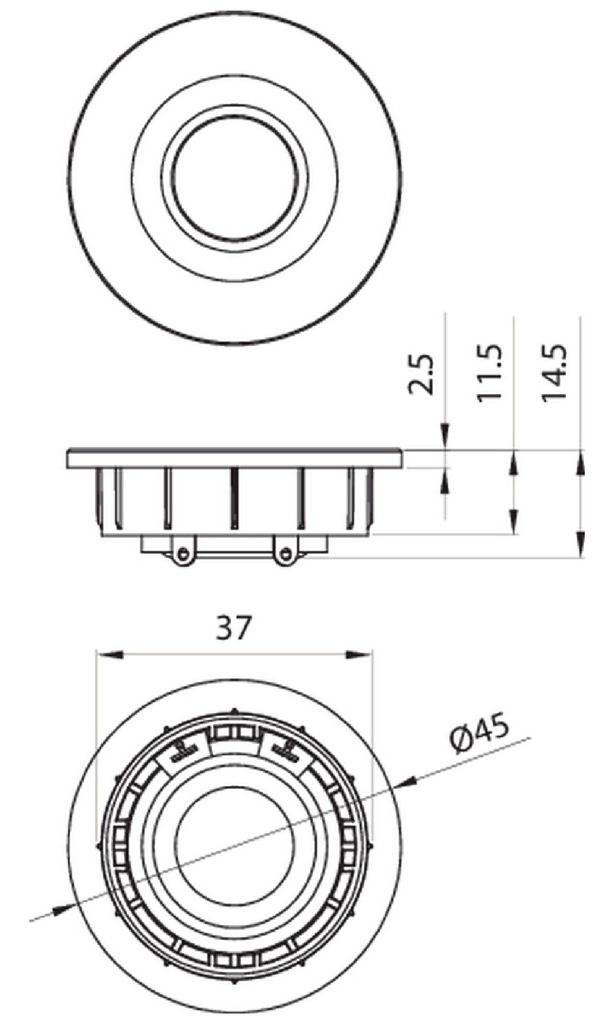

| Hole | 37mmØ |
| Impedance | 4Ω Re 3.2Ω |
| Voice | Polyimide |
| Sens. | 93 dB |
| Re | 3.17Ω |
| Qms | 3.71 |
| Qes | 3.46 |
| Qts | 1.79 |
| Vas | - |
| Pmax | 60 watts |
| Fs | 2246 Hz |
| Le | 0.03 mH |
| Diam. | 45mmØ |
| Series | ND Series |
| Power | 30W |
| Zn | 4Ω |
| Size | 0.625' |
