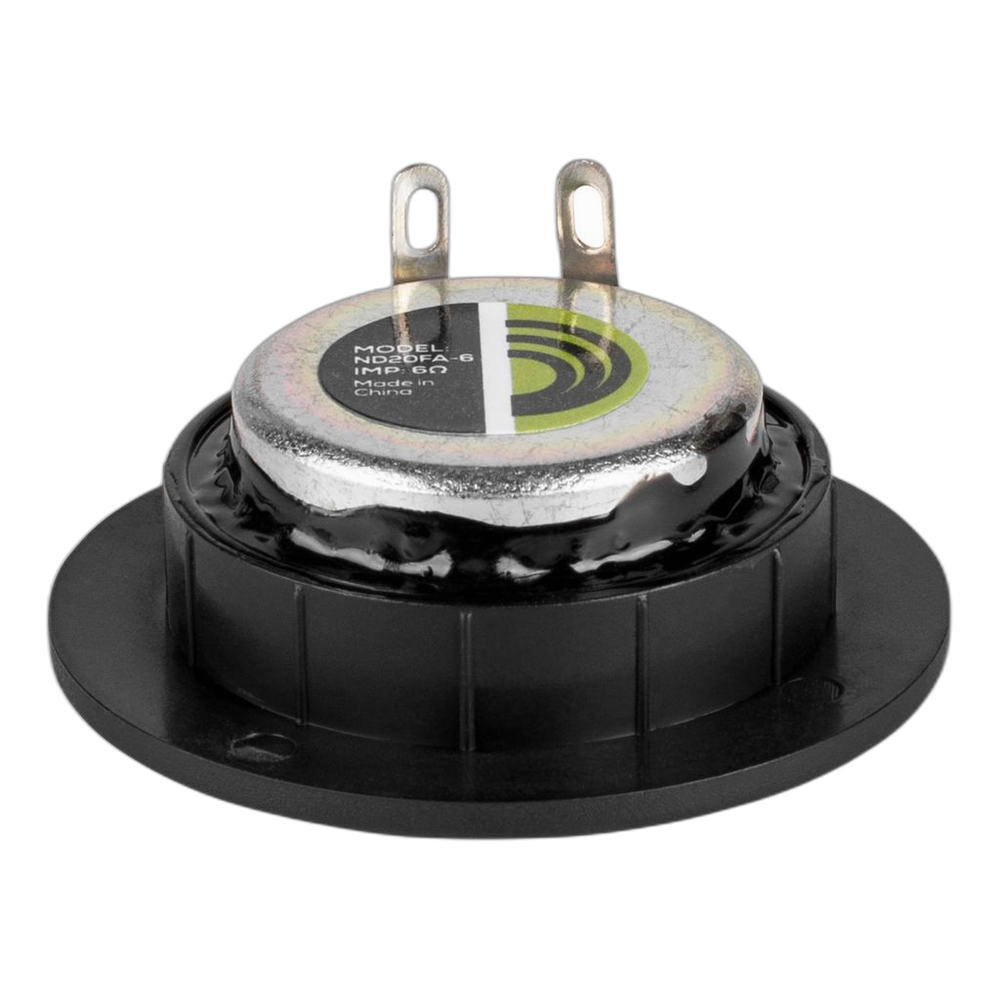

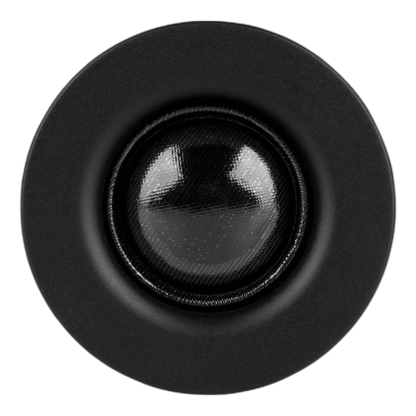

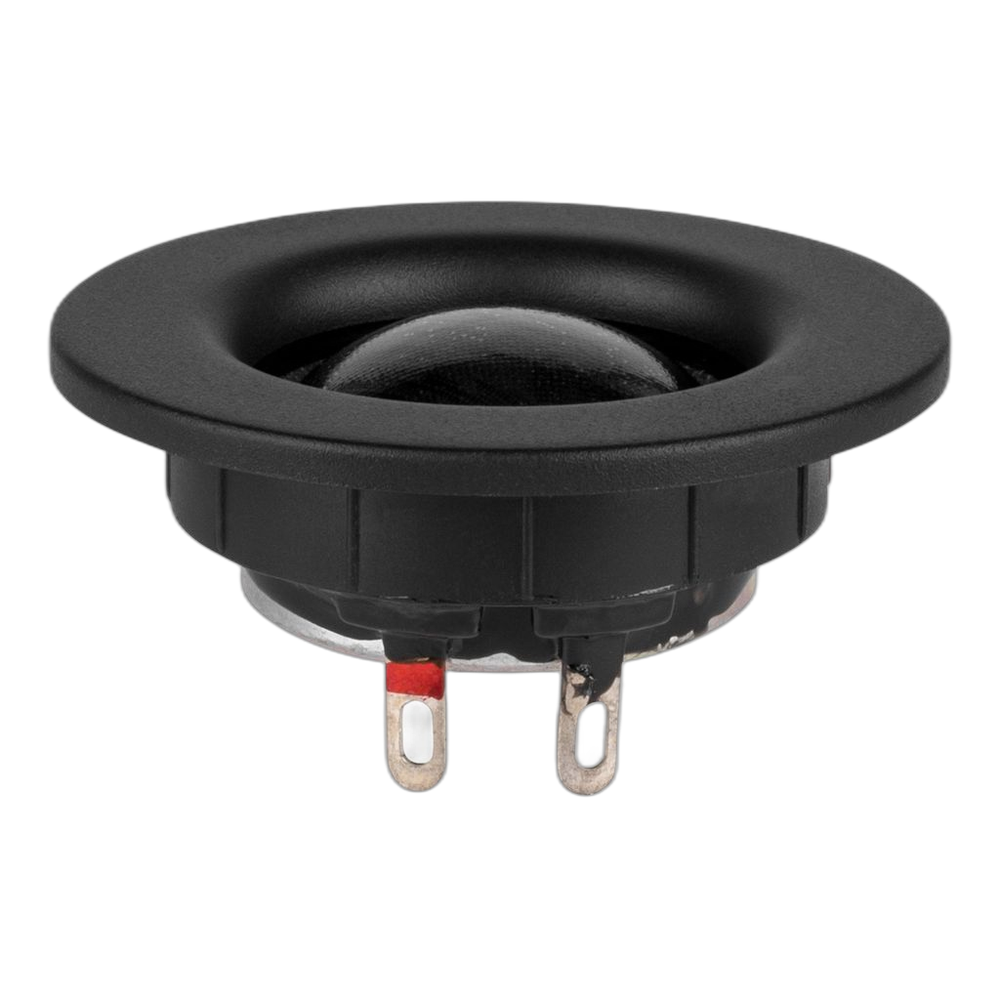

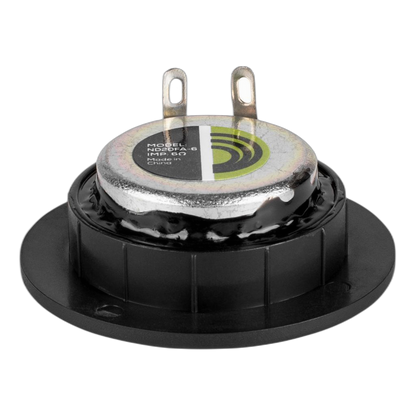

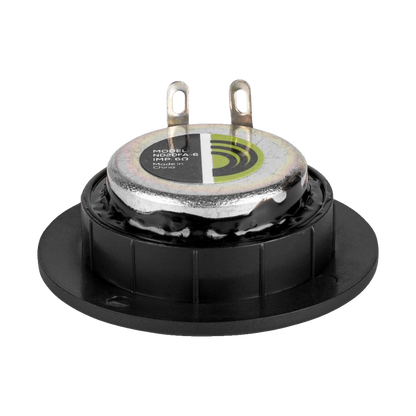

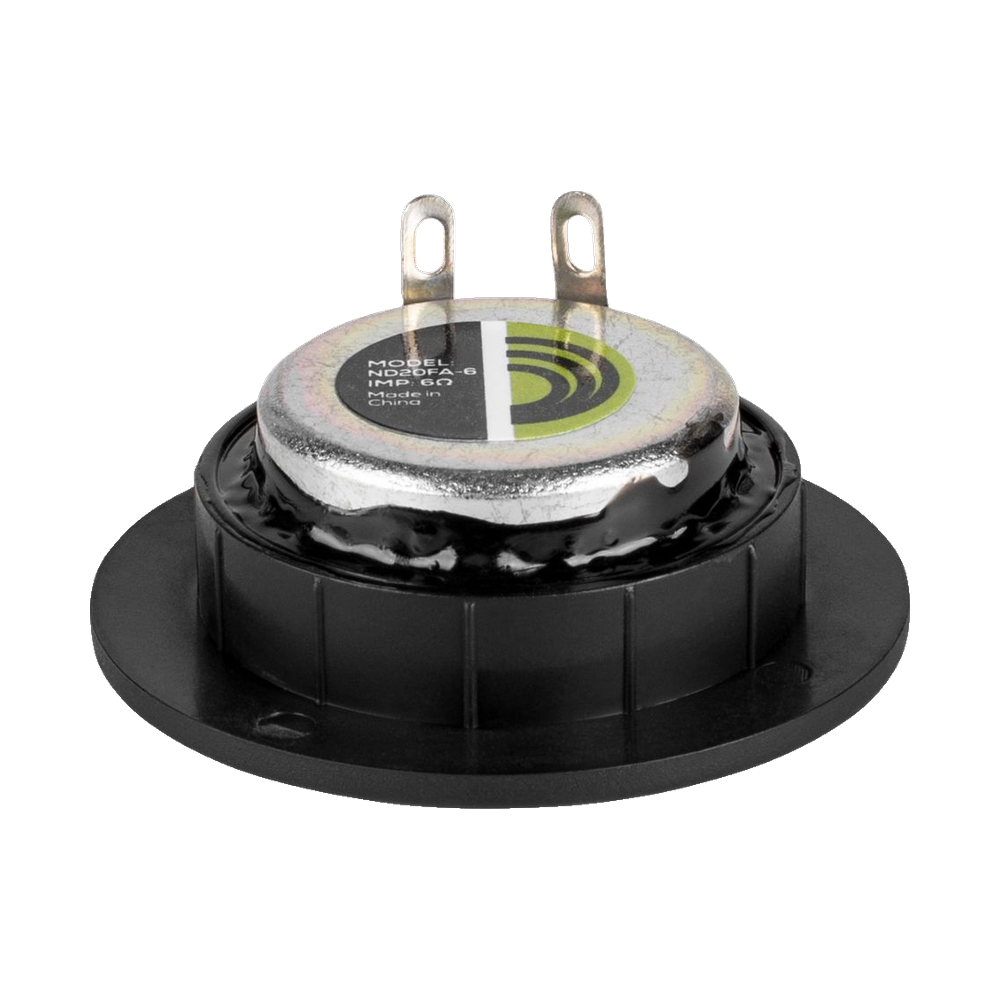

Dayton Audio - ¾" Tweeter Neo - ND20FA-6
Dayton Audio - ¾" Tweeter Neo - ND20FA-6
Regular price
$24.95 AUD
Regular price
Sale price
$24.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
This Dayton Audio versatile soft dome tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it achieves the inter-driver spacing needed to minimise comb filtering out to nearly 20 kHz. In addition, it has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers or use it in an A-pillar in your car as a great inexpensive component tweeter.
Features
- Compact neodymium motors have low stray field
- Ferrofluid enhances power handling and helps damp resonance
- Front-mount pressfit design
- Center-to-center spacing as low as 1-3/4"

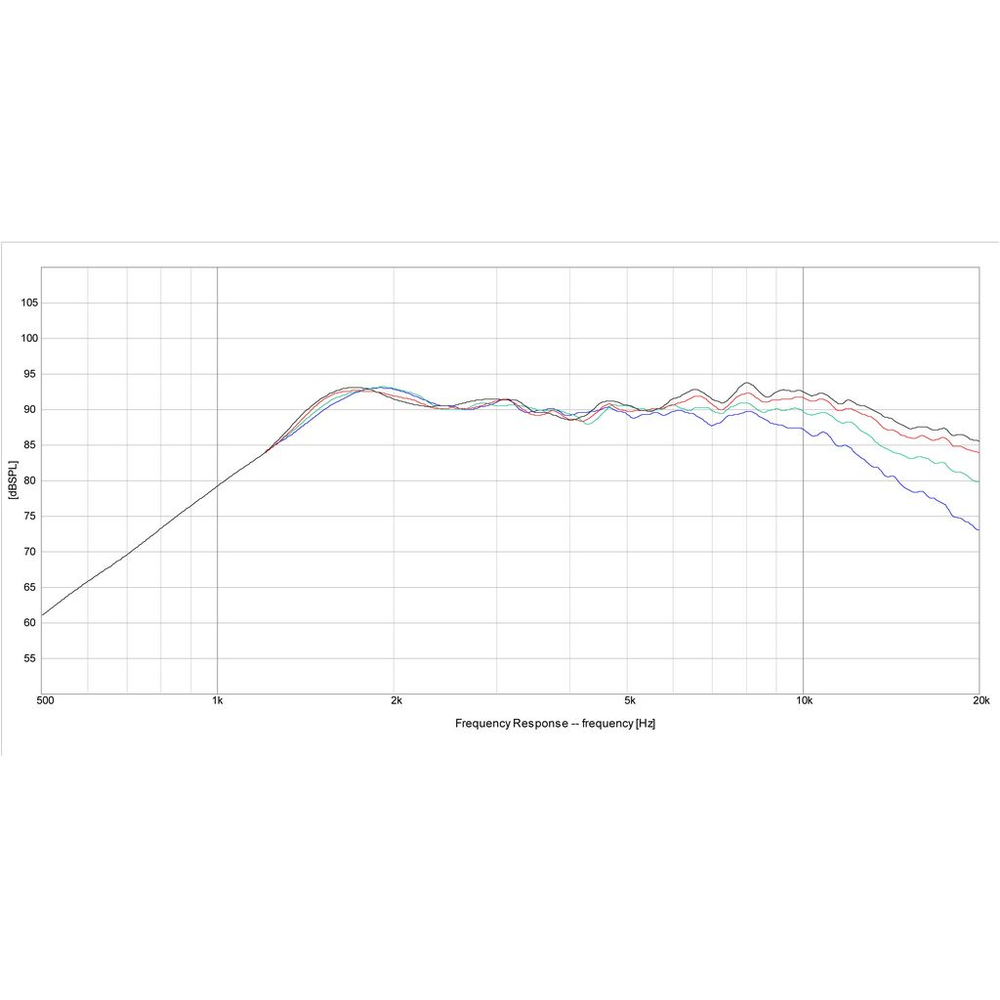

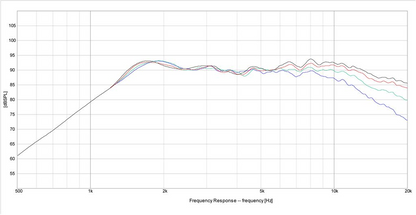

- Extremely flat and extended response
Specifications
| Type | Dome Tweeter |
|---|---|
| Size | 0.75' |
| Power | 15W |
| Coil | 19mmØ |
| Impedance | 6Ω Re 5.2Ω |
| Sens. | 90dB |
| Re | 5.2Ω |
| Qms | 1.5 |
| Qes | 2.88 |
| Qts | 0.99 |
| Vas | - |
| Sd | 2.8cm² |
| Cms | - |
| Fs | 2005Hz |
| Mms | - |
| Zn | 6Ω |
| Le | 0.05mH |

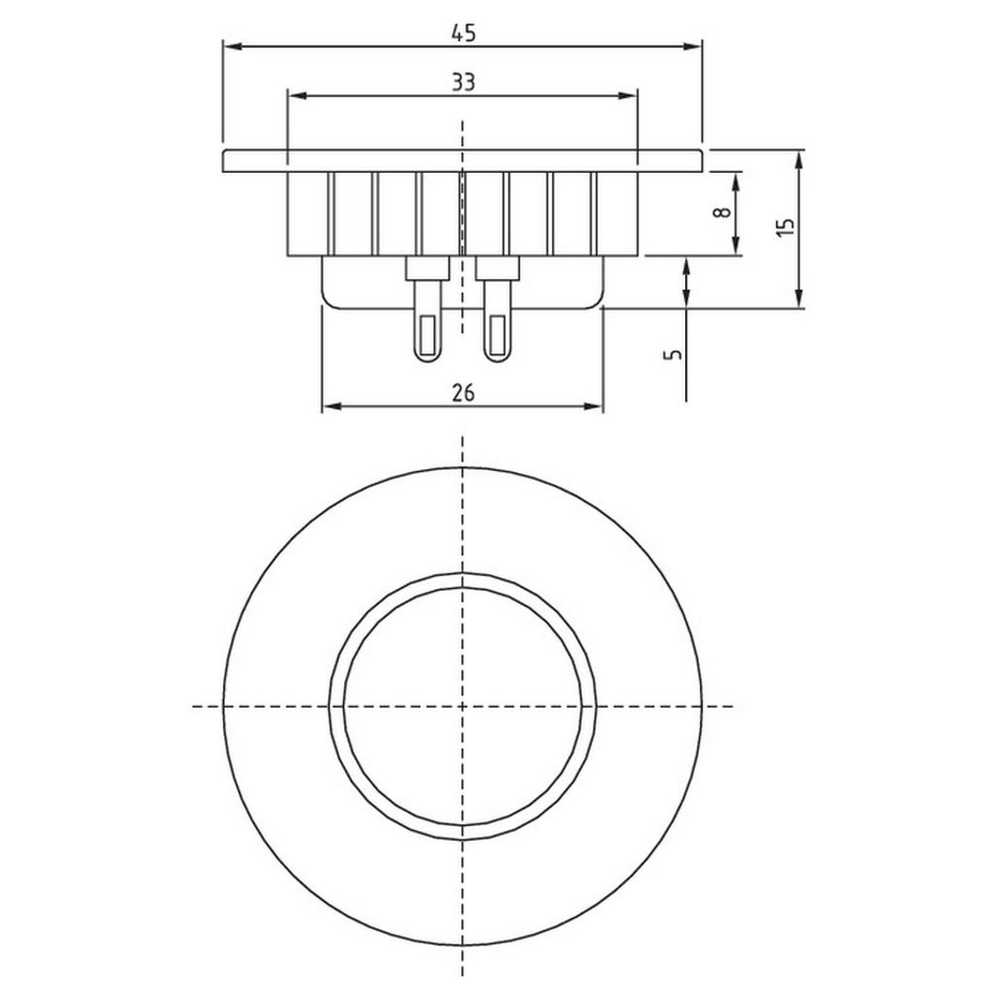

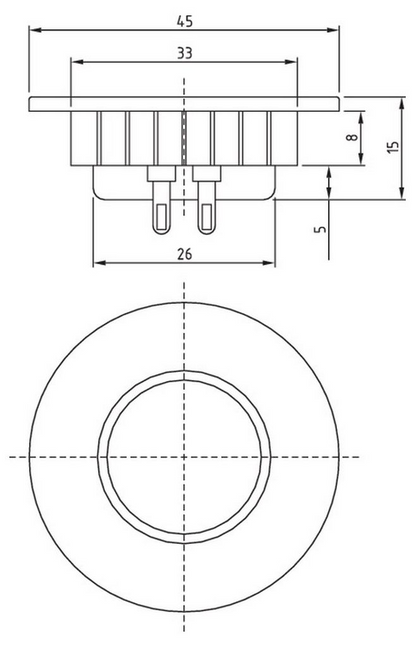

| Diam. | 45mmØ |
| Manufacturer | Dayton Audio |
| Series | ND Series |
| Hole | 33mmØ |
