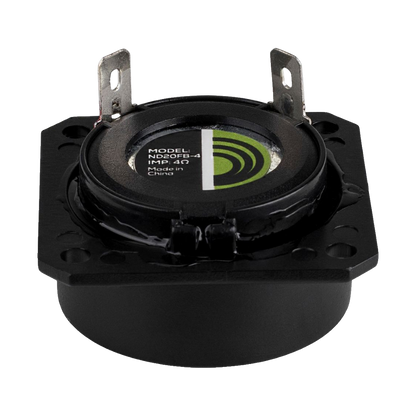

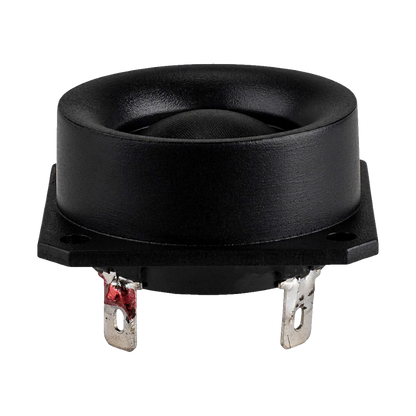

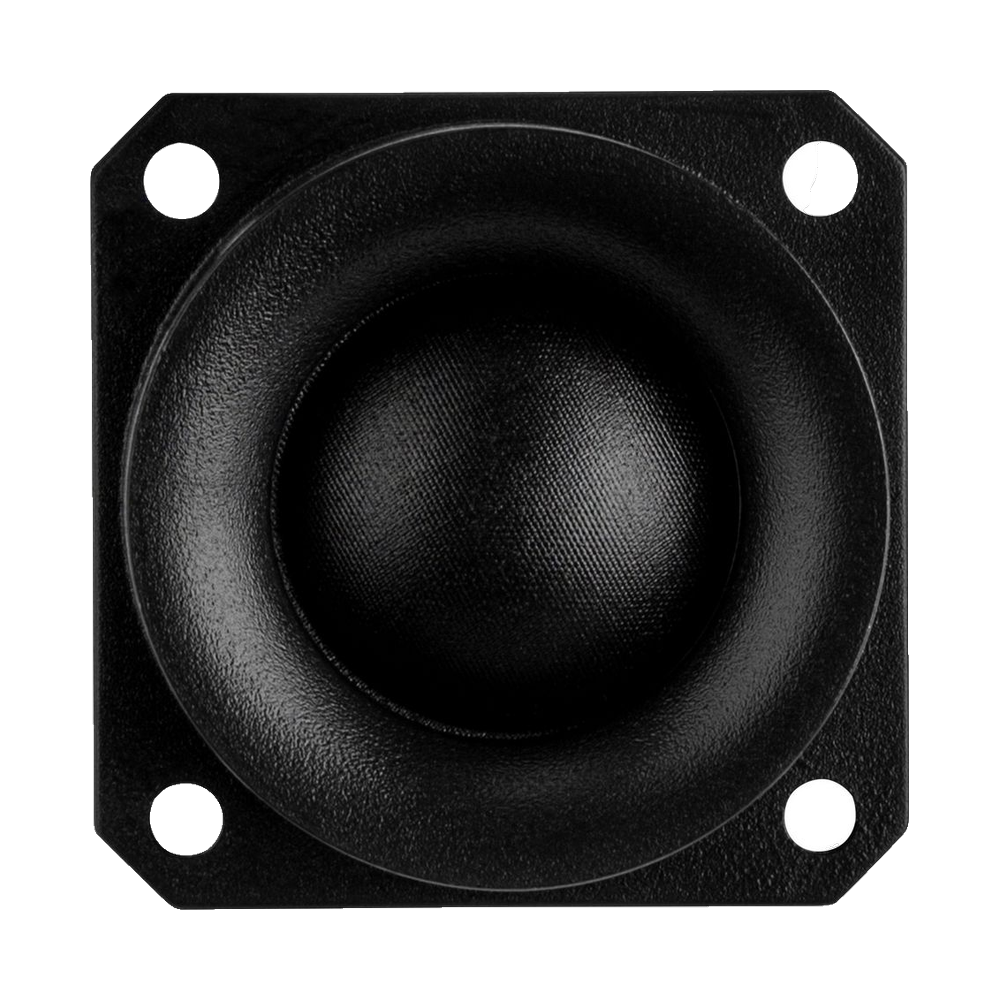

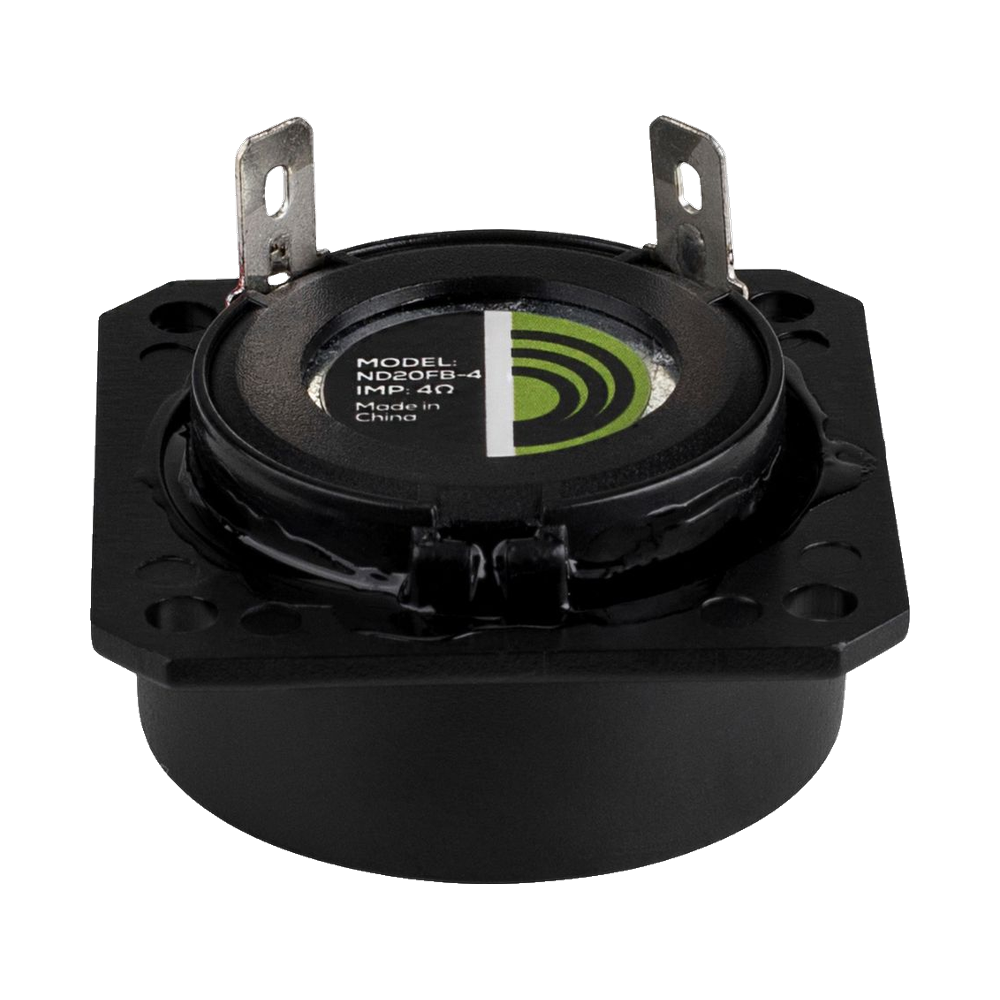

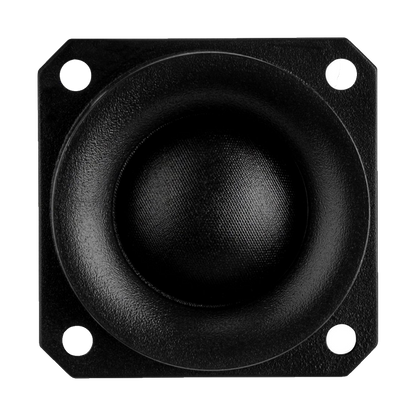

Dayton Audio - ¾" Tweeter Neo - ND20FB-4
Dayton Audio - ¾" Tweeter Neo - ND20FB-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter. Conceived with line array thoughts in mind, it is finally possible to achieve the inter-driver spacing needed to minimise comb filtering out to nearly 20 kHz. But its uses don't stop at line arrays-- it has the sensitivity, smoothness, and power handling to individually do a two-way with most small woofers. Or, use it in an A-pillar in your car as a great inexpensive component tweeter. Give them a try for your next budget or micro speaker-- you will be pleasantly surprised!
Features
- Compact neodymium motors have low stray field
- Ferrofluid enhances power handling and helps damp resonance

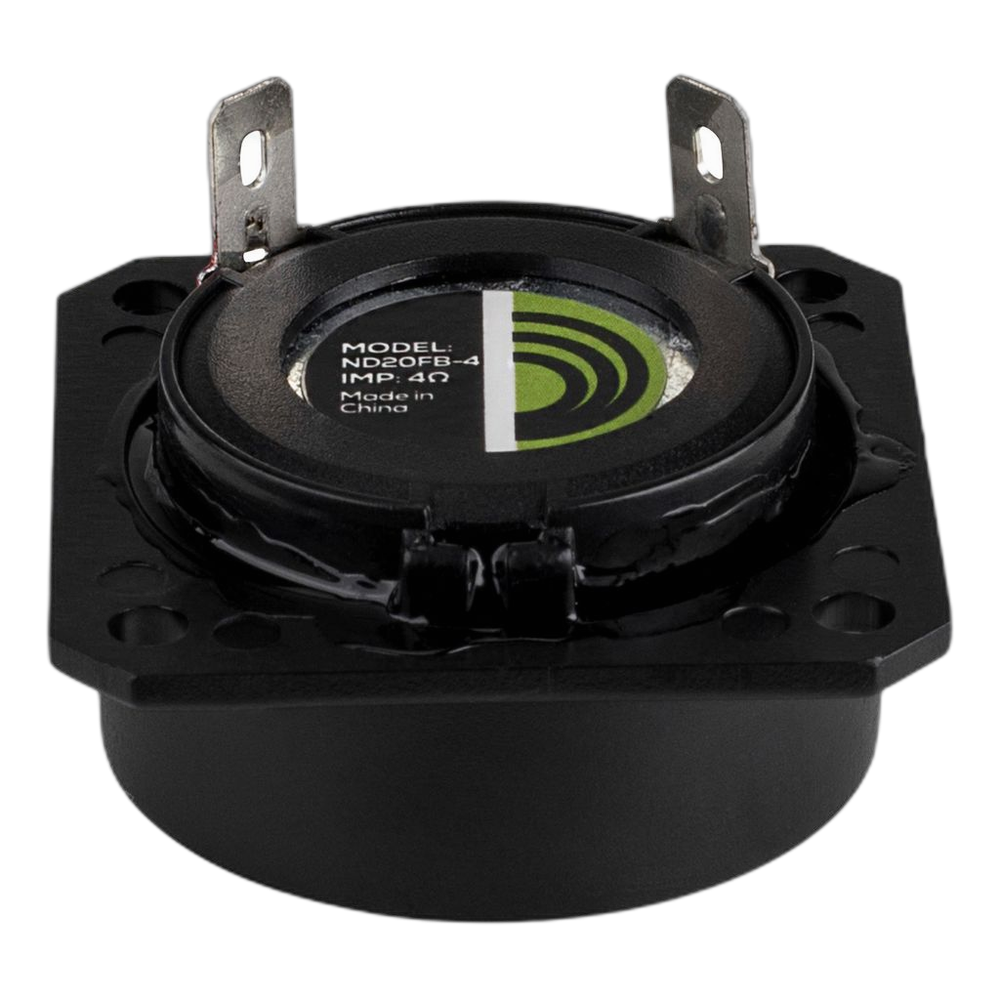

- Rear-mount design minimises housing size
- Centre-to-centre spacing as low as 1-1/2"
- Great top-end air and sparkle
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 90 dB |

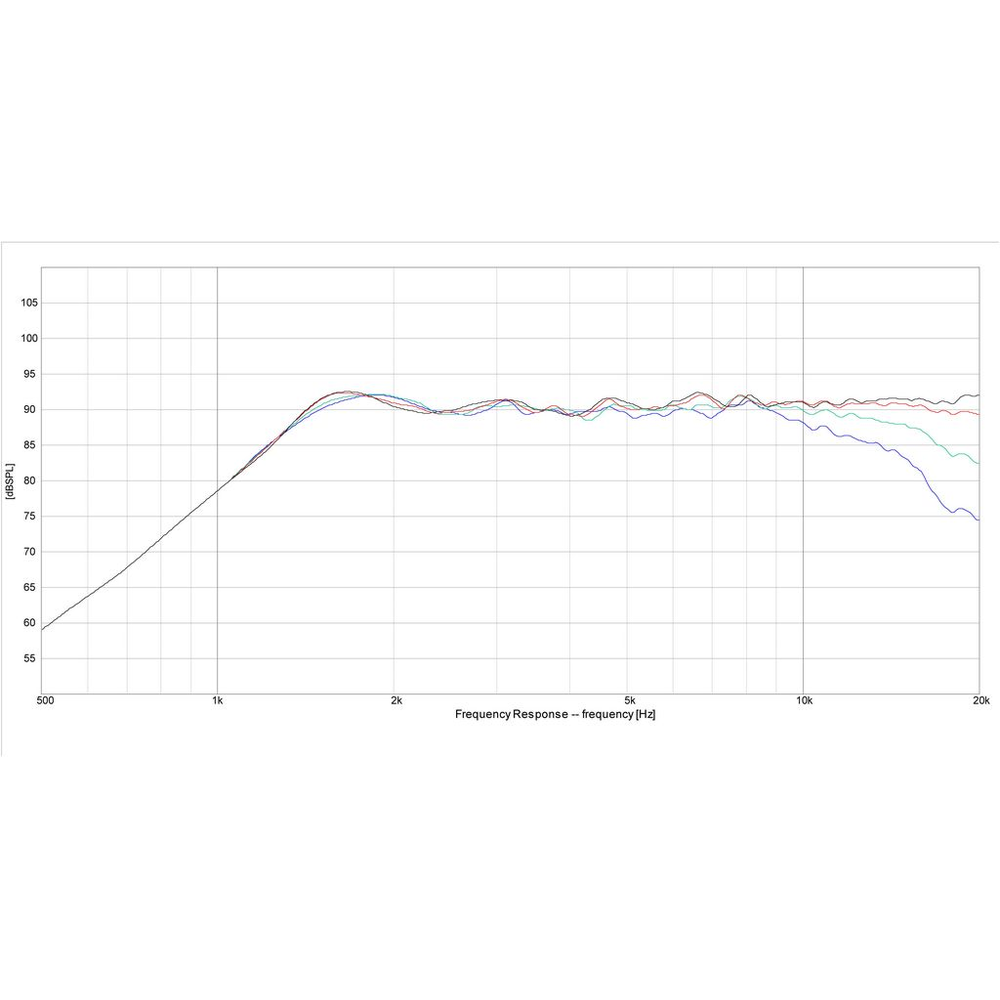

| Frequency range | 3,500 – 25,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 2,072 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.03 mH |
| Mechanical Q (Qms) | 2.08 |
| Electrical Q (Qes) | 3.74 |
| Total Q (Qts) | 1.33 |
| Effective piston area (Sd) | 2.8 cm² |
| Efficiency bandwidth product (EBP) | 554 |
Motor
| Voice coil wire | Copper |
|---|

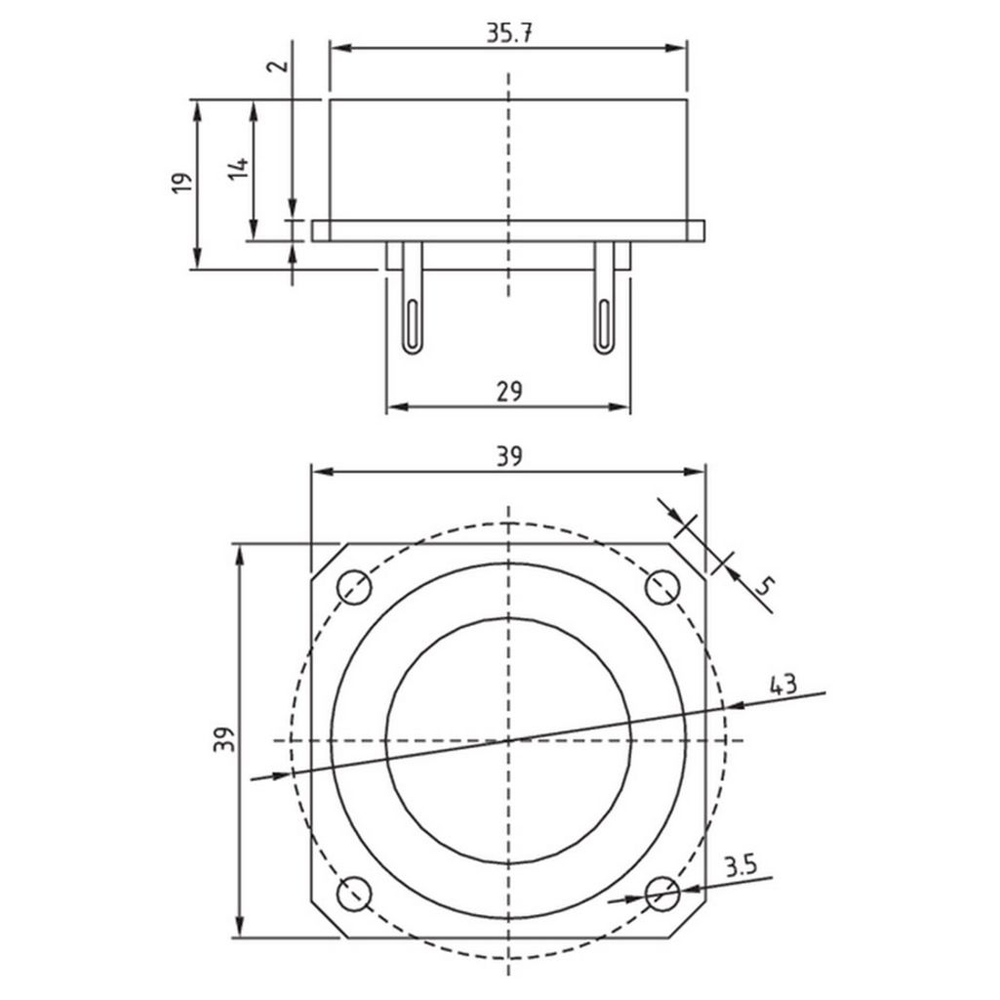

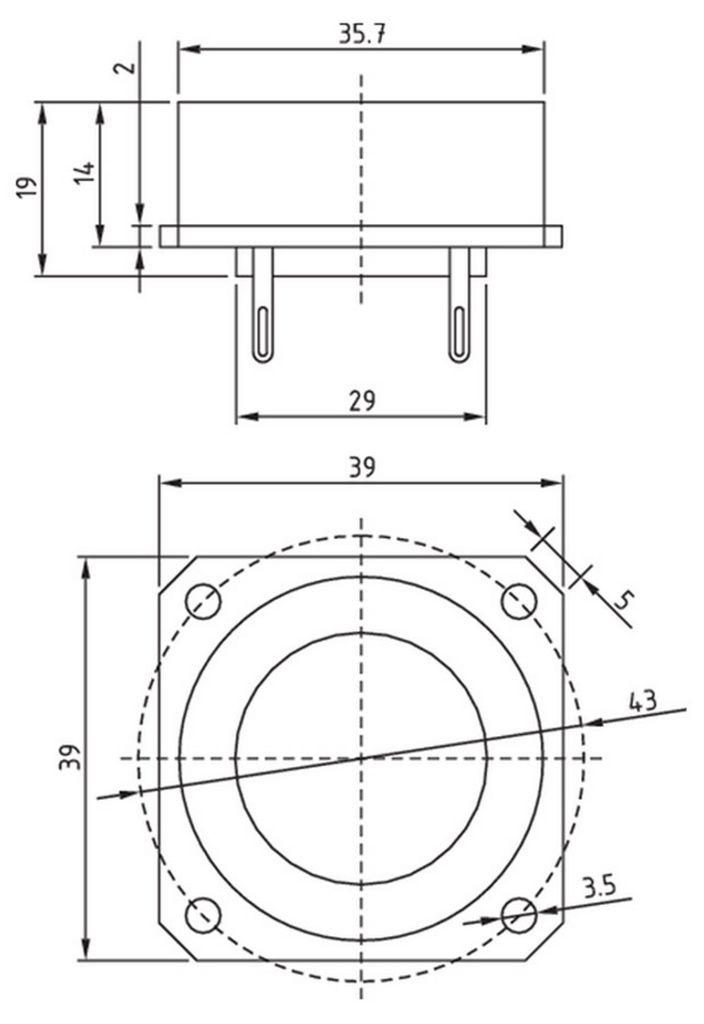

Mounting
| Overall diameter | 39 mm |
|---|---|
| Cutout diameter | 29 mm |
| Mounting depth | 19 mm |
| Voice coil diameter | 19 mm |
| Weight | 0.04536 kg |
| Mounting holes | 4 |
Materials
| Cone | Textile Soft Dome |
|---|---|
| Voice coil former | Aluminium |
| Magnet | Neodymium |
- Sensitivity measured at 1W/1m.
Downloads
- ND20FB-4 Specification Sheet
- ND20FB-4 Data Files
- ND20FB-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: no recess (flange outline not on file); no bolt holes (positions not on file). Check it against your driver before you cut.
