Dayton Audio - ¾" Tweeter Neo - TD20F-4
Dayton Audio - ¾" Tweeter Neo - TD20F-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

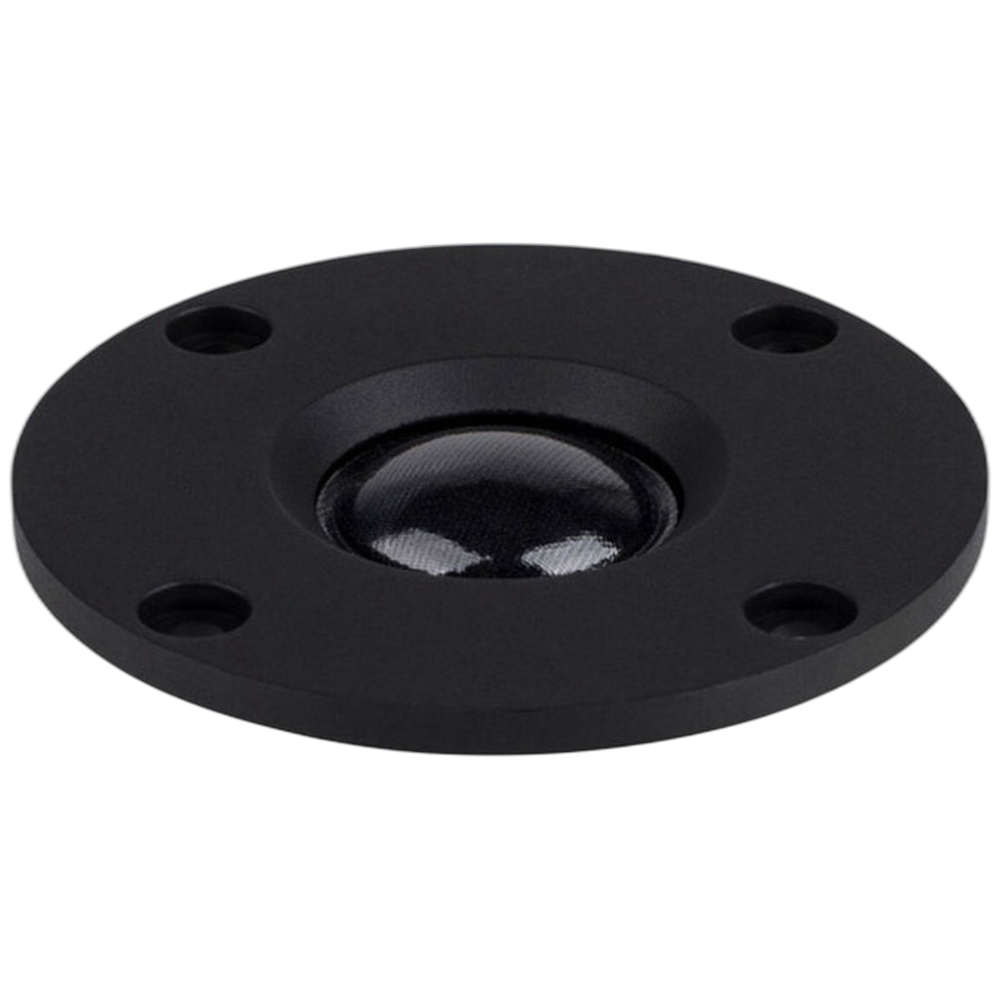

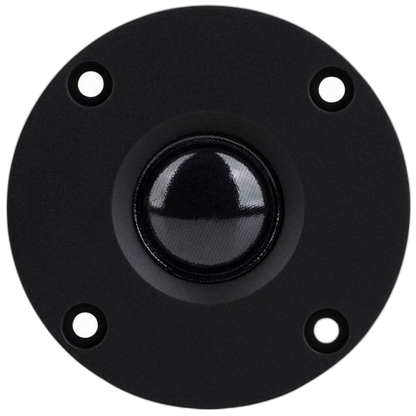

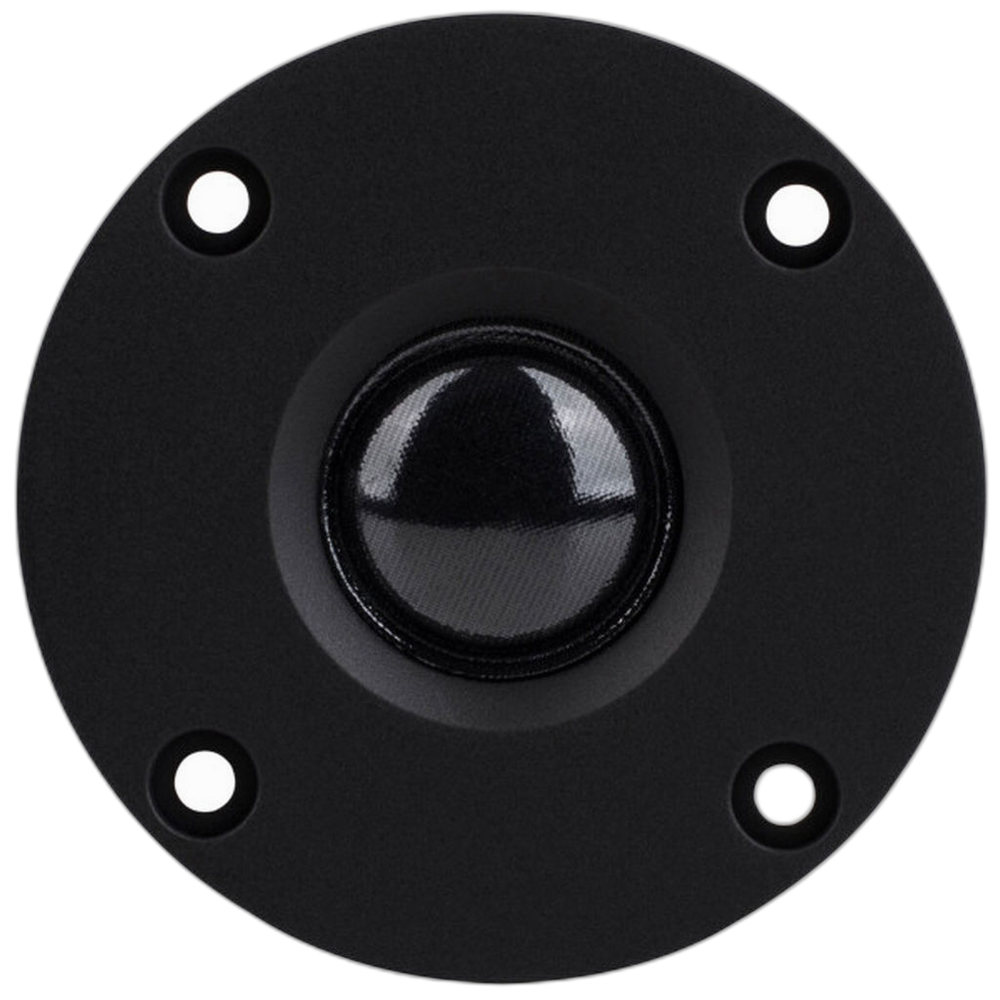

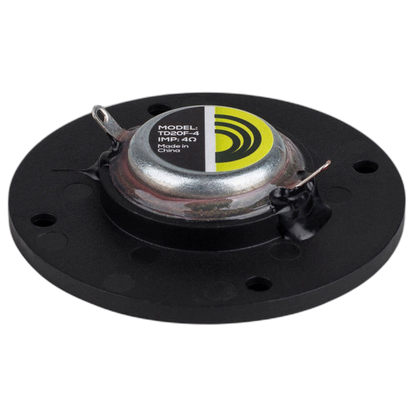

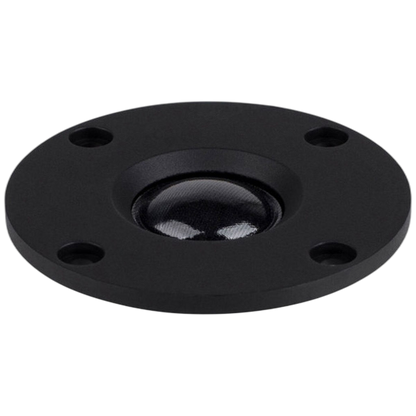

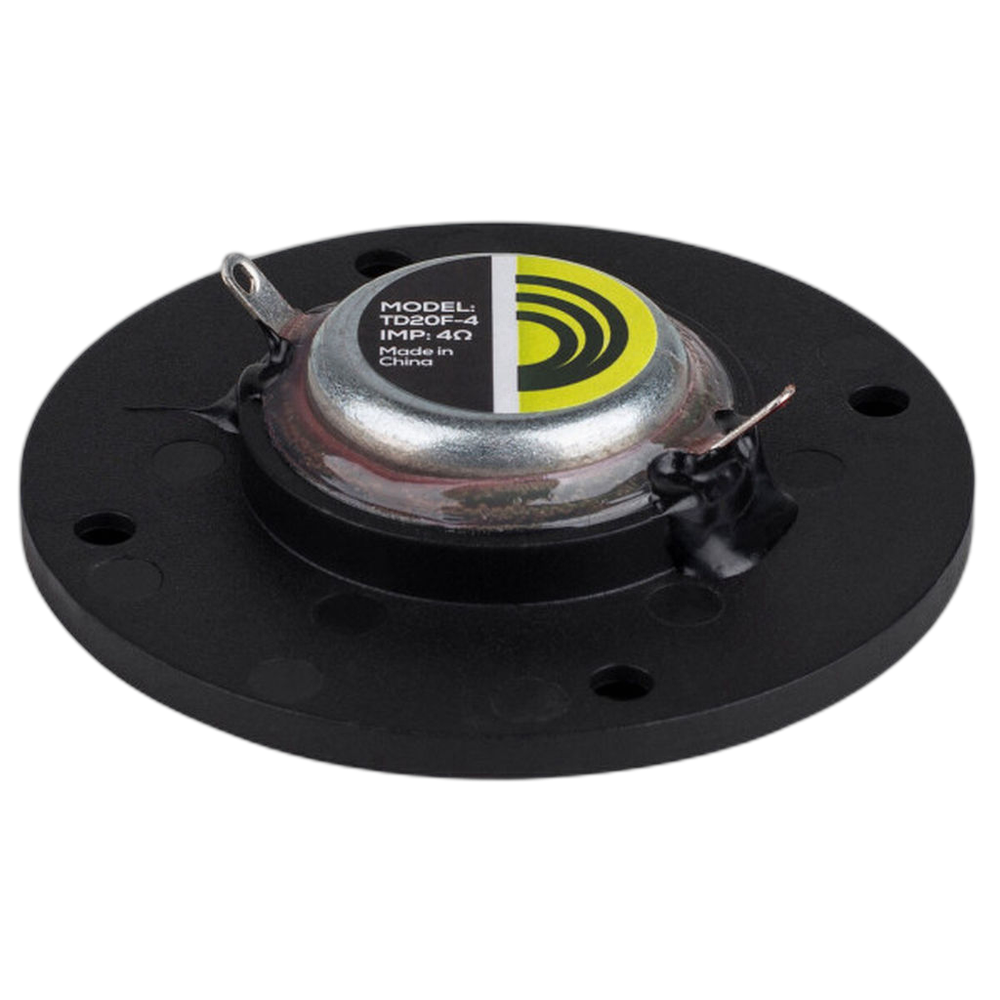

The Dayton Audio TD20F-4 uses a 3/4" silk dome to produce smooth response with excellent dispersion. At only 2-1/2" diameter and just over 1/2" deep, this tweeter is ideal for use in any compact design.
Dayton Audio's TD20F-4 3/4" silk dome tweeter incorporates an optimised diaphragm that combines low mass, superb damping, and a carefully calculated dome profile offering an exceptionally flat frequency response. This along with the low distortion neodymium motor system ensure that high frequency content is reproduced as transparently as possible.
Features
- 3/4" Silk dome provides articulate yet non-fatiguing high frequency reproduction

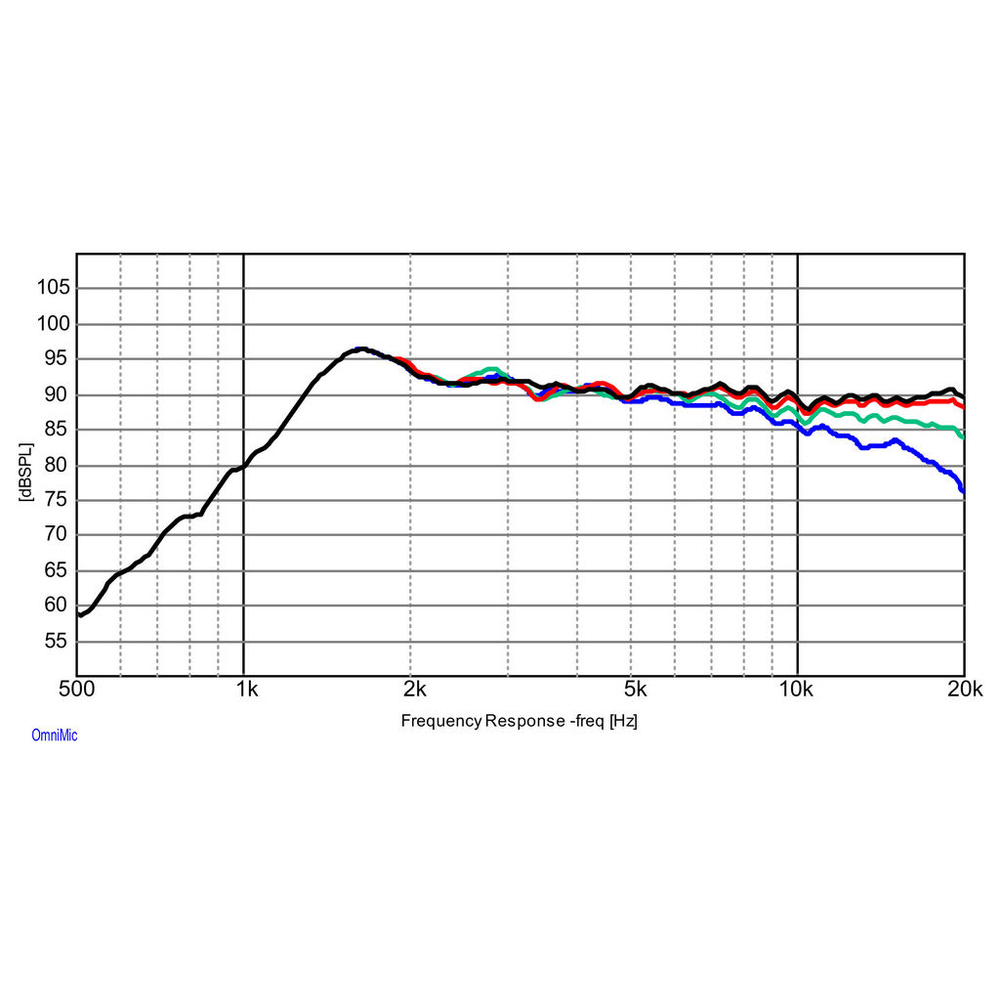

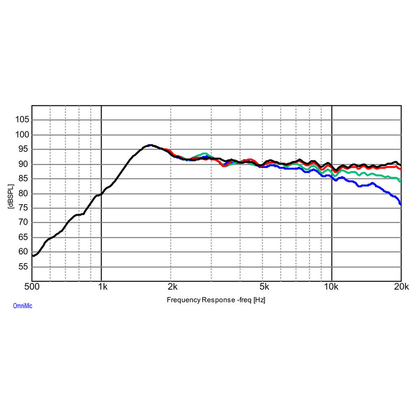

- Exceptionally flat and smooth frequency response
- Ferrofluid for improved power handling and damping
- Neodymium magnet low-distortion motor system
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 4Ω |
| Series | Dome Tweeter |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 90 dB |
| Frequency range | 3,000 – 20,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 1,696 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Voice coil inductance (Le) | 0.03 mH |
| Mechanical Q (Qms) | 1.9 |
| Electrical Q (Qes) | 4.99 |
| Total Q (Qts) | 1.38 |
| Effective piston area (Sd) | 31.4 cm² |
| Efficiency bandwidth product (EBP) | 339.9 |
Motor
| Voice coil wire | CCAW |
|---|
Mounting
| Overall diameter | 65 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 36.0 mm |
| Mounting depth | 14.99 mm |
| Bolt circle diameter | 55 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 19 mm |
Materials
| Cone | Soft Dome |
|---|---|
| Voice coil former | Aluminium |
| Basket | Plastic |
| Magnet | Neodymium |
- Sensitivity measured at 2.83V/1m.
Downloads
- TD20F-4 Specification Sheet
- TD20F-4 3D File

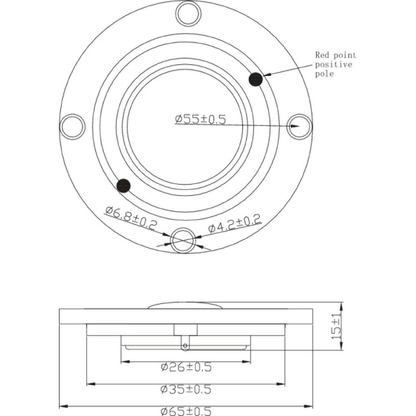

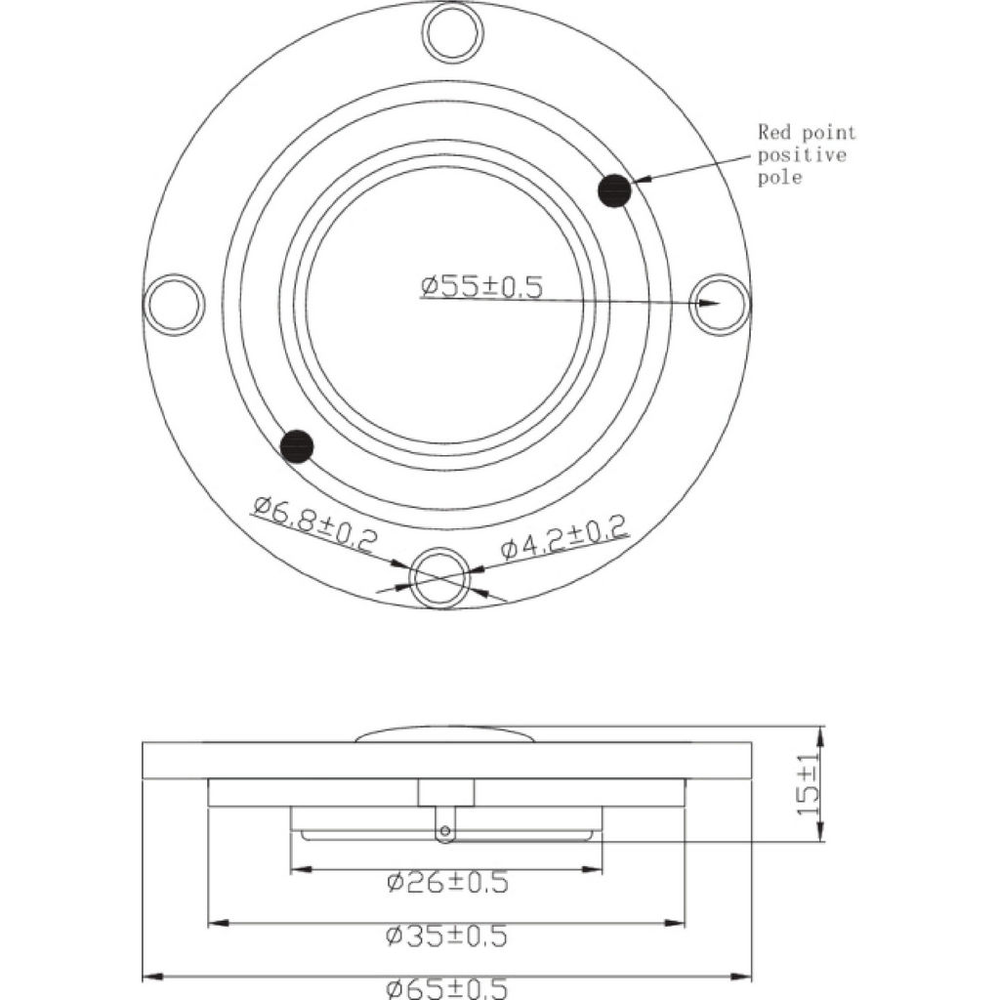

- TD20F-4 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: flange outline, bolt holes. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
