Dayton Audio - UMII18 Sealed Speaker Kit
Dayton Audio - UMII18 Sealed Speaker Kit
Regular price
$689.95 AUD
Regular price
Sale price
$689.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description:

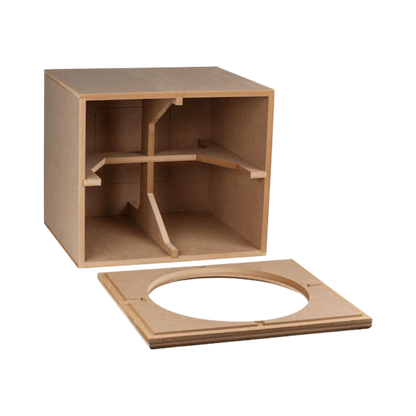

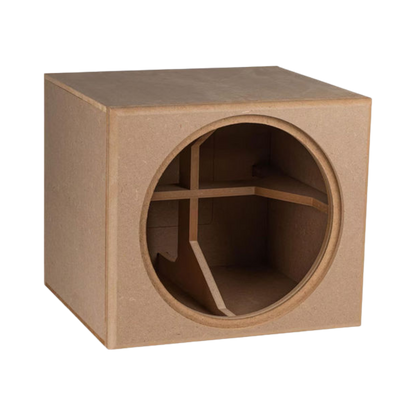

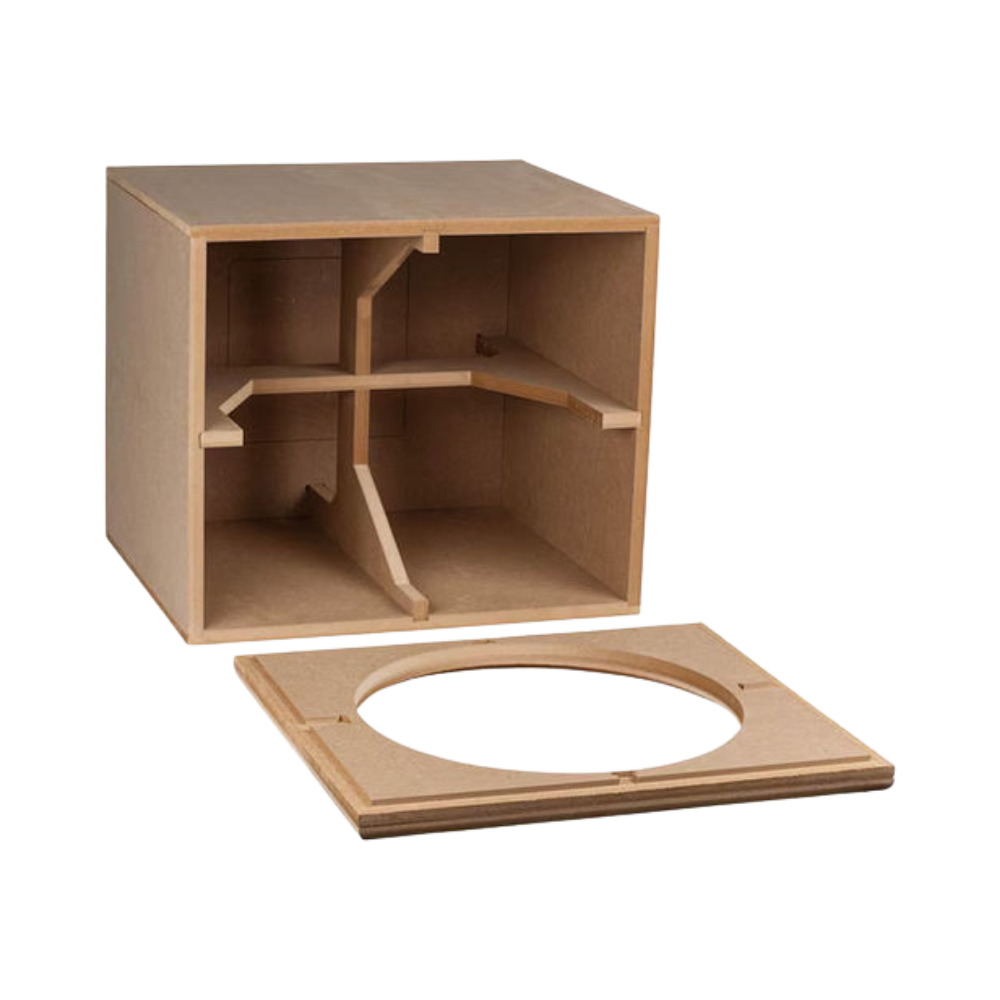

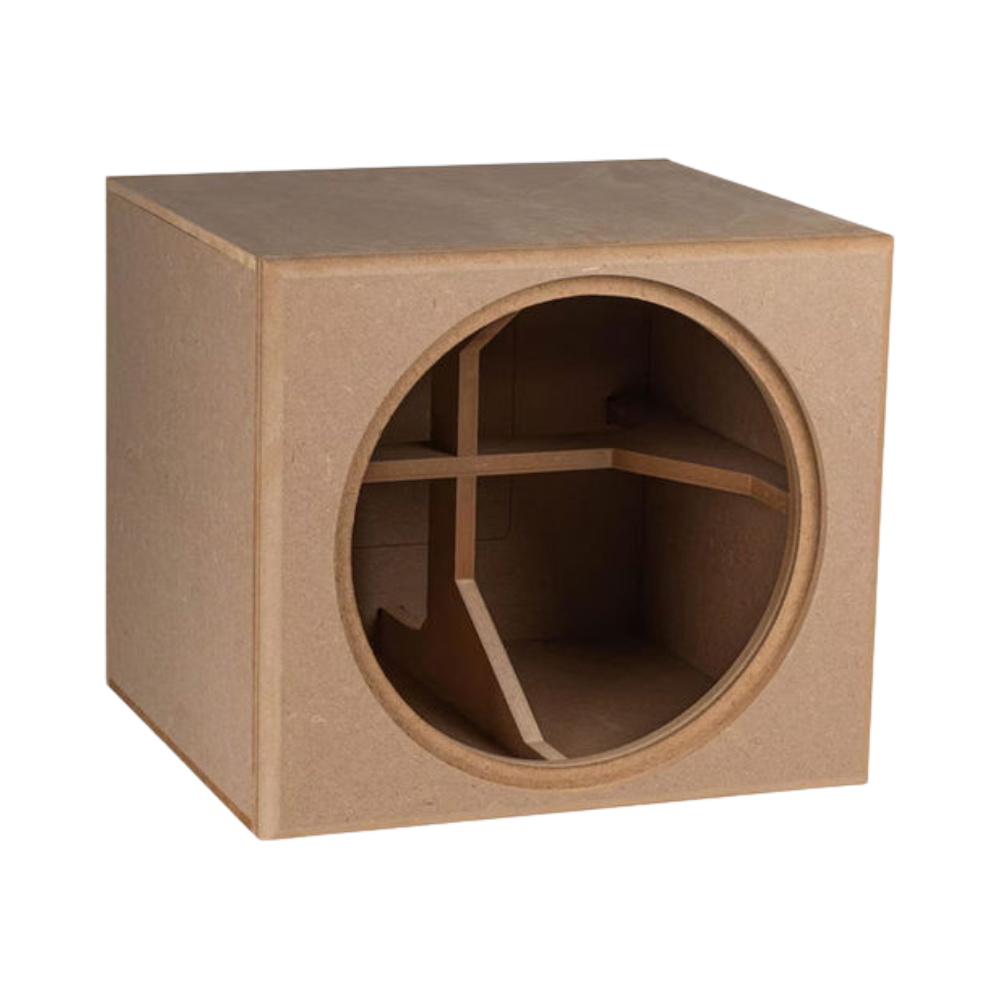

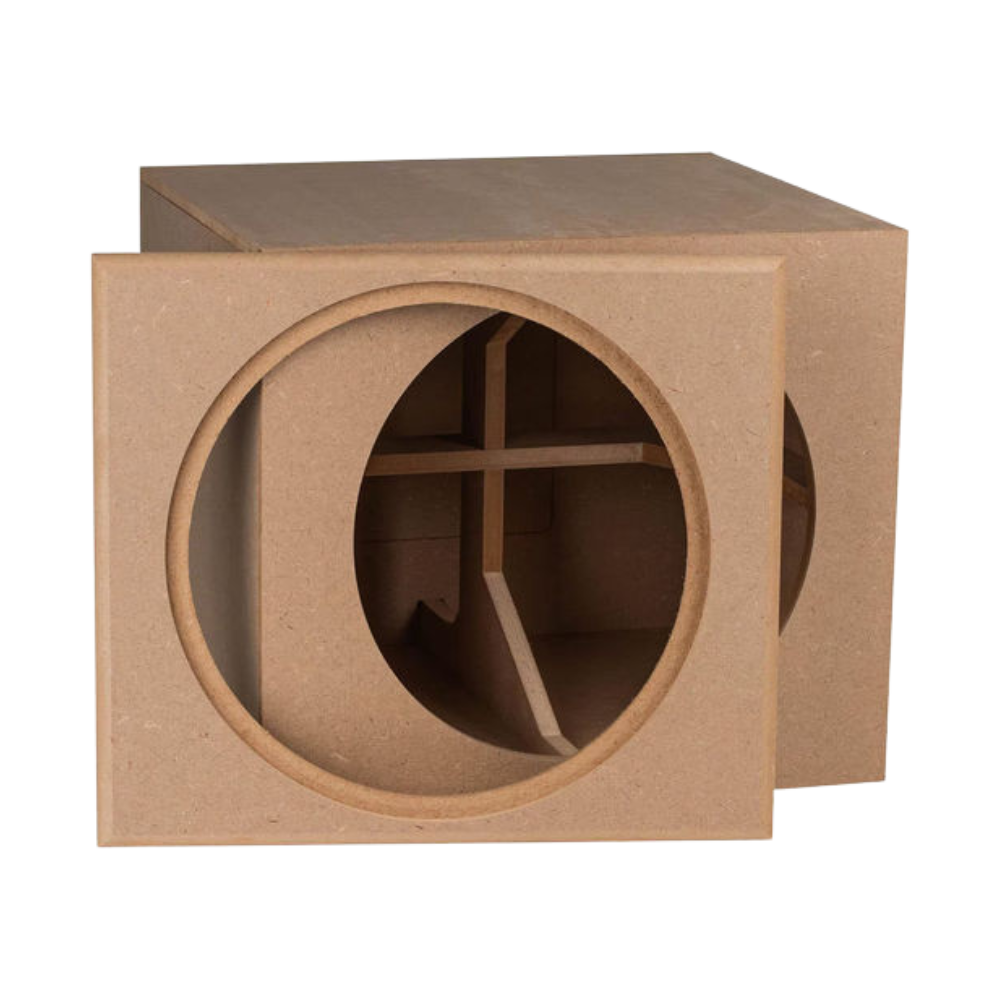

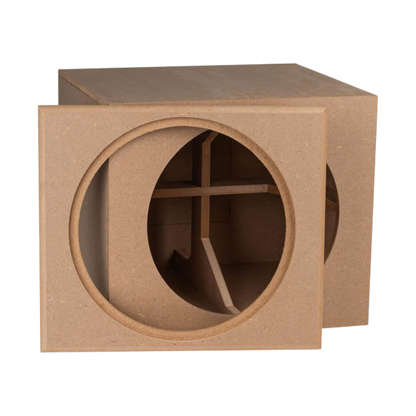

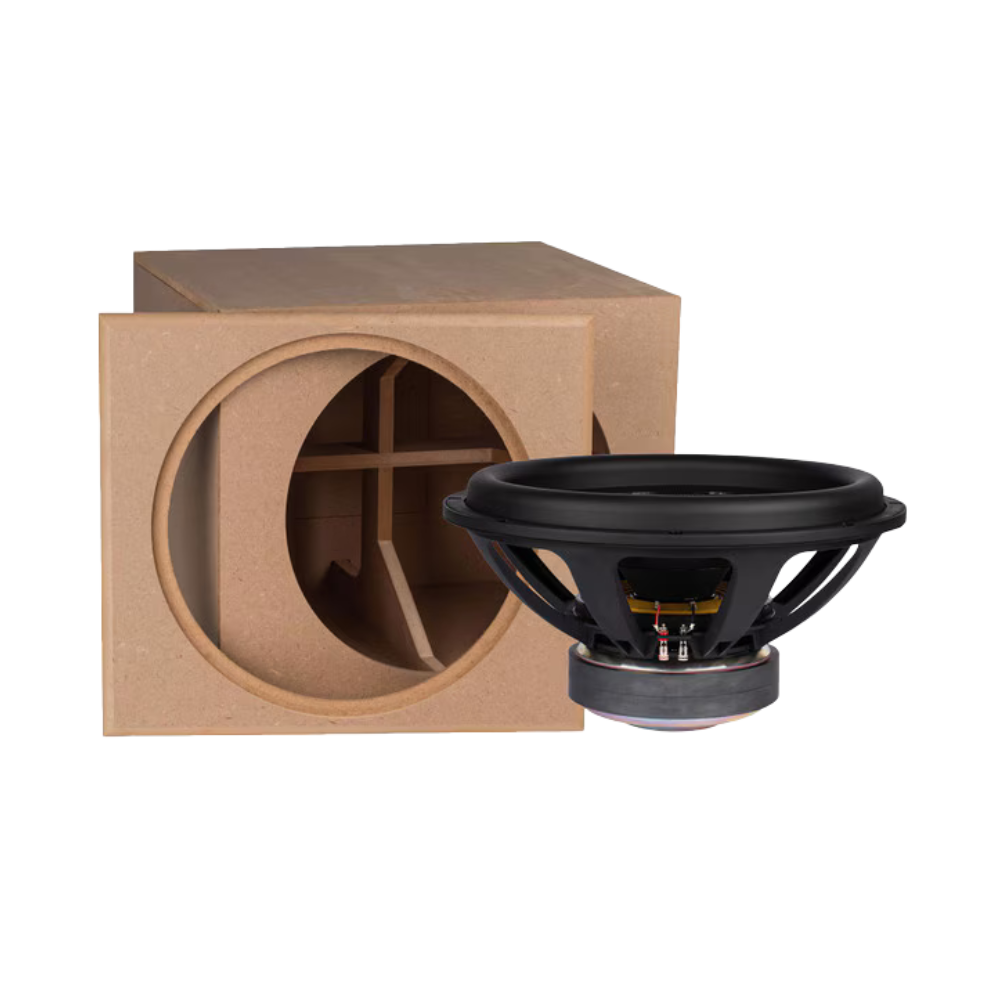

Experience the true power of bass with the Ultimax II 18” subwoofer kit. This kit makes it effortless to create a low-distortion subwoofer that delivers breathtaking output and incredible low-frequency extension. Constructed with rugged 3/4” (19mm) MDF, the innovative knock-down enclosure features an interlocking bracing system and a robust 2-layer 1-1/2” (38mm) baffle, ensuring durability and performance. Whether you’re designing a grand home theater or a high-output music setup, this kit is your ultimate solution for achieving the true bass experience you desire.

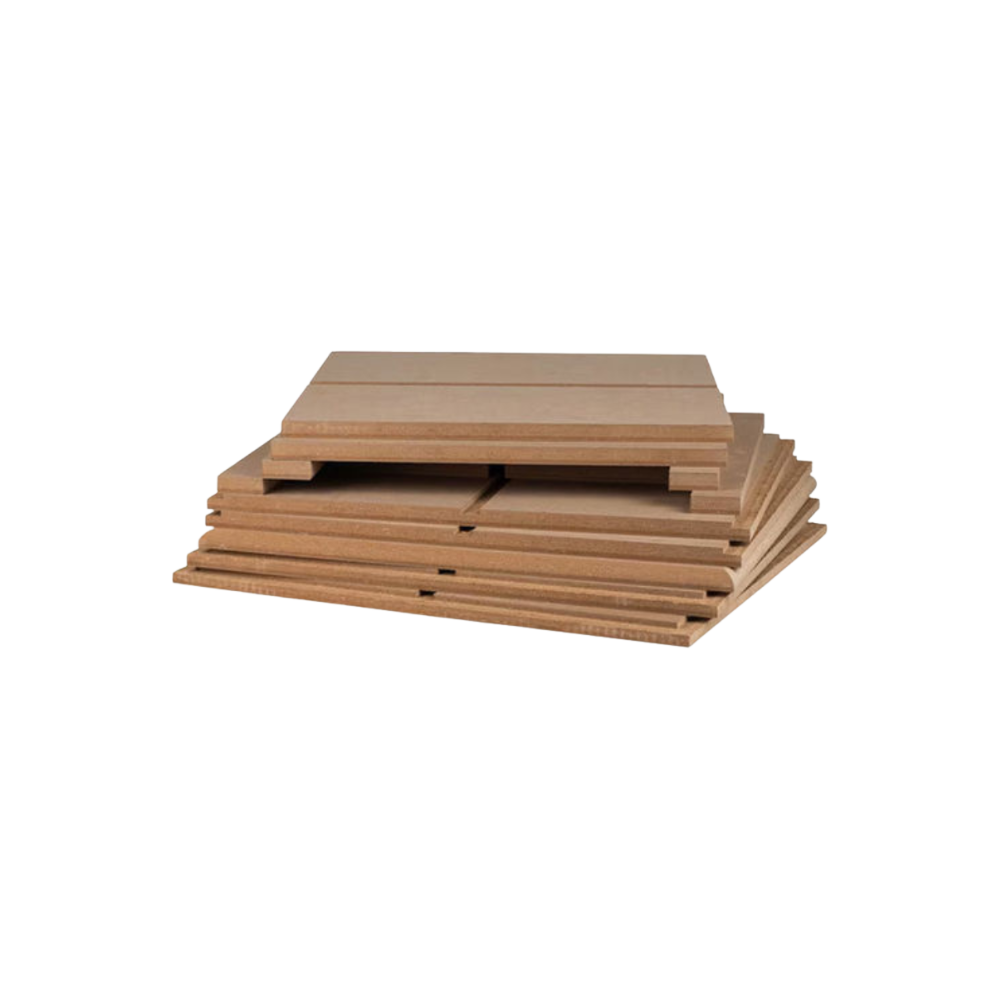

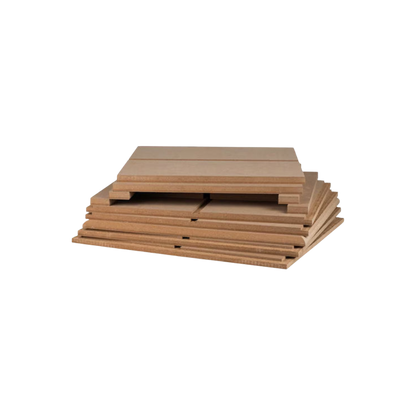

This kit is provided in a flat pack and requires assembly. The customer must also make cut outs for their chosen amplifier or binding posts. Stuffing is not included but can be sourced from Spotlight for about $25 for 1kg.
Features:
- Made in the USA by Dayton Audio
- Designed specifically for the Dayton Audio UMII18-22 Subwoofer Driver
- Made from 3/4" (19mm) MDF with double stacked baffle
- Dadoes and rabbets keep panels aligned for easy assembly
- Bass extension, low distortion, and flat response makes this a great choice for music and home theatre systems
- Gives you the opportunity to finish the enclosure to match almost any décor
Options:
- Kit Only: Includes the knockdown cabinet only
- Add Driver: Adds the Dayton Audio UMII18-22 driver this kit is designed for
-
Add Amplifier: Adds the options for the following amplifiers
- NB Audio NPA1200-8 Plate Amplifier with DSP which includes our NPA-BB2 Backing Box
- Dayton Audio SPA1000 Plate Amplifier
- Dayton Audio SA1000 External Amplifier
- Add Measurement Mic: Adds the Dayton Audio UMM6 Microphone which can be used to measure the subwoofer response in room.
- Preload DSP Settings: We preload the recommended DSP settings to maximise performance.
The NB Audio NPA1200-8 option adds full Digital Signal Processing (DSP) to not only maximise the performance of the driver in the enclosure but allows further optimisation to suit your room*.
*Requires a measurement mic combined with measurement software. Room EQ Wizard (REW) can be downloaded and used for free.
Performance:
- Frequency Extension (-3db):
- NPA1200-8 - 29hz*
- SPA1000 - 34hz
- SPL at 1000w: 119db
*With recommended DSP settings.
Specifications:
- Gross Enclosure Volume: 113.2 litres
- Net Enclosure Volume (less bracing and woofer): 104.8 litres
- External dimensions: 585mm (H) x 508mm (W) x 527mm (D)
- Weight (without driver): 28.3kg
