Dayton Audio - 1000W Plate Amplifier - SPA1000
Dayton Audio - 1000W Plate Amplifier - SPA1000
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description:
The Dayton Audio subwoofer amplifier provides nearly a kilowatt of clean, reliable audio power. Just what you need to get big sound out of large, low-efficiency subwoofer speaker systems. As used in TIGA subwoofer kit.
The Dayton Audio SPA1000 is one of the most technologically advanced subwoofer amplifiers on the market today! The Dayton Audio SPA1000 subwoofer amplifier is based on a state-of-the-art Class-G circuit topology that combines the proven high power, high fidelity characteristics of a Class-AB amplifier with a patented tracking down converter power supply to achieve an operating efficiency up to 86%. You get the efficiency of a Class-D amplifier without compromising audio quality and reliability. The Class-AB output stage provides the clean and low-distortion sound that audiophiles demand, without any of the instability problems that plague other high-efficiency amplifier designs.
This American-designed and engineered amplifier uses patented circuitry that continuously tracks the input signal to modulate or control the voltage available to the output stage. This "tracking" capability delivers the exact amount of power based on demand instead of constantly keeping it in reserve, so the output stage only draws the amount of power that is required at any given time. Less energy is wasted as heat, and more power is available for the subwoofer driver. With its enhanced thermal management, the SPA1000 is an upgrade over previous models—making it a nearly bulletproof amplifier choice for today's demanding HT audio and music playback applications.
Features:
- High power Class-AB output stage for clean, controlled output
- Patented tracking down-converter power supply for high efficiency
- Toroidal power supply transformer for low noise and fast audio
- Low frequency parametric EQ allows you to tune the sub to a room
- Advanced soft clip circuitry improves headroom and protects woofers
- Patented OTC™ (Optimized Thermal Circuit) monitors heat levels
- Hercules heat sinks dissipate and control heat for extreme reliability

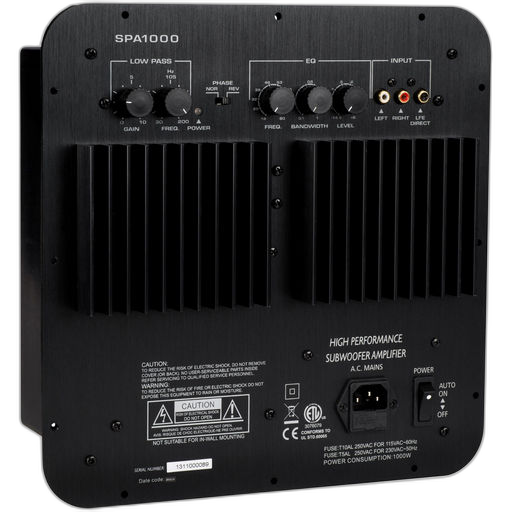

- 300x300mm plate with 255x255mm by 133mm deep sealed enclosure back
Specifications:
- 950 watts into 4 ohms (0.92% THD, one-third power duty cycle)
- 497 watts into 8 ohms (0.92% THD, one-third power duty cycle)
- Signal to noise ratio: 98 dB (A-weighted)
- Weight: 9.75kg
Specifications
Specifications
Power output
| Into 4 Ω | 950 W |
|---|---|
| Into 8 Ω | 497 W |
| Minimum load | 4 Ω (assumed: Dayton Audio doesn't state one) |
| Amplifier channels | 1 |
| Amplifier class | AB |

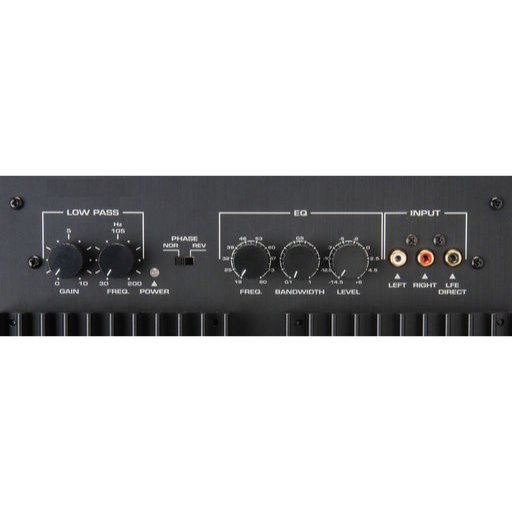

Controls and processing
| Low-pass filter | 30 – 200 Hz |
|---|---|
| Phase | 0° or 180° (switch) |
| Parametric EQ | 1 band: 18–80 Hz, Q 0.1–1, −14.5 to +6 dB |
Inputs and outputs
| Inputs | RCA line in, L/R (summed to mono); RCA LFE in (bypasses the low-pass) |
|---|
Size and mounting
| Plate (W × H) | 303.2 × 303.2 mm |
|---|---|
| Overall depth | 133.3 mm |
| Cutout (W × H) | 254 × 254 mm |
| Back | Sealed |
| Weight | 9.75 kg |
| Clearance | Keep 51 mm (2 in) clear of the plate and vents |
Power supply
| Mains | 230–240 V AC |
|---|---|
| Standby power | 18.4 W at 230 V |
Performance
| THD at rated power | 0.92 % |
|---|---|
| Signal-to-noise ratio (A-weighted) | 98 dB |
| Input impedance | 12 kΩ |
| Efficiency | 86 % |
| Frequency response | 30 – 200 Hz |
- Power as Dayton Audio rates it: at 0.92% THD, based on a one-third power duty cycle.
Some figures here aren't checked against Dayton Audio's datasheet yet. See which
