HiVi - 3" Full Range Driver - B3N

HiVi - 3" Full Range Driver - B3N

$33.95 AUD
$33.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

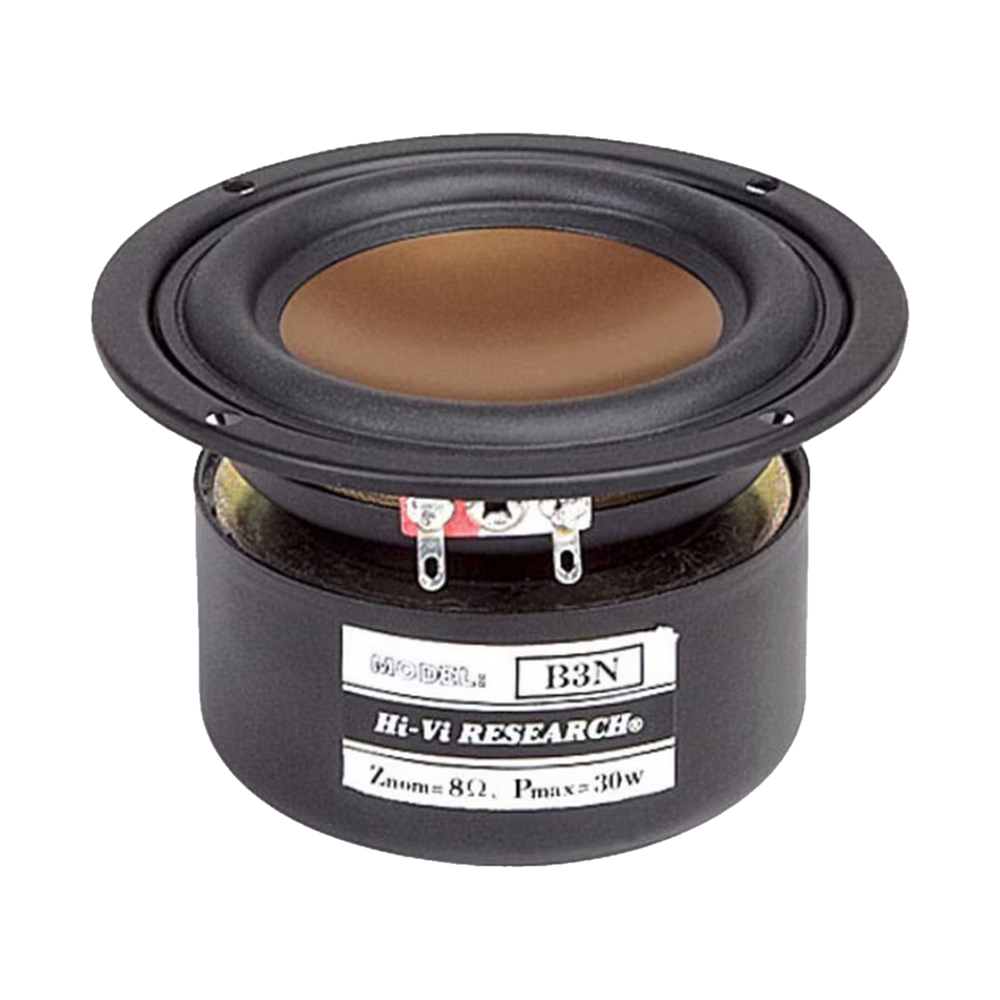

A 3" full-range driver from HiVi's B Series, with a one-piece aluminium alloy cone in an antique bronze anodised finish, a rubber surround and a magnetically shielded ferrite motor. HiVi suggests it for the centre and surround channels of small home theatre systems and for computer speakers.

Features

  • One-piece aluminium alloy cone with a damping-layer treatment and an antique bronze anodised finish
  • High-compliance CONEX suspension for stiffness and dynamic stability
  • High-temperature Kapton voice coil former with a CCAW voice coil, stable under high load
  • Shielded magnetic circuit with long linear travel, optimised by finite element analysis
  • HiVi's symmetrical magnetic field drive for lower distortion
  • Narrow high-strength frame to reduce parasitic resonance

Specifications

General

Driver type Full Range
Nominal size 3"
Nominal impedance 8Ω
Power handling (RMS) 15 W
Power handling (program) 30 W
Sensitivity 81 dB

Thiele/Small parameters

Resonant frequency (Fs) 77 Hz
DC resistance (Re) 6.5 Ω
Mechanical Q (Qms) 4.48
Electrical Q (Qes) 1.07
Total Q (Qts) 0.86
Equivalent volume (Vas) 1.7 L
Compliance (Cms) 1.32 mm/N
Moving mass (Mms) 3.2 g
Force factor (Bl) 3.1 T·m
Effective piston area (Sd) 30 cm²
Linear excursion (Xmax, one-way) 3 mm
Displacement volume (Vd) 9 cm³
Efficiency bandwidth product (EBP) 71.96

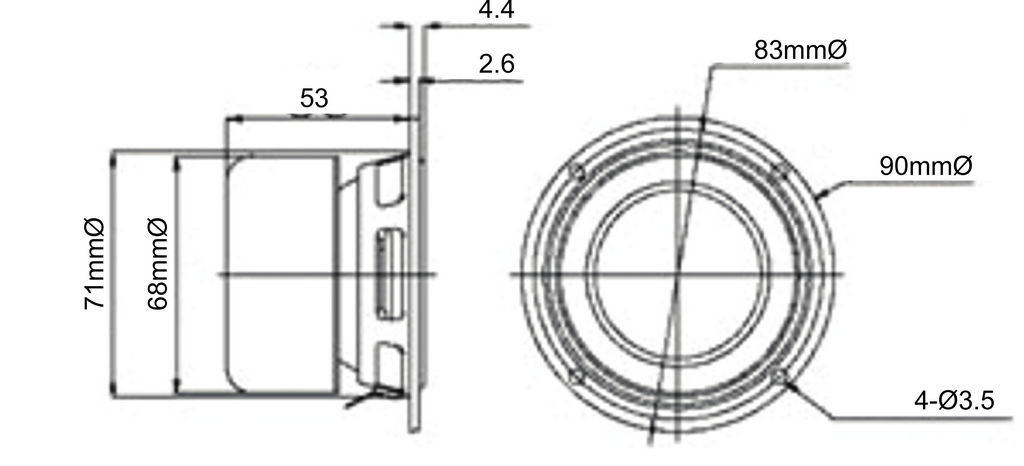

Mounting

Overall diameter 90 mm
Mounting depth 53 mm
Bolt circle diameter 83 mm
Mounting holes 4
Mounting hole diameter 3.5 mm
Voice coil diameter 20 mm
Weight 0.49 kg
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
