Hypex FusionAmp - 1 Way Plate Amplifier - FA501
Hypex FusionAmp - 1 Way Plate Amplifier - FA501
Couldn't load pickup availability
Description
5% DISCOUNT AUTOMATICALLY APPLIED AT CHECKOUT WHEN YOU PURCHASE 2 OR MORE HYPEX PRODUCTS.
ALL OUR HYPEX PRODUCTS ARE BACKORDERED ON AN ORDER BY ORDER BASIS DIRECTLY FROM HYPEX AND AS SUCH, HAVE A 2-3 WEEK LEAD TIME.
Description:
*All our Hypex Plate Amplifiers are the latest version with FIR*
The FA501 500 Watt FusionAmp is a DSP controlled plate amplifier. It can be the basis of a powerful active subwoofer or an active one-way monitor.
Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.
The FA501 has one powerful 500 watt Ncore amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.
To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software at Hypex.
Features:
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection
Specifications
Specifications
Power output
| Into 2 Ω | 400 W |
|---|---|
| Into 4 Ω | 500 W |
| Into 8 Ω | 270 W |
| Minimum load | 2 Ω |
| Amplifier channels | 1 |
| Amplifier class | D |
| Amplifier module | Hypex NC500MP |
| Amplifier technology | Hypex NCORE |
| Continuous power per channel (25 °C) | 100 W |
| Configuration | 1 channel / 1-way |
Controls and processing
| DSP | Yes |
|---|---|
| DSP functions | 15 biquads per channel (Hypex Filter Design), delay up to 19.2 ms per channel |
Inputs and outputs

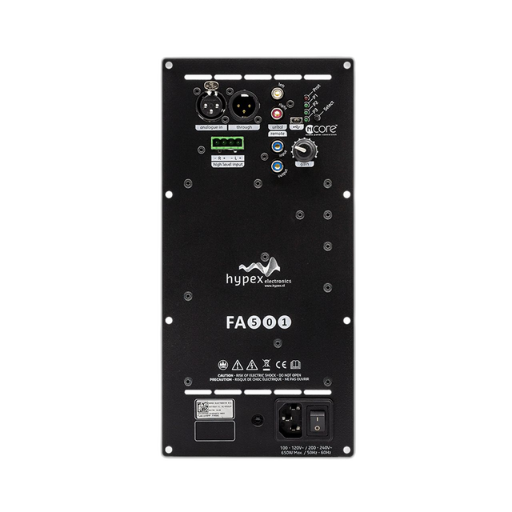

| Inputs | XLR (balanced analogue); RCA (unbalanced analogue); high-level (speaker) input |
|---|---|
| Outputs | XLR through (daisy chain) |
Size and mounting
| Plate (W × H) | 280 × 135 mm |
|---|---|

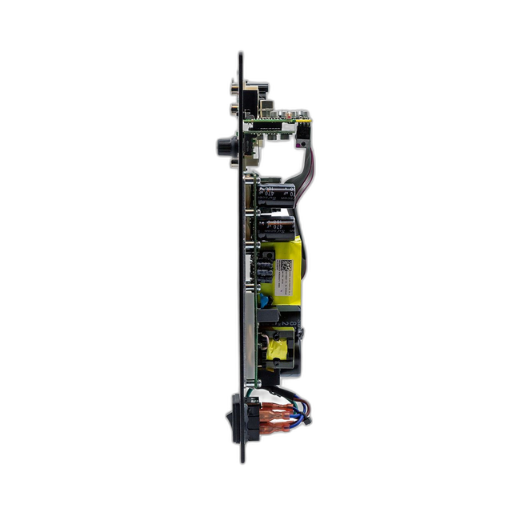

| Overall depth | 55 mm |
| Cutout (W × H) | 256 × 111 mm |
| Plate thickness | 2.5 mm |
| Plate corner radius | 3 mm |
| Mounting holes | 8 × Ø4.5 mm |
| Mounting screws | 8 or 10; Hypex's set of 10 self-tapping 4.3 × 25.4 mm screws is sold separately |
| Weight | 0.925 kg |

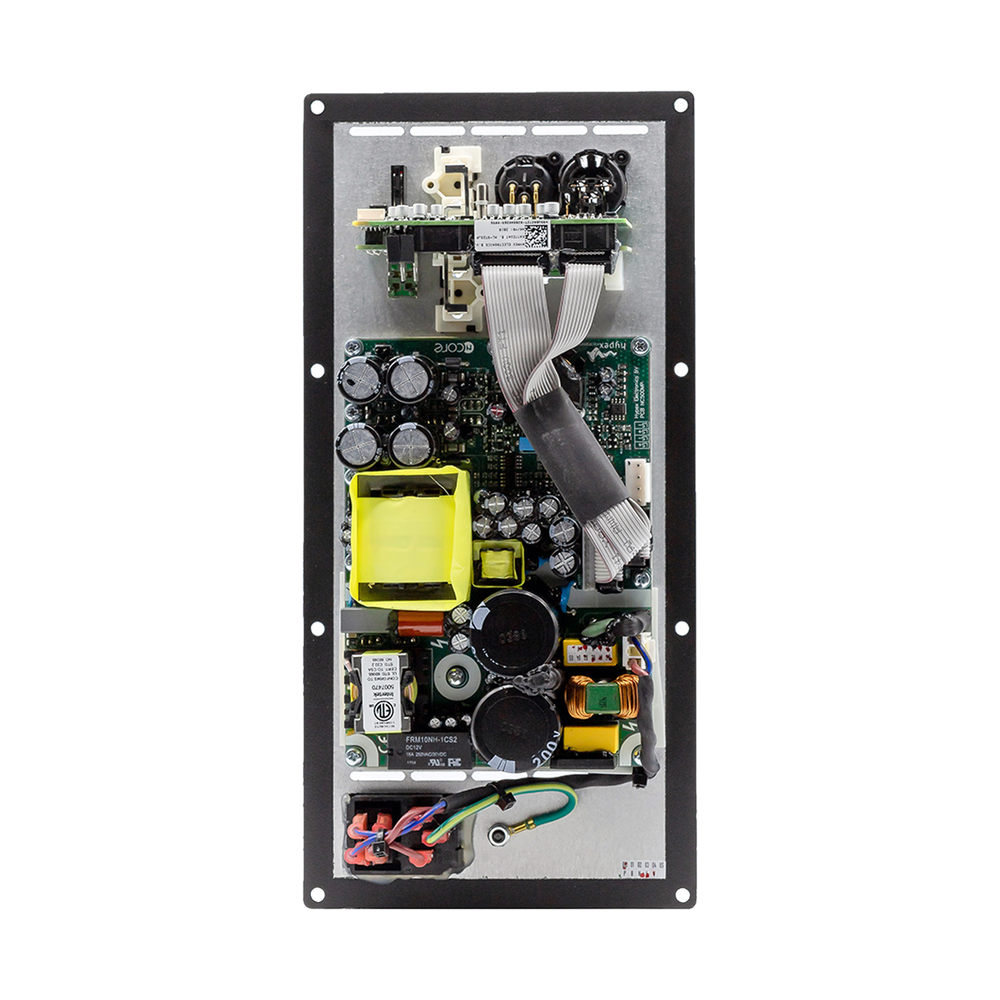

| Back | Not airtight: fit it in its own compartment inside the cabinet |
| Maximum ambient temperature | 35 °C |
Power supply
| Mains | 100–120 / 200–240 V AC ±10%, switches automatically |
|---|
Performance
| THD at rated power | 1 % into 2 Ω; < 0.1 % into 4 Ω |
|---|
- Power into 4 and 8 Ω as Hypex rates the FusionAmp (4 Ω at under 0.1% THD+N); the 2 Ω figure is the NC500MP module's rating (1 kHz, 1% THD, time-limited by heat).
- The DSP ships with no filter loaded: upload one with Hypex Filter Design (HFD) before first use, or the amp gives no output.
