Neutrik

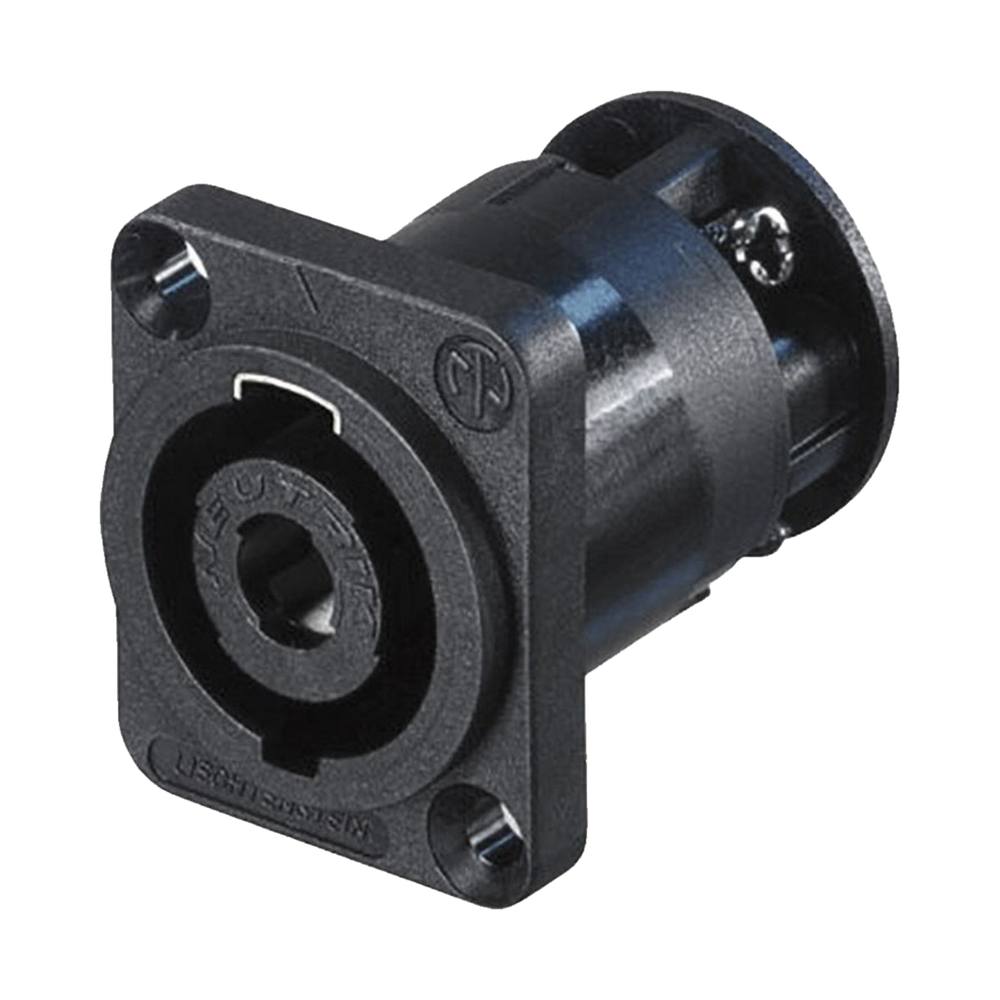

Neutrik - speakON 4-Pole Panel Socket, Screw Terminals - NL4MPST
Neutrik - speakON 4-Pole Panel Socket, Screw Terminals - NL4MPST
Regular price
$11.95 AUD
Regular price
Sale price
$11.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
speakON panel sockets are the standard chassis connector between loudspeakers and amplifiers. The metal locking system makes contact only once the plug is fully locked, and the socket is robust, versatile and easy to terminate.
Features
- Current rating 30A rms
- Glass-reinforced materials for a robust, dependable socket
- Precise keyway for secure mating
- Accurate twist-lock latching
- Metal insert in the locking area
Specifications
| Poles | 4 |
|---|---|
| Termination | Screw terminals |
| Current rating | 30A rms |
| Mates with | speakON 4-pole cable plugs, such as NL4FXX-W-S |
Specifications
Specifications
Mounting
| Cutout | Ø24 mm at least |
|---|---|
| Screw holes | 2 × Ø3.2 mm at least, on a diagonal: 19 mm across and 24 mm down from each other |
| Fitting | Front mounted, with 2 screws through its countersunk holes |
| Depth inside the box | 29.15 mm |
Size
| Flange | 26 × 31 mm, R3.5 corners, 4.5 mm thick |
|---|---|
| Flange holes | Ø3.5 mm, countersunk 90° to Ø6 mm |
| Overall length | 36.15 mm |
Connector
| Poles | 4 |
|---|---|
| Termination | Screw terminals |
| Current rating | 30A rms continuous, per contact |
| Mates with | speakON 4-pole cable plugs, such as NL4FXX-W-S |
- Figures from Neutrik's drawing and product page.
- Neutrik: this chassis connector is not airtight.
