Peerless - 1" Compression Driver Titanium - DFM-2535R00-08
Peerless - 1" Compression Driver Titanium - DFM-2535R00-08
Regular price
$114.95
Regular price
Sale price
$114.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Peerless DFM-2535R00-08 is a high-performance 1” compression horn driver designed for pro audio and high-efficiency systems. It features a 1.4” proprietary titanium diaphragm with a polyimide surround, delivering smooth and detailed highs. Suitable for two-way systems with lower crossover points. All materials resist environmental factors such as heat, vibration, and ageing, ensuring many years of stable performance.
Features
- Proprietary coating on titanium diaphragm promotes a detailed yet non-fatiguing high frequency response
- 107.8 dB efficiency: high output relative to minimal input power

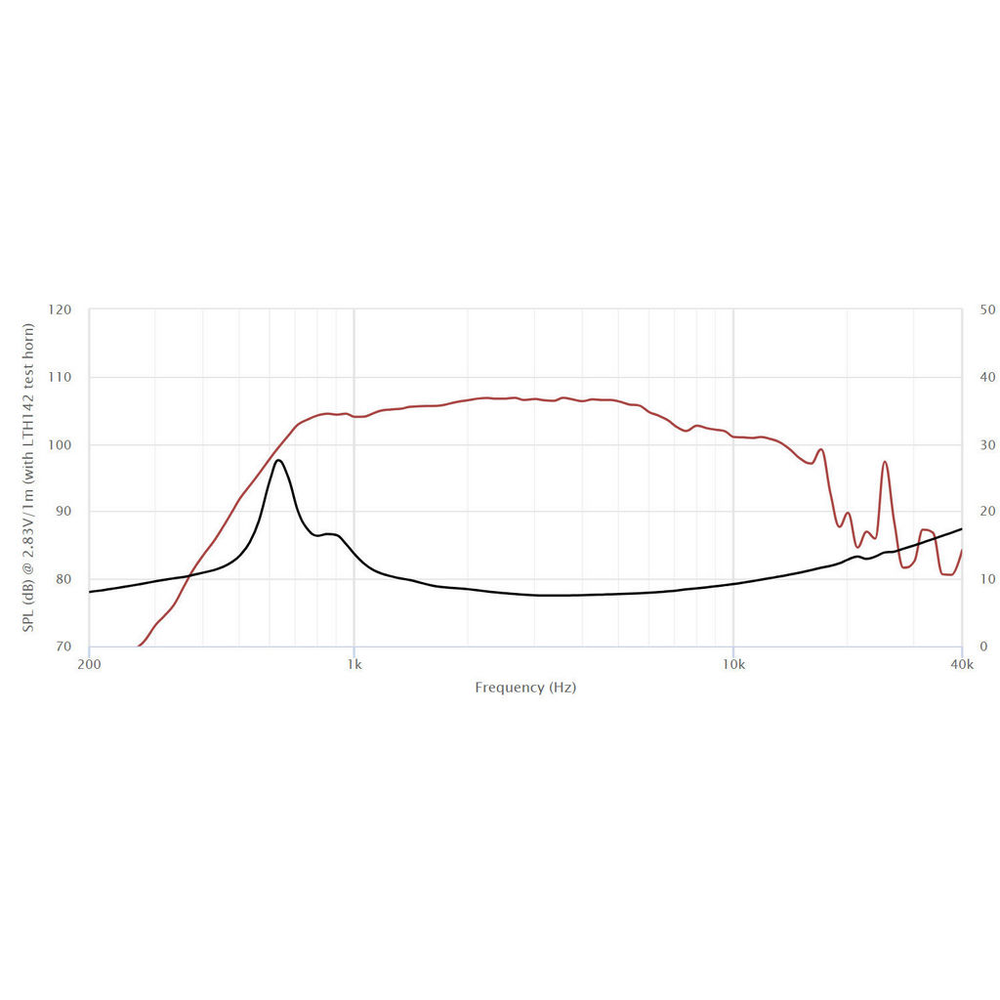

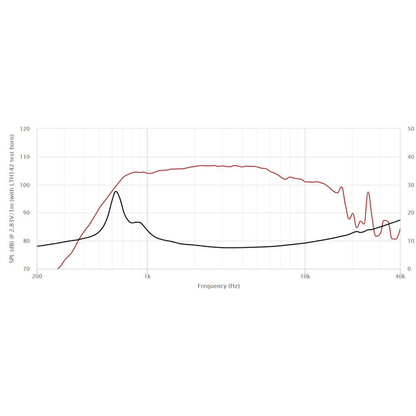

- Smooth response from an exceptionally low 1,500 Hz all the way to 17,000 Hz
- Polyimide surround provides durability and additional damping for natural sound quality
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Peerless Horn |
| Power handling (RMS) | 25 W |
| Sensitivity | 107 dB |
| Minimum recommended crossover | 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 780 Hz |
|---|---|
| DC resistance (Re) | 6.3 Ω |
| Minimum impedance (Zmin) | 7.5 Ω |
| Voice coil inductance (Le) | 0.043 mH |
| Mechanical Q (Qms) | 5.32 |
| Electrical Q (Qes) | 1.09 |
| Total Q (Qts) | 0.91 |
| Equivalent volume (Vas) | 0.013 L |
| Compliance (Cms) | 0.075 mm/N |
| Moving mass (Mms) | 0.56 g |
| Mechanical resistance (Rms) | 0.5159 kg/s |
| Force factor (Bl) | 3.99 T·m |
| Efficiency bandwidth product (EBP) | 715.6 |
Motor
| Voice coil winding height | 2.5 mm |
|---|---|
| Voice coil layers | 2 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 90 × 40 × 15 mm |

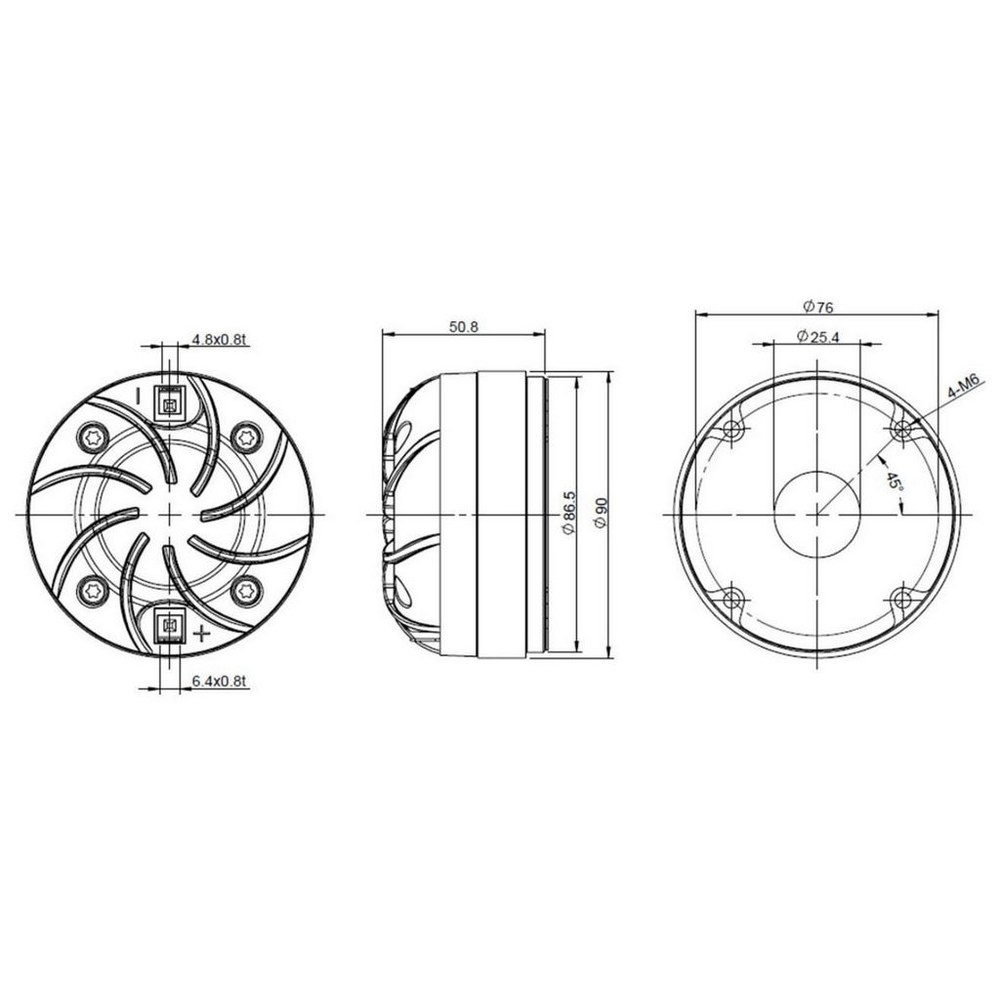

Mounting
| Overall diameter | 90 mm |
|---|---|
| Mounting depth | 50.8 mm |
| Voice coil diameter | 35.5 mm |
| Weight | 0.984 kg |
| Exit diameter | 25.4 mm |
| Horn mount thread | 2-Bolt / 4-Bolt |
Materials
| Cone | Titanium |
|---|---|
| Surround | Kapton |
| Basket | Steel |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Some figures here aren't checked against Peerless' datasheet yet. See which
