Peerless - 1" Corundum Dome Tweeter - DA25TX00-08
Peerless - 1" Corundum Dome Tweeter - DA25TX00-08
Regular price
$144.95
Regular price
Sale price
$144.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Peerless DA25TX00-08 1” tweeter features an ultra-rigid corundum dome with resonance beyond the audible range. It delivers a flat response up to 20kHz with minimal distortion. An underhung copper voice coil, vented aluminium former, and deep rear chamber enable low resonance wide bandwidth. A copper cap reduces inductance and distortion. Ideal for low crossover points in 2- or 3-way systems.
Features

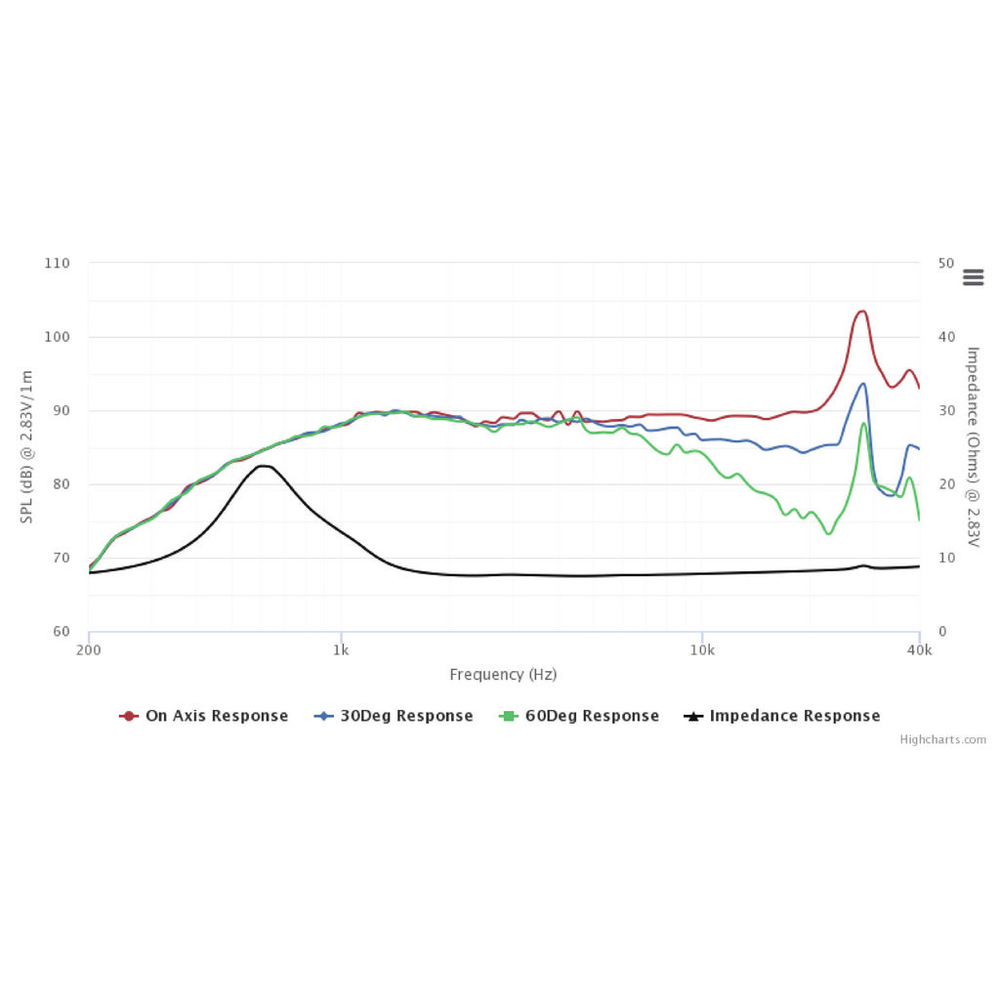

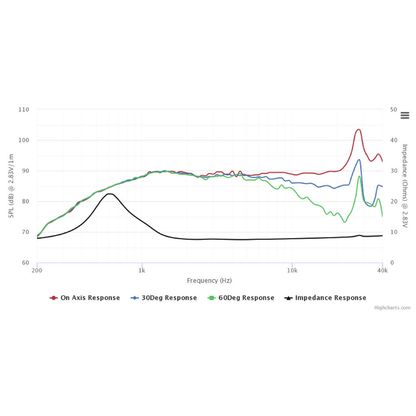

- Remarkably flat response from 1,000 thru 20,000 Hz (± 1.5 dB)
- Large copper cap lowers inductance and minimises distortion
- Underhung copper voice coil on a vented aluminium former with ample excursion capability

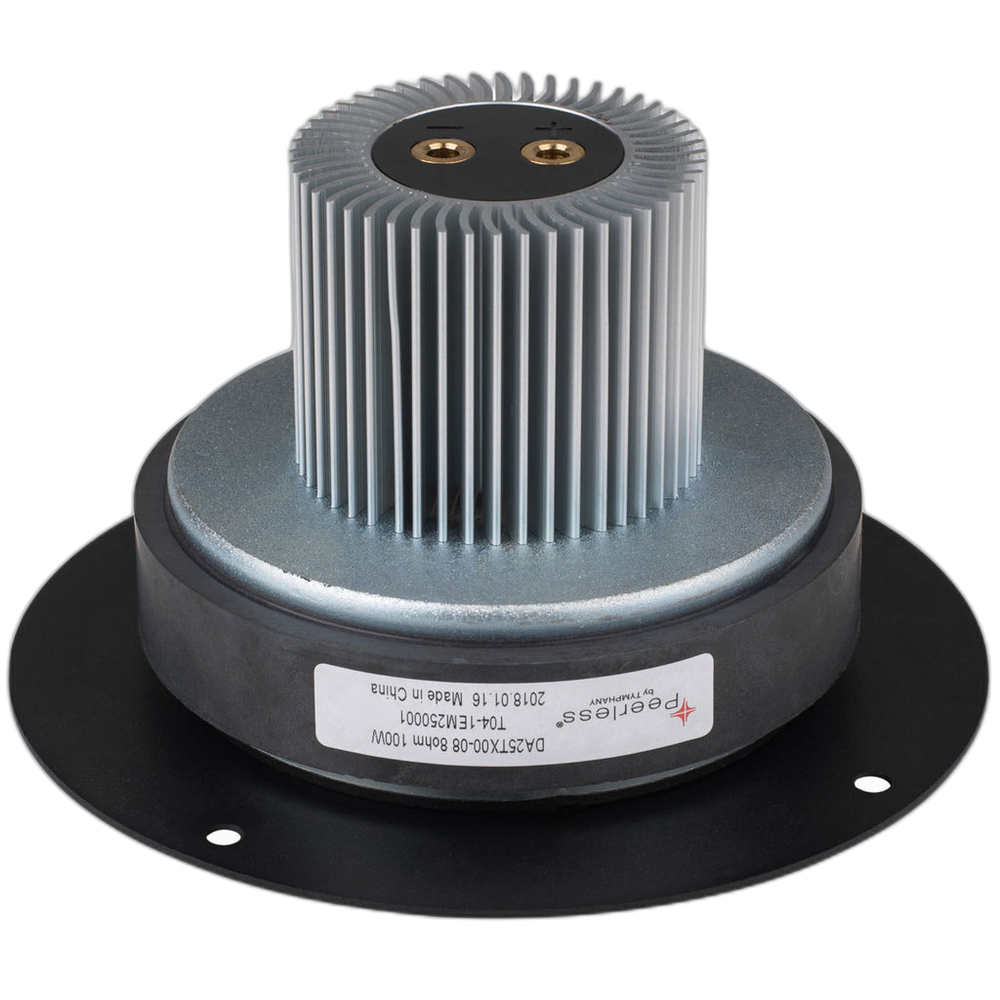

- Deep rear chamber with integrated heatsink for low Fs and high power handling
- Corundum dome is extremely rigid with excellent damping
- Huge motor assembly provides excellent control and high efficiency
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 15 W |
| Sensitivity | 88.1 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 640 Hz |
|---|---|
| DC resistance (Re) | 6.9 Ω |
| Minimum impedance (Zmin) | 7.6 Ω |
| Voice coil inductance (Le) | 0.026 mH |
| Mechanical Q (Qms) | 1.87 |
| Electrical Q (Qes) | 0.829 |
| Total Q (Qts) | 0.58 |
| Equivalent volume (Vas) | 0.015 L |
| Compliance (Cms) | 0.24 mm/N |
| Moving mass (Mms) | 0.254 g |
| Mechanical resistance (Rms) | 0.5462 kg/s |
| Force factor (Bl) | 2.93 T·m |
| Effective piston area (Sd) | 6.61 cm² |
| Linear excursion (Xmax, one-way) | 1.72 mm |
| Displacement volume (Vd) | 1.137 cm³ |
| Efficiency bandwidth product (EBP) | 772 |
Motor
| Motor efficiency factor (β) | 1.24 (T·m)²/Ω |
|---|---|
| Air gap height | 4 mm |
| Voice coil winding height | 1.7 mm |
| Voice coil layers | 2 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 90 × 36 × 17 mm |

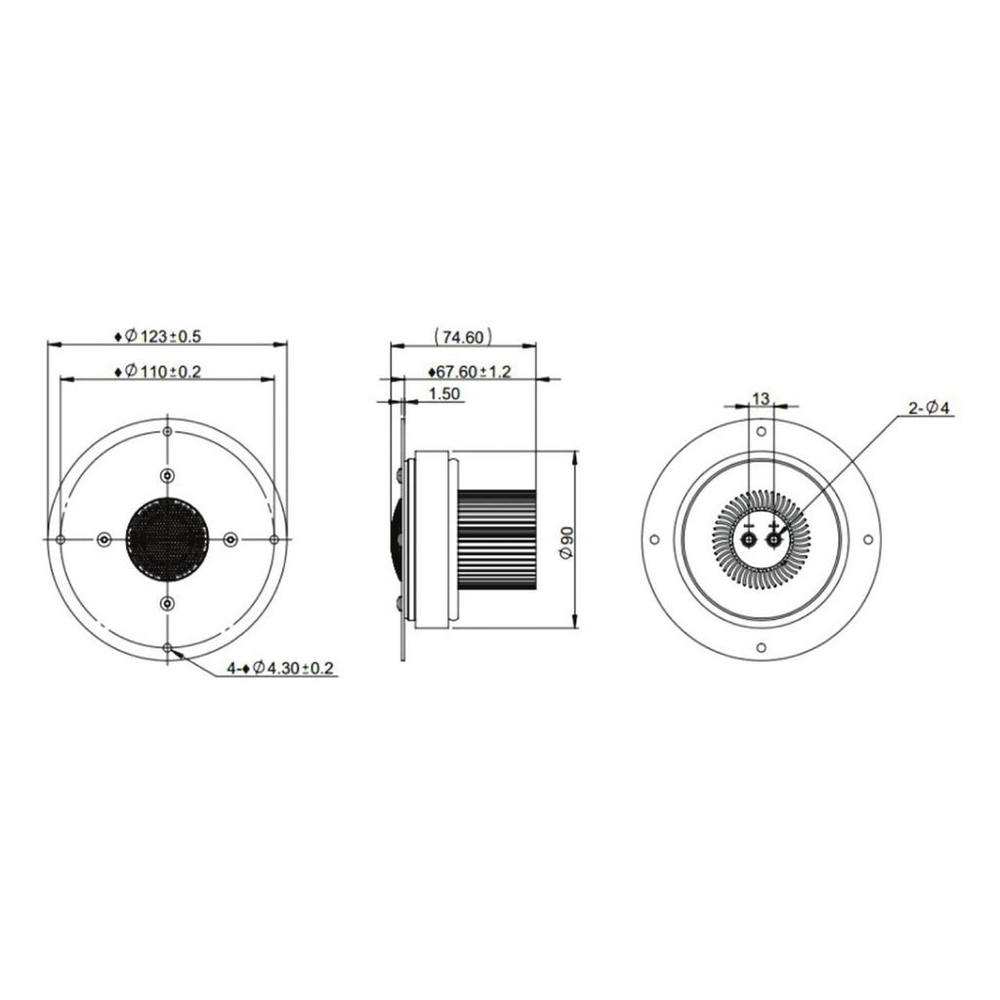

Mounting
| Overall diameter | 123 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 91.0 mm |
| Mounting depth | 67.6 mm |
| Flange thickness | 1.5 mm |
| Bolt circle diameter | 110 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 1.05 kg |
Materials
| Cone | Anodised Aluminium |
|---|---|
| Surround | Silk |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Downloads
- DA25TX00-08 Spec Sheet
- DA25TX00-08 Mechanical Drawing
- DA25TX00-08 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth, bolt holes. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
