Peerless - 1¼" Corundum Dome Tweeter - DA32TX00-08
Peerless - 1¼" Corundum Dome Tweeter - DA32TX00-08
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

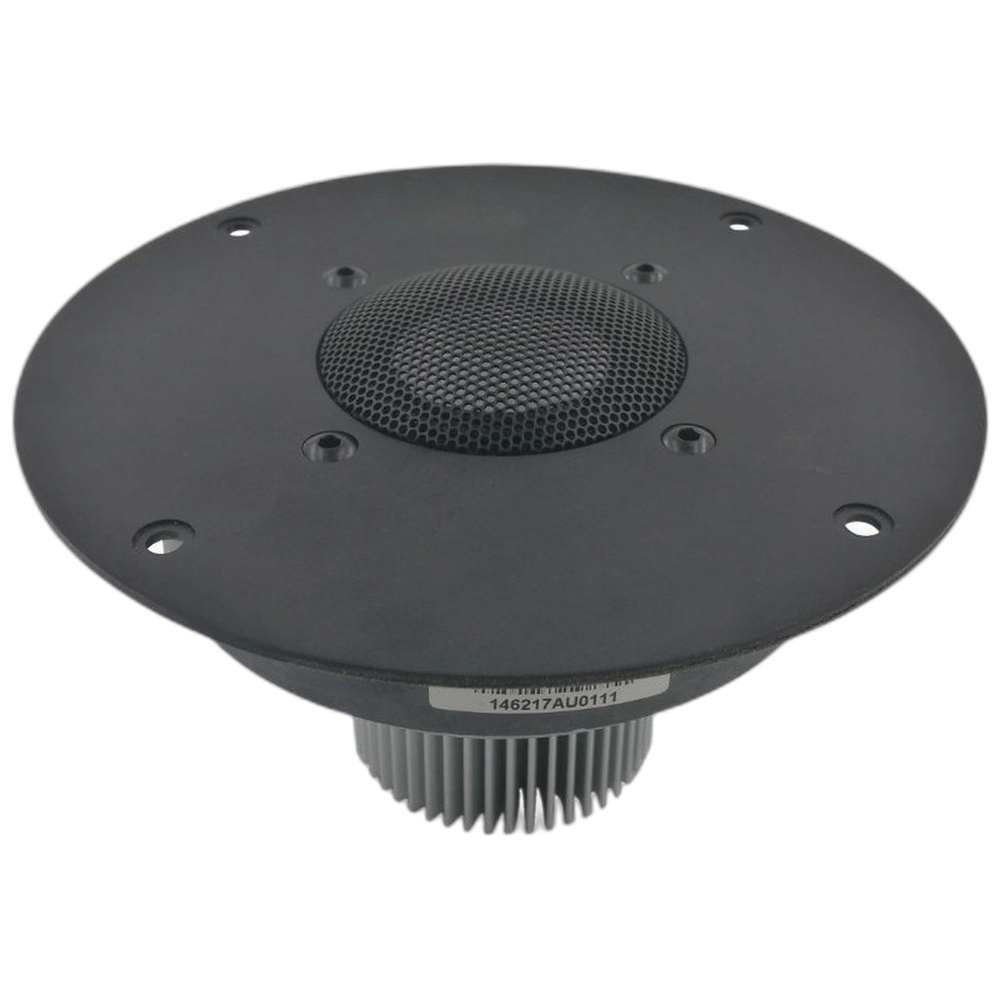

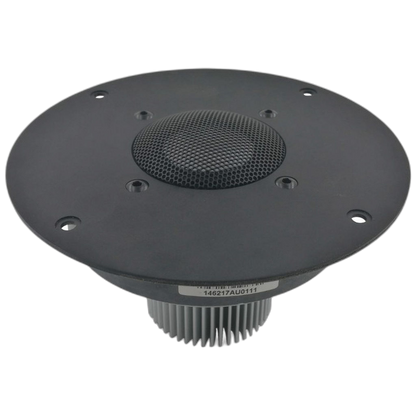

The Peerless DA32TX00-08 1¼" dome tweeter is designed for Hi-Fi and pro audio applications. Its ultra-rigid corundum dome ensures a flat response beyond 22 kHz, while a deep rear chamber and underhung motor improve power handling and dynamics. A thick copper cap reduces distortion, and an optional magnetic grille provides additional protection. Capable of handling crossover frequencies as low as 1200 Hz, this tweeter delivers outstanding performance in virtually any 2- or 3-way speaker design.
Features

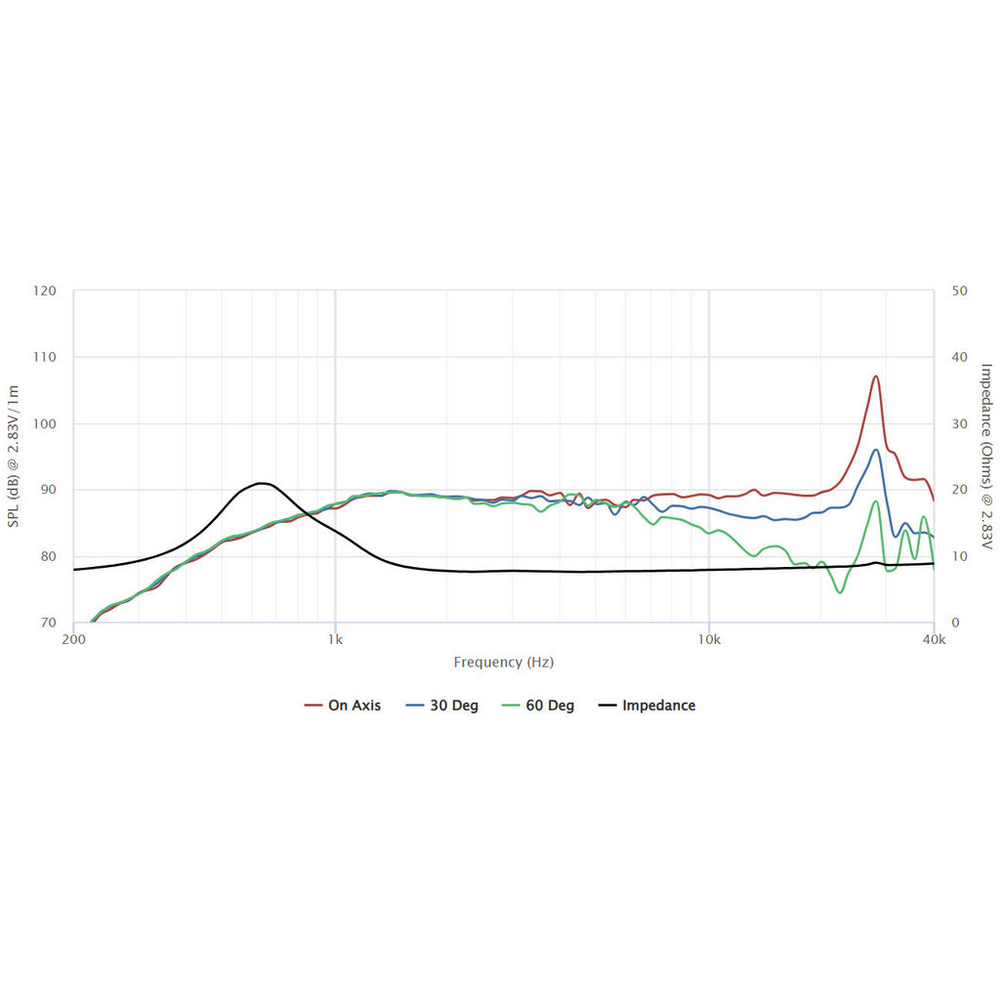

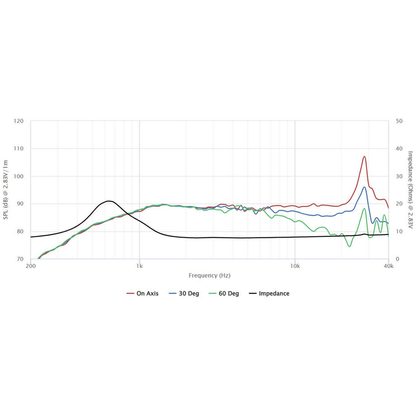

- Remarkably flat response from 1000 to 22000Hz (± 1.5 dB).
- Large copper cap lowers inductance and minimises distortion.
- Underhung copper voice coil on a vented aluminium former with ample excursion capability.

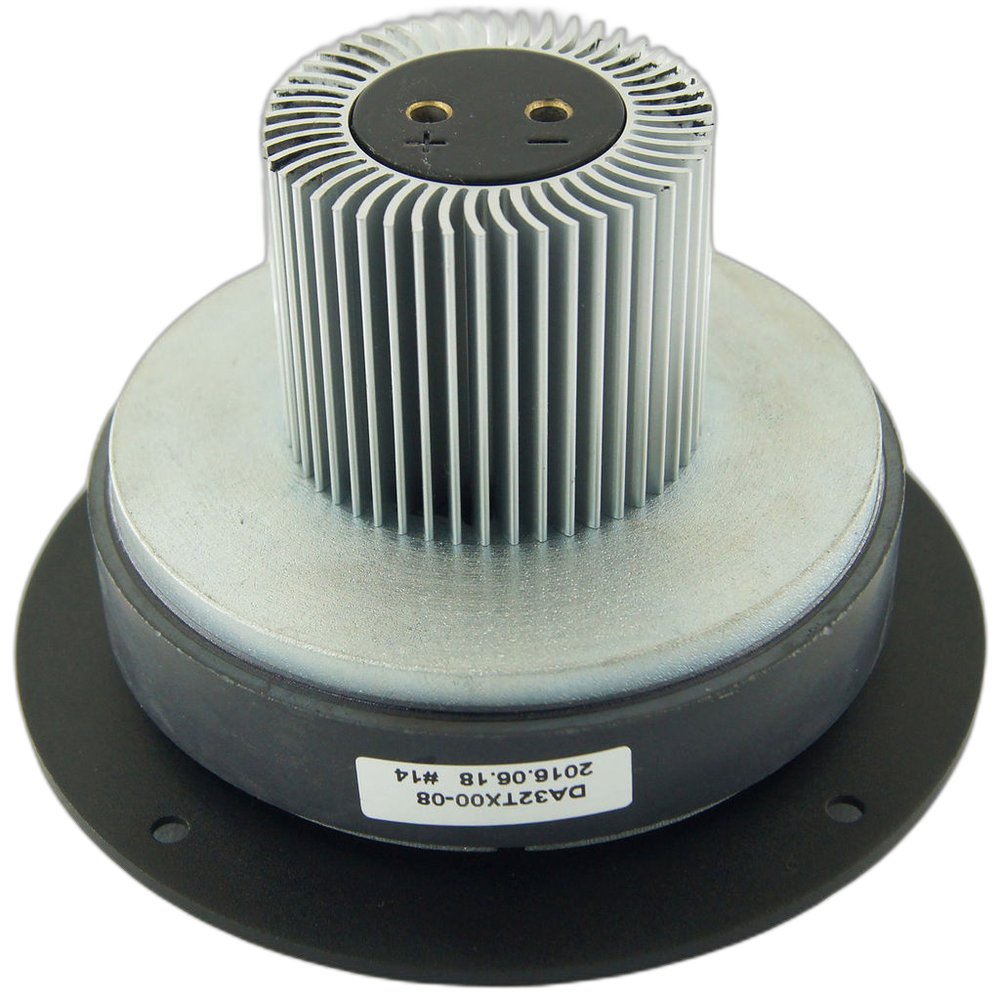

- Deep rear chamber with integrated heatsink for low Fs and high power handling.
- Corundum dome is extremely rigid with excellent damping.
- Huge motor assembly provides excellent control and high efficiency.
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 8Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 25 W |
| Sensitivity | 88.1 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 630 Hz |
|---|---|
| DC resistance (Re) | 6.8 Ω |
| Minimum impedance (Zmin) | 7.6 Ω |
| Voice coil inductance (Le) | 0.034 mH |
| Mechanical Q (Qms) | 1.73 |
| Electrical Q (Qes) | 0.621 |
| Total Q (Qts) | 0.46 |
| Equivalent volume (Vas) | 0.027 L |
| Compliance (Cms) | 0.13 mm/N |
| Moving mass (Mms) | 0.484 g |
| Mechanical resistance (Rms) | 1.107 kg/s |
| Force factor (Bl) | 4.59 T·m |
| Effective piston area (Sd) | 12 cm² |
| Linear excursion (Xmax, one-way) | 1.78 mm |
| Displacement volume (Vd) | 2.136 cm³ |
| Efficiency bandwidth product (EBP) | 1,014 |
Motor
| Motor efficiency factor (β) | 3.09 (T·m)²/Ω |
|---|---|
| Air gap height | 4.5 mm |
| Voice coil winding height | 2.81 mm |
| Voice coil layers | 2 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 100 × 45 × 17 mm |

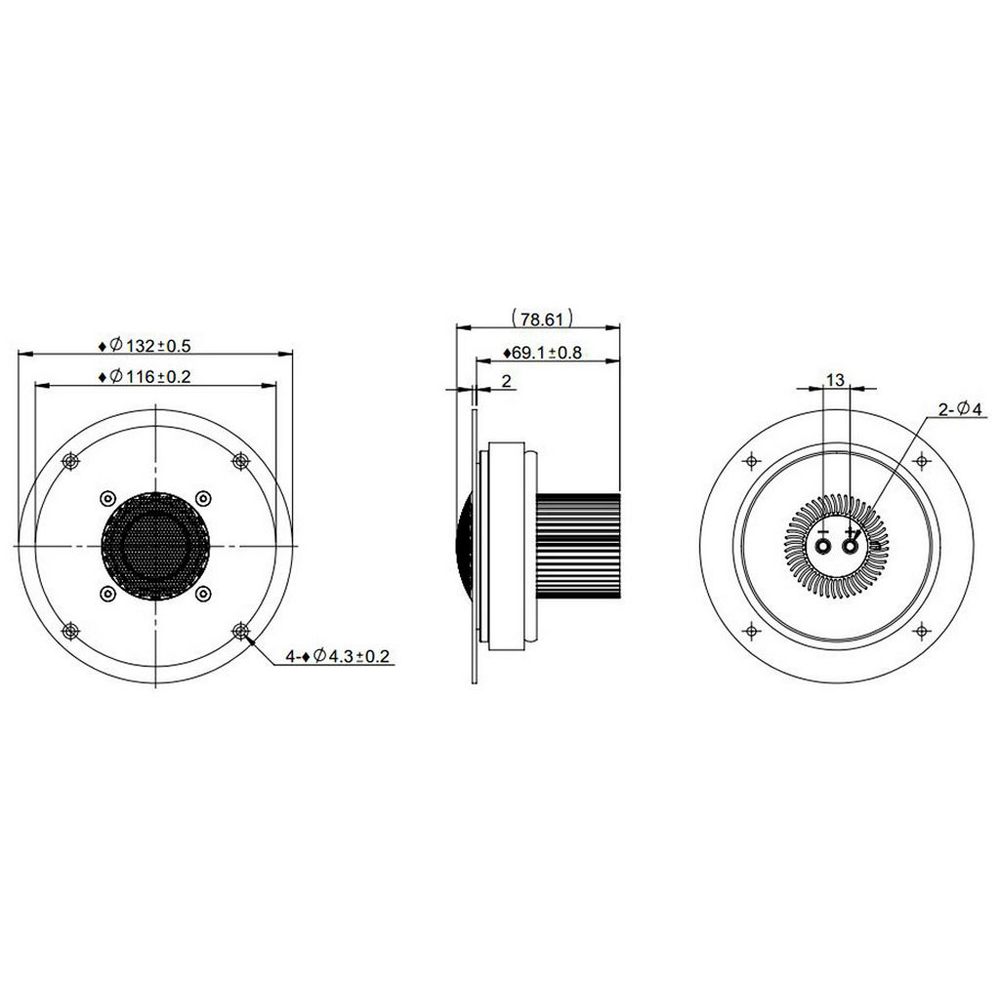

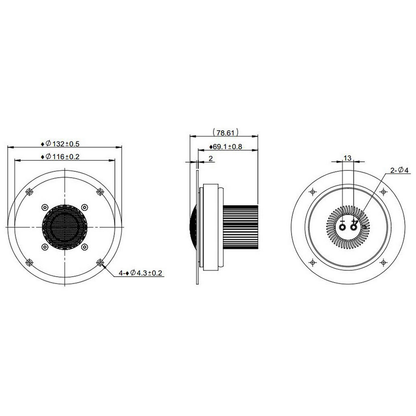

Mounting
| Overall diameter | 132 mm |
|---|---|
| Cutout diameter | 100 mm |
| Mounting depth | 69.1 mm |
| Flange thickness | 2 mm |
| Bolt circle diameter | 116 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 32.5 mm |
| Weight | 1.33 kg |
Materials
| Cone | Anodised Aluminium |
|---|---|
| Surround | Silk |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Downloads
- DA32TX00-08 Spec Sheet
- DA32TX00-08 Mechanical Drawing
- DA32TX00-08 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth, bolt holes. Not yet checked against Peerless' drawing: cutout. Check it against your driver before you cut.
Some figures here aren't checked against Peerless' datasheet yet. See which
