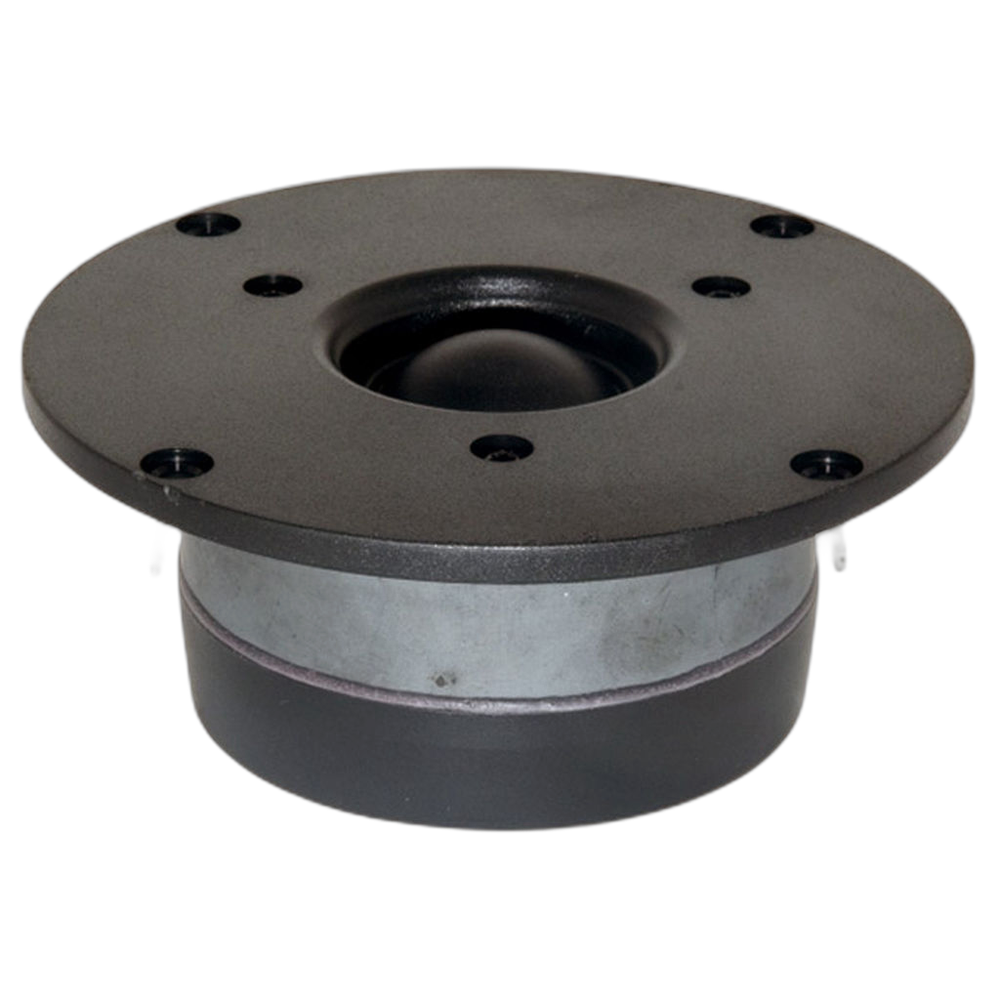

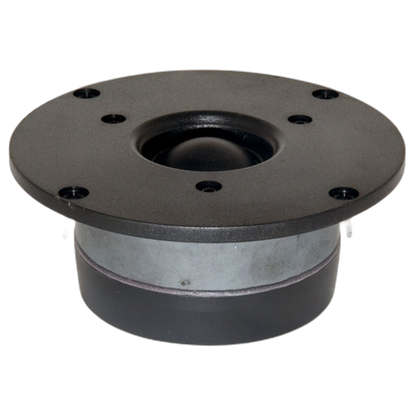

Peerless - 1" Dome Tweeter Fabric - D27TG35-06
Peerless - 1" Dome Tweeter Fabric - D27TG35-06
Regular price
$68.95
Regular price
Sale price
$68.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
High-performance 1" coated textile dome tweeter designed for smooth, natural treble reproduction with extended frequency response over 20 kHz. It features a large magnet with ferrofluid cooling for enhanced thermal handling, a linear response faceplate for improved dispersion, and braided tinsel leads for durability. Its over-sized rear chamber lowers the resonance frequency, extending bandwidth and allowing for flexible crossover integration. Ideal for DIY designs or possible drop-in replacement.
Features
- 1" coated silk dome for smooth, natural high-frequency response.
- Ferrofluid cooling improves thermal handling and reduces distortion.
- Double rear chamber lowers resonance.
- Linear response faceplate.
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 6Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 15 W |
| Sensitivity | 90.6 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 900 Hz |
|---|---|
| DC resistance (Re) | 4.9 Ω |
| Minimum impedance (Zmin) | 5.4 Ω |
| Voice coil inductance (Le) | 0.039 mH |
| Mechanical Q (Qms) | 1.13 |
| Electrical Q (Qes) | 1.03 |
| Total Q (Qts) | 0.54 |
| Equivalent volume (Vas) | 0.007 L |
| Compliance (Cms) | 0.1 mm/N |
| Moving mass (Mms) | 0.299 g |
| Mechanical resistance (Rms) | 1.496 kg/s |
| Force factor (Bl) | 2.83 T·m |
| Effective piston area (Sd) | 7.07 cm² |
| Linear excursion (Xmax, one-way) | 0.967 mm |
| Displacement volume (Vd) | 0.6837 cm³ |
| Efficiency bandwidth product (EBP) | 873.8 |
Motor
| Motor efficiency factor (β) | 1.64 (T·m)²/Ω |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil winding height | 1.7 mm |
| Voice coil layers | 2 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 72 × 32 × 15 mm |

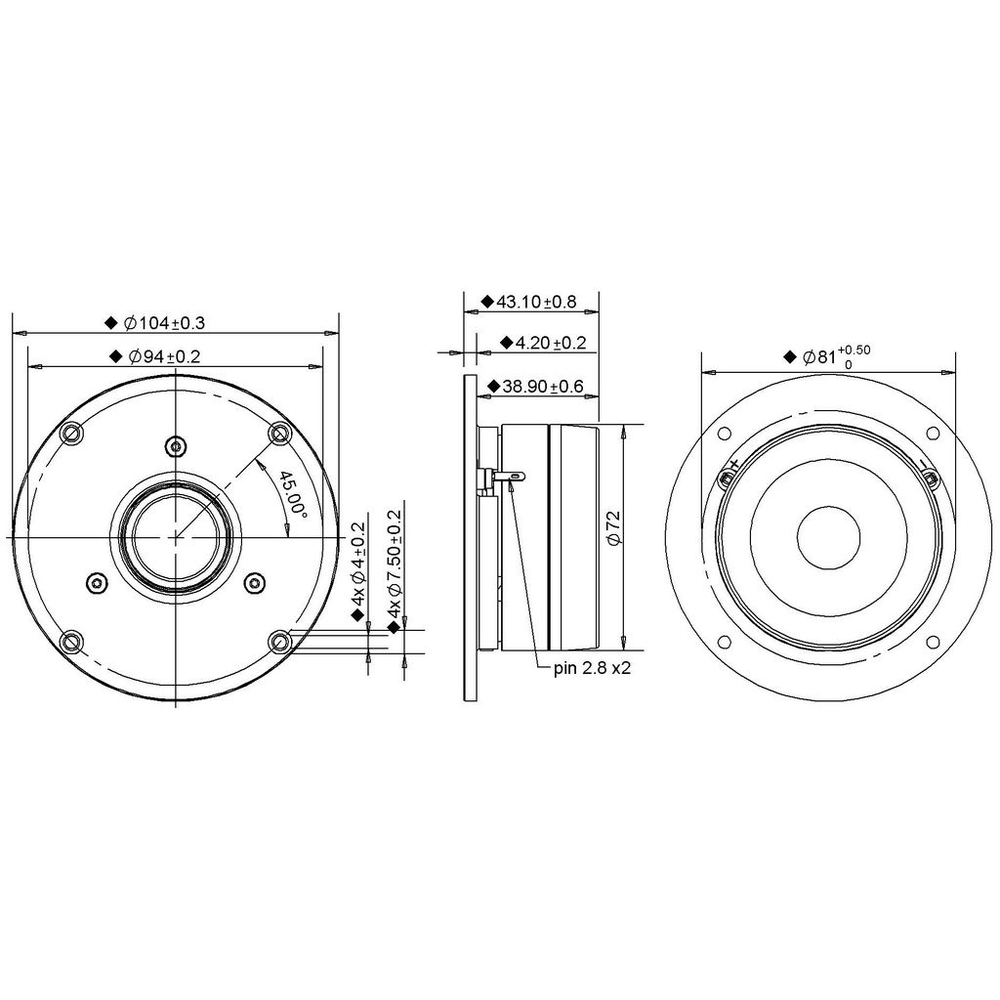

Mounting
| Overall diameter | 104 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 73.0 mm |
| Mounting depth | 38.9 mm |
| Flange thickness | 4.2 mm |
| Bolt circle diameter | 94 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4 mm |
| Voice coil diameter | 25.8 mm |
| Weight | 0.51 kg |
Materials
| Cone | Silk |
|---|---|
| Surround | Silk |
| Basket | Plastic |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Downloads
- D27TG35-06 Spec Sheet
- D27TG35-06 Mechanical Drawing
- D27TG35-06 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth, bolt holes. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
