Peerless

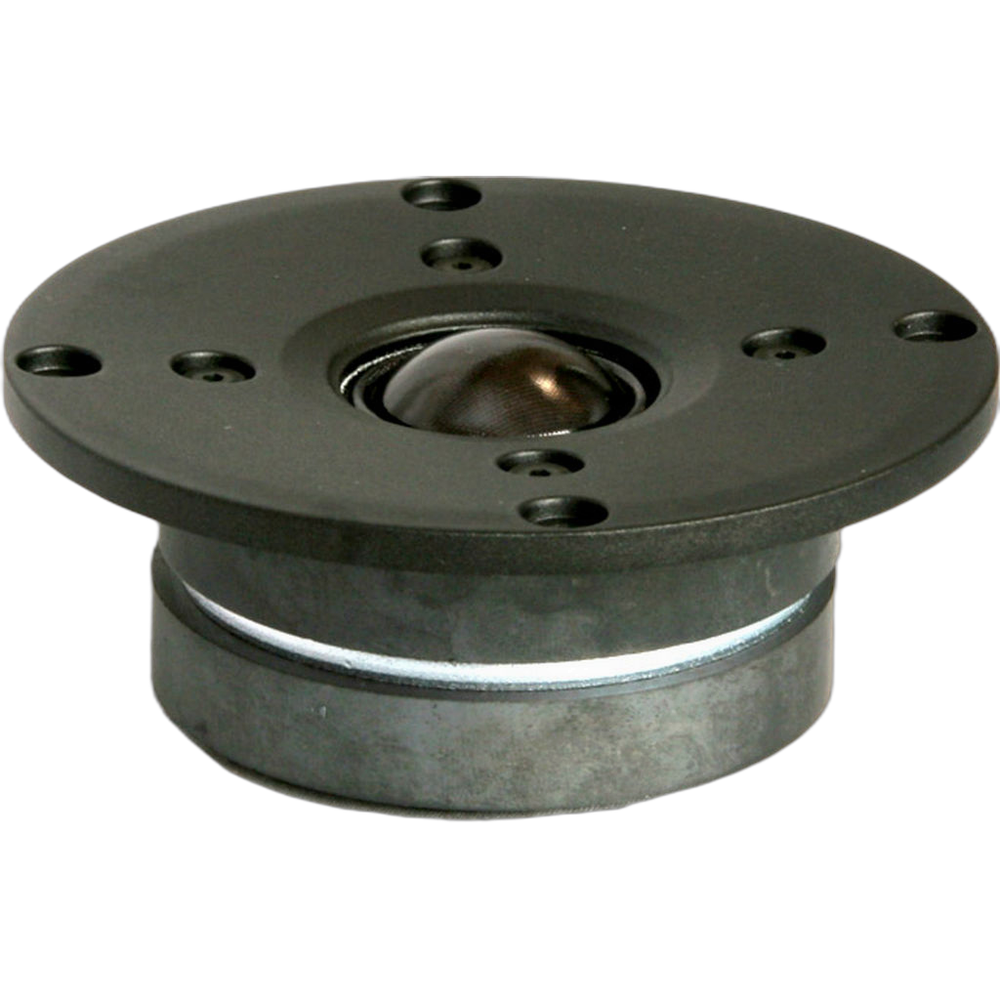

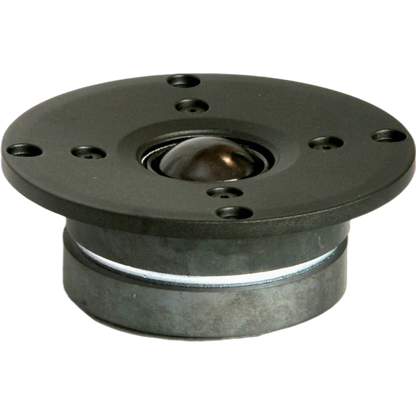

Peerless - 1" HDS Dome Tweeter - 810921

Peerless - 1" HDS Dome Tweeter - 810921

Regular price $174.95 AUD
Regular price Sale price $174.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The new Peerless HDS tweeter builds on Peerless’ long history of tweeter design by optimising several key design elements for pure, clean music reproduction. The HDS tweeter uses a very light, low mass “soft dome” with high internal damping, and a highly optimised, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the HDS tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer in the process of tuning a system. The HDS tweeter is ideal for use in applications including home entertainment, studio monitors, and general hi-fi systems.

Specifications

Type Tweeter
Size 1'
Power 80Wrms
Coil 26mmØ
Width 104mmØ
Impedance 8Ω Re 5.6Ω
Sens. 91.3dB
Re 5.6Ω
Qms 0.51
Qes 0.65
Qts 0.29
Vas 0.02L
Zo 10.82Ω
Sd 7cm²
Cms 0.29mm/N
Fs 700Hz
Mms 0.18g
Zn
Le 0.04mH
Rms 1.54kg/s

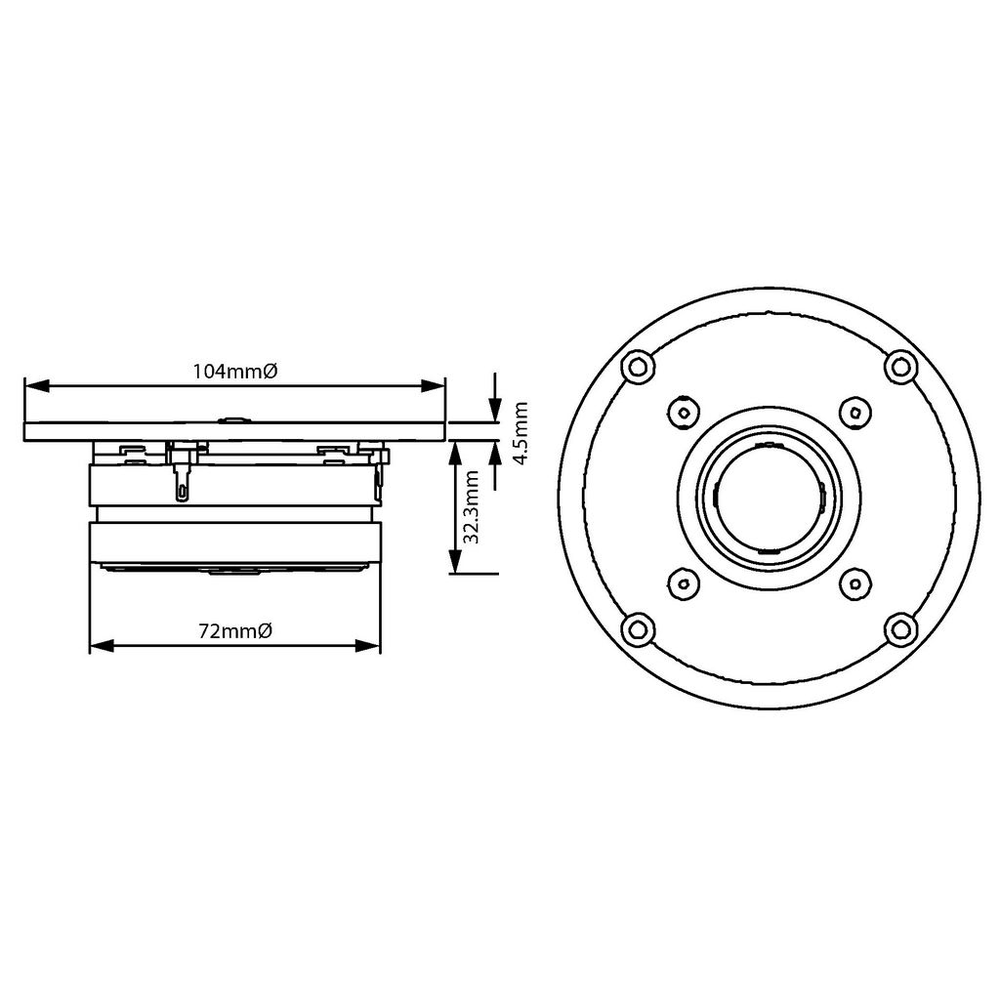

Diam. 104mmØ
Manufacturer Peerless
Hole 72mmØ
Hole Cutout 72mmØ
Series Peerless Dome Tweeter
