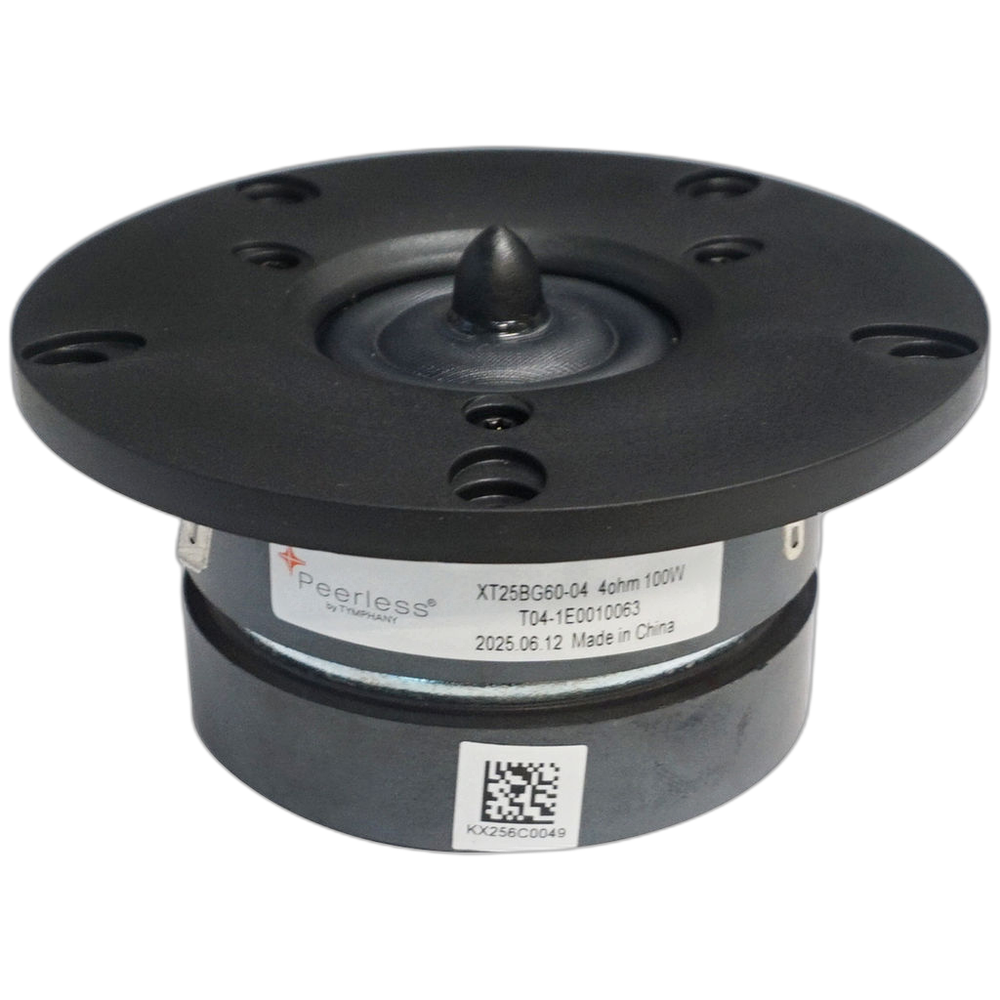

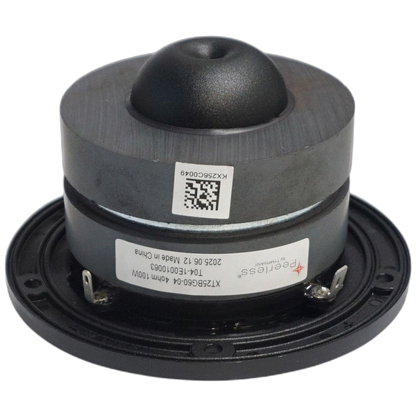

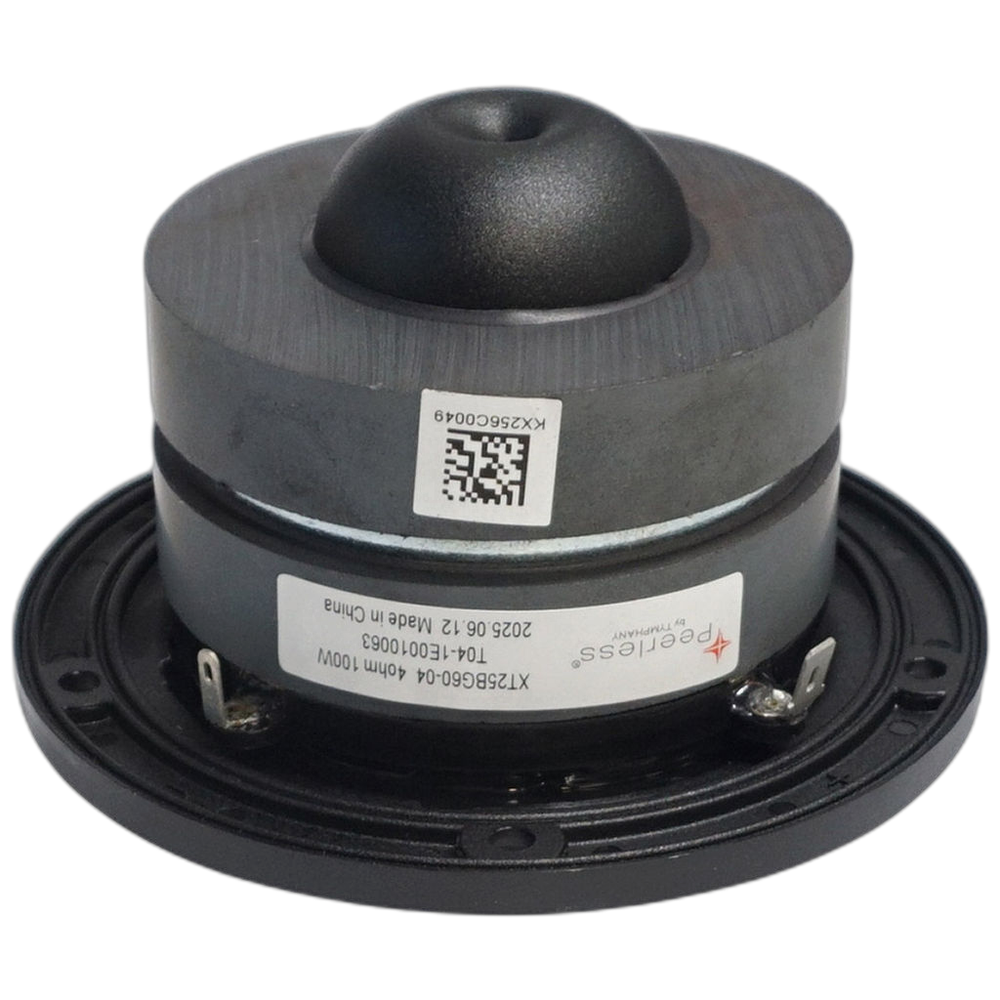

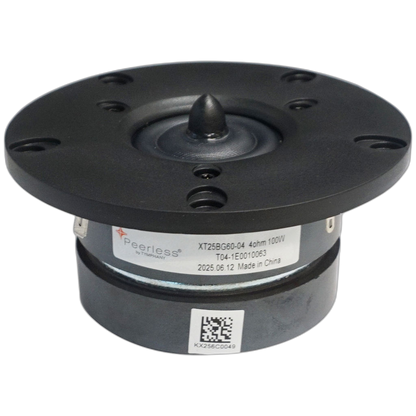

Peerless - 1" Ring Radiator Tweeter - XT25BG60-04
Peerless - 1" Ring Radiator Tweeter - XT25BG60-04
Regular price
$84.95
Regular price
Sale price
$84.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dual ring radiator tweeter features the patented dual-concentric diaphragm with a precision waveguide centre plug, providing excellent on- and off-axis response. Its ring radiator geometry and advanced motor deliver smooth, wide-frequency dispersion, making it a revolution in tweeter design. Rear chamber to extend low-frequency response. The faceplate has five recessed mounting holes. Eliminates dome resonance. Lower moving mass for high transients. Reduced distortion energy.
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 15 W |
| Sensitivity | 89.6 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 570 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.4 Ω |
| Voice coil inductance (Le) | 0.016 mH |
| Mechanical Q (Qms) | 2.67 |
| Electrical Q (Qes) | 0.502 |
| Total Q (Qts) | 0.42 |
| Equivalent volume (Vas) | 0.016 L |
| Compliance (Cms) | 0.26 mm/N |
| Moving mass (Mms) | 0.303 g |
| Mechanical resistance (Rms) | 0.4064 kg/s |
| Force factor (Bl) | 2.54 T·m |
| Effective piston area (Sd) | 6.61 cm² |
| Linear excursion (Xmax, one-way) | 0.867 mm |
| Displacement volume (Vd) | 0.5731 cm³ |
| Efficiency bandwidth product (EBP) | 1,135 |

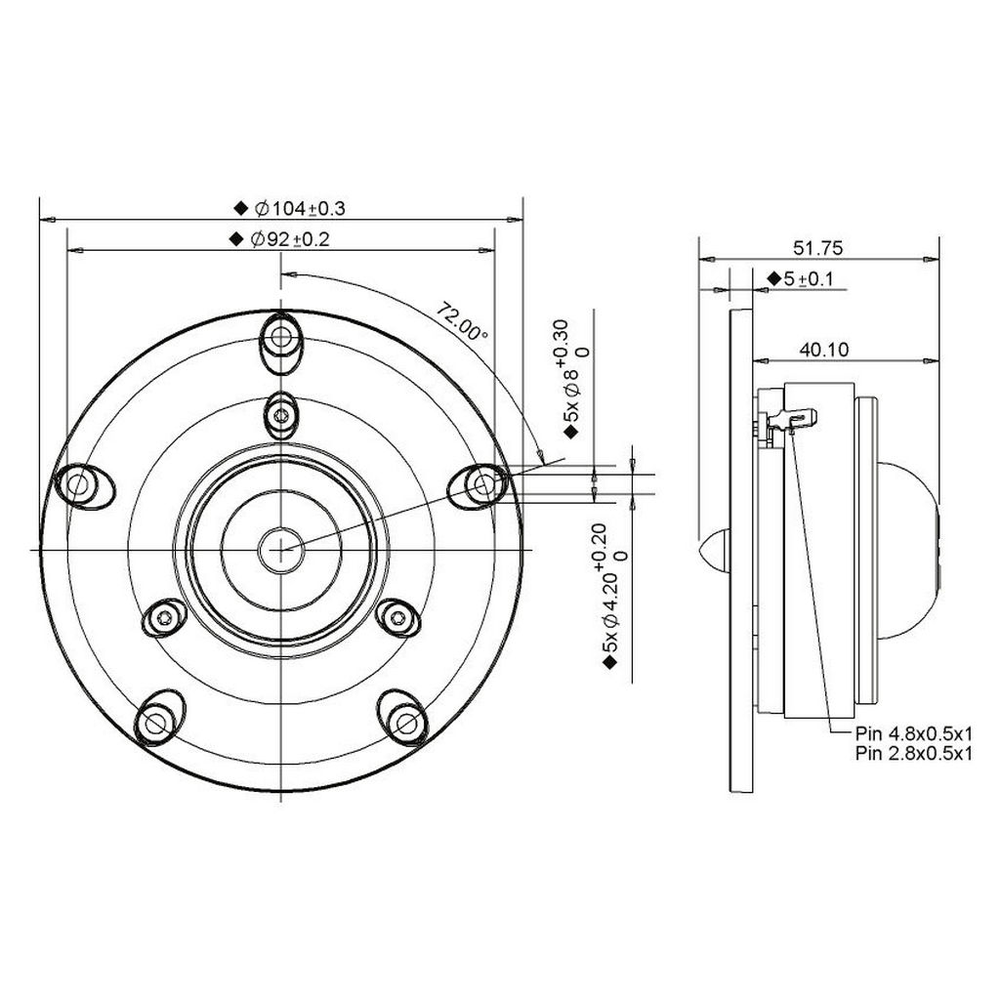

Mounting
| Overall diameter | 104 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 73.0 mm |
| Mounting depth | 55.12 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 25.8 mm |
| Weight | 0.783 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads
- XT25BG60-04 Tymphany datasheet (2025)
- XT25BG60-04 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth, bolt holes. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
