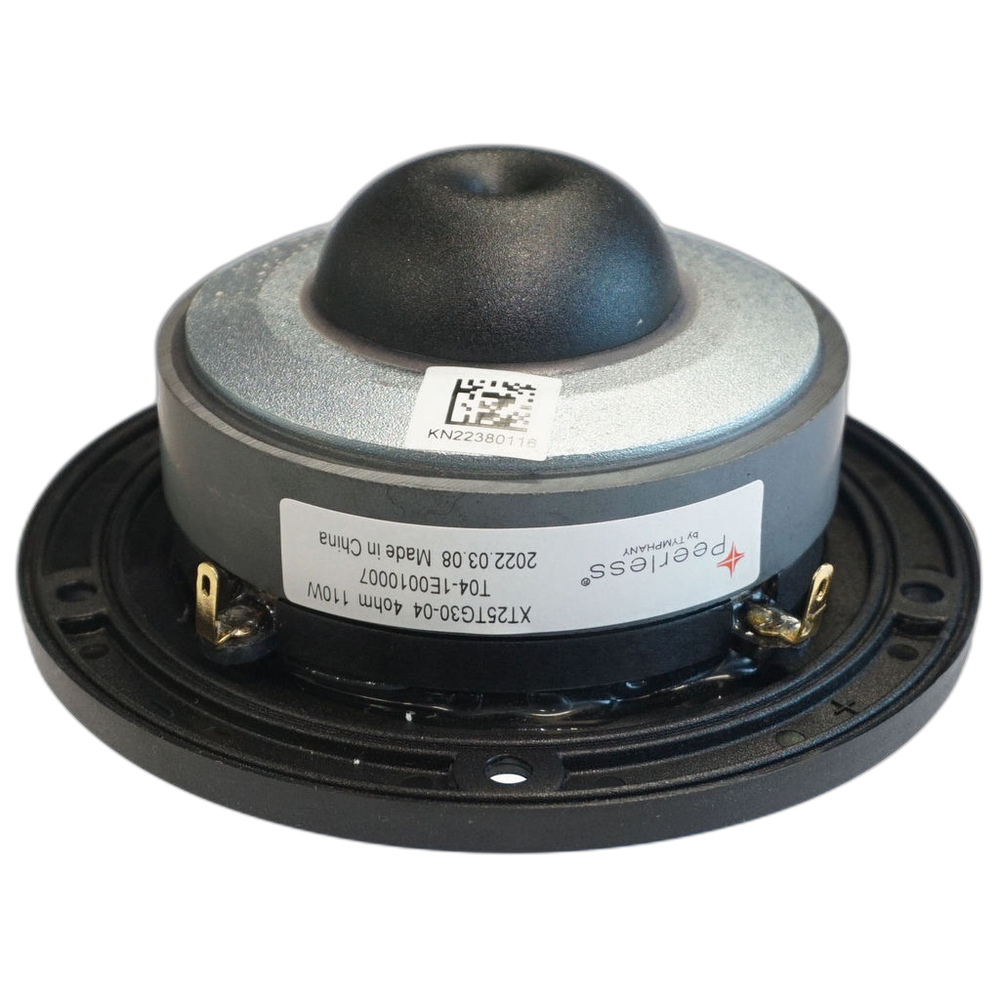

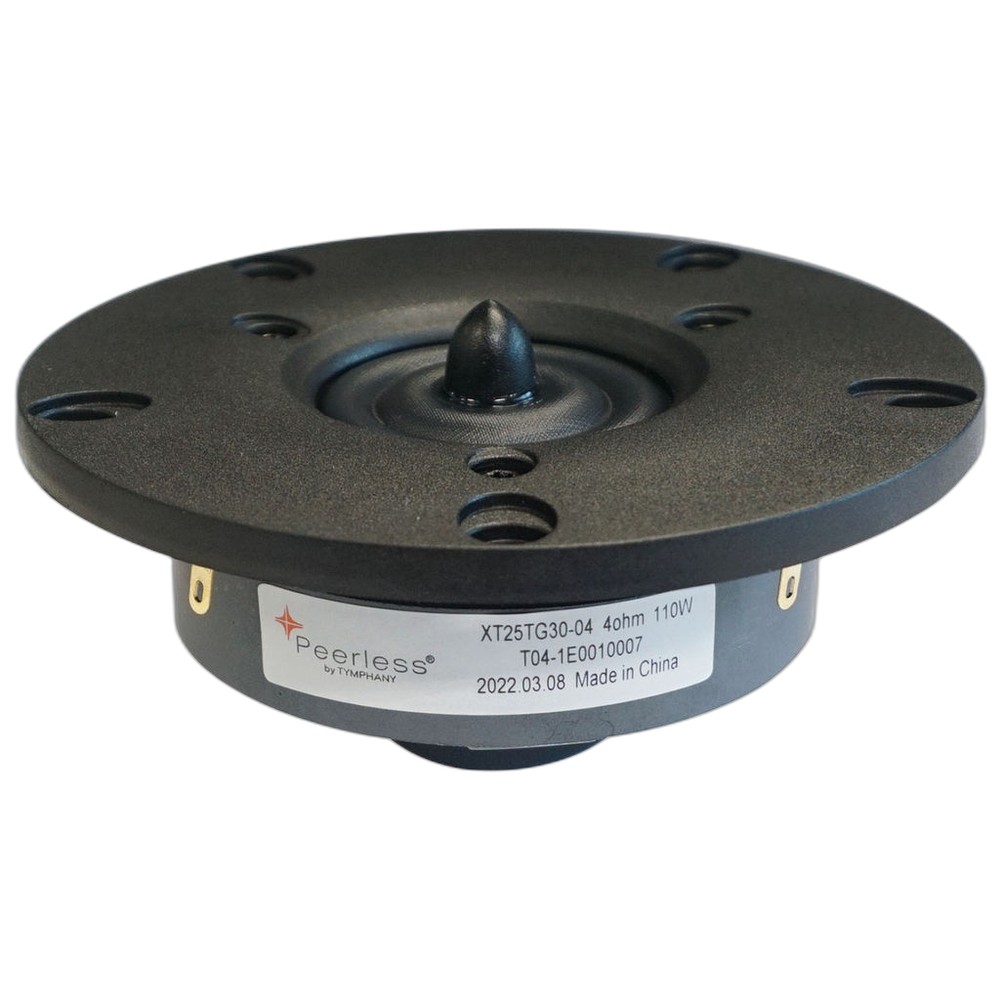

Peerless - 1" Ring Radiator Tweeter - XT25TG30-04
Peerless - 1" Ring Radiator Tweeter - XT25TG30-04
Regular price
$78.95
Regular price
Sale price
$78.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dual concentric diaphragm, wave guide centre plug for excellent on- and off-axis response and a very “natural” sound. An extremely smooth response that extends beyond human hearing Dual chamber for low resonance makes this tweeter also suitable for 2-way systems.
Features
- Patented Ring Radiator Design
- Silk Diaphragm
- High Sensitivity
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Peerless Dome Tweeter |
| Power handling (RMS) | 15 W |
| Sensitivity | 88.9 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 440 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.009 mH |
| Mechanical Q (Qms) | 2.36 |
| Electrical Q (Qes) | 0.539 |
| Total Q (Qts) | 0.44 |
| Equivalent volume (Vas) | 0.043 L |
| Compliance (Cms) | 0.44 mm/N |
| Moving mass (Mms) | 0.295 g |
| Mechanical resistance (Rms) | 0.3456 kg/s |
| Force factor (Bl) | 2.15 T·m |
| Effective piston area (Sd) | 8.24 cm² |
| Linear excursion (Xmax, one-way) | 1.13 mm |
| Displacement volume (Vd) | 0.9311 cm³ |
| Efficiency bandwidth product (EBP) | 816.3 |
Motor
| Motor efficiency factor (β) | 1.52 (T·m)²/Ω |
|---|---|
| Air gap height | 3 mm |
| Voice coil winding height | 2.2 mm |
| Voice coil layers | 2 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 72 × 32 × 15 mm |
| Magnet weight | 0.24 kg |
Mounting
| Overall diameter | 104 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 73.0 mm |
| Mounting depth | 40.1 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 25.8 mm |
| Weight | 0.5 kg |
Materials
| Cone | Fabric |
|---|---|
| Surround | Silk |
| Basket | Plastic |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Downloads
- XT25TG30-04 Spec Sheet

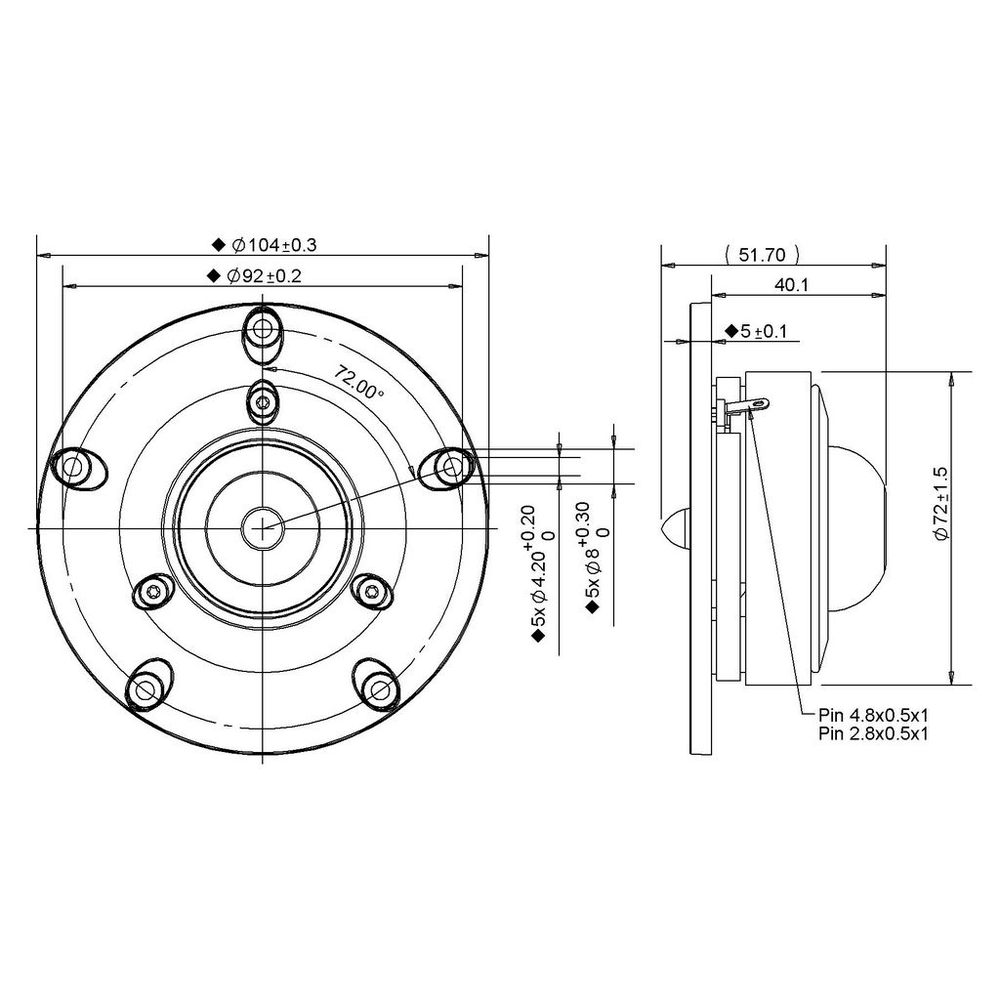

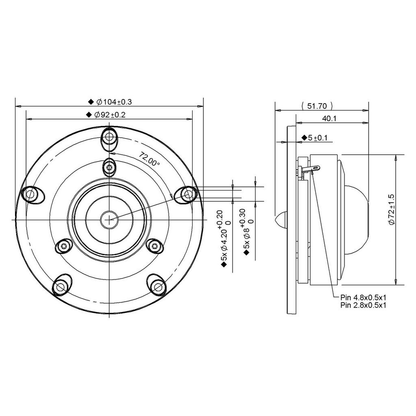

- XT25TG30-04 Mechanical Drawing
- XT25TG30-04 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth, bolt holes. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Some figures here aren't checked against Peerless' datasheet yet. See which
