Peerless - 1" Titanium Compression Driver - DFM-2544R00-08
Peerless - 1" Titanium Compression Driver - DFM-2544R00-08
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

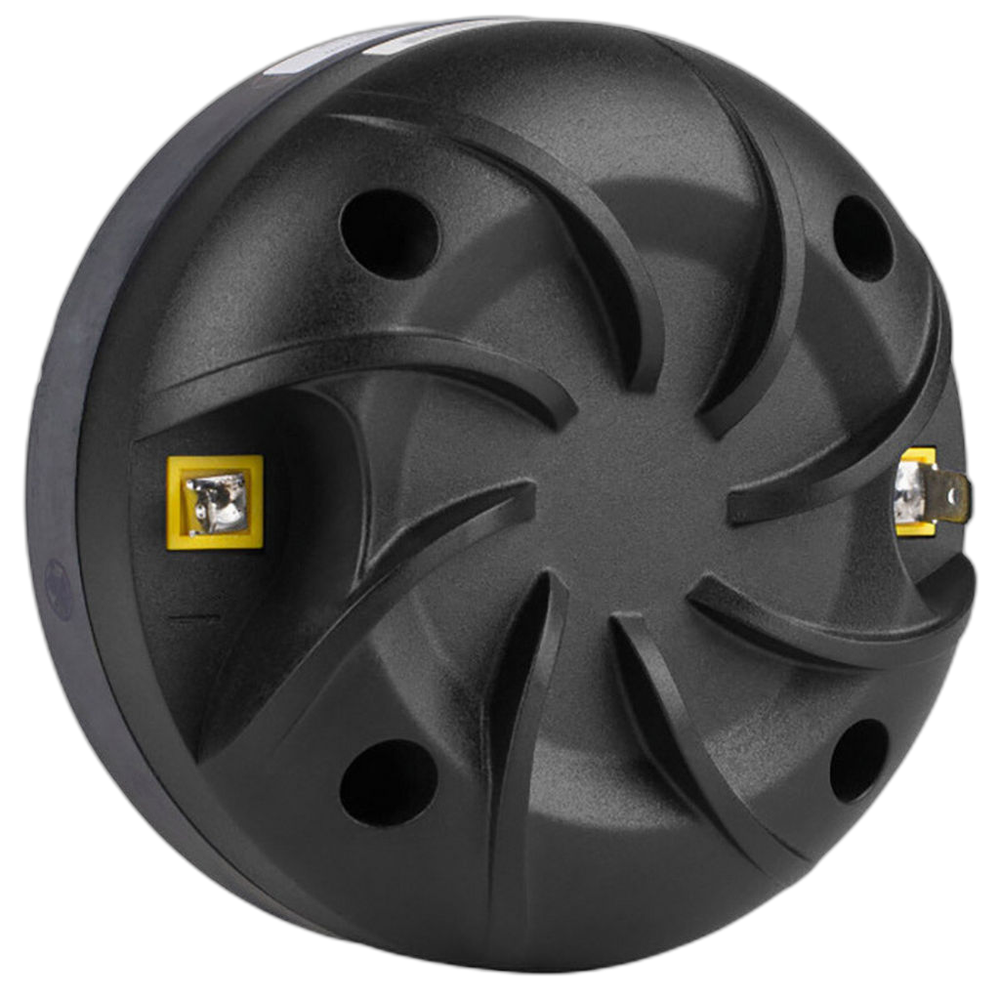

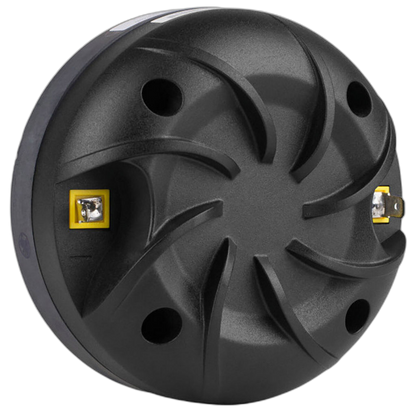

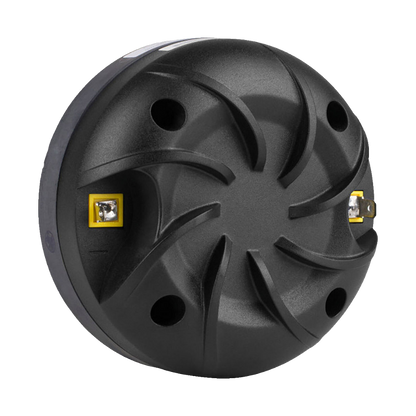

This 1.75 inch diaphragm 1inch exit compression driver is for use in high quality professional sound reinforcement systems. The magnet system was designed for high sensitivity while keeping the weight and cost to a minimum. The 3-slot phasing plug and aluminium wire voice coil give improved HF energy. The titanium diaphragm is coated with a light, thin layer of unique damping material which results in a smoother sound, especially when driven hard. All of the materials resist environmental factor of heat, vibration and ageing ensuring many years of stable performance.
Features

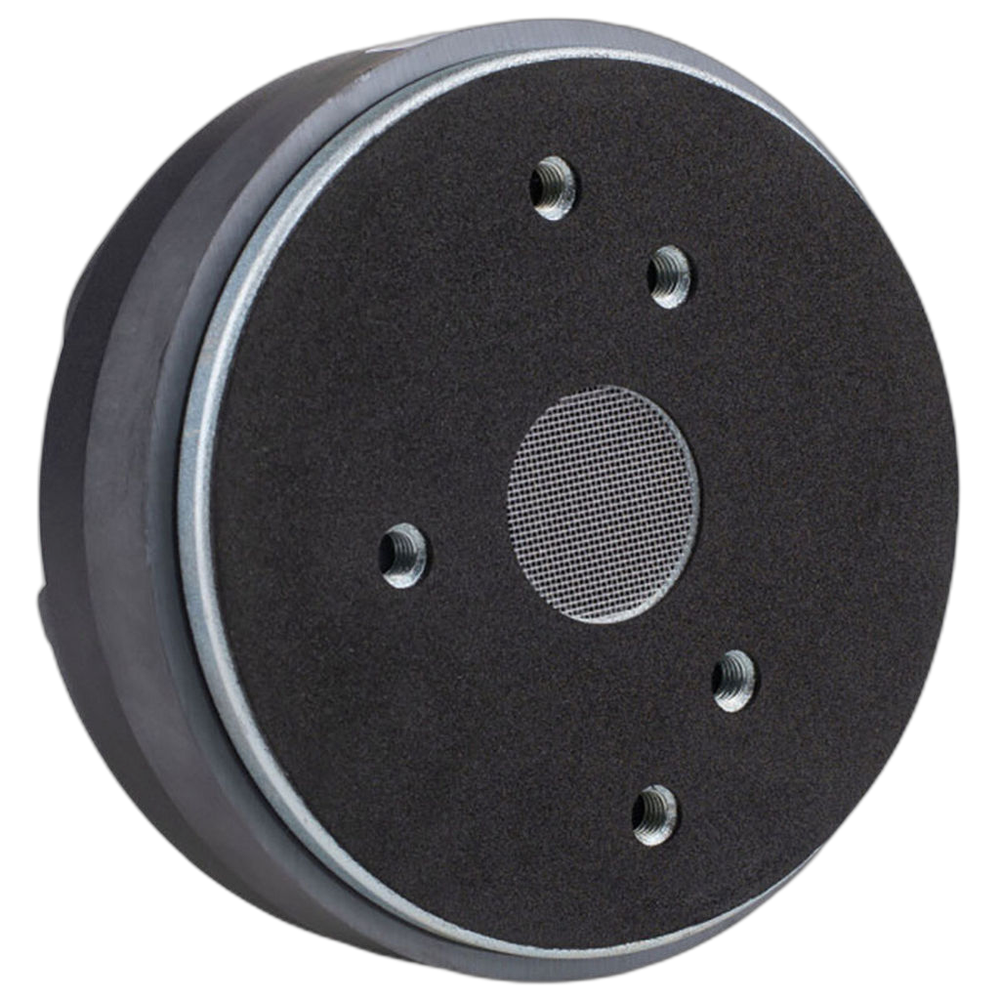

- 1" throat with 2/3-bolt mount for use with many popular horns.
- Damped titanium diaphragm provides smooth and detailed response.
- Suitable for use with crossovers as low as 1,500 Hz.
- Ideal for use in high output 2-way and 3-way designs.
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Peerless Horn |
| Power handling (RMS) | 55 W |
| Sensitivity | 105 dB |
| Minimum recommended crossover | 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 690 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Minimum impedance (Zmin) | 7 Ω |
| Voice coil inductance (Le) | 0.043 mH |
| Mechanical Q (Qms) | 5.55 |
| Electrical Q (Qes) | 2.19 |
| Total Q (Qts) | 1.6 |
| Equivalent volume (Vas) | 0.067 L |
| Compliance (Cms) | 0.18 mm/N |
| Moving mass (Mms) | 0.287 g |
| Mechanical resistance (Rms) | 0.2242 kg/s |
| Force factor (Bl) | 1.89 T·m |
| Efficiency bandwidth product (EBP) | 315.1 |
Motor
| Voice coil winding height | 2.9 mm |
|---|---|
| Voice coil layers | 1 |
| Voice coil wire | CCAW |
| Magnet size (OD × ID × thickness) | 115 × 50 × 15 mm |

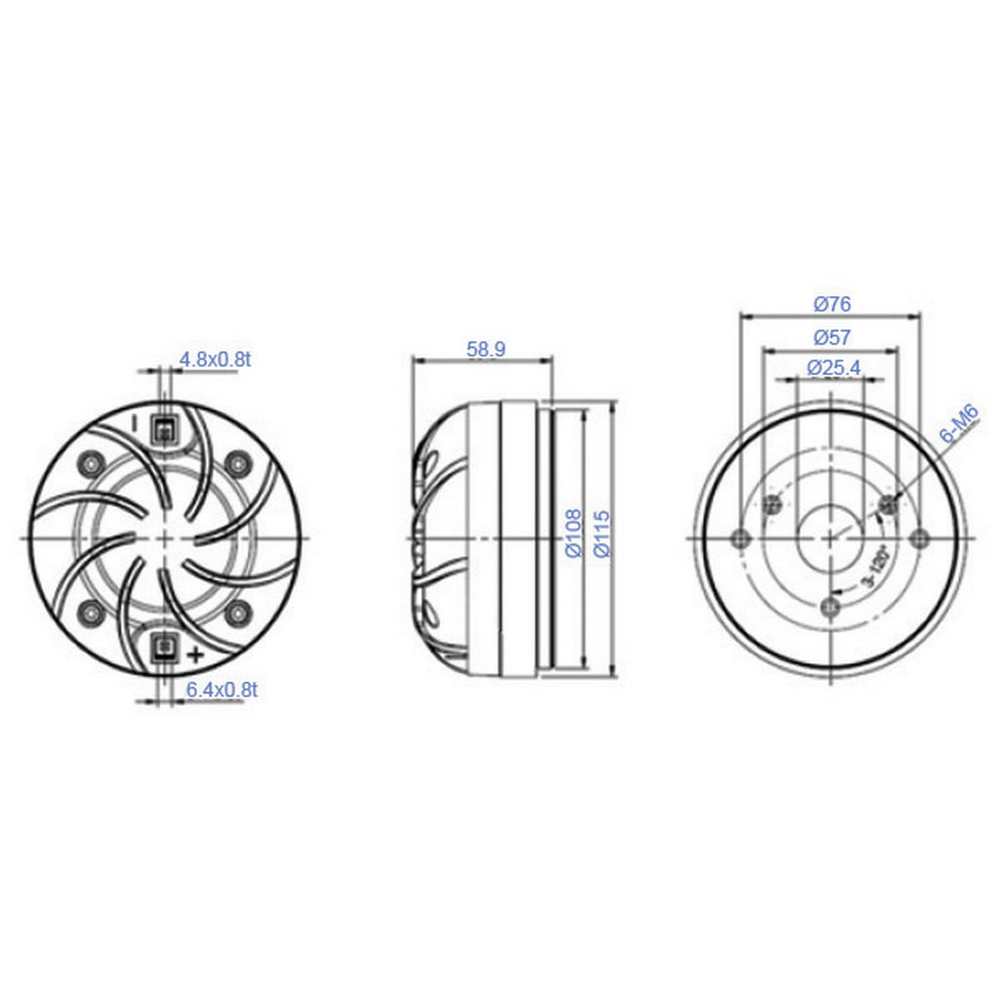

Mounting
| Overall diameter | 115 mm |
|---|---|
| Mounting depth | 58.9 mm |
| Voice coil diameter | 44.4 mm |
| Weight | 1.8 kg |
| Exit diameter | 44.5 mm |
| Horn mount thread | 2-Bolt / 3-Bolt |
Materials
| Cone | Titanium |
|---|---|
| Surround | Titanium |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (AES2-1984).
Some figures here aren't checked against Peerless' datasheet yet. See which
