Peerless - 10" XLS Subwoofer - 830452
Peerless - 10" XLS Subwoofer - 830452
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Double magnet with a long travel motor system for low compression at very high SPL. Designed to suit the unlimited demands of the bass hungry enthusiasts in home or automotive audio. Emphasis has been placed in design to achieve extremely deep bass, long time reliability, high power handling and very low distortion or compression under very large sound pressures. An audiophile grade sub-woofer.
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 4Ω |
| Series | Tymphany |
| Power handling (RMS) | 150 W |
| Sensitivity | 83.5 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 25 Hz |
|---|---|
| DC resistance (Re) | 4.2 Ω |
| Voice coil inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 4.14 |
| Electrical Q (Qes) | 0.313 |
| Total Q (Qts) | 0.29 |
| Equivalent volume (Vas) | 60.3 L |
| Compliance (Cms) | 0.35 mm/N |
| Moving mass (Mms) | 120 g |
| Mechanical resistance (Rms) | 4.553 kg/s |
| Force factor (Bl) | 15.7 T·m |
| Effective piston area (Sd) | 352 cm² |
| Linear excursion (Xmax, one-way) | 15.2 mm |
| Mechanical excursion (Xmech) | 21.9 mm |
| Displacement volume (Vd) | 535 cm³ |
| Efficiency bandwidth product (EBP) | 79.87 |
Mounting
| Cutout diameter (suggested) | ≈ 240.5 mm |
|---|---|
| Mounting depth | 119 mm |
| Voice coil diameter | 51 mm |
- Xmax is quoted one-way (peak), not peak-to-peak.
Downloads

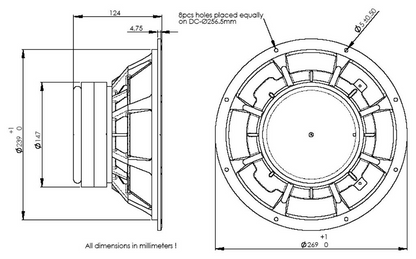

- 830452 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against Peerless' datasheet yet. See which
