Peerless
Peerless - 10" XXLS Subwoofer - P835037
Peerless - 10" XXLS Subwoofer - P835037
Regular price
$374.95 AUD
Regular price
Sale price
$374.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

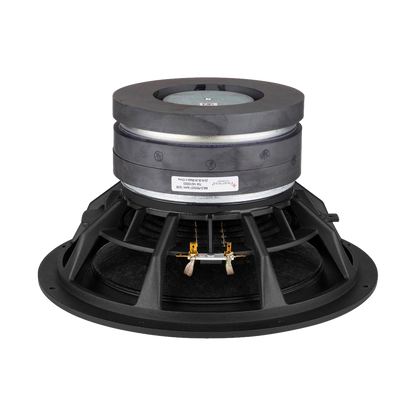

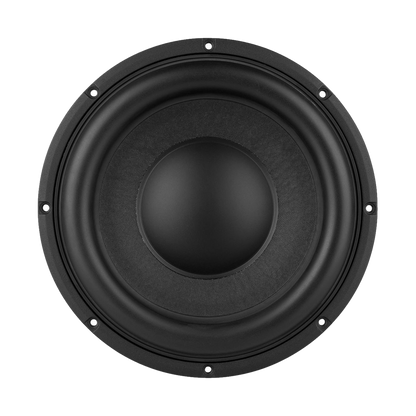

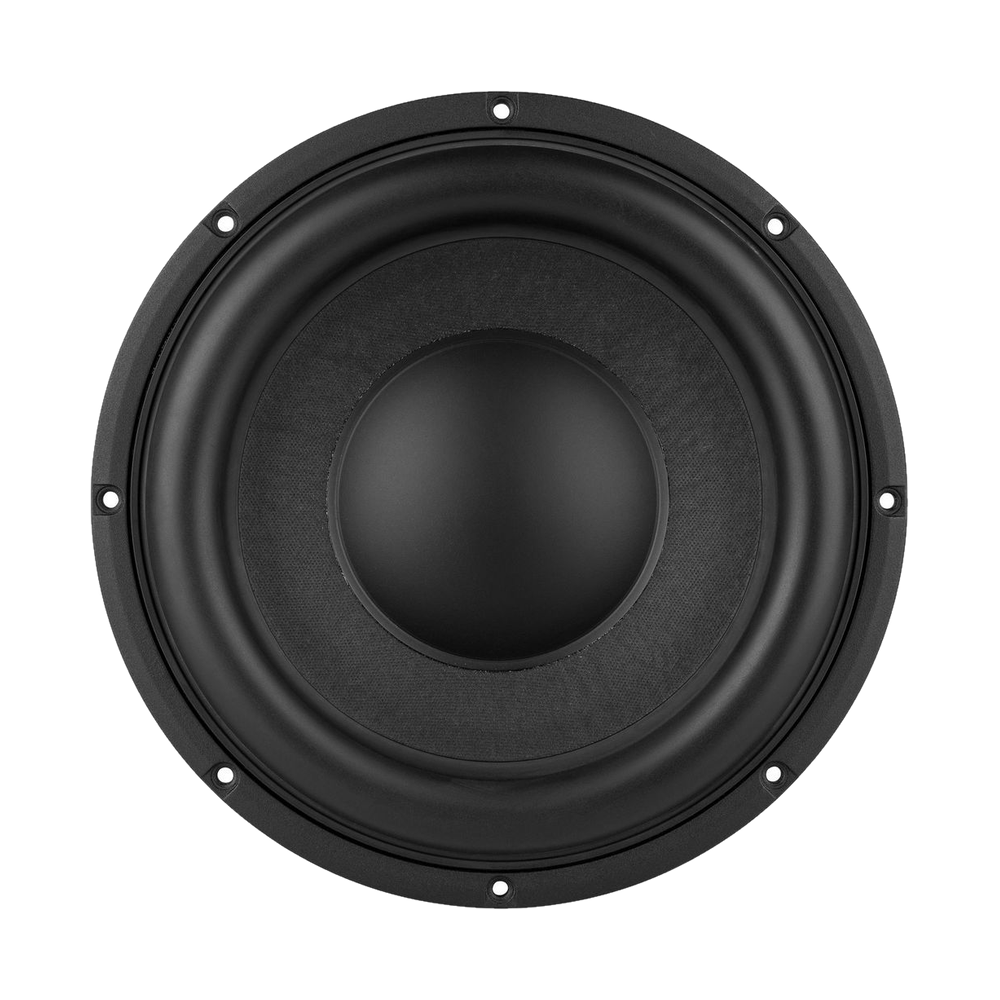

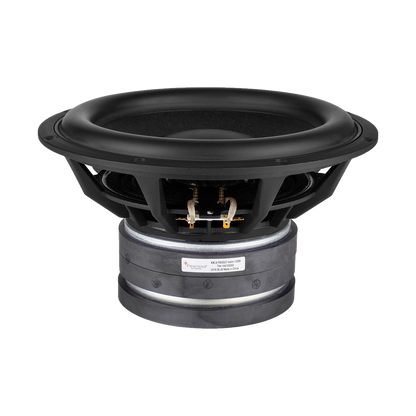

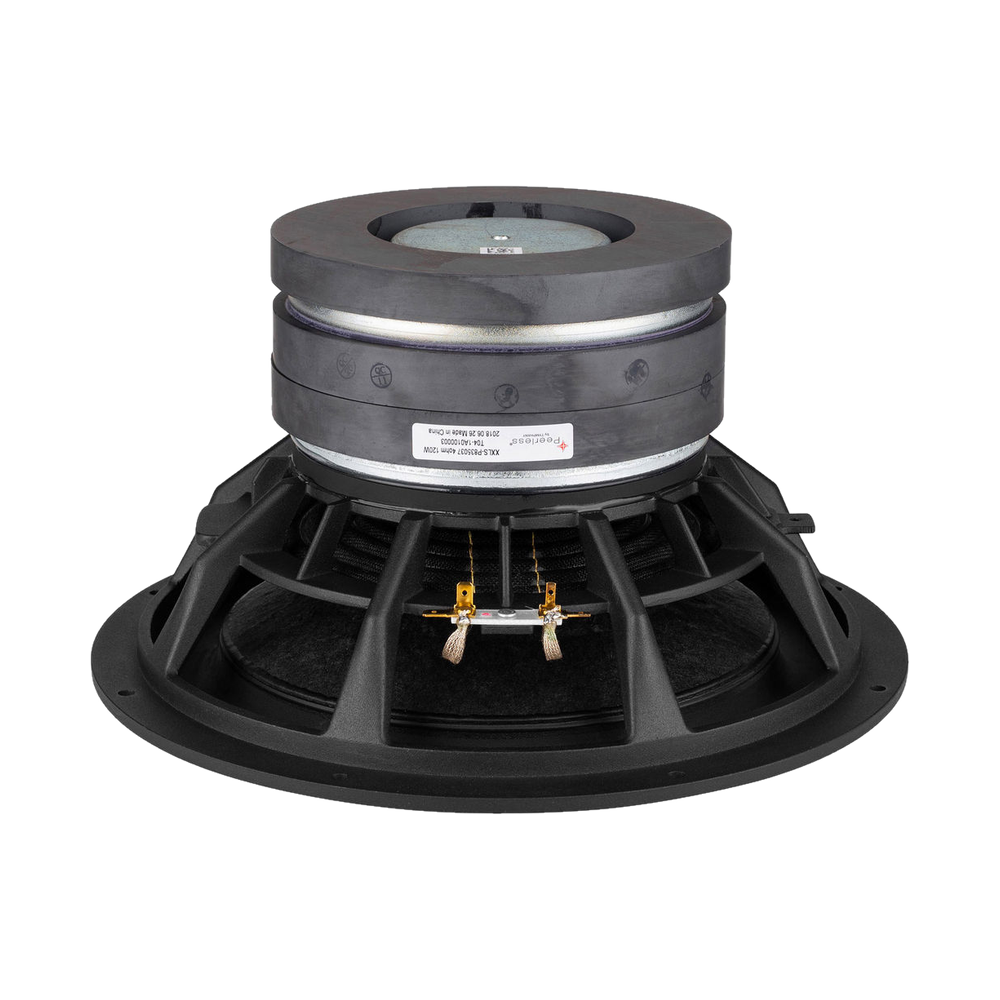

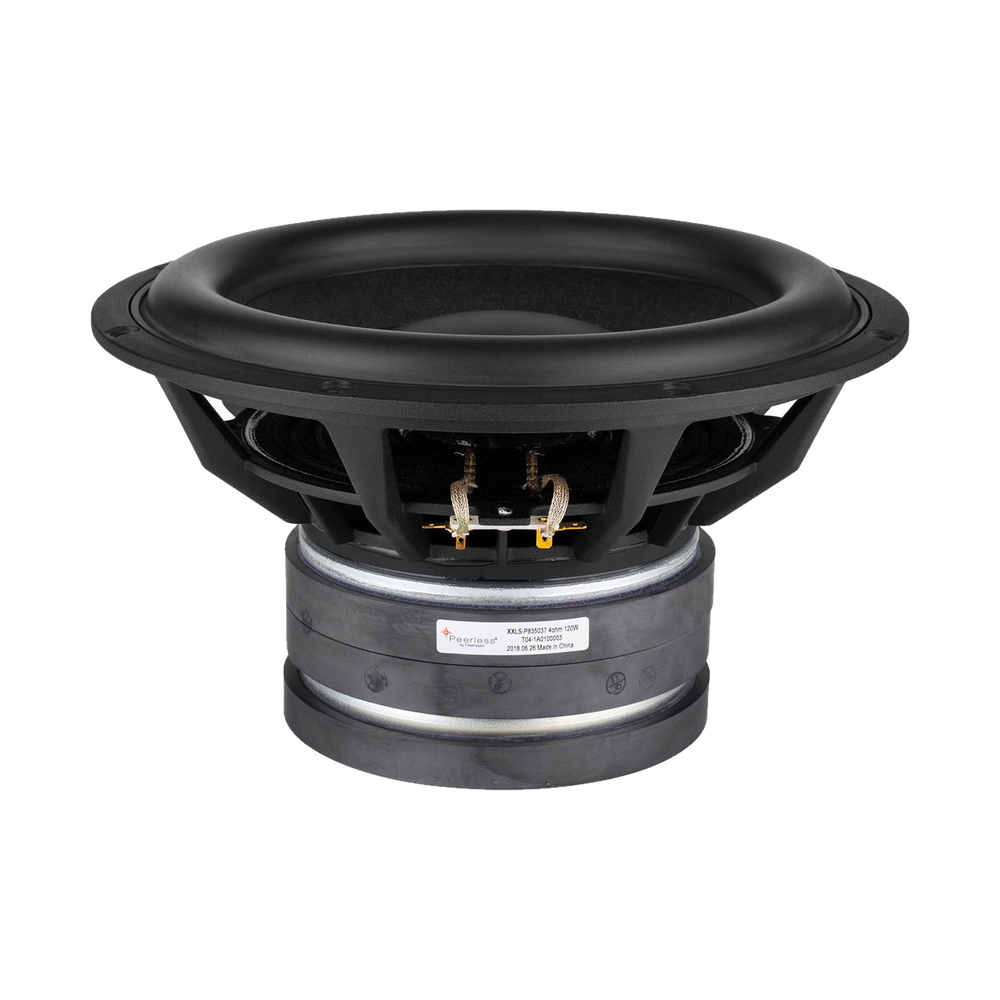

A 10" high-excursion subwoofer from Peerless by Tymphany's XXLS family. Its double ferrite motor has aluminium shorting rings and pole extenders that lower and linearise the inductance of the overhung voice coil. The light, stiff composite paper cone is vented under the dust cap, the suspension is a low-creep rubber surround with a Nomex spider, and the basket is cast aluminium.
Features
- Paper diaphragm
- NBR rubber surround
- Ferrite magnet
- Cast aluminium frame
- High excursion
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 120 W |
| Sensitivity | 86.4 dB |
| Frequency range | 40 – 500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 30 Hz |
|---|---|
| DC resistance (Re) | 2.6 Ω |
| Minimum impedance (Zmin) | 3.4 Ω |
| Voice coil inductance (Le) | 0.507 mH |
| Mechanical Q (Qms) | 8.94 |
| Electrical Q (Qes) | 0.45 |
| Total Q (Qts) | 0.43 |
| Equivalent volume (Vas) | 50.8 L |
| Compliance (Cms) | 0.3 mm/N |
| Moving mass (Mms) | 95.5 g |
| Force factor (Bl) | 10.1 T·m |
| Effective piston area (Sd) | 346 cm² |
| Linear excursion (Xmax, one-way) | 15 mm |
| Mechanical excursion (Xmech) | 30.2 mm |
| Displacement volume (Vd) | 519 cm³ |
| Efficiency bandwidth product (EBP) | 66.67 |

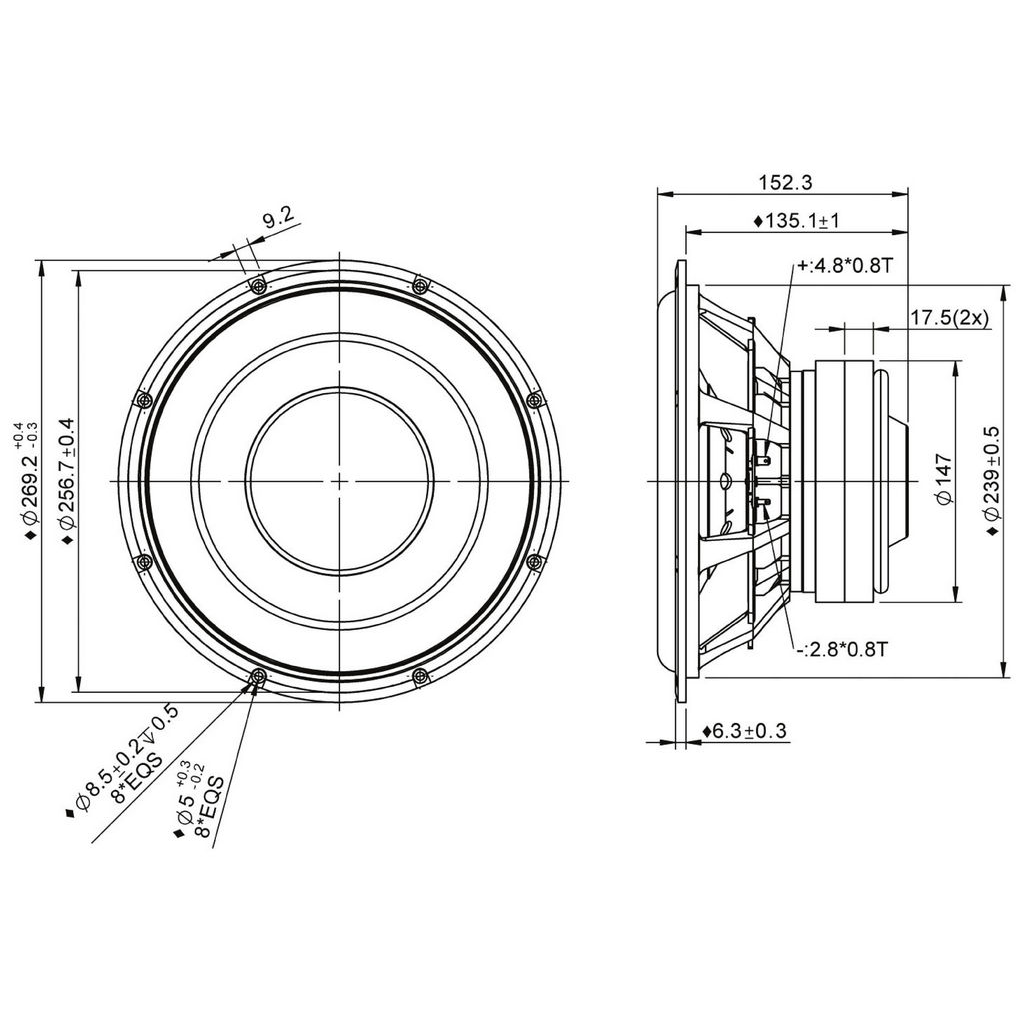

Mounting
| Overall diameter | 269.2 mm |
|---|---|
| Cutout diameter | 239 mm |
| Bolt circle diameter | 256.7 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5 mm |
| Voice coil diameter | 51.3 mm |
| Weight | 6.9 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
