Peerless

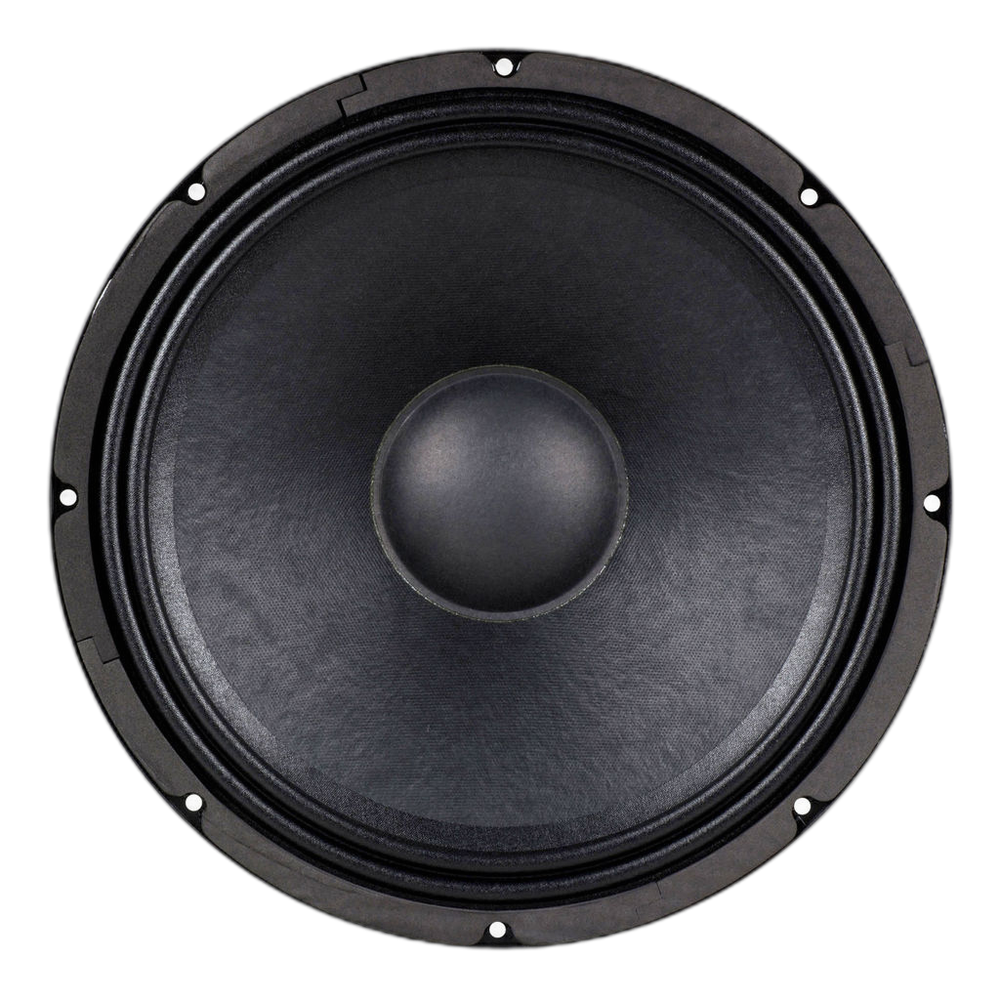

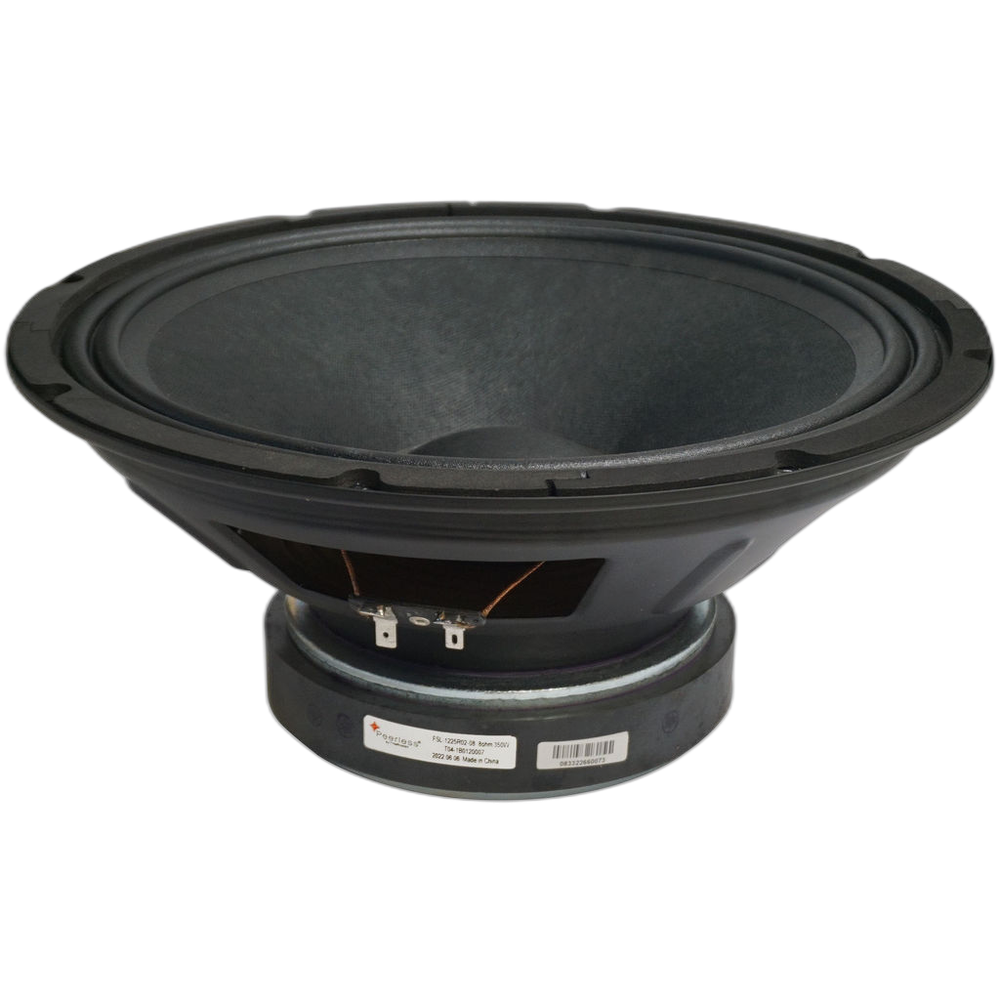

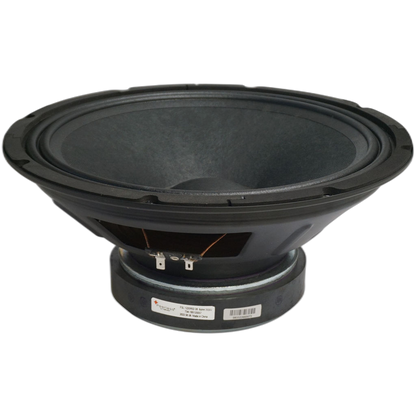

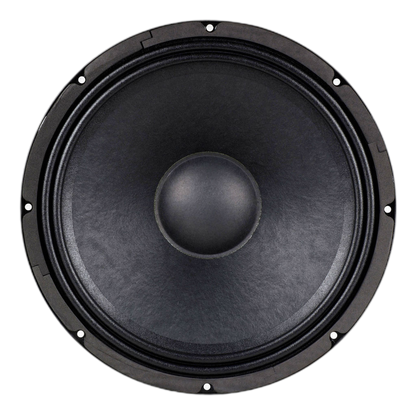

Peerless - 12" Woofer - FSL-1225
Peerless - 12" Woofer - FSL-1225
Regular price
$199.95 AUD
Regular price
Sale price
$199.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

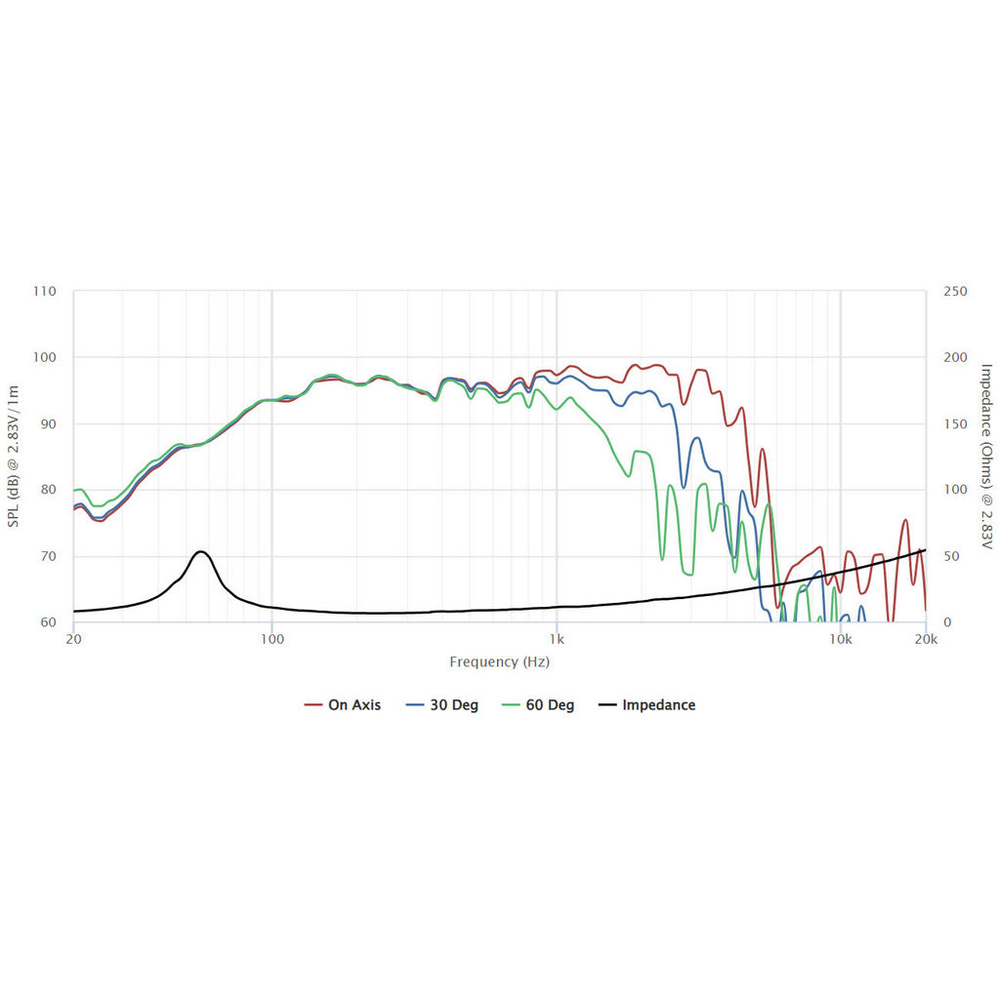

12" professional woofer is perfectly suited for use in a high efficiency, wide dispersion system such as a stage monitor or sound reinforcement speaker. With extremely flat response up to 3,000 Hz and 96 dB efficiency, this woofer should mate easily to a horn tweeter. Featuring a 2.5" high temperature voice coil, vented magnet assembly, reinforced steel frame, and double roll surround, the FSL-1225R02-08 is specifically designed to stand up to the rigors of pro sound.
Features
- Multi-roll surround and spider have been optimised for reduced distortion

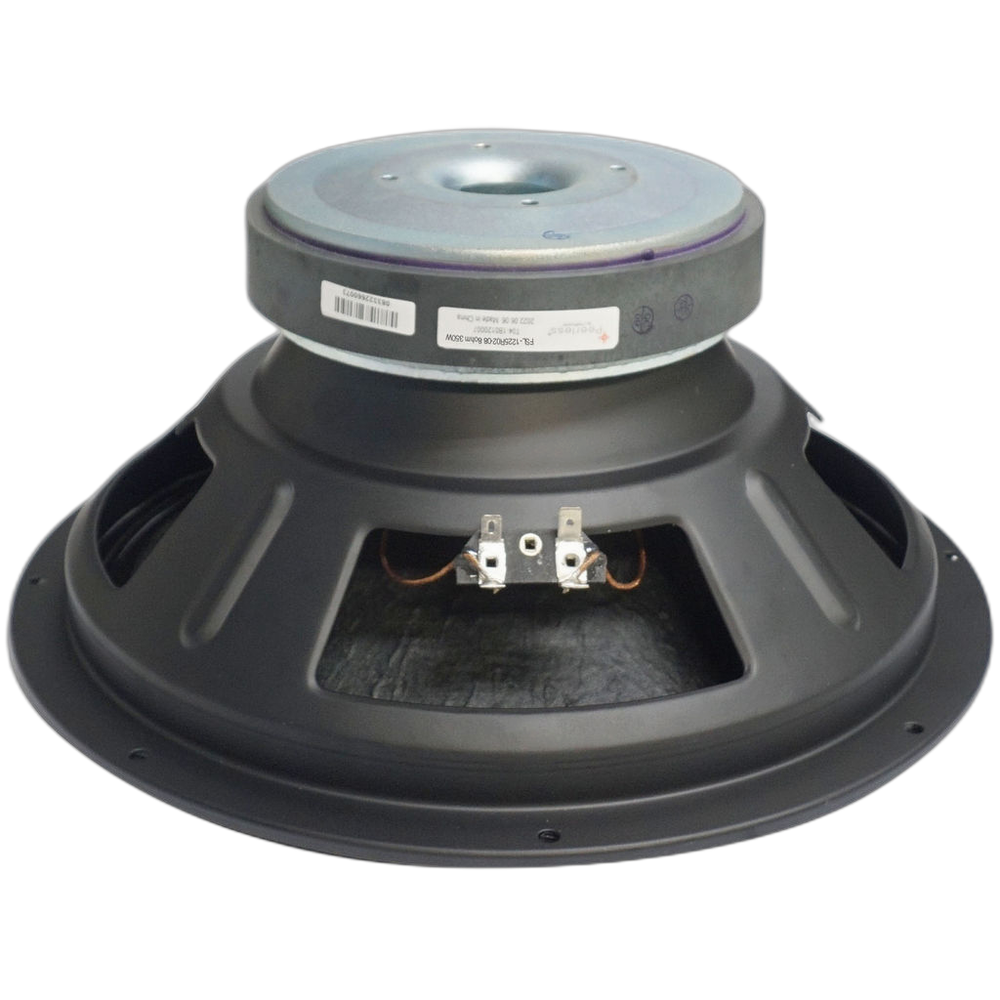

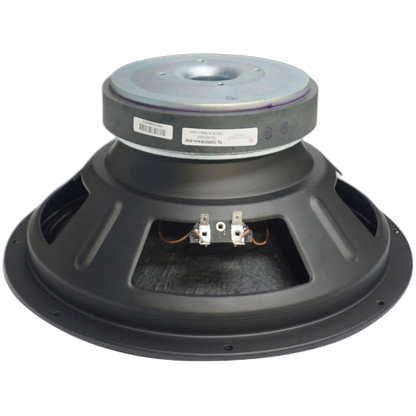

- 2.5" high temperature voice coil and vented pole piece enhance cooling for higher power handling
- Bumped back plate for increased excursion capabilities without bottoming out

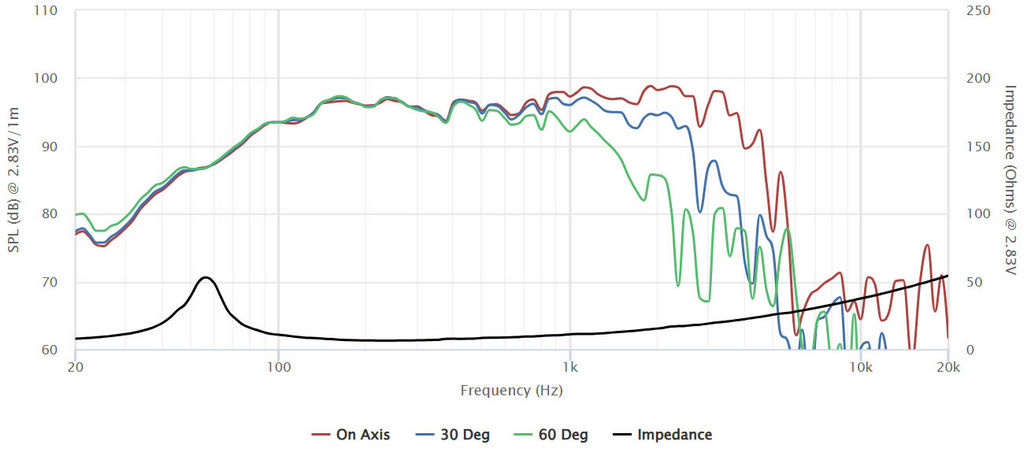

- Excellent on and off axis response to 2,500 Hz for natural, space filling sound
Specifications
| Coil | 65.5mmØ |
|---|---|
| Impedance | 8Ω Re 5.5Ω |
| Sens. | 96.6dB |
| Re | 5.5Ω |
| Qms | 4.19 |
| Qes | 0.486 |
| Qts | 0.44 |
| Vas | 54.8 |
| Cms | 0.13mm/N |
| Fs | 63Hz |
| Mms | 50.1g |
| Le | 0.536mH |

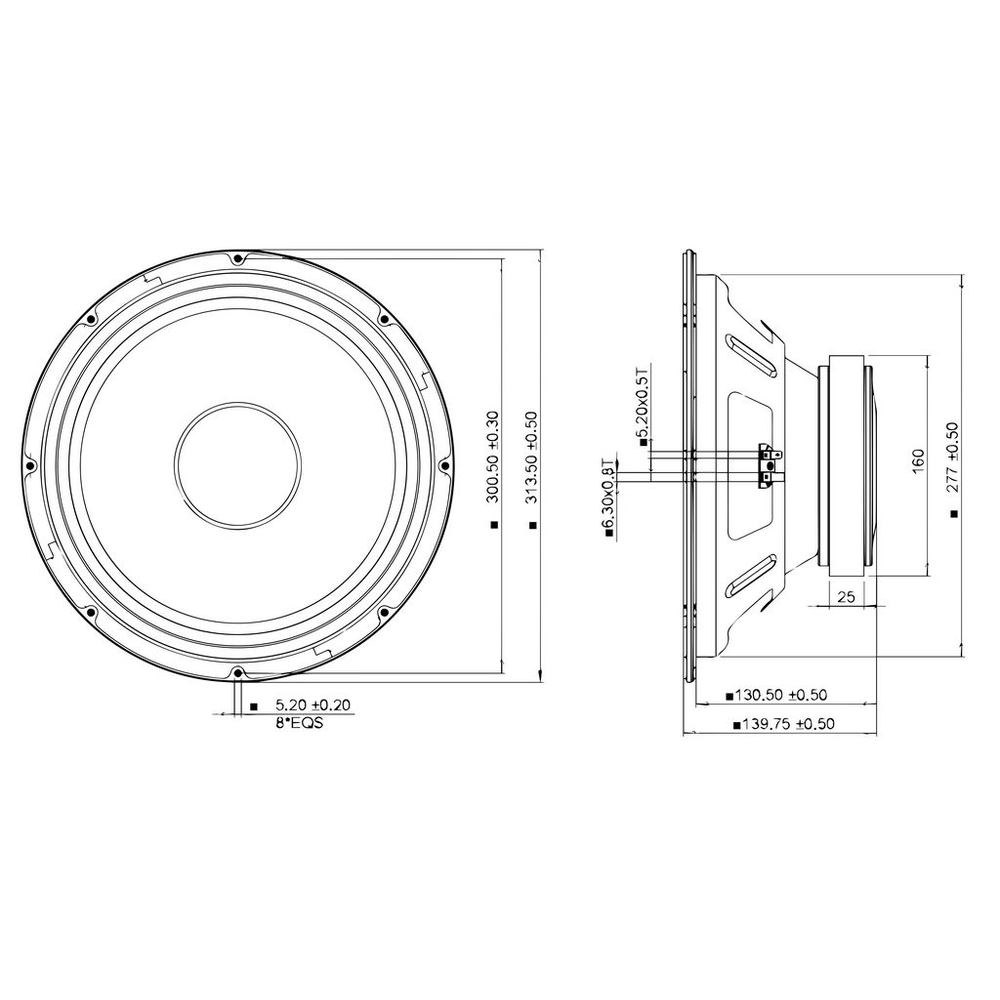

| Diam. | 313.5mmØ |
| Manufacturer | Peerless |
| Size | 12' |
| Series | Peerless Pro Woofer |
| Type | Woofer |
| Power | 233Wrms |

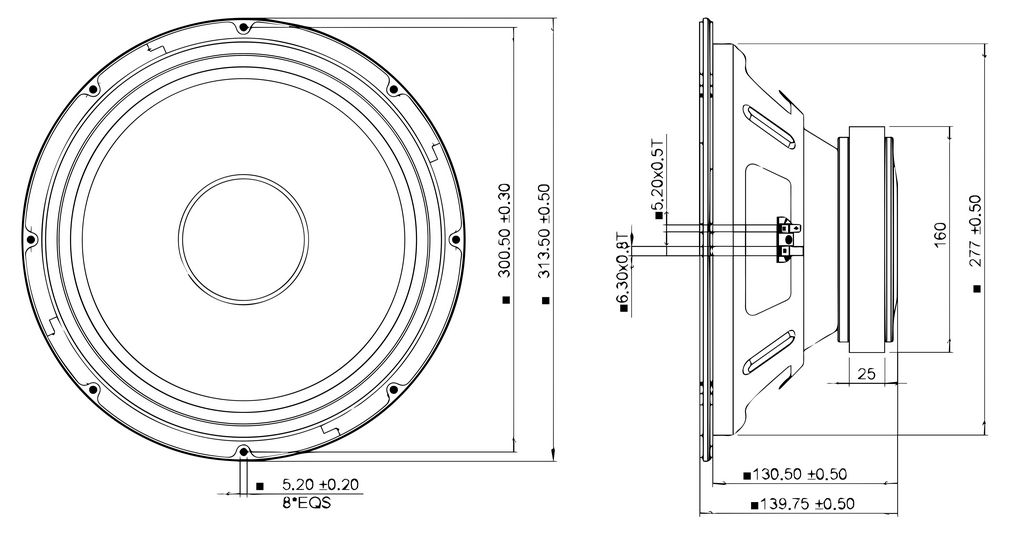

| Hole | 277mmØ |
| Hole Cutout | 277mmØ |
| Width | 300.5mmØ |
| Zn | 8Ω |
| Website Link | View Typhany Product Page |
| Sd | 547cm² |
