Peerless
Peerless - 2" Full Range Driver - TA6FD00-04
Peerless - 2" Full Range Driver - TA6FD00-04
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

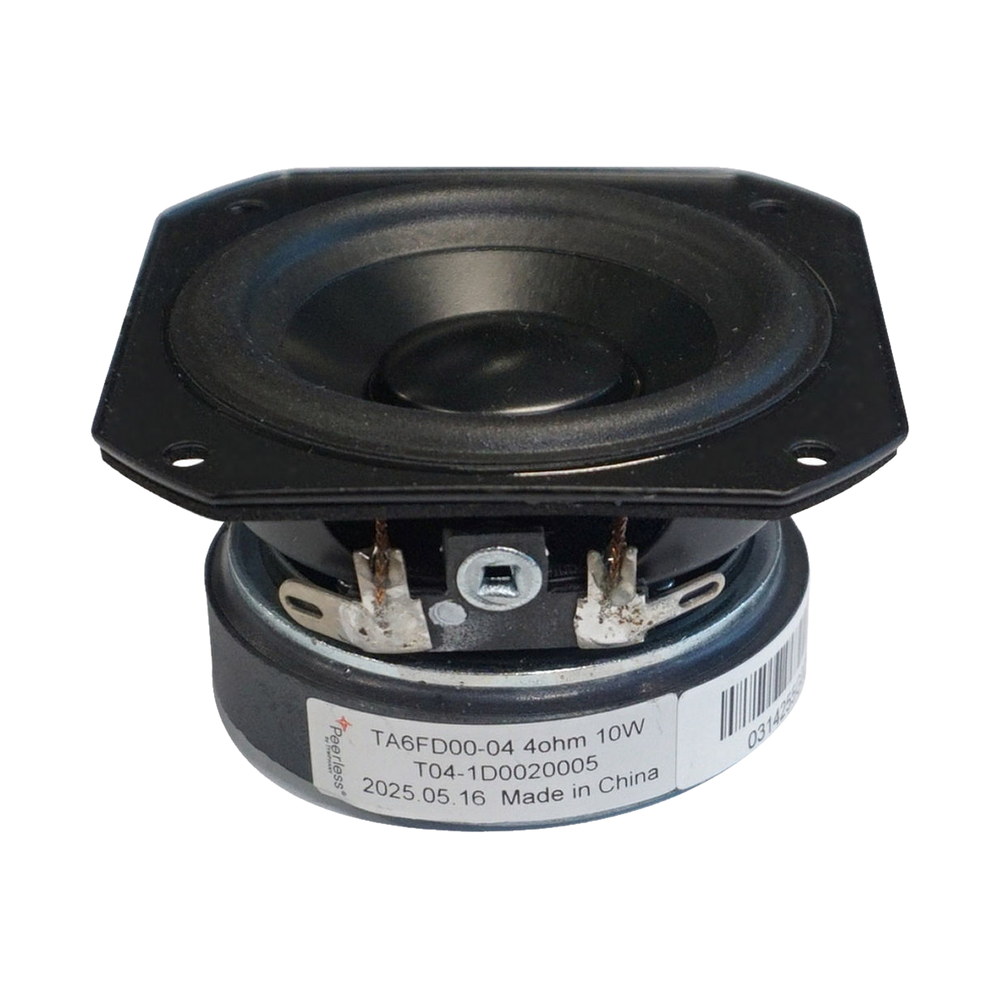

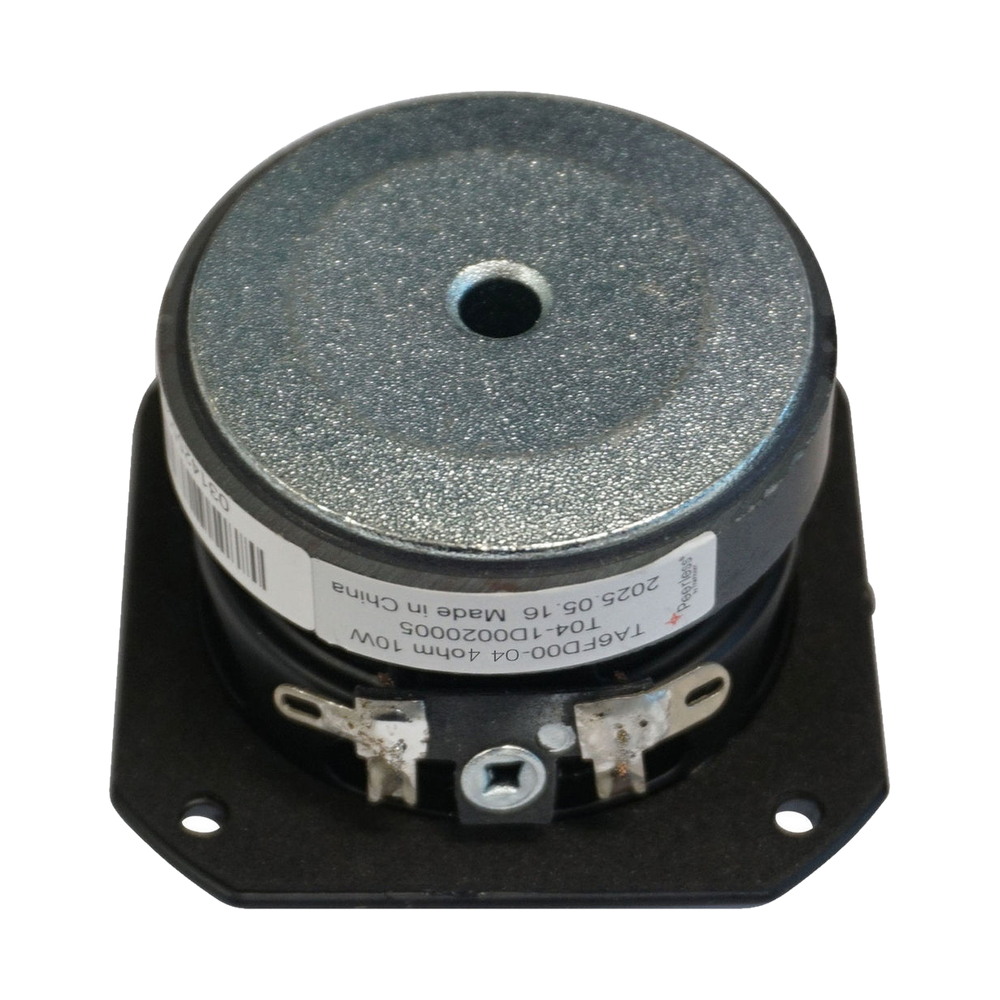

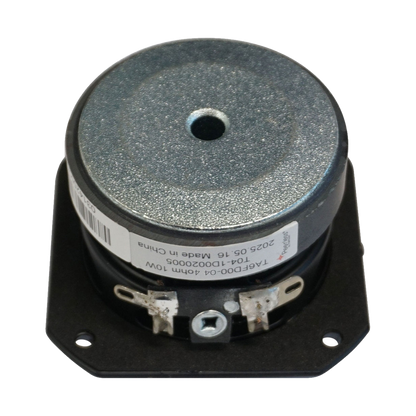

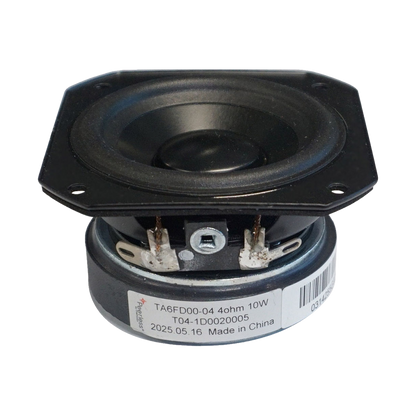

A 2" 4 Ω full-range driver from Peerless by Tymphany's TA family, for compact uses such as soundbars. It has a black anodised aluminium cone and dust cap coupled directly to the voice coil, a ferrite motor with a copper cap to lower coil inductance, and a stiff steel basket vented under the spider to cool the motor.
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 10 W |
| Sensitivity | 81.1 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 146.6 Hz |
|---|---|
| DC resistance (Re) | 3.47 Ω |
| Minimum impedance (Zmin) | 3.99 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 3.78 |
| Electrical Q (Qes) | 1.24 |
| Total Q (Qts) | 0.93 |
| Equivalent volume (Vas) | 0.27 L |
| Compliance (Cms) | 0.8221 mm/N |
| Moving mass (Mms) | 1.4 g |
| Force factor (Bl) | 1.93 T·m |
| Effective piston area (Sd) | 15.2 cm² |
| Linear excursion (Xmax, one-way) | 1 mm |
| Displacement volume (Vd) | 1.52 cm³ |
| Efficiency bandwidth product (EBP) | 118.2 |

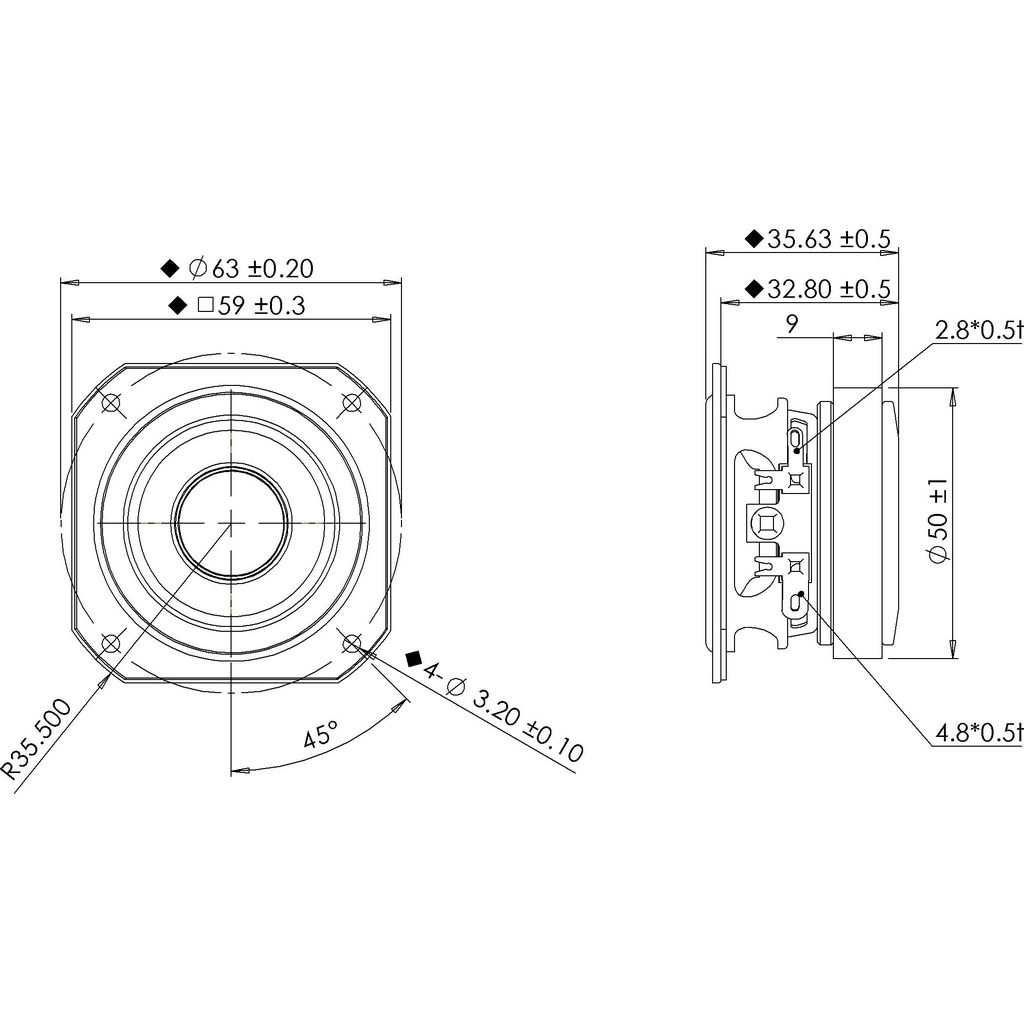

Mounting
| Mounting depth | 32.8 mm |
|---|---|
| Mounting holes | 4 |
| Mounting hole diameter | 3.2 mm |
| Voice coil diameter | 19.32 mm |
| Weight | 0.17 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
