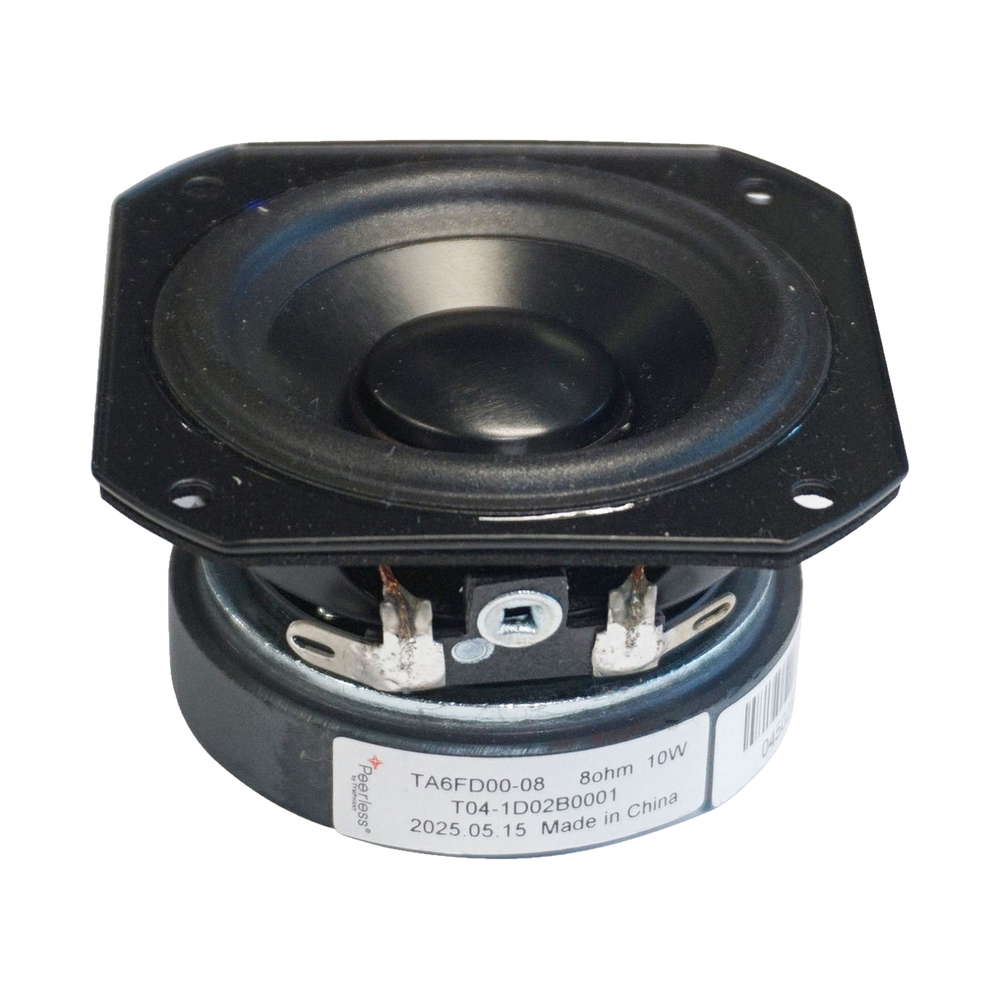

Peerless - 2" Full Range Driver - TA6FD00-08
Peerless - 2" Full Range Driver - TA6FD00-08
Regular price
$29.95 AUD
Regular price
Sale price
$29.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A 2" 8 Ω full-range driver from Peerless by Tymphany's TA family, for compact uses such as soundbars. It has a black anodised aluminium cone and dust cap coupled directly to the voice coil, a ferrite motor with a copper cap to lower coil inductance, and a stiff steel basket vented under the spider to cool the motor.
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 10 W |
| Sensitivity | 80.9 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 150.1 Hz |
|---|---|
| DC resistance (Re) | 6.46 Ω |
| Minimum impedance (Zmin) | 7.19 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3.81 |
| Electrical Q (Qes) | 1.42 |
| Total Q (Qts) | 1.03 |
| Equivalent volume (Vas) | 0.26 L |
| Compliance (Cms) | 0.8066 mm/N |
| Moving mass (Mms) | 1.4 g |
| Force factor (Bl) | 2.45 T·m |
| Effective piston area (Sd) | 15.2 cm² |
| Linear excursion (Xmax, one-way) | 1 mm |
| Displacement volume (Vd) | 1.52 cm³ |
| Efficiency bandwidth product (EBP) | 105.7 |
Mounting
| Mounting depth | 32.8 mm |
|---|---|
| Mounting holes | 4 |
| Mounting hole diameter | 3.2 mm |
| Voice coil diameter | 19.32 mm |
| Weight | 0.17 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
