Peerless - 2" Full Range Driver - TC6FC00-04

Peerless - 2" Full Range Driver - TC6FC00-04

$36.95 AUD
$36.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

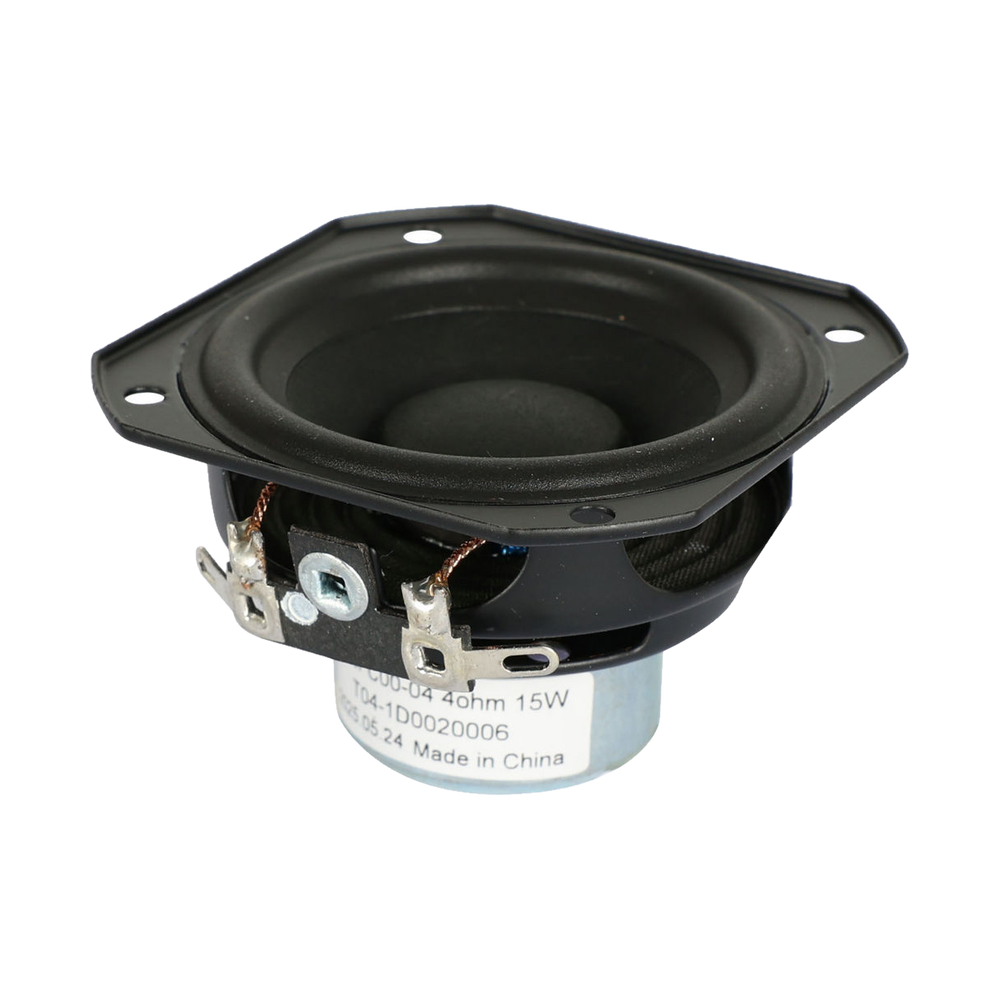

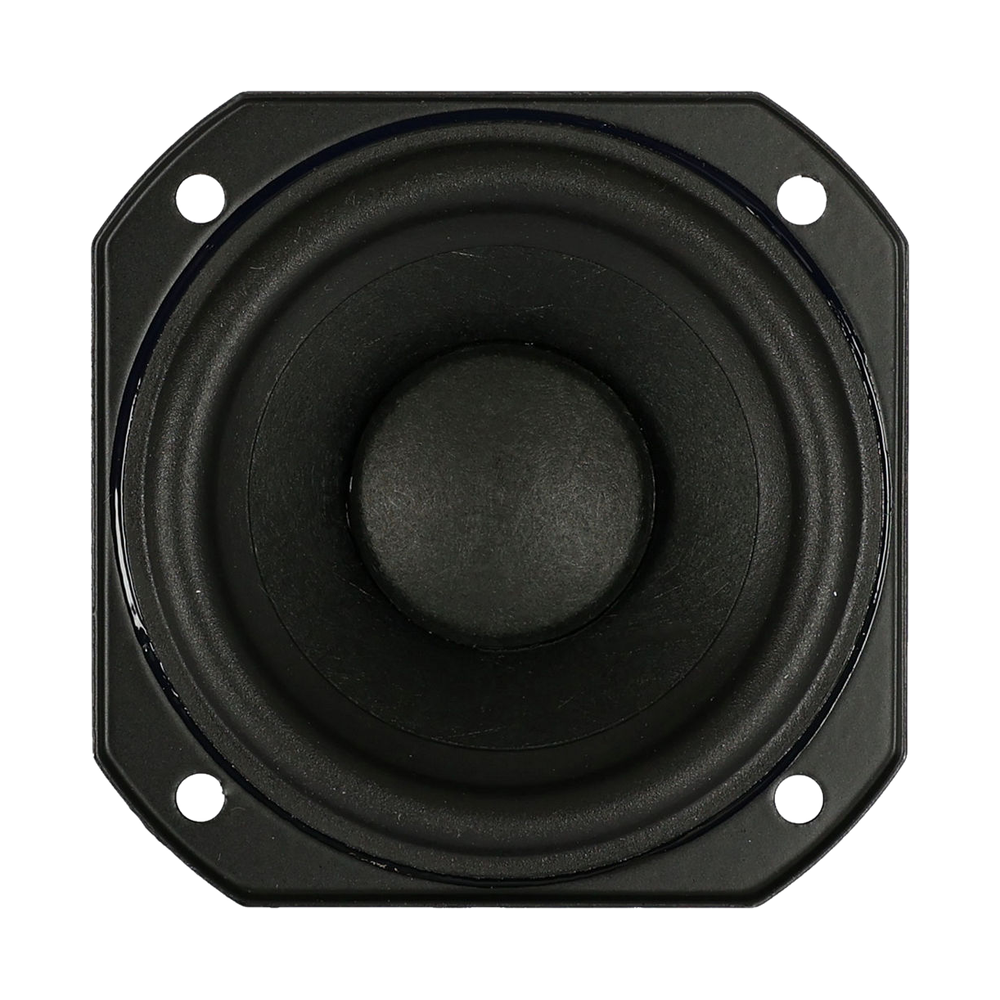

A compact 2" full-range driver from Peerless by Tymphany, with a patented PentaCut paper cone, a rubber surround and a neodymium magnet in a pressed steel basket. It is designed for low distortion and good cone control in portable speakers, soundbars and other small systems.

Features

  • Pressed Steel Basket
  • Neodymium Motor
  • Patented PentaCut Cone Technology
  • Paper Diaphragm
  • Copper Cap

Specifications

General

Driver type Full Range
Nominal size 2"
Nominal impedance 4Ω
Power handling (RMS) 15 W
Sensitivity 82 dB

Thiele/Small parameters

Resonant frequency (Fs) 190 Hz
DC resistance (Re) 3.4 Ω
Minimum impedance (Zmin) 3.7 Ω
Voice coil inductance (Le) 0.036 mH
Mechanical Q (Qms) 3.88
Electrical Q (Qes) 1.09
Total Q (Qts) 0.85
Equivalent volume (Vas) 0.188 L
Compliance (Cms) 0.57 mm/N
Moving mass (Mms) 1.25 g
Force factor (Bl) 2.15 T·m
Effective piston area (Sd) 15.2 cm²
Linear excursion (Xmax, one-way) 2 mm
Mechanical excursion (Xmech) 5.16 mm
Displacement volume (Vd) 3.04 cm³
Efficiency bandwidth product (EBP) 174.3

Motor

Motor efficiency factor (β) 1.35 (T·m)²/Ω
Air gap height 3 mm
Voice coil winding height 5 mm
Voice coil layers 2
Voice coil wire CCAW
Magnet size (OD × thickness) 18.5 × 5 mm

Mounting

Overall diameter 65 mm

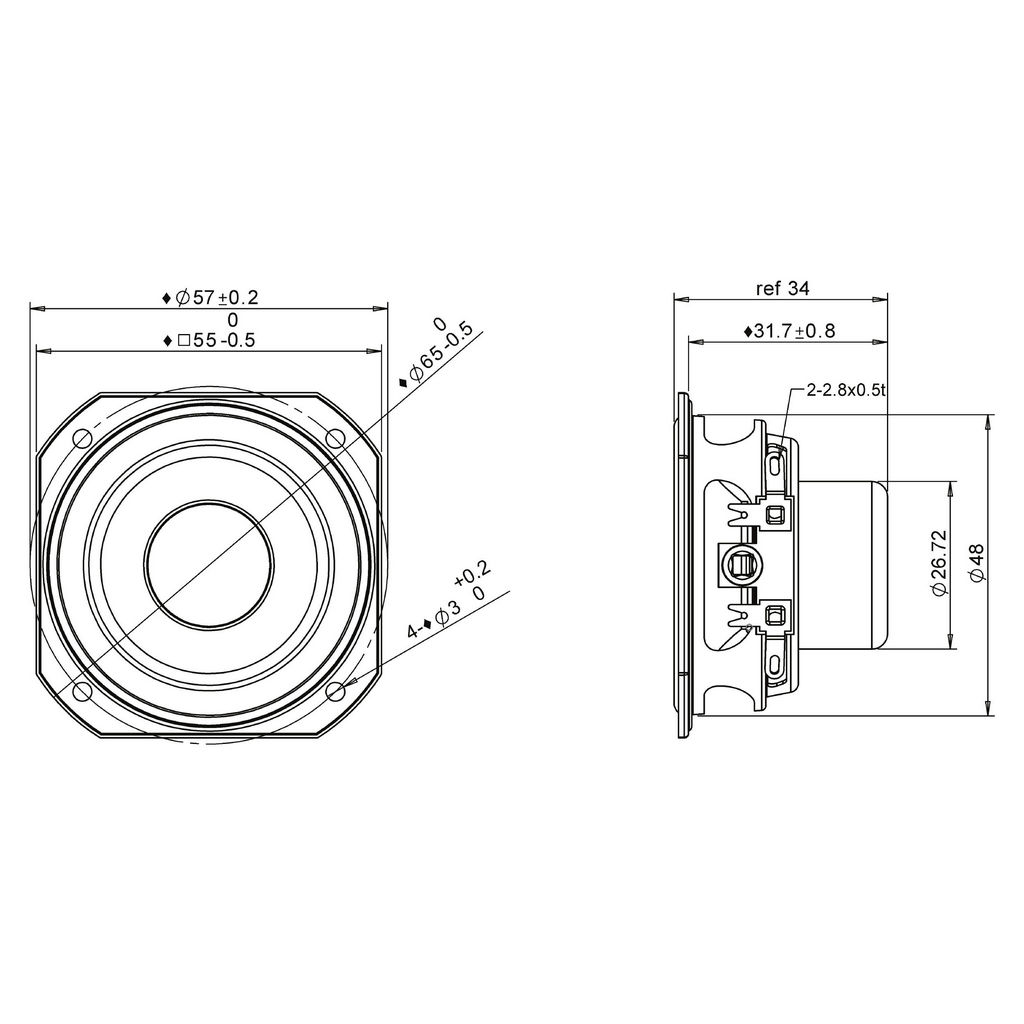

Faceplate Not round, 55 × 55 mm (see the maker's drawing)
Voice coil diameter 19.3 mm
Weight 0.08 kg

Materials

Cone Untreated Paper
Surround SBR
Basket Steel
Magnet Neodymium
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 1W/1m.
  • Power handling is Peerless's rated noise power (IEC 268-5).
