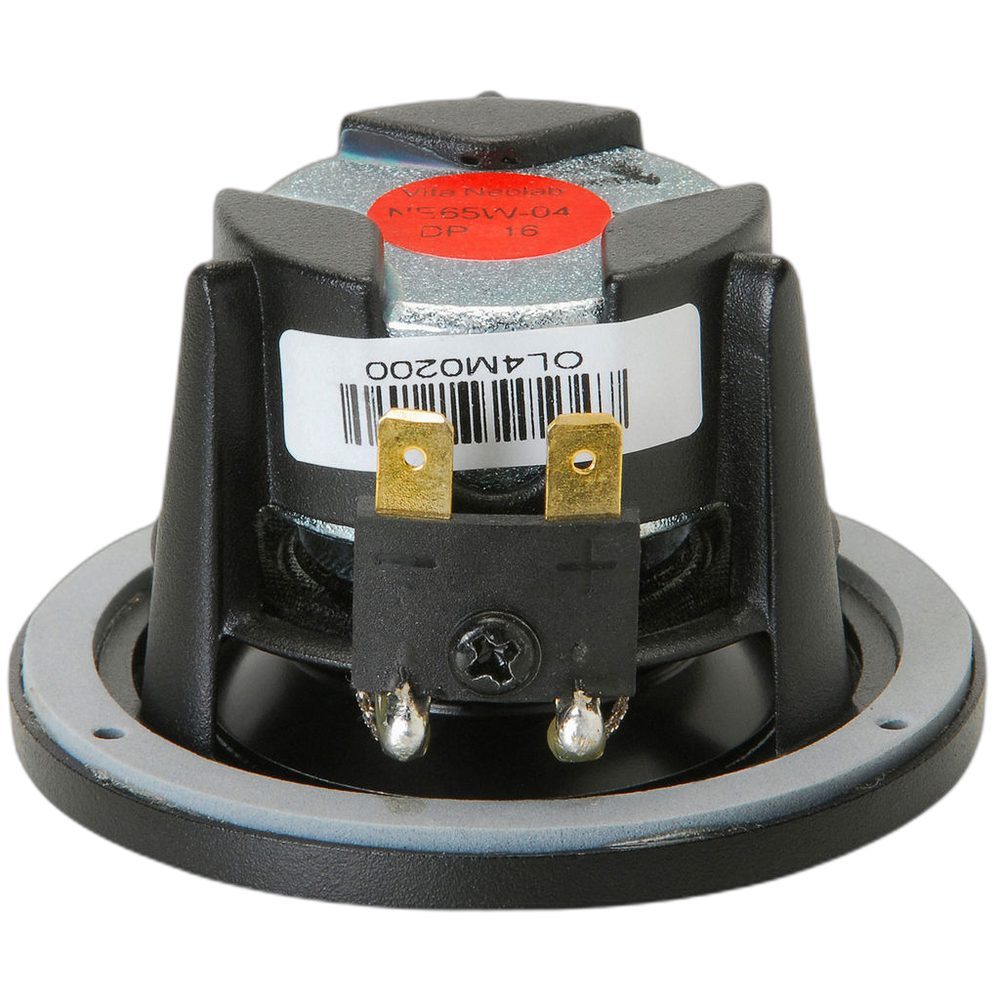

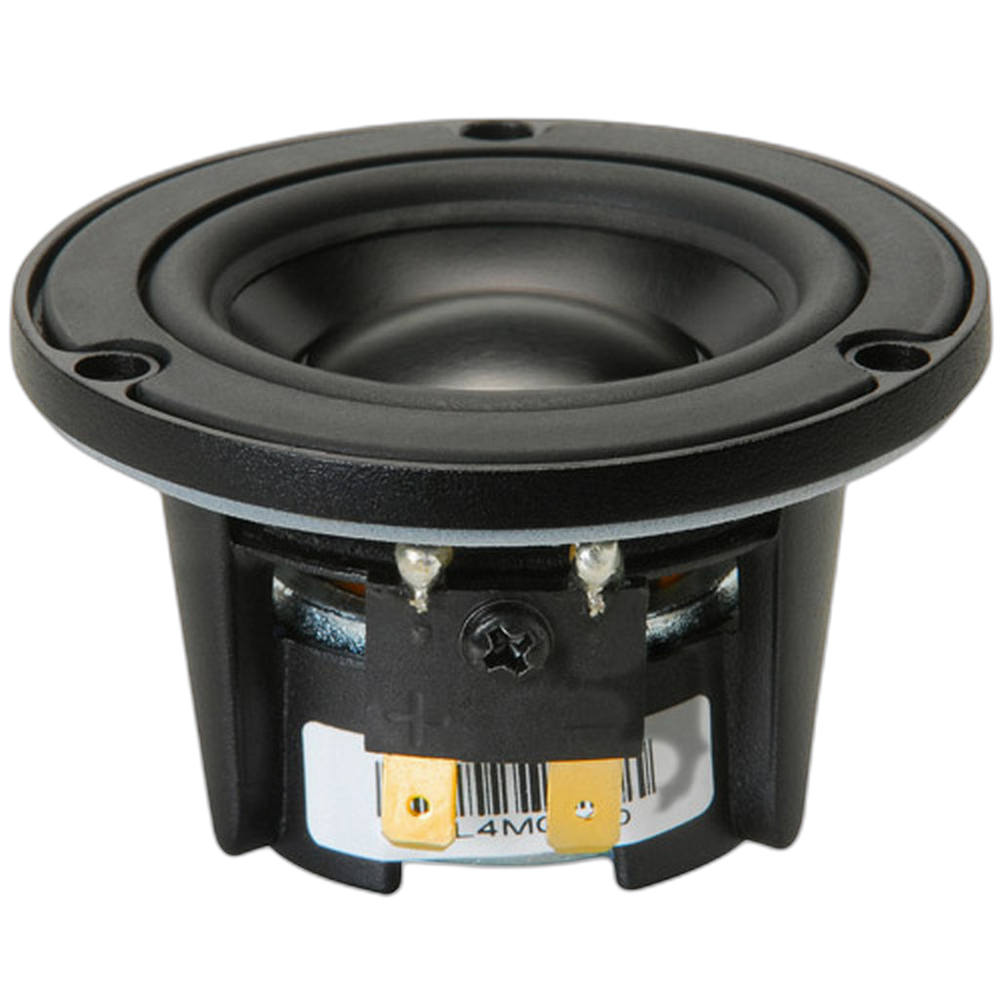

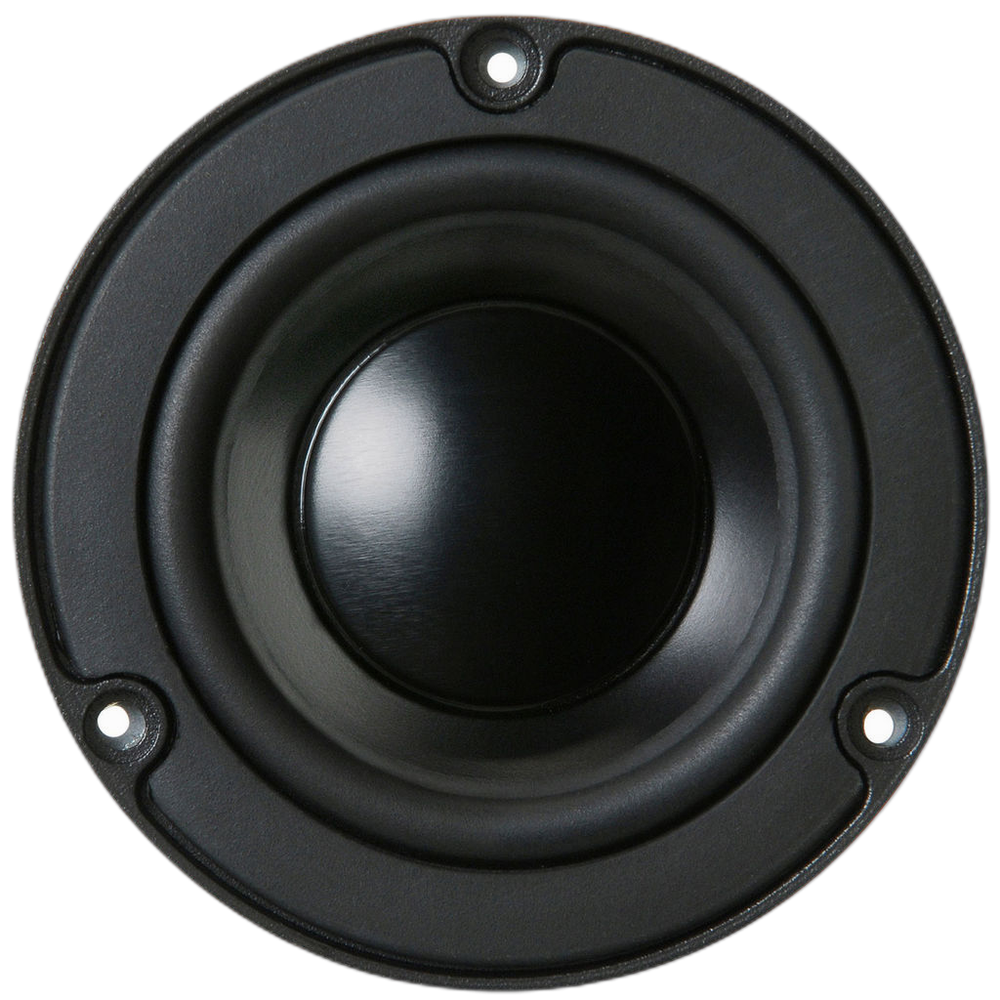

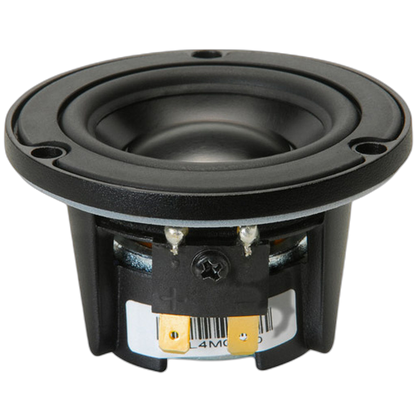

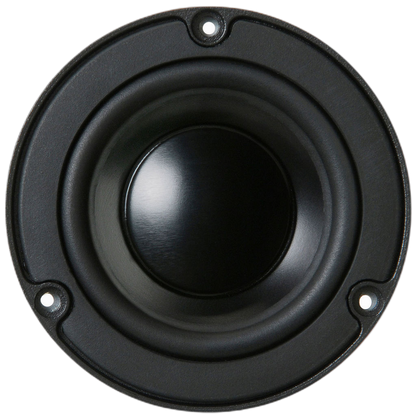

Peerless - 2" NE Full Range Neo - NE65W-04
Peerless - 2" NE Full Range Neo - NE65W-04
Regular price
$74.95 AUD
Regular price
Sale price
$74.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The compact Peerless NE65W-04 2" full-range driver features an aluminium cone with a FEA-optimised butyl rubber half-roll surround, driven by a high-strength neodymium motor. Its sculpted cast aluminium frame minimises internal reflections and doubles as a heatsink for improved thermal performance. A titanium voice coil bobbin and copper-capped motor enhance high-frequency response and reduce inductive distortion.
Specifications
| Type | Full Range |
|---|---|
| Size | 2' |
| Power | 25Wrms |
| Coil | 25.7mmØ |
| Width | 65mmØ |
| Impedance | 4Ω Re 3.5Ω |
| Mag. | 140g |
| Sens. | 81.7dB |
| Re | 3.5Ω |
| Qms | 5.52 |
| Qes | 0.813 |
| Qts | 0.71 |
| Vas | 0.14L |
| Zo | 4 Ω Re3.5Ω |
| Sd | 14.7cm² |
| Cms | 0.46mm/N |
| Fs | 180Hz |
| Mms | 1.65g |
| Zn | 4Ω |
| Le | 0.057mH |
| Diam. | 65mmØ |
| Manufacturer | Peerless |
| Hole | 54.4mmØ |
| Hole Cutout | 54.4mmØ |
| Series | Peerless Full Range |
| Website Link | View Typhany Product Page |
