Peerless

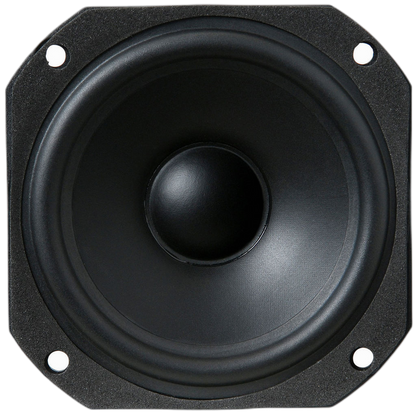

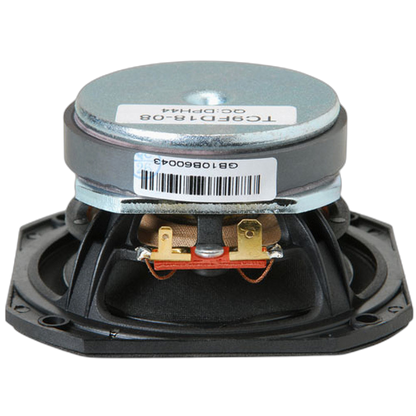

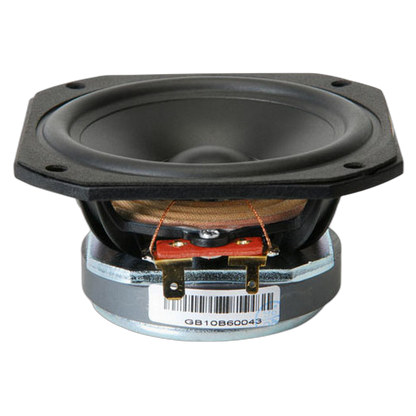

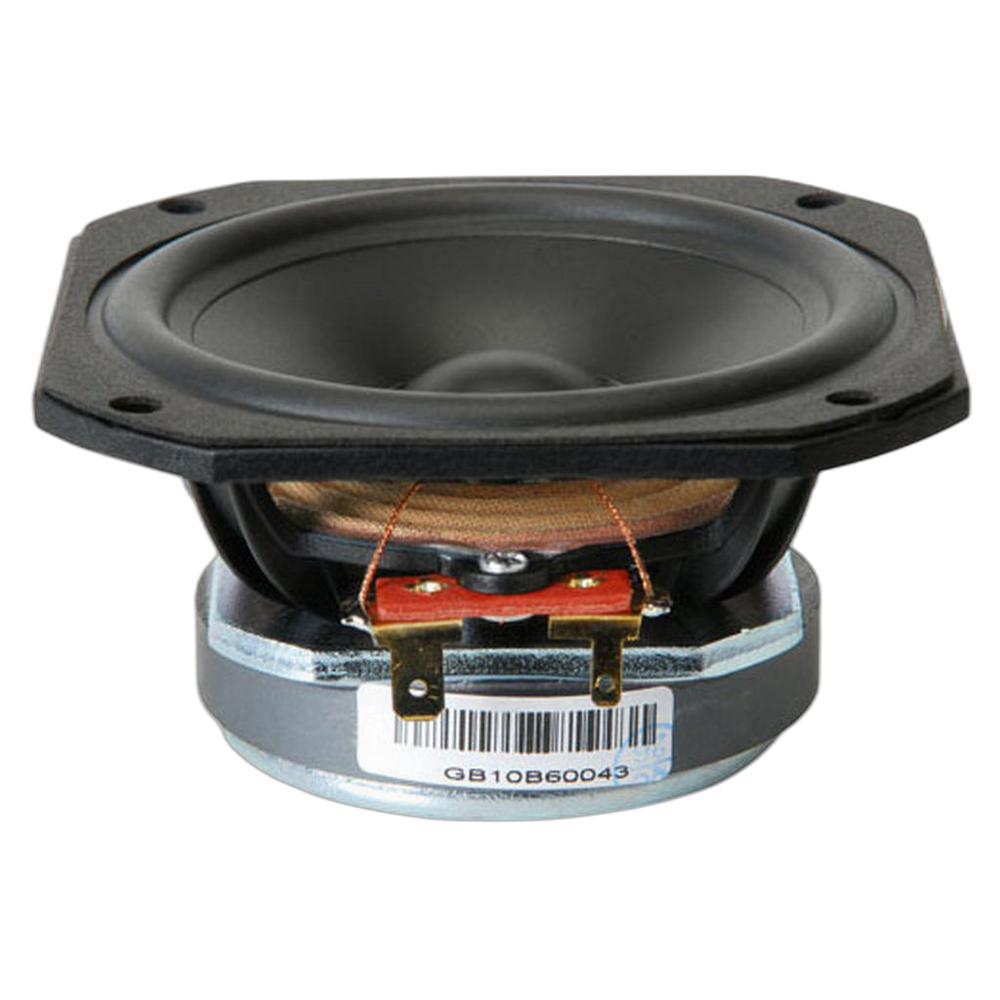

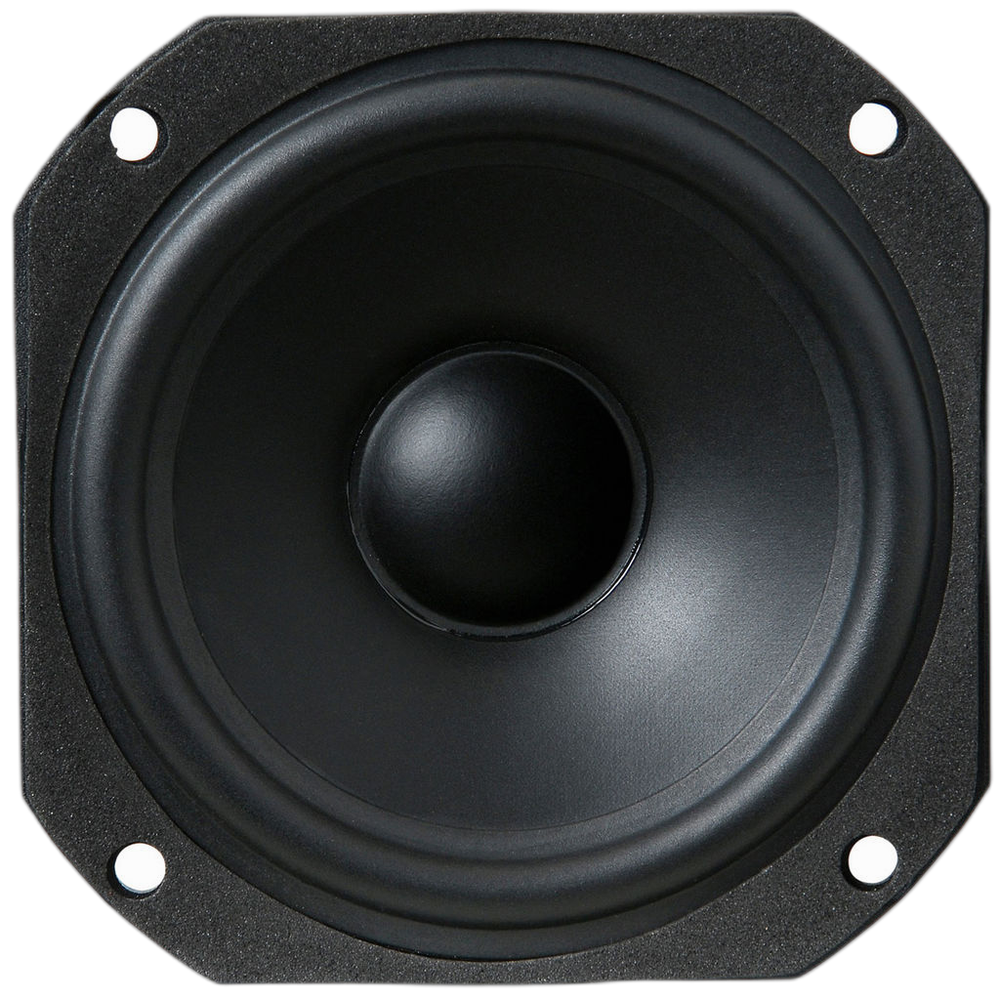

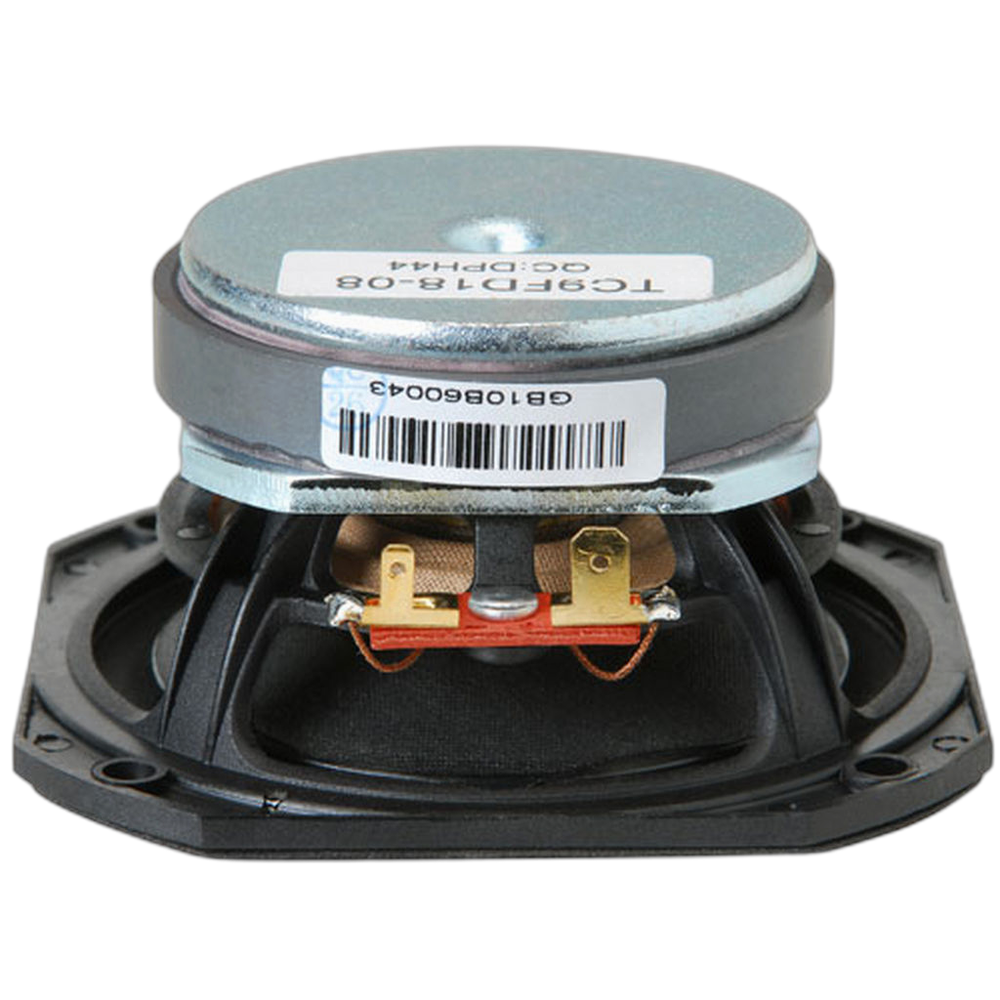

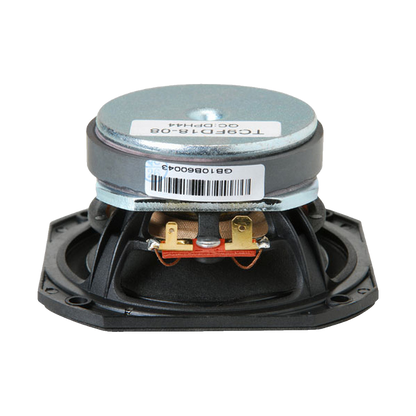

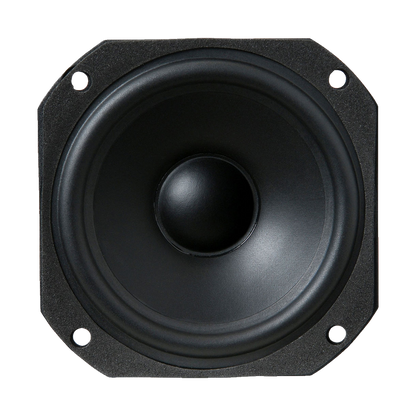

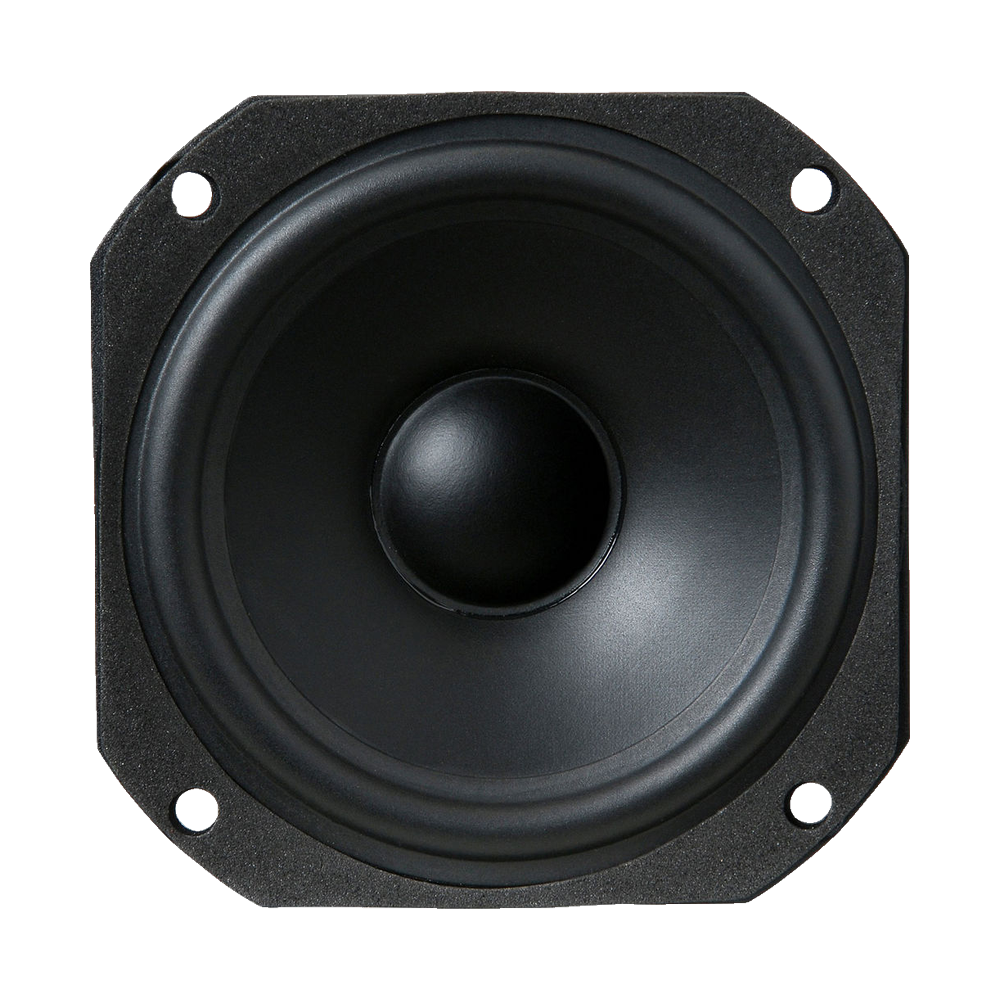

Peerless - 3½" Full Range Driver - TC9FD18-08
Peerless - 3½" Full Range Driver - TC9FD18-08
Regular price
$59.95 AUD
Regular price
Sale price
$59.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Peerless TC9FD-18-08 is a compact 3½" full-range paper cone woofer designed for high-performance audio in confined spaces such as televisions and small speaker systems. It incorporates advanced technologies, including a lightweight, non-resonant polymer chassis, a patented NRSC paper cone, and a copper pole piece cap. Its modest size belies its sonic capability, making it a favourite among DIY audio enthusiasts and professionals seeking rich sound from a small footprint.
Specifications
| Type | Full Range |
|---|---|
| Size | 3.5' |
| Power | 30Wrms |
| Coil | 19.4mmØ |
| Width | 83mmØ |
| Impedance | 8Ω Re 6.3Ω |
| Mag. | 300g |
| Sens. | 84.56dB |
| Re | 6.3Ω |
| Qms | 2.73 |
| Qes | 1.33 |
| Qts | 0.89 |
| Vas | 1.24L |
| Sd | 36.3cm² |
| Cms | 0.6696mm/N |
| Fs | 124.86 Hz |
| Mms | 2.4g |
| Zn | 8Ω |
| Le | 0.05mH |

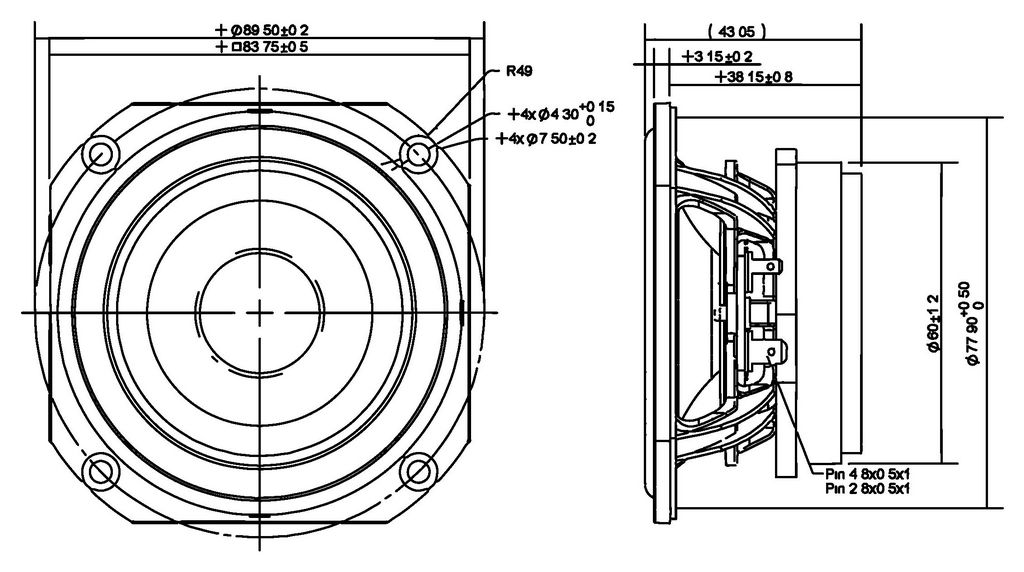

| Diam. | 83mmØ |
| Manufacturer | Peerless |
| Hole | 78mmØ |
| Hole Cutout | 78mmØ |
| Series | Peerless Full Range |
| Freq. | 110 - 15 K Hz |
| Pwr | 50W 100 W Max |
