Peerless

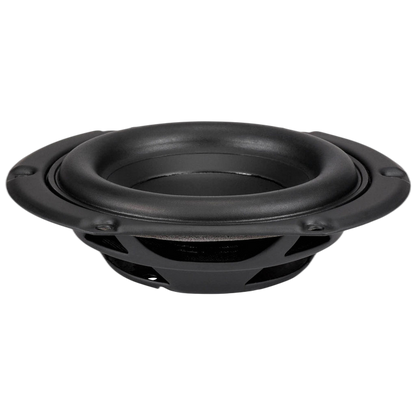

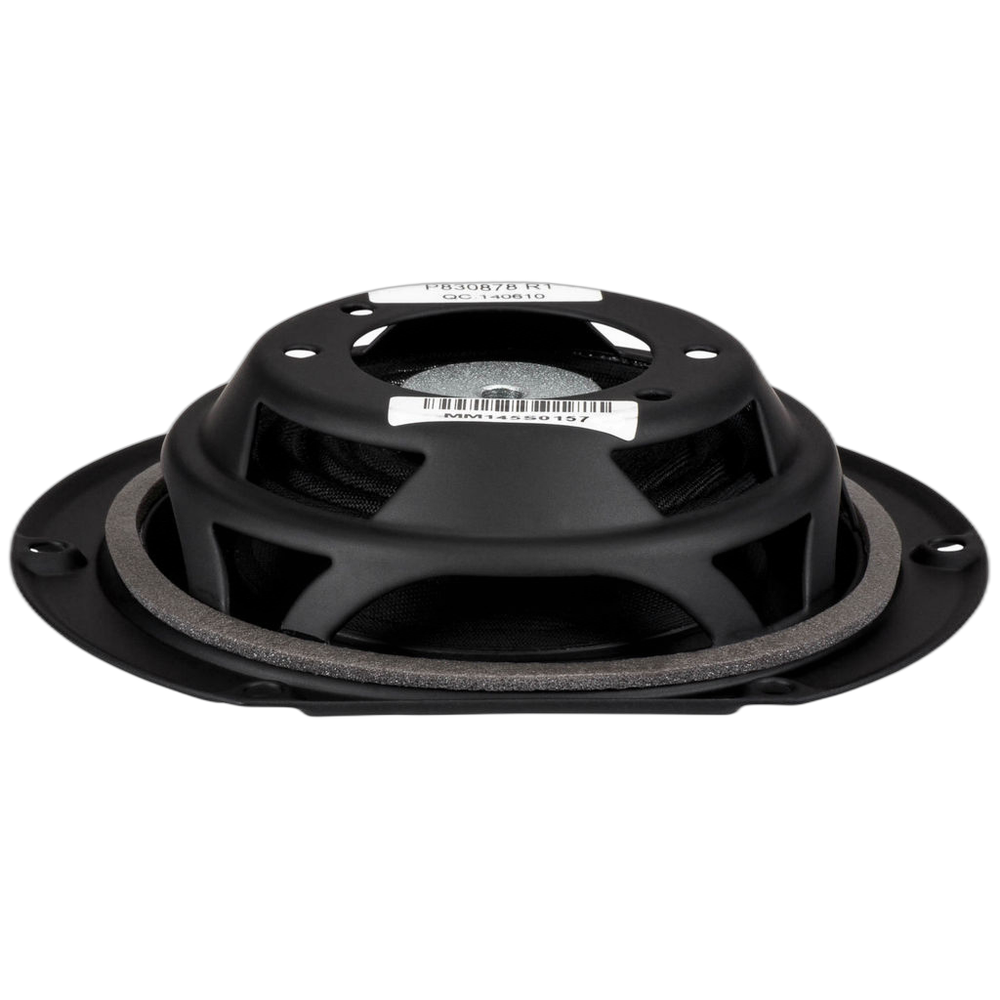

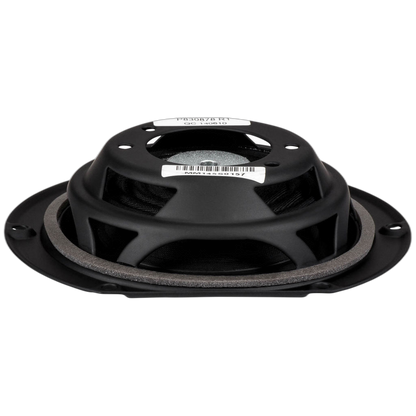

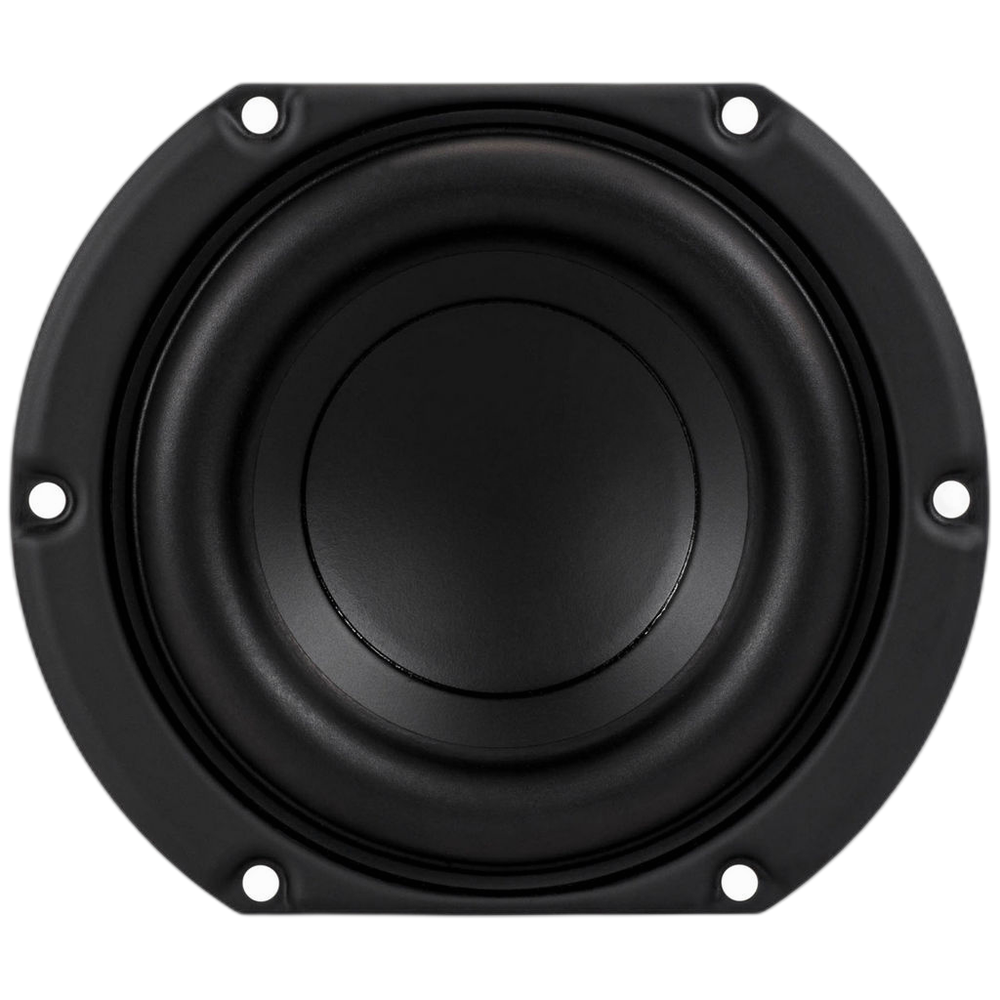

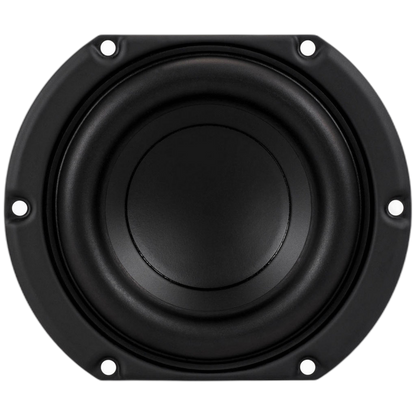

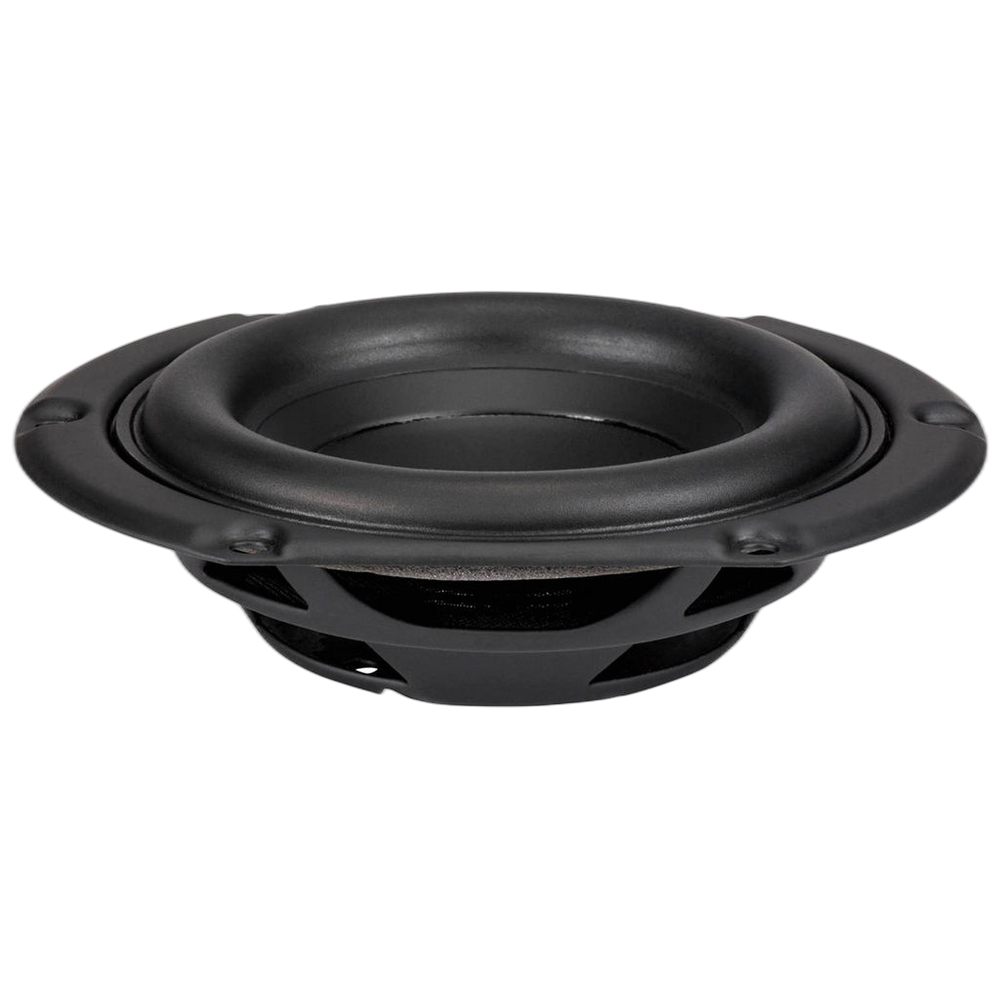

Peerless - 3½" Passive Radiator - P830878

Peerless - 3½" Passive Radiator - P830878

Regular price $28.95
Regular price Sale price $28.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

The Peerless P830878 is a compact 3.5” passive radiator designed to enhance low-frequency performance in space-constrained enclosures. Featuring a coated paper cone, rubber surround, and a cosmetic steel frame, it complements Peerless SDS woofers both visually and acoustically. With a low resonance frequency of 29 Hz and precise mechanical compliance, it is ideal for extending bass response without the need for long ports.

Features

  • Coated paper cone with rubber surround.
  • Low resonance frequency for deepest possible bass.
  • Cosmetic surface mount steel frame matches Peerless SDS series.
  • Straight-sided frame fits into narrow enclosures and permits tight spacing.
  • Compatible with small woofers by Peerless and others.

Specifications

General

Driver type Passive Radiator
Nominal size 3.5"
Series Passive Radiator

Thiele/Small parameters

Resonant frequency (Fs) 29 Hz
Mechanical Q (Qms) 10
Equivalent volume (Vas) 2.8 L
Compliance (Cms) 0.791 mm/N
Moving mass (Mms) 38.5 g
Mechanical resistance (Rms) 0.7015 kg/s
Effective piston area (Sd) 50.2 cm²

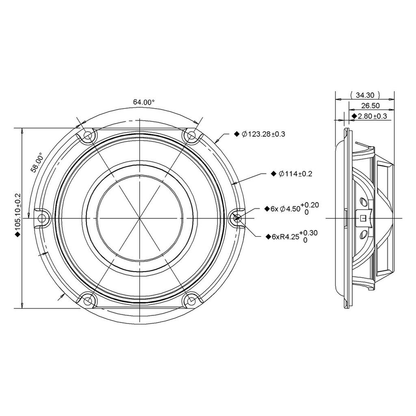

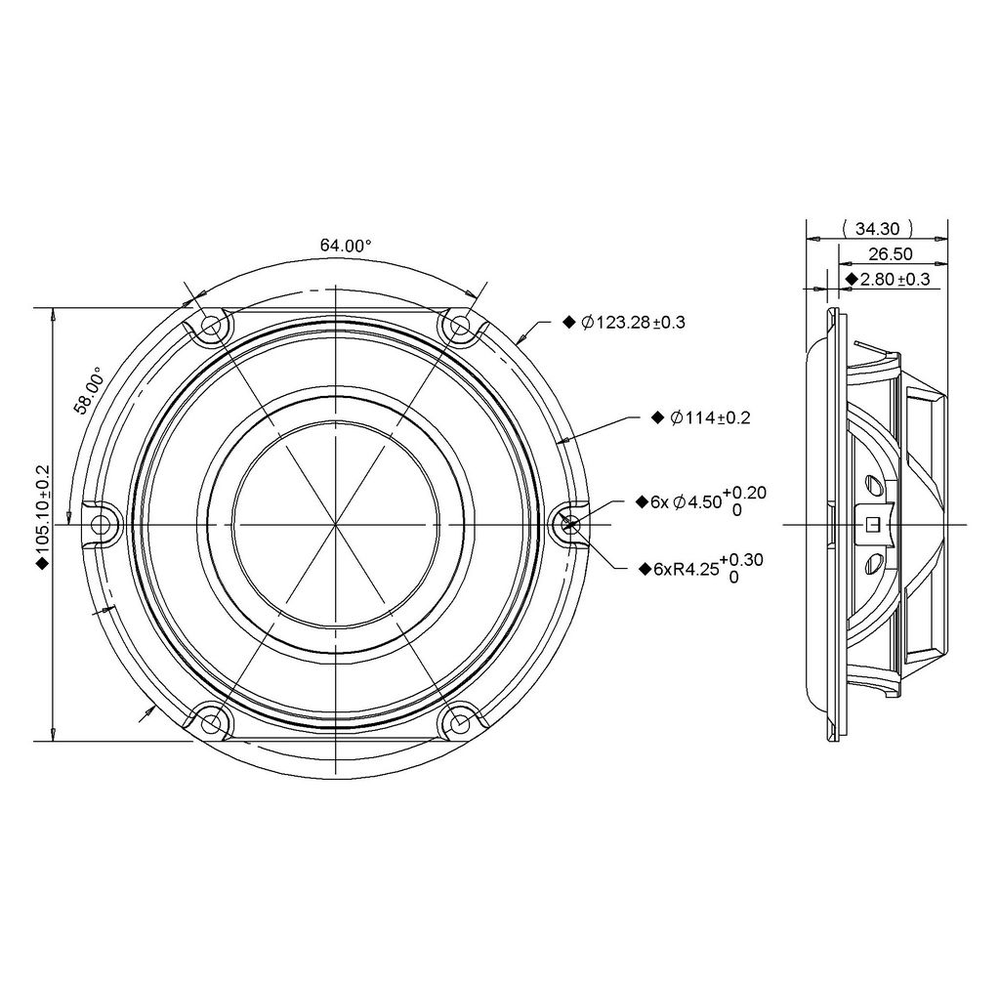

Mounting

Overall diameter 123.3 mm
Cutout diameter 92 mm

Downloads

  • 830878 Cutout & Recess Template (NB Audio) NB Audio CAD: DXF, PDF, SVG in a ZIP, 52 KBStraight off Peerless' spec sheet: flange outline. Not yet checked against Peerless' drawing: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.

Some figures here aren't checked against Peerless' datasheet yet. See which
