Peerless - 5" SDS Mid-Woofer - P830656
Peerless - 5" SDS Mid-Woofer - P830656
Regular price
$45.95
Regular price
Sale price
$45.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

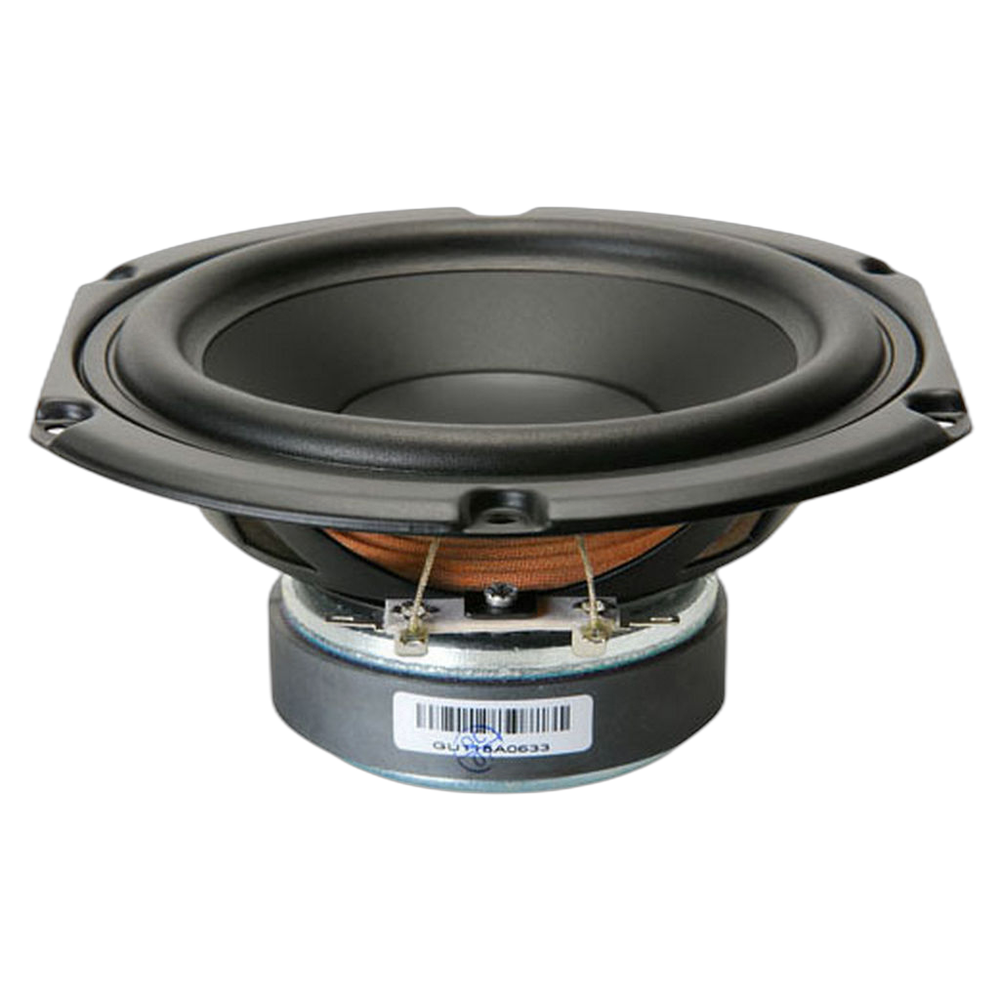

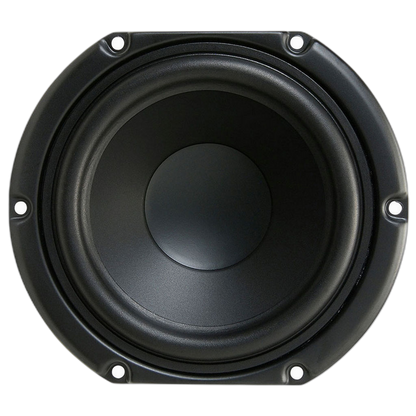

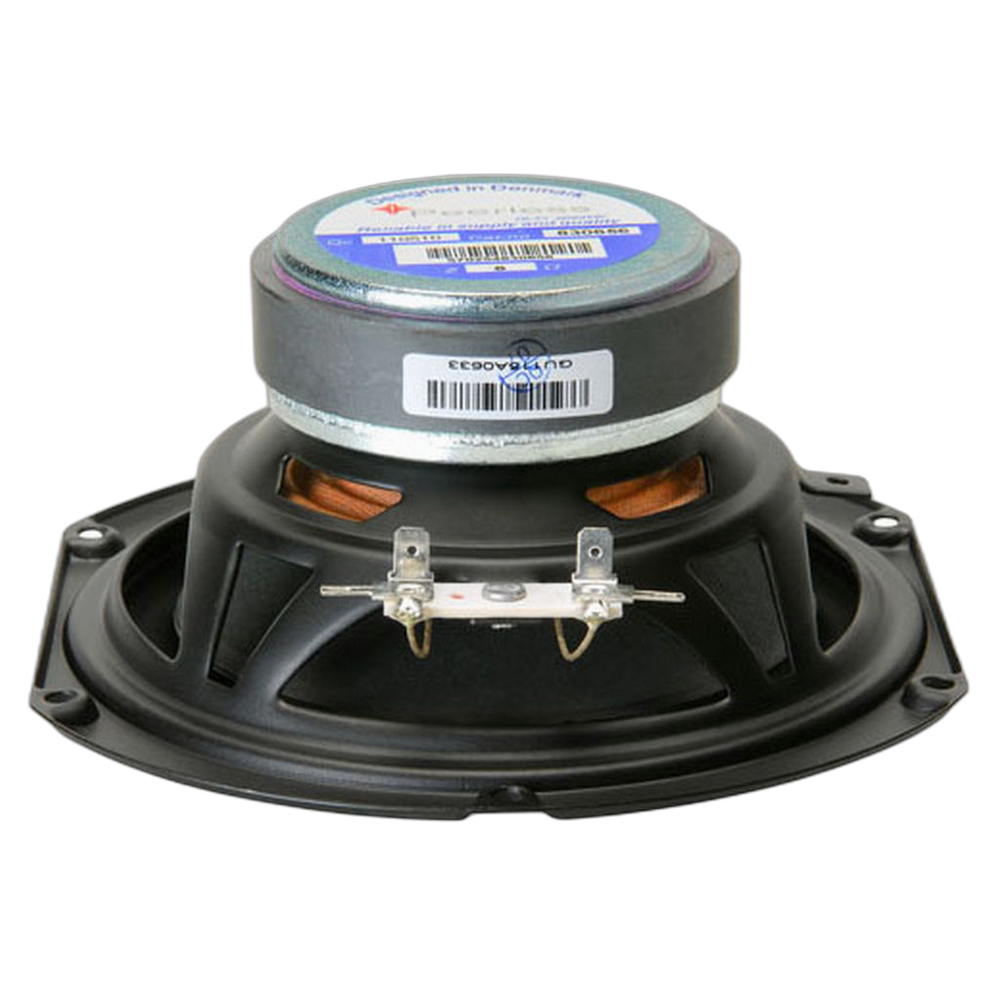

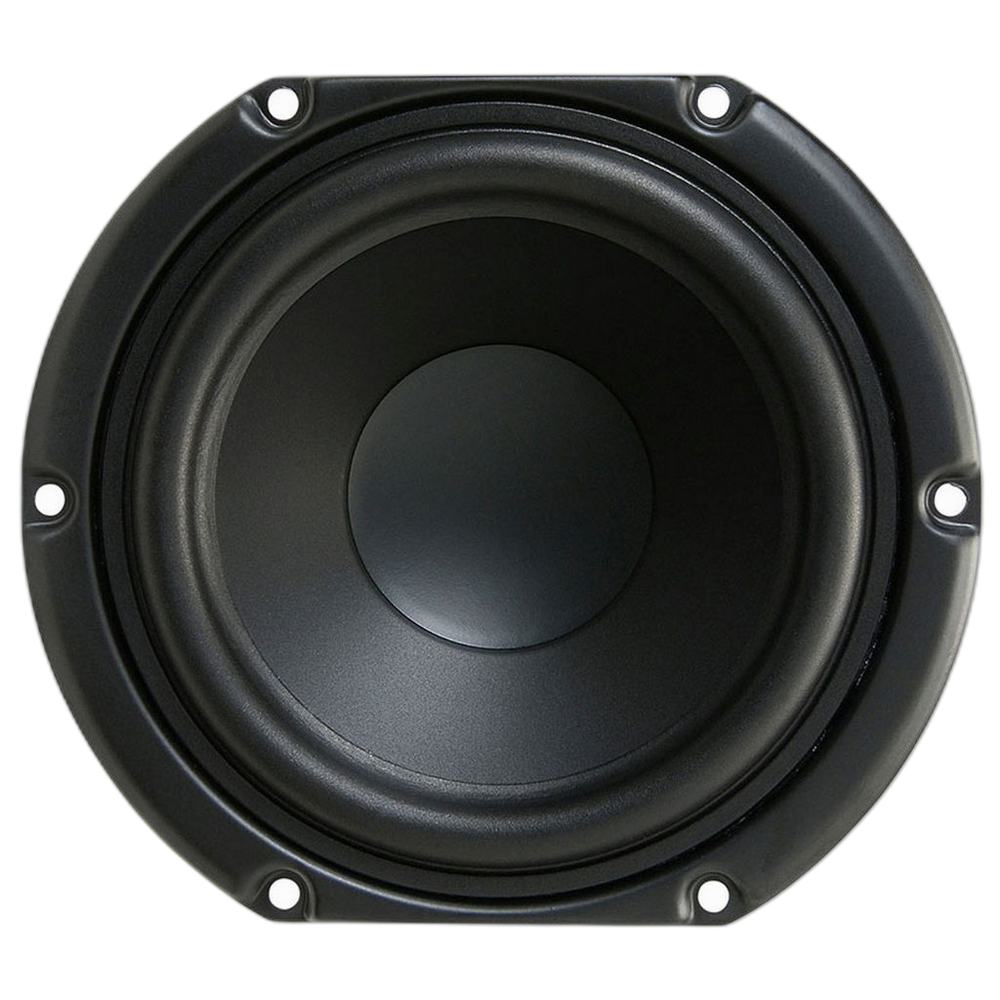

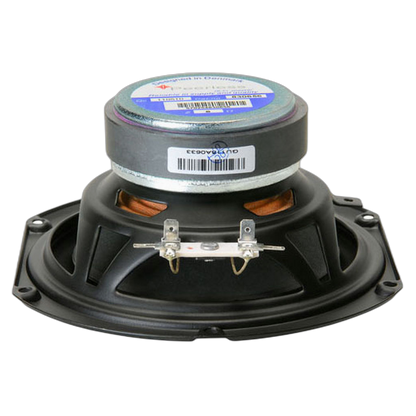

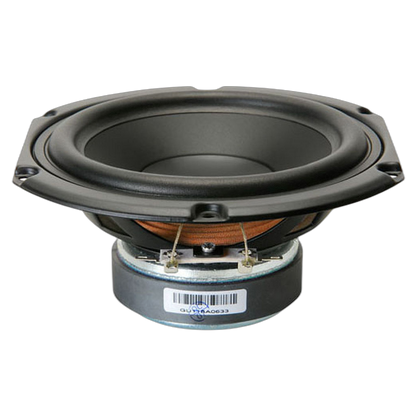

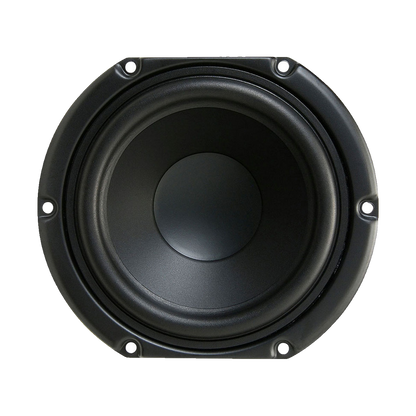

The Peerless P830656 5¼″ SDS woofer features a treated paper cone, rubber surround, and a truncated steel frame for tight driver spacing. It offers low resonant frequency performance and is ideal for compact speaker systems requiring smooth and controlled low-frequency output.
Features
- Coated Paper Cone
- Ferrite Magnet
- Pressed Steel Basket
- Rubber Surround
- Optimised for Sealed Enclosures
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Peerless Subwoofer |
| Power handling (RMS) | 60 W |
| Sensitivity | 86.1 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 65 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.5 Ω |
| Voice coil inductance (Le) | 0.493 mH |
| Mechanical Q (Qms) | 3.47 |
| Electrical Q (Qes) | 0.76 |
| Total Q (Qts) | 0.62 |
| Equivalent volume (Vas) | 6.58 L |
| Compliance (Cms) | 0.62 mm/N |
| Moving mass (Mms) | 9.67 g |
| Mechanical resistance (Rms) | 1.138 kg/s |
| Force factor (Bl) | 5.53 T·m |
| Effective piston area (Sd) | 86.6 cm² |
| Linear excursion (Xmax, one-way) | 5.46 mm |
| Mechanical excursion (Xmech) | 10 mm |
| Displacement volume (Vd) | 47.28 cm³ |
| Efficiency bandwidth product (EBP) | 85.53 |
Motor
| Motor efficiency factor (β) | 5.2 (T·m)²/Ω |
|---|---|
| Air gap height | 6 mm |
| Voice coil winding height | 12.9 mm |
| Voice coil layers | 2 |
| Voice coil wire | CU |
| Magnet size (OD × ID × thickness) | 72 × 32.5 × 15 mm |
Mounting
| Overall diameter | 152 mm |
|---|---|
| Faceplate | Round with two flats, Ø152 mm, 134 mm across the flats |
| Cutout diameter (suggested) | ≈ 118.0 mm |
| Mounting depth | 58.4 mm |
| Flange thickness | 3.8 mm |
| Voice coil diameter | 25.8 mm |
| Weight | 0.68 kg |
Materials
| Cone | Coated Paper |
|---|---|
| Surround | Rubber |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling is Peerless's rated noise power (IEC 268-5).
Downloads
- 830656 Spec Sheet

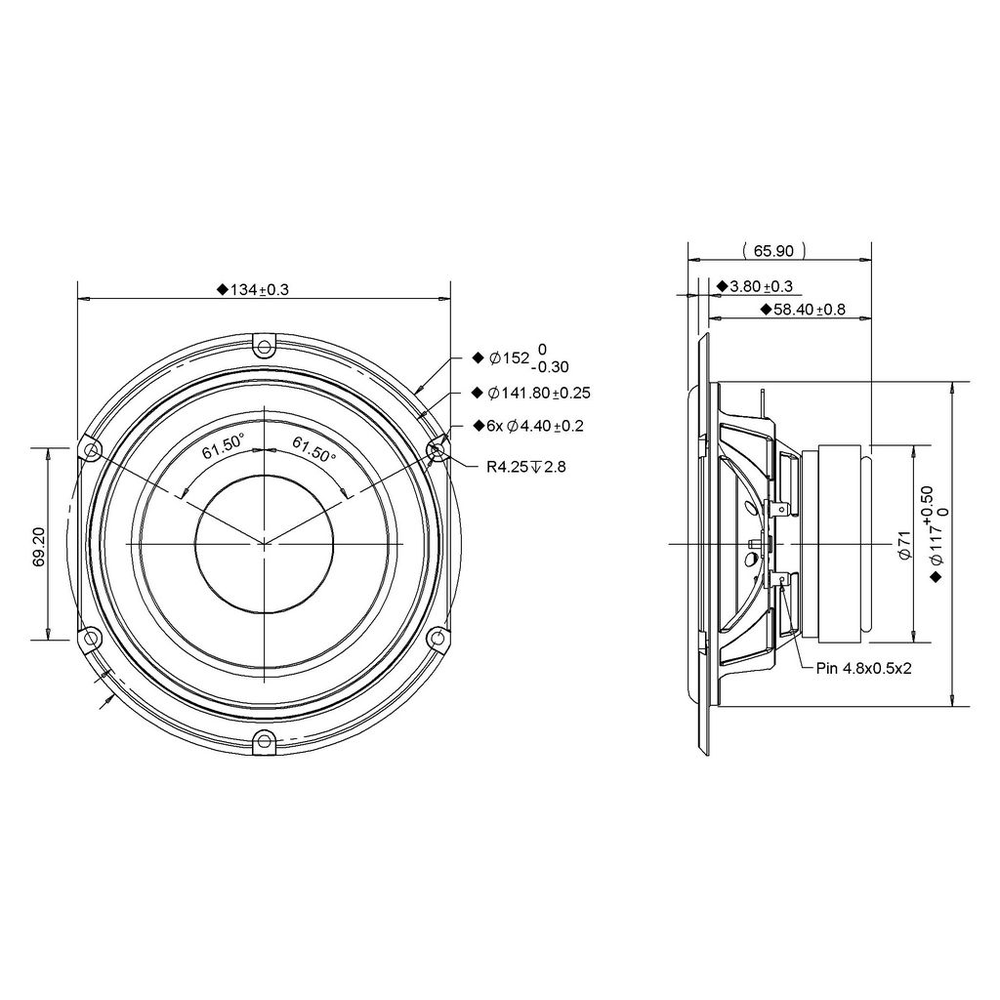

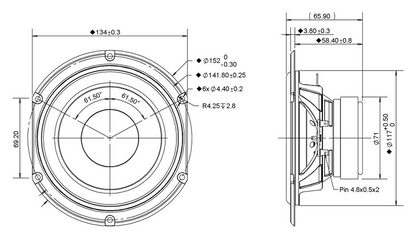

- 830656 Mechanical Drawing
- 830656 Cutout & Recess Template (NB Audio) Straight off Peerless' spec sheet: flange outline, recess depth. Scaled from Peerless' drawing, so close but not guaranteed exact: cutout. Left out: no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against Peerless' datasheet yet. See which
