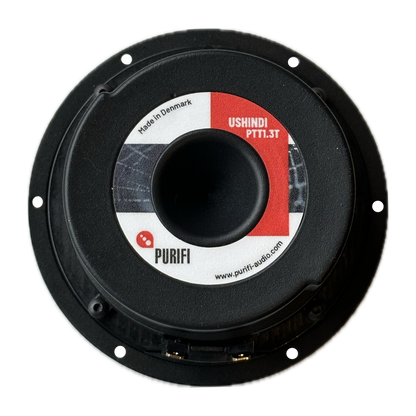

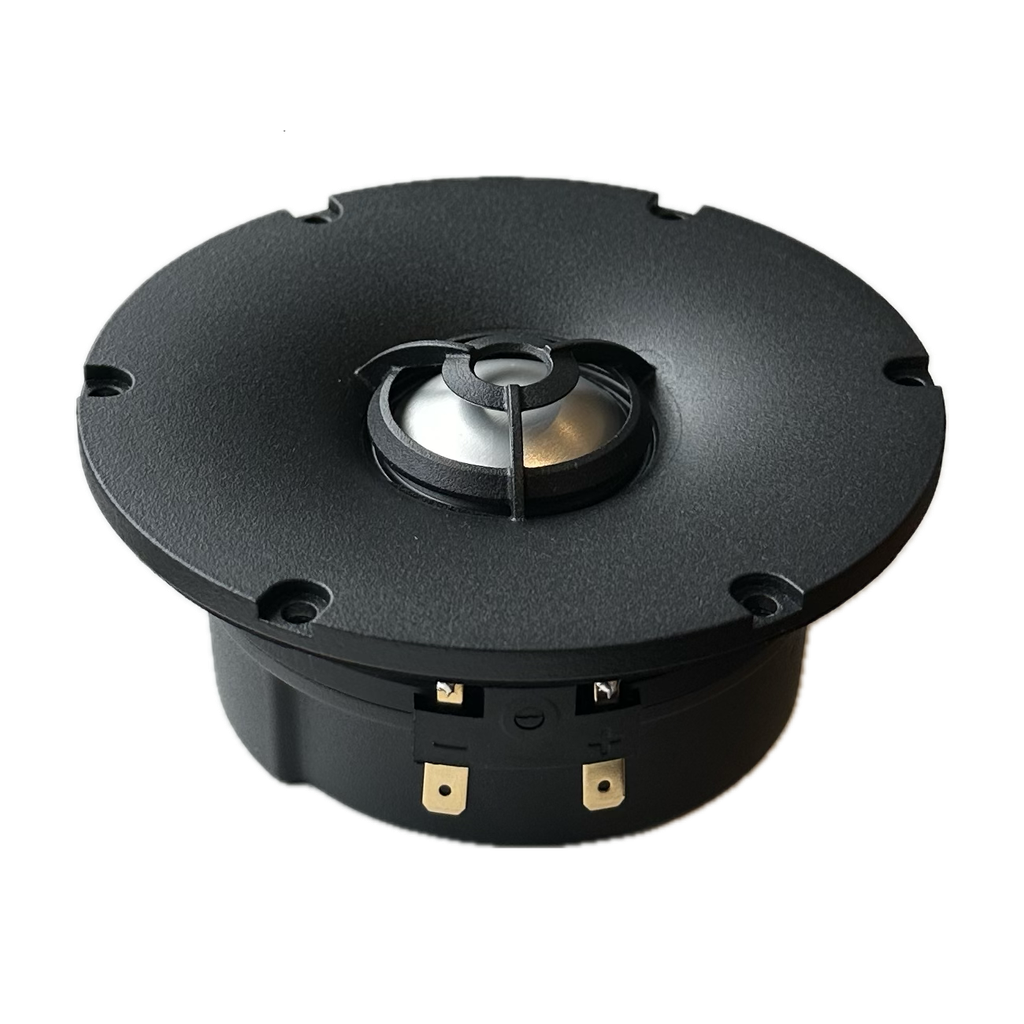

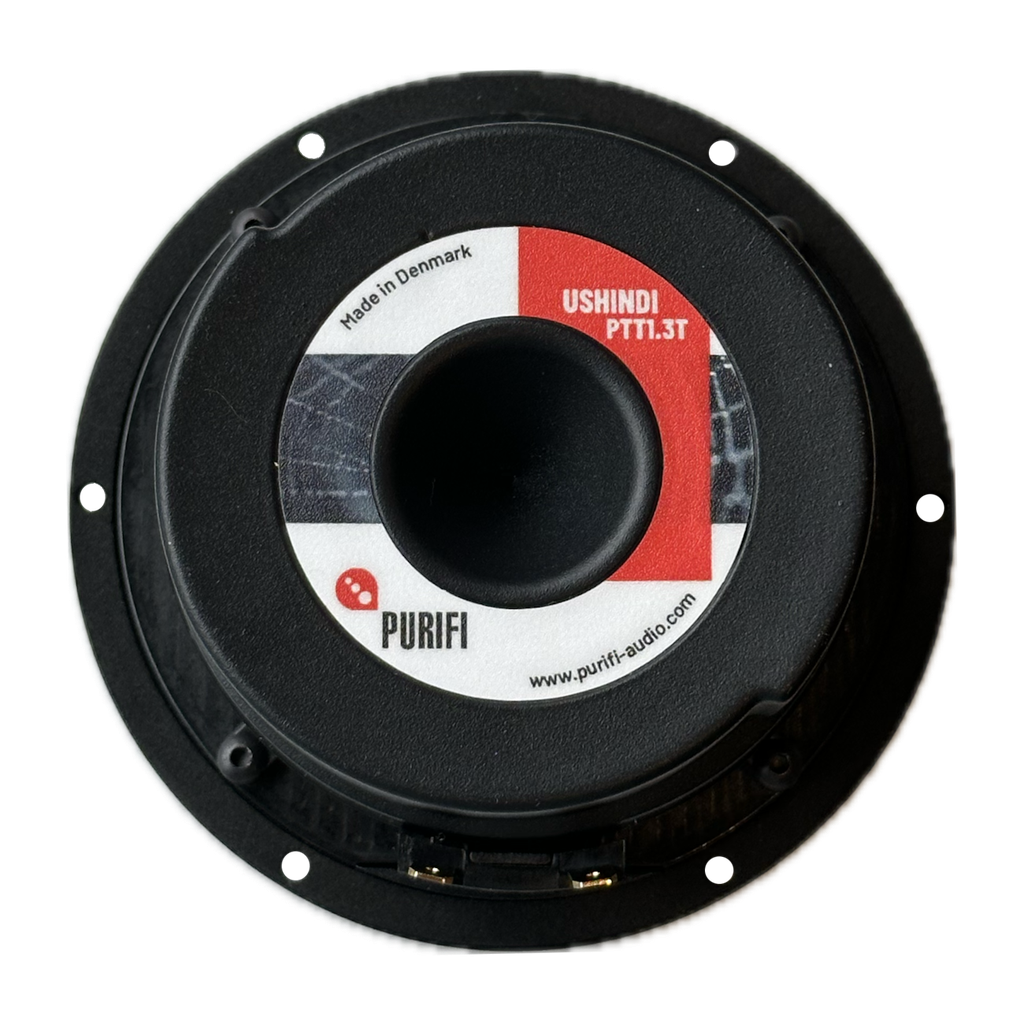

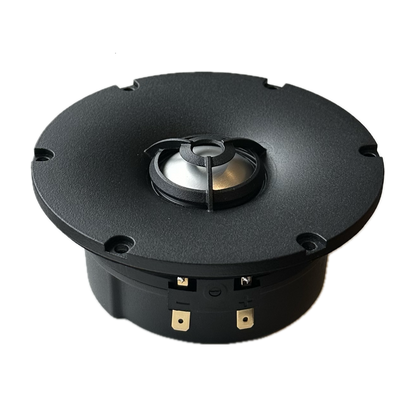

PURIFI - 1.3" Tweeter - PTT1.3T04-HAG-01 WG104

PURIFI - 1.3" Tweeter - PTT1.3T04-HAG-01 WG104

$1,099.95 AUD
$1,099.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

***CURRENTLY, ALL PURIFI DRIVERS ARE MADE TO ORDER WITH EXPECTED DELIVERY WITHIN 8-12 WEEKS***

Description:

This isn’t just any tweeter—it’s engineered to deliver the signature crystal-clear sound PURIFI is known for, featuring super-wide dispersion and ultra-low distortion. This makes a perfect fit together with the already highly acclaimed woofers from PURIFI.

Features:

  • Wide-dispersion Waveguide with cooptimized, integrated Coherer
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Extremely Low Magnetic Hysteresis Distortion (MHD)
  • High Sensitivity, high linear volume displacement (1cm3)
  • Designed and manufactured in Denmark

Specifications:

General Specifications
Type Tweeter
Size 1.3in
Nominal impedance 4Ω
Cone material Hard Anodized Aluminum
Linear excursion, Xlin ±0.5mm
Maximum mechanical excursion, Xmax ±0.5mm
Motor efficiency factor, Beta 2.2 (N/A)^2/Ω
Long term maximum power 250W
Rated noise power, 100h 100W
Electrical & Acoustical Parameter
DC resistance 3.5Ω
Minimum impedance above resonance, Zmin 3.9Ω
Frequency for minimum impedance, fmin 5.1kHz
Maximum impedance, Zo 14.2Ω
Voice Coil inductance @ 2kHz 0mm, Le 0.013mH
SPL @ 2.83Vrms/1m, 3.5KHz 95.3dB
SPL @ 1W/1m, 3.5KHz 92.2dB
Thiele/Small Parameters
Resonance frequency, fs 680Hz
Effective piston area, Sd 9.5cm2
Effective piston diameter, D 34.7mm
Force factor, Bl 2.8N/A
Moving mass, Mms 0.45g
Voice Coil Properties
Voice Coil diameter 33mm
Voice Coil length 1.8mm
Voice Coil layers 2
Airgap height 4.0mm
Winding material ALU
Physical Dimensions
Faceplate Diameter 104mm
Cutout diameter 93/81mm
Mounting hole pattern diameter 98mm
Mounting hole diameter 3.5mm
Magnet diameter 80mm
Outer flange height 4.0mm
Build-in depth 39mm
Weight 0.66kg
