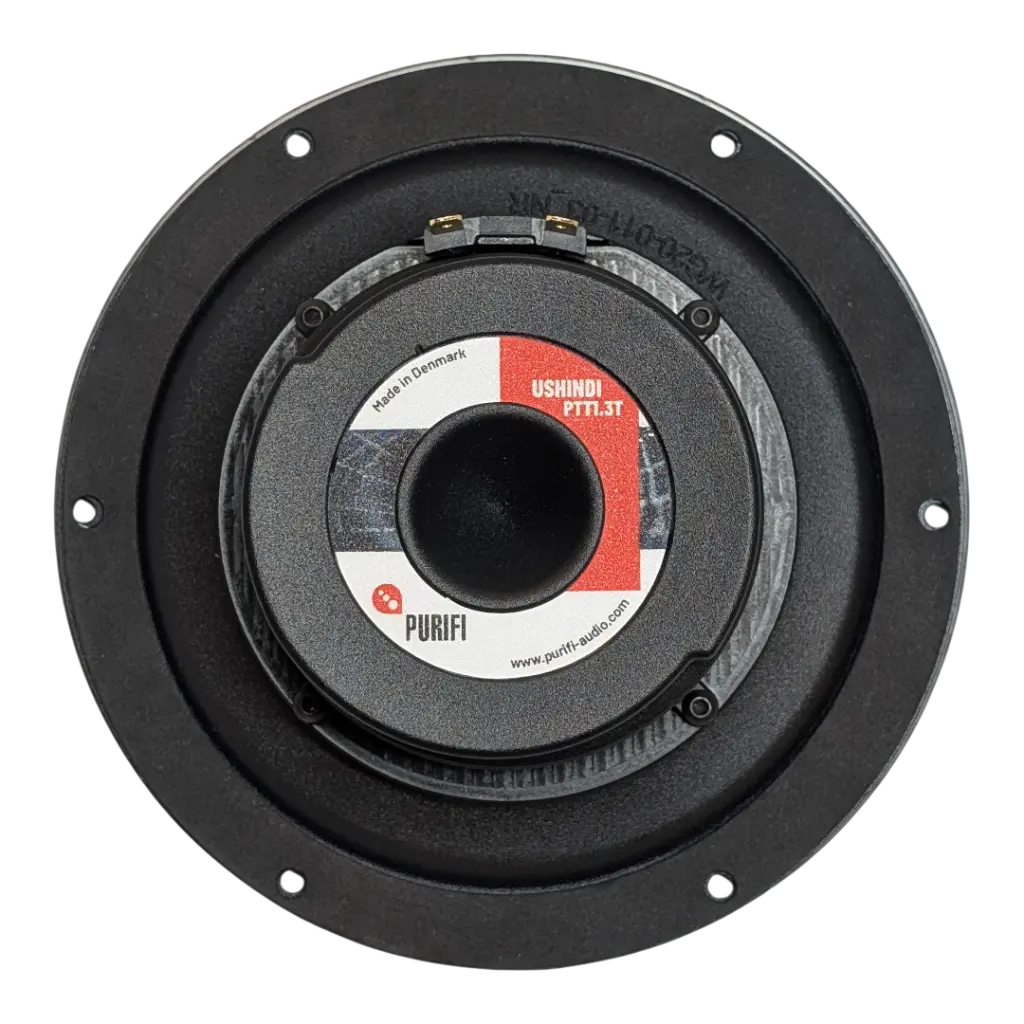

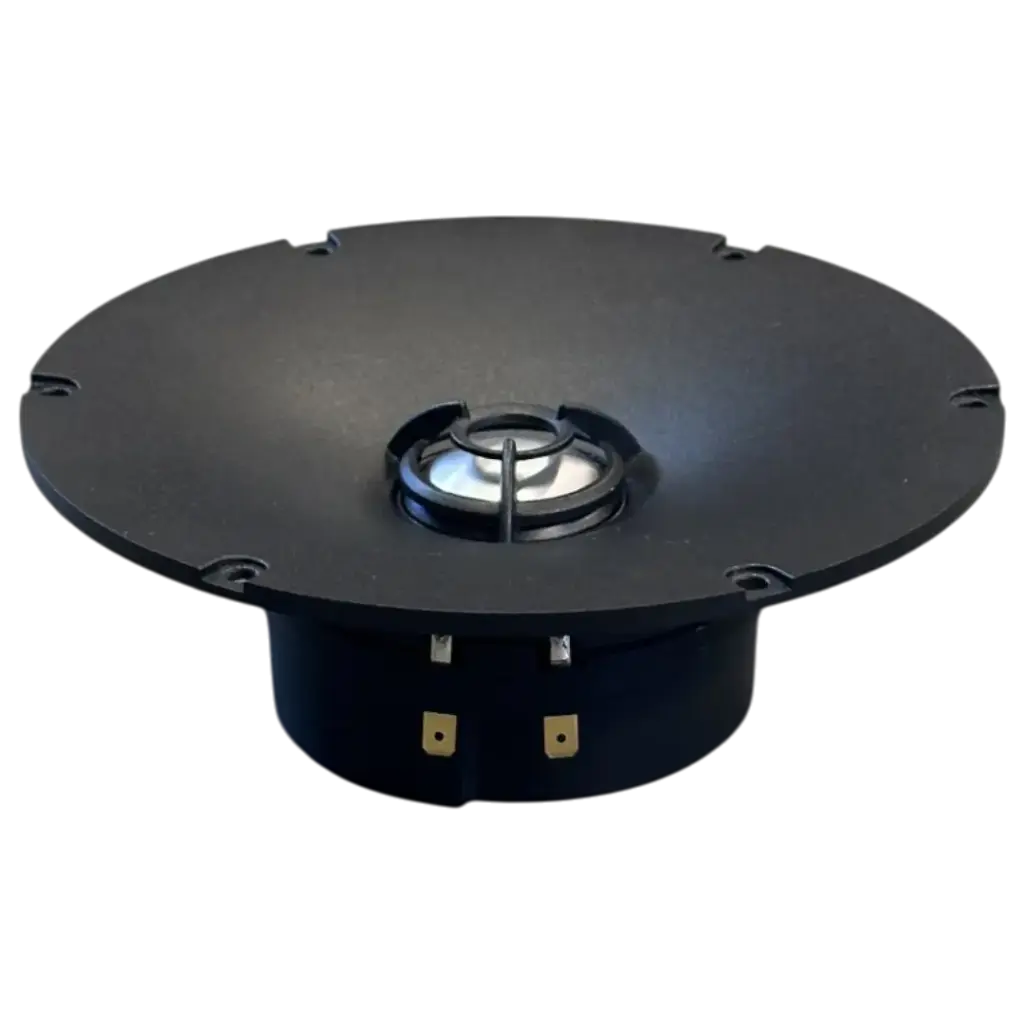

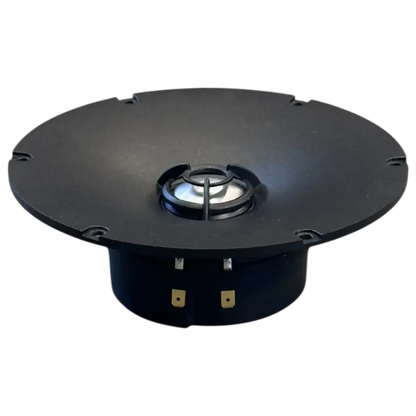

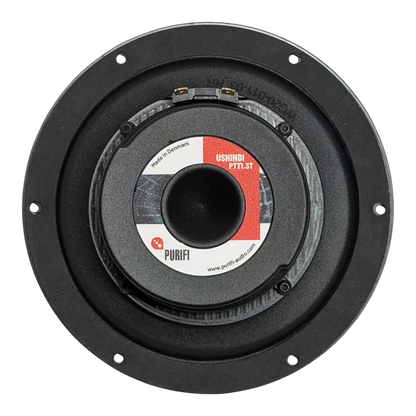

PURIFI - 1.3" Tweeter - PTT1.3T04-HAG-10 WG147

PURIFI - 1.3" Tweeter - PTT1.3T04-HAG-10 WG147

$1,199.95 AUD
$1,199.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

***CURRENTLY, ALL PURIFI DRIVERS ARE MADE TO ORDER WITH EXPECTED DELIVERY WITHIN 8-12 WEEKS***

Description:

This tweeter is based on PTT1.3T04-HAG-01 delivering the signature crystal-clear sound PURIFI is known for, but featuring a 147mm waveguide optimised for directivity control matching 5" - 6.5" midranges or woofers (e.g. SPK16 reference design) whilst maintaining a super wide dispersion.

Features:

  • Wide-dispersion Waveguide with cooptimized, integrated Coherer
  • Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
  • Extremely Low Magnetic Hysteresis Distortion (MHD)
  • High Sensitivity, high linear volume displacement
  • Designed and manufactured in Denmark

Specifications:

General Specifications
Type Tweeter
Size 1.3in
Nominal impedance 4Ω
Cone material Hard Anodized Aluminum
Linear excursion, Xlin ±0.5mm
Maximum mechanical excursion, Xmax ±0.5mm
Motor efficiency factor, Beta 2.2 (N/A)^2/Ω
Long term maximum power 250W
Rated noise power, 100h 100W
Electrical & Acoustical Parameter
DC resistance 3.5Ω
Minimum impedance above resonance, Zmin 3.9Ω
Frequency for minimum impedance, fmin 5.1kHz
Maximum impedance, Zo 14.2Ω
Voice Coil inductance @ 2kHz 0mm, Le 0.013mH
SPL @ 2.83Vrms/1m, 3KHz 96dB
SPL @ 1W/1m, 3KHz 92.9dB
Thiele/Small Parameters
Resonance frequency, fs 680Hz
Effective piston area, Sd 9.5cm2
Effective piston diameter, D 34.7mm
Force factor, Bl 2.8N/A
Moving mass, Mms 0.45g

Voice Coil Properties
Voice Coil diameter 33mm
Voice Coil length 1.8mm
Voice Coil layers 2
Airgap height 4.0mm
Winding material ALU
Physical Dimensions
Faceplate Diameter 147mm
Cutout diameter 123mm
Mounting hole pattern diameter 138mm
Mounting hole diameter 4mm
Magnet diameter 80mm
Outer flange height 3.8mm
Build-in depth 52mm
Weight 0.76kg
