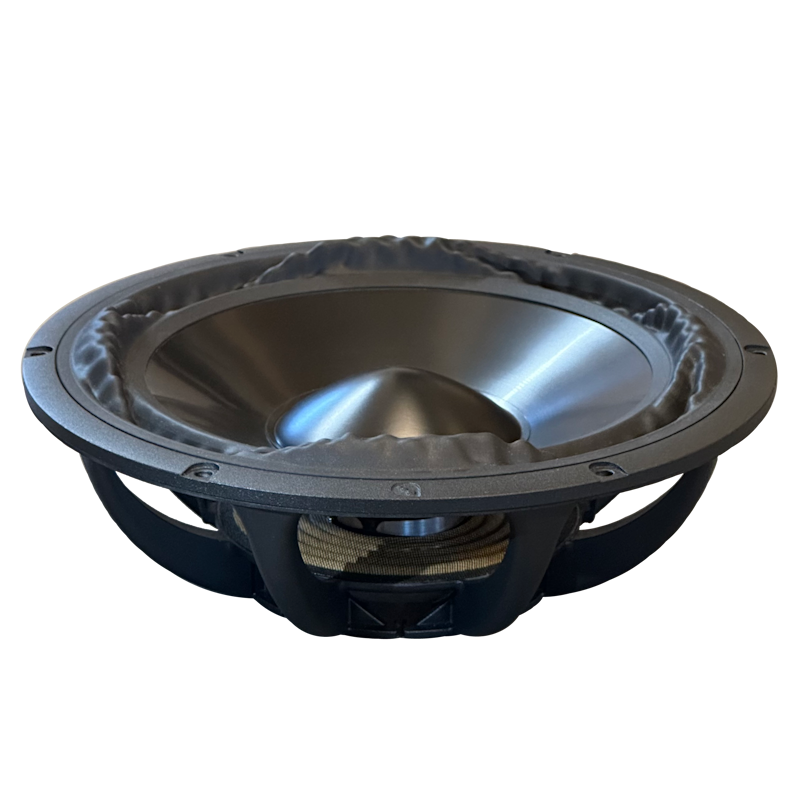

PURIFI - 10" Passive Radiator - PTT10.0PR-NA2-01
PURIFI - 10" Passive Radiator - PTT10.0PR-NA2-01
Regular price
$649.95 AUD
Regular price
Sale price
$649.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
***CURRENTLY, ALL PURIFI DRIVERS ARE MADE TO ORDER WITH EXPECTED DELIVERY WITHIN 8-12 WEEKS***
Description:
The 10.0” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT10.0X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
The PTT10PR-NA2-01 is "born" with a low mass allowing for more tuning options by adding extra mass.
Features:
- Vibroacoustic optimized cone and dust cap in black anodized aluminum
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 25mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Specifications:
| General Specifications | |
|---|---|
| Type | Passive Radiator |
| Size | 10in |
| Cone material | Black Anodized Aluminium |
| Maximum mechanical excursion, Xmax | ±25.0mm |
| Mass Plug thread size | M6 |
| Thiele/Small Parameters | |
|---|---|
| Resonance frequency, fs | 19Hz |
| Mechanical Q factor, Qms | 7.1 |
| Equivalent volume, Vas | 80.8L |
| Effective piston area, Sd | 360cm2 |
| Effective piston diameter, D | 21.4cm |
| Mechanical resistance, Rms | 2.69kg/s |
| Moving mass, Mms | 161g |
| Suspension compliance, Cms | 0.44mm/N |
| Physical Dimensions | |
|---|---|
| Basket diameter | 269mm |
| Cutout diameter | 242mm |
| Mounting hole pattern diameter | 257.5mm |
| Mounting hole diameter | 5.2mm |
| Outer flange height | 5.0mm |
| Build-in depth | 80.5mm |
| Weight | 0.85kg |
