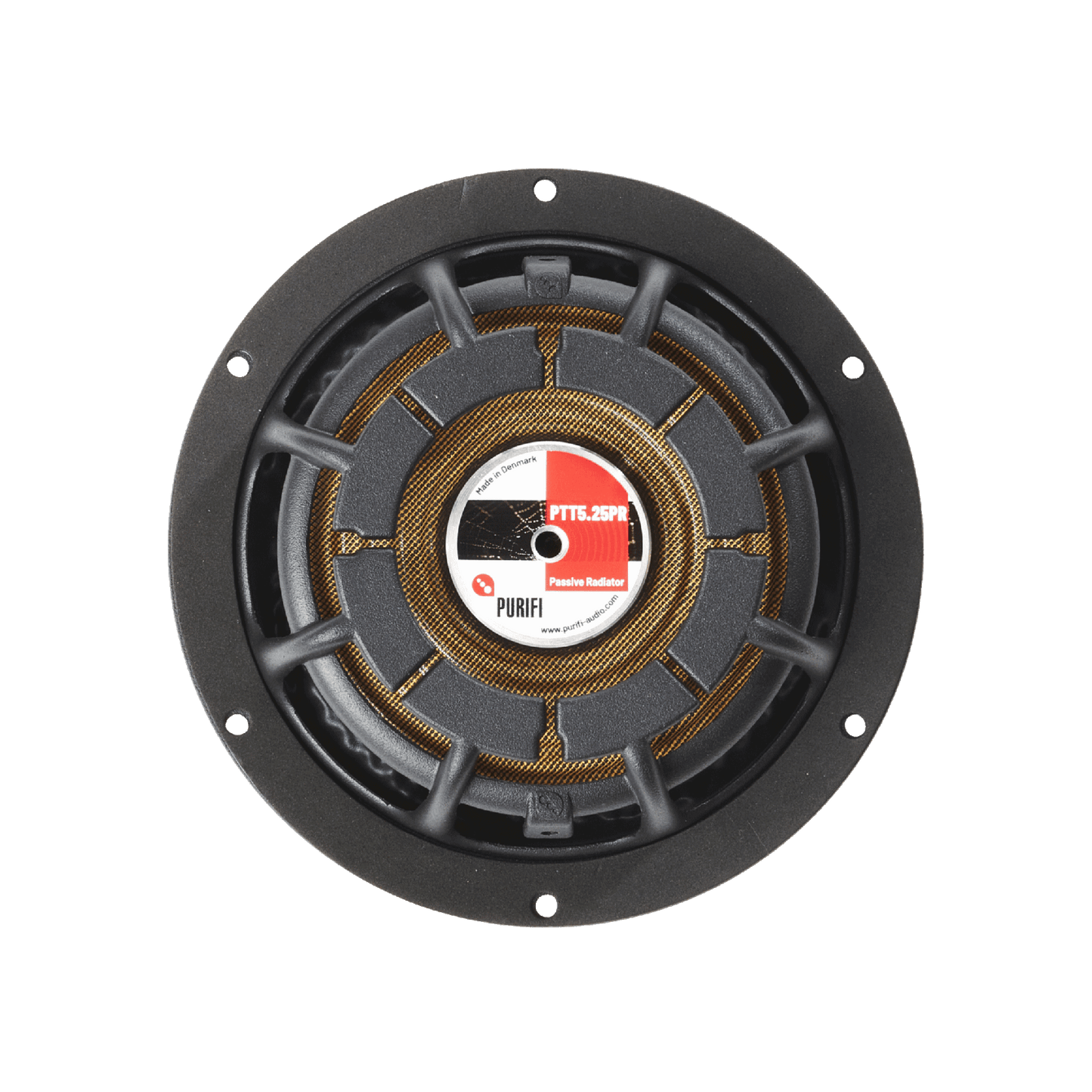

PURIFI - 5.25" Passive Radiator - PTT5.25PR-NF2-01
PURIFI - 5.25" Passive Radiator - PTT5.25PR-NF2-01
Regular price
$449.95 AUD
Regular price
Sale price
$449.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
***CURRENTLY, ALL PURIFI DRIVERS ARE MADE TO ORDER WITH EXPECTED DELIVERY WITHIN 8-12 WEEKS***
Description:
The 5.25” passive radiator incorporates the easily recognizable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT5.25X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
Features:
- Vibroacoustic optimized cone and dust cap in proprietary paper fiber mix
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 14mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Specifications:
| General Specifications | |
|---|---|
| Type | Passive Radiator |
| Size | 5.25in |
| Cone material | Proprietary Fiber Mix |
| Maximum mechanical excursion, Xmax | ±14.0mm |
| Thiele/Small Paramters | |
|---|---|
| Resonance frequency, fs | 20Hz |
| Mechanical Q factor, Qms | 9.9 |
| Equivalent volume, Vas | 13.1L |
| Effective piston area, Sd | 84.9cm2 |
| Effective piston diameter, D | 10.4cm |
| Mechanical resistance, Rms | 0.63kg/s |
| Moving mass, Mms | 50.0g |
| Suspension compliance, Cms | 1.28mm/N |
| Physical Dimensions | |
|---|---|
| Basket diameter | 147mm |
| Cutout diameter | 121mm |
| Mounting hole pattern diameter | 138mm |
| Mounting hole diameter | 4.2mm |
| Outer flange height | 3.6mm |
| Build-in depth | 38.5mm |
| Weight | 0.25kg |
