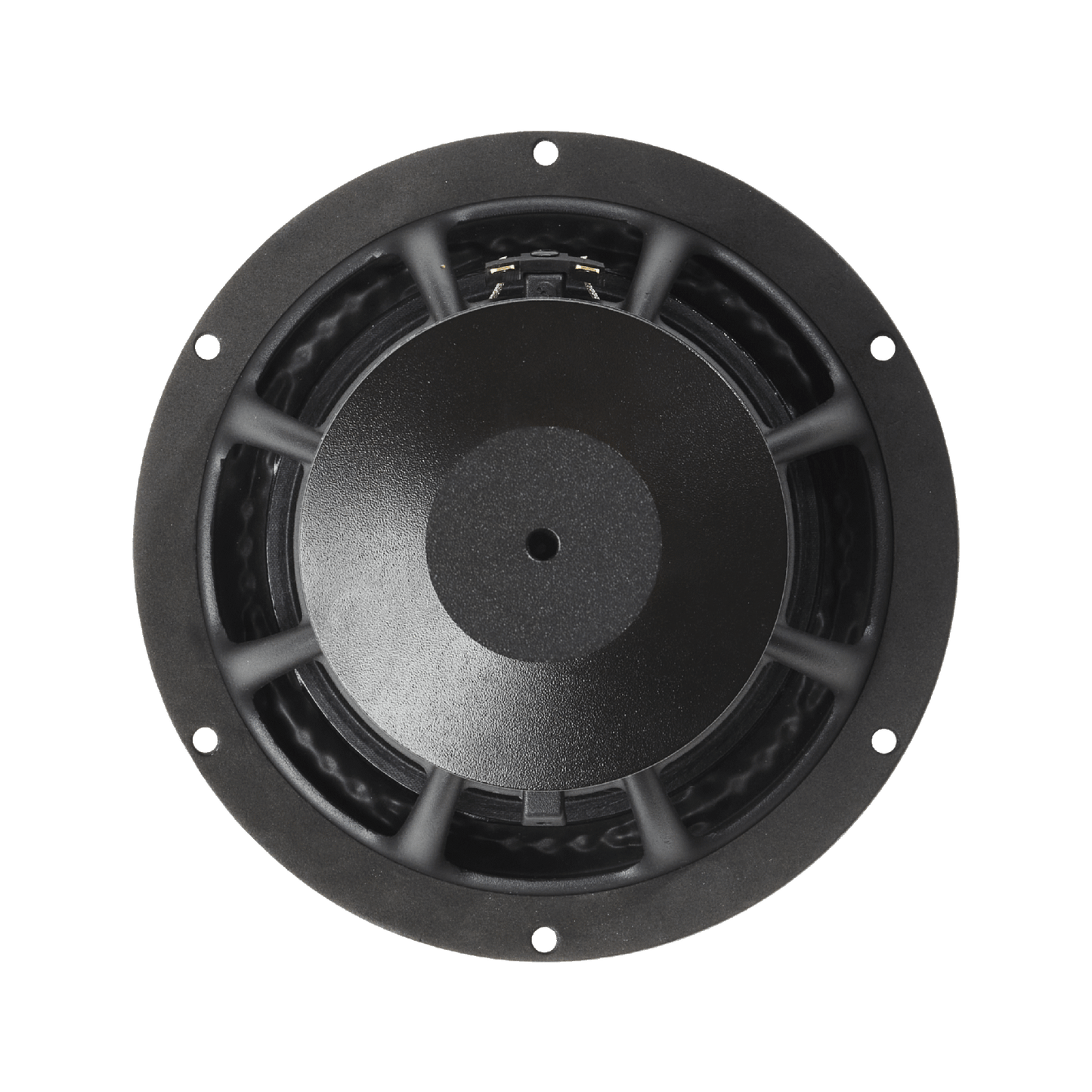

PURIFI - 6.5" Mid-Range - PTT6.5M08-NFA-01
PURIFI - 6.5" Mid-Range - PTT6.5M08-NFA-01
Regular price
$899.95
Regular price
Sale price
$899.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Made to order
Lead time: 8–12 weeks
Couldn't load pickup availability
Description
The 6.5” midrange driver has been optimised for midrange use and achieves higher sensitivity as compared to the X- and W- versions of the PTT6.5 product family. It incorporates the easily recognisable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology resulting in astounding performance with ultra clean distortion specifications.
Features
- Vibroacoustic optimised cone and dust cap in proprietary paper fibre mix
- Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
- Ultra Low Magnetic Hysteresis Distortion (MHD)
- Dedicated midrange driver with enhanced efficiency
- Designed and manufactured in Denmark
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 80 W |
| Power handling (program) | 200 W |
| Sensitivity | 90.9 dB |
| Sensitivity (1 W/1 m) | 90.3 dB |
| Power test crossover | 2nd order high pass Butterworth @ 200Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 52 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Minimum impedance (Zmin) | 6.8 Ω |
| Voice coil inductance (Le) | 0.39 mH |
| Mechanical Q (Qms) | 4 |
| Electrical Q (Qes) | 0.37 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 13.2 L |
| Compliance (Cms) | 0.53 mm/N |
| Moving mass (Mms) | 17.7 g |
| Mechanical resistance (Rms) | 1.46 kg/s |
| Force factor (Bl) | 9.8 T·m |
| Effective piston area (Sd) | 132.7 cm² |
| Linear excursion (Xmax, one-way) | 2.9 mm |
| Mechanical excursion (Xmech) | 14.5 mm |
| Displacement volume (Vd) | 38.48 cm³ |
| Efficiency bandwidth product (EBP) | 140.5 |
| Effective piston diameter (D) | 130 mm |
| Impedance at resonance (Zo) | 72 Ω |
| Frequency of minimum impedance | 391 Hz |
Motor
| Motor efficiency factor (β) | 15.5 (T·m)²/Ω |
|---|---|
| Voice coil height | 9.8 mm |
| Voice coil layers | 4 |
| Voice coil wire | CCAW |
| Air gap height | 4 mm |
| Magnet diameter | 100 mm |
Mounting
| Overall diameter | 176.3 mm |
|---|---|
| Cutout diameter | 148 mm |
| Mounting depth | 86 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 166 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.2 mm |
| Volume displaced by driver | 0.31 L |
| Voice coil diameter | 39 mm |
| Weight | 1.75 kg |
Materials
| Cone | Proprietary Fibre Mix |
|---|
Typical box tunings
| Sealed B2: corner frequency | 108.1 Hz |
|---|---|
| Sealed B2: box volume | 4 L |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Purifi quotes sensitivity over 1000–2800 Hz.
Downloads
- PTT6.5M08-NFA-01 - Data Sheet
- PTT6.5M08-NFA-01 - FRD
- PTT6.5M08-NFA-01 - 3D Model
- PTT6.5M08-NFA-01 Cutout & Recess Template (NB Audio) Every figure is straight off Purifi's own spec sheet. Check it against your driver before you cut.
