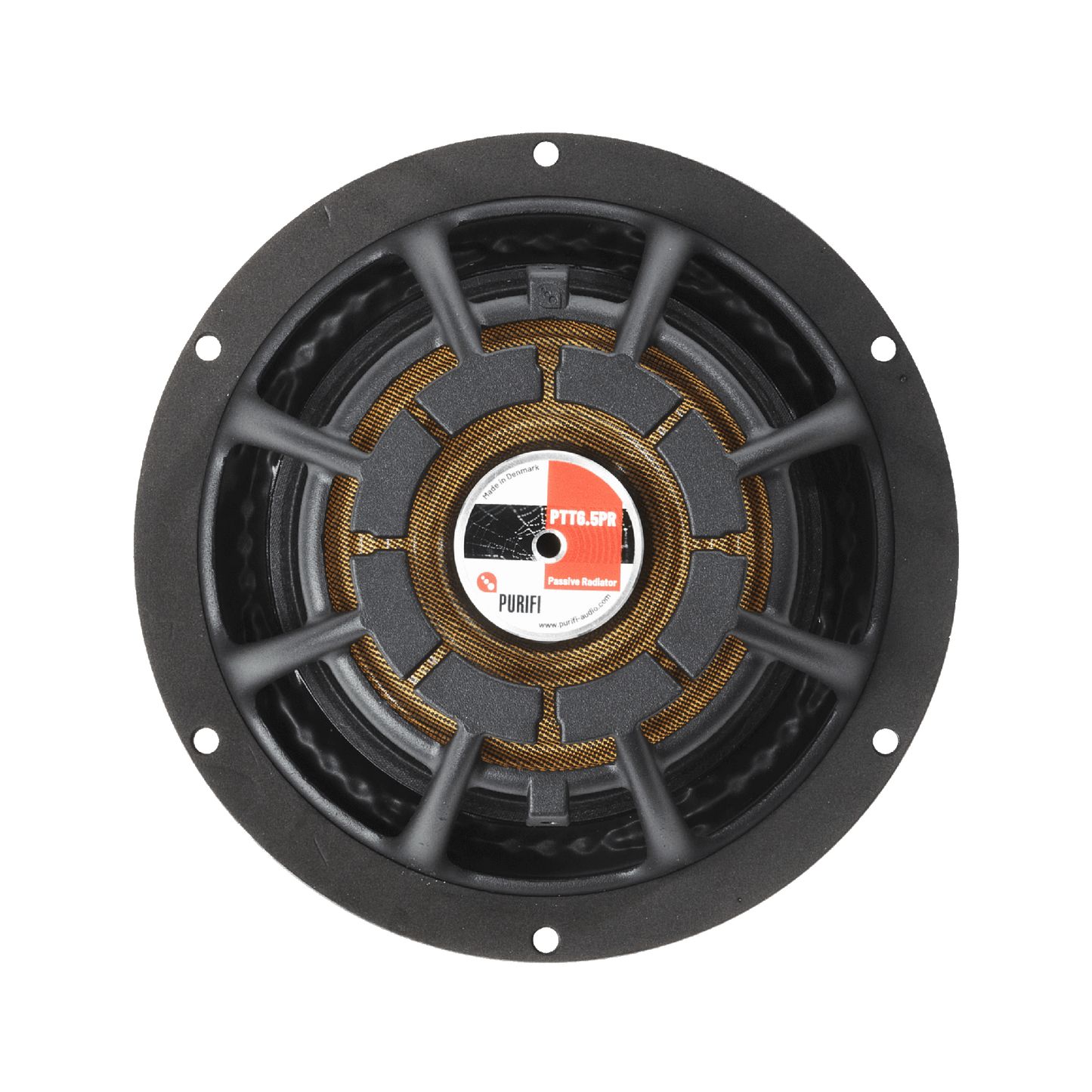

PURIFI - 6.5" Passive Radiator - PTT6.5PR-NA2-03
PURIFI - 6.5" Passive Radiator - PTT6.5PR-NA2-03
Regular price
$599.95
Regular price
Sale price
$599.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Made to order
Lead time: 8–12 weeks
Couldn't load pickup availability
Description
The 6.5” passive radiator incorporates the easily recognisable PURIFI NeutralSurround suspension in order to eliminate Surround Radiation Distortion. With its low-distortion properties, long linear stroke and option for adding mass, the driver is eminently suited as a companion to the PTT6.5X drivers especially in compact speaker construction where a traditional reflex port would limit the performance.
Features
- Vibroacoustic optimised cone and dust cap in black anodised aluminium
- PURIFI Neutral Surround eliminates Surround Radiation Distortion (SRD)
- 15mm one-way peak excursion with constant Sd
- Mass Plug with M6 thread for adding extra mass
- Designed and manufactured in Denmark
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 6.5" |
Thiele/Small parameters
| Resonant frequency (Fs) | 19 Hz |
|---|---|
| Mechanical Q (Qms) | 13.1 |
| Equivalent volume (Vas) | 20.5 L |
| Compliance (Cms) | 0.82 mm/N |
| Moving mass (Mms) | 85 g |
| Mechanical resistance (Rms) | 0.78 kg/s |
| Effective piston area (Sd) | 132.7 cm² |
| Mechanical excursion (Xmech) | 15 mm |
| Effective piston diameter (D) | 130 mm |
Mounting
| Overall diameter | 176.3 mm |
|---|---|
| Cutout diameter | 148 mm |
| Mounting depth | 49 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 166 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.2 mm |
| Weight | 0.25 kg |
| Mass plug thread | M6 |
Materials
| Cone | Black Anodised Aluminium |
|---|
Downloads
- PTT6.5PR-NA2-03 - Data Sheet
- PTT6.5PR-NA2-03 - 3D Model
- PTT6.5PR-NA2-03 Cutout & Recess Template (NB Audio) Every figure is straight off Purifi's own spec sheet. Check it against your driver before you cut.
