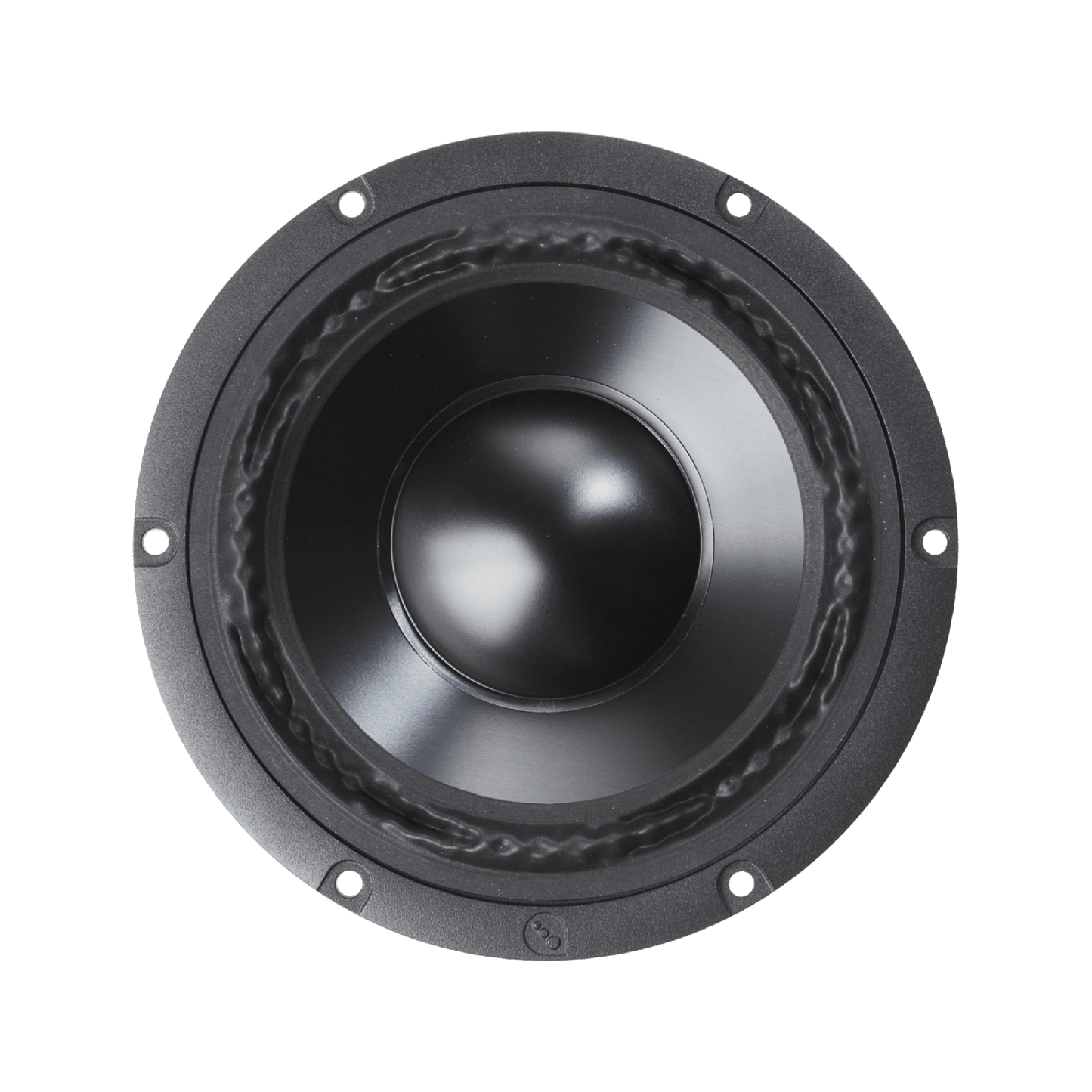

PURIFI - 6.5" Woofer - PTT6.5X08-NAA-08
PURIFI - 6.5" Woofer - PTT6.5X08-NAA-08
Regular price
$949.95
Regular price
Sale price
$949.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Made to order
Lead time: 8–12 weeks
Couldn't load pickup availability
Description
This 6.5" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognisable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to elevate performance to a whole new level despite its compact size.
Features
- Vibroacoustic optimised cone and dust cap in black anodised aluminium
- Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
- Ultra Low Magnetic Hysteresis Distortion (MHD)
- "Real" long-stroke performance with distortion remaining low over full excursion
- Uncompromised midrange performance
- Designed and manufactured in Denmark
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 80 W |
| Power handling (program) | 250 W |
| Sensitivity | 85 dB |
| Sensitivity (1 W/1 m) | 84.3 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 34 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.7 Ω |
| Voice coil inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 7.7 |
| Electrical Q (Qes) | 0.42 |
| Total Q (Qts) | 0.4 |
| Equivalent volume (Vas) | 20.4 L |
| Compliance (Cms) | 0.82 mm/N |
| Moving mass (Mms) | 27.2 g |
| Mechanical resistance (Rms) | 0.75 kg/s |
| Force factor (Bl) | 9 T·m |
| Effective piston area (Sd) | 132.7 cm² |
| Linear excursion (Xmax, one-way) | 9.8 mm |
| Mechanical excursion (Xmech) | 14.5 mm |
| Displacement volume (Vd) | 130 cm³ |
| Efficiency bandwidth product (EBP) | 80.95 |
| Effective piston diameter (D) | 130 mm |
| Impedance at resonance (Zo) | 114 Ω |
| Frequency of minimum impedance | 253 Hz |
Motor
| Motor efficiency factor (β) | 13.7 (T·m)²/Ω |
|---|---|
| Voice coil height | 23.6 mm |
| Voice coil layers | 4 |
| Voice coil wire | CCAW |
| Air gap height | 4 mm |
| Magnet diameter | 100 mm |
Mounting
| Overall diameter | 176.3 mm |
|---|---|
| Cutout diameter | 148 mm |
| Mounting depth | 86 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 166 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.2 mm |
| Volume displaced by driver | 0.31 L |
| Voice coil diameter | 39 mm |
| Weight | 1.75 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|
Typical box tunings
| Sealed B2: corner frequency | 60.1 Hz |
|---|---|
| Sealed B2: box volume | 9.6 L |
| Bass reflex: corner frequency | 28.7 Hz |
| Bass reflex: box resonance | 32 Hz |
| Bass reflex: box volume | 26.7 L |
| Bass reflex: port diameter | 58 mm |
| Bass reflex: port length | 287 mm |
| 2 × passive radiator: corner frequency | 34.8 Hz |
| 2 × passive radiator: box volume | 20.7 L |
| 2 × passive radiator: PR mass (each) | 70.1 g |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Purifi quotes sensitivity over 300–800 Hz.
Downloads
- PTT6.5X08-NAA-08 - Data Sheet
- PTT6.5X08-NAA-08 - FRD
- PTT6.5X08-NAA-08 - 3D Model
- PTT6.5X08-NAA-08 Cutout & Recess Template (NB Audio) Every figure is straight off Purifi's own spec sheet. Check it against your driver before you cut.
