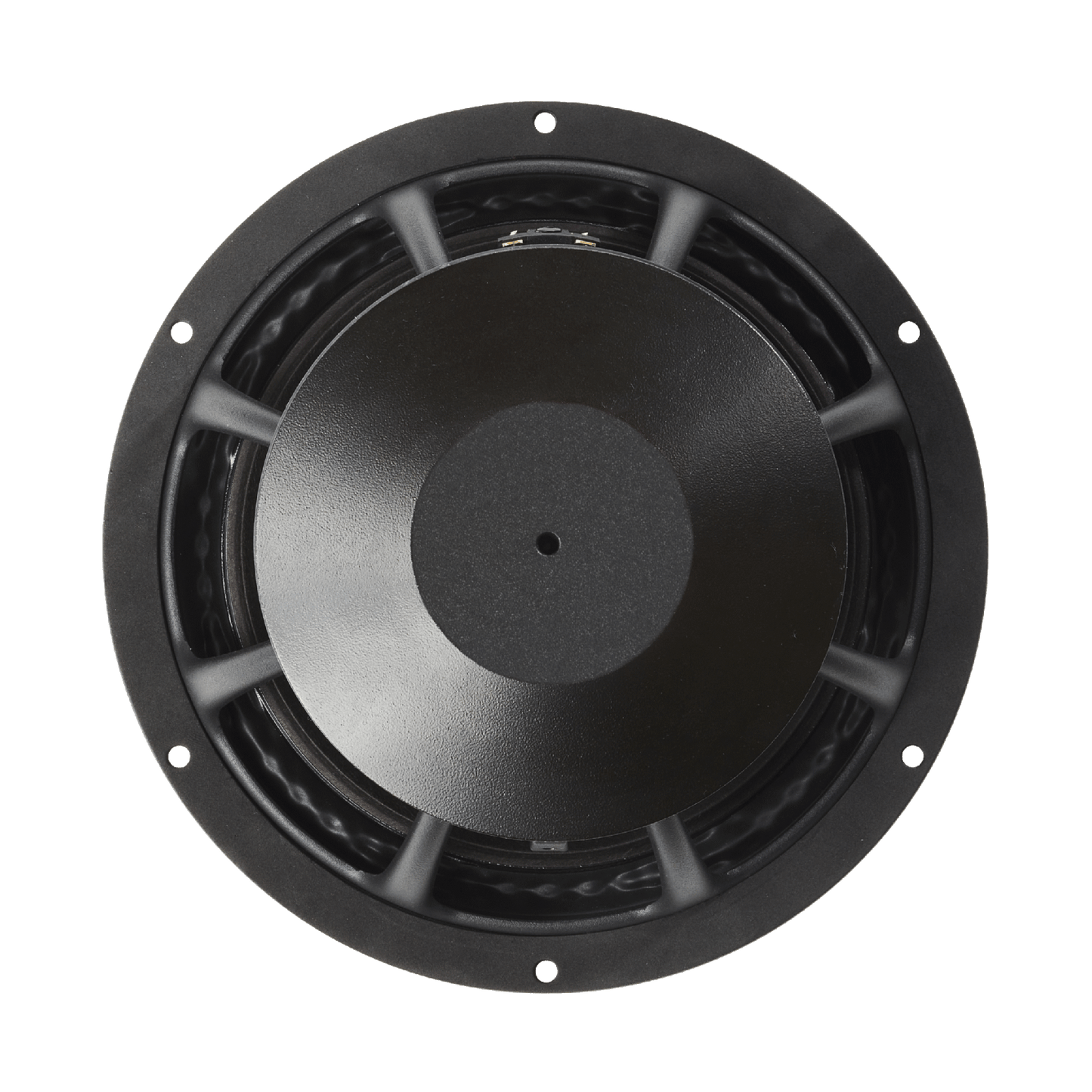

PURIFI - 8" Woofer - PTT8.0X08-NAB-01
PURIFI - 8" Woofer - PTT8.0X08-NAB-01
Regular price
$1,299.95 AUD
Regular price
Sale price
$1,299.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
***CURRENTLY, ALL PURIFI DRIVERS ARE MADE TO ORDER WITH EXPECTED DELIVERY WITHIN 8-12 WEEKS***
Description:
This 8.0" is a member of the ultra low distortion extended-stroke woofer family from PURIFI. The driver incorporates the easily recognizable PURIFI NeutralSurround suspension and ultra-linear motor system PURIFI PureDrive technology working in concert to enable record-breaking linearity specifications over an extended bandwith.
Features:
- Vibroacoustic optimized cone and dust cap in black anodized aluminium
- Negligible Force Factor Modulation (FFM) and Surround Radiation Distortion (SRD)
- Ultra Low Magnetic Hysteresis Distortion (MHD)
- "Real" long-stroke performance with distortion remaining low over full excursion
- Uncompromised midrange performance
- Designed and manufactured in Denmark
Specifications:
| General Specifications | |
|---|---|
| Type | Extended Woofer |
| Size | 8in |
| Nominal impedance | 8Ω |
| Cone material | Black Anodized Aluminum |
| Linear excursion, Xlin | ±9.3mm |
| Maximum mechanical excursion, Xmax | ±15.0mm |
| Motor efficiency factor, Beta | 19.1 (N/A)^2/Ω |
| Efficiency Bandwidth Product, EBP | 68.6Hz |
| Long term maximum power | TBD |
| Rated noise power, 100h | TBD |
| Electrical & Acoustical Parameter | |
|---|---|
| DC resistance | 6.0Ω |
| Minimum impedance above resonance, Zmin | 6.6Ω |
| Frequency for minimum impedance, fmin | 223Hz |
| Maximum impedance, Zo | 100Ω |
| Voice Coil inductance @ 1kHz 0mm, Le | 0.33mH |
| SPL @ 2.83Vrms/1m, 300-800Hz | 86.4dB |
| SPL @ 1W/1m, 300-800Hz | 85.6dB |
| Thiele/Small Parameters | |
|---|---|
| Resonance frequency, fs | 24Hz |
| Mechanical Q factor, Qms | 5.8 |
| Electrical Q factor, Qes | 0.37 |
| Total Q factor, Qts | 0.35 |
| Equivalent volume, Vas | 74.5L |
| Effective piston area, Sd | 235.1cm2 |
| Effective piston diameter, D | 17.3cm |
| Force factor, Bl | 10.7N/A |
| Mechanical resistance, Rms | 1.22kg/s |
| Moving mass, Mms | 47.6g |
| Suspension compliance, Cms | 0.95mm/N |
| Typical Box Tunings | |
|---|---|
| Typical corner frequency, sealed B2 alignment | 48.5Hz |
| Box volume, sealed B2 alignment | 24.2L |
| Typical corner frequency, bass reflex PTT alignment | 24.2Hz |
| Box resonance, bass reflex PTT alignment | 26.3Hz |
| Box volume, bass reflex PTT alignment | 67.7L |
| Port diameter, bass reflex PTT alignment | 6.8cm |
| Port length, bass reflex PTT alignment | 23.1cm |
| Typical corner frequency, 2xPR PTT alignment | 27.8Hz |
| Box volume, 2xPR PTT alignment | 54.0L |
| PR mass per PR, 2xPR PTT alignment | 124.3g |
| Voice Coil Properties | |
|---|---|
| Voice Coil diameter | 52mm |
| Voice Coil length | 23.6mm |
| Voice Coil layers | 2 |
| Airgap height | 5.0mm |
| Winding material | CU |
| Physical Dimensions | |
|---|---|
| Basket diameter | 221mm |
| Cutout diameter | 193mm |
| Mounting hole pattern diameter | 210mm |
| Mounting hole diameter | 5.2mm |
| Magnet diameter | 140mm |
| Outer flange height | 5.0mm |
| Build-in depth | 102.0mm |
| Weight | 3.50kg |
| Internal volume displacement | 0.64L |
