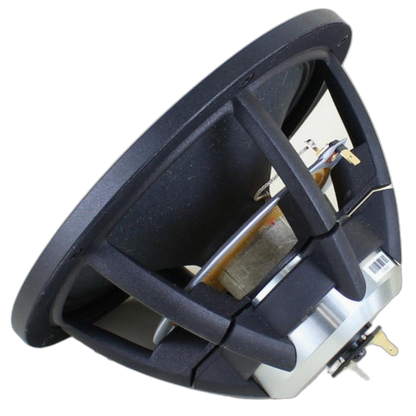

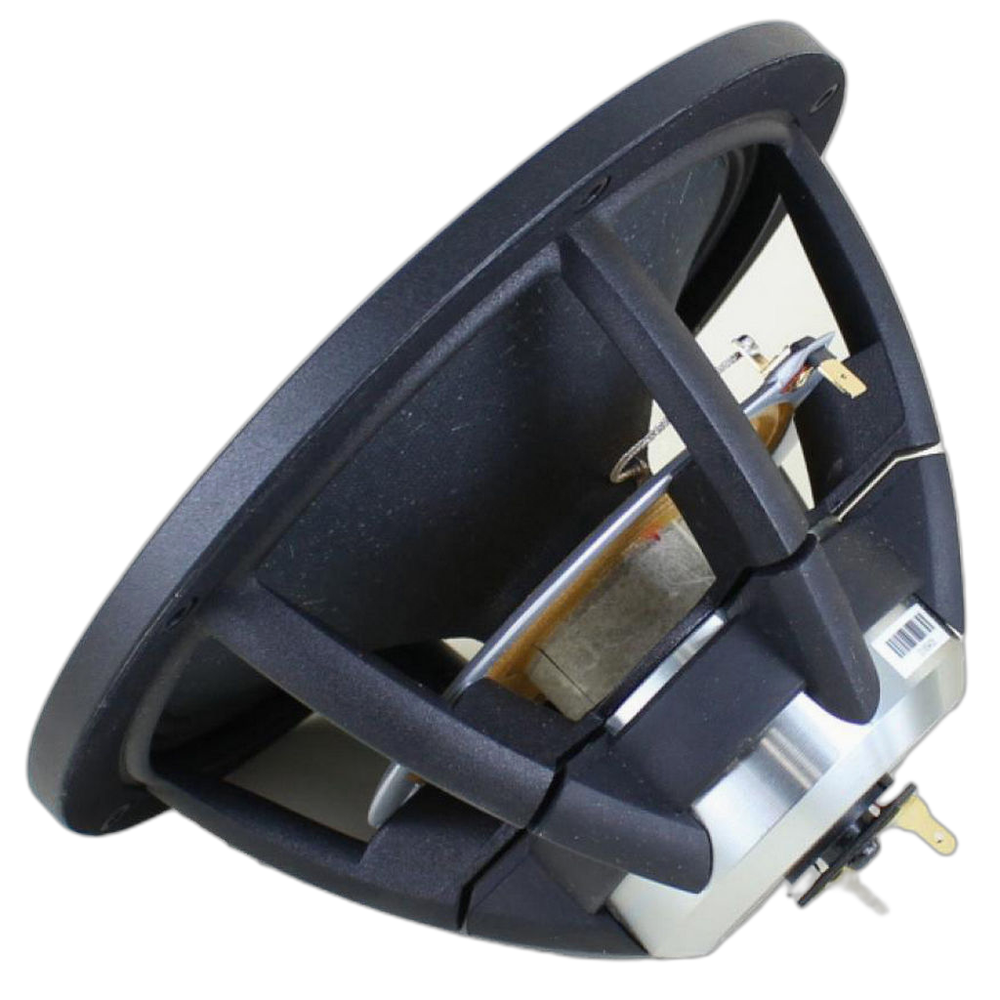

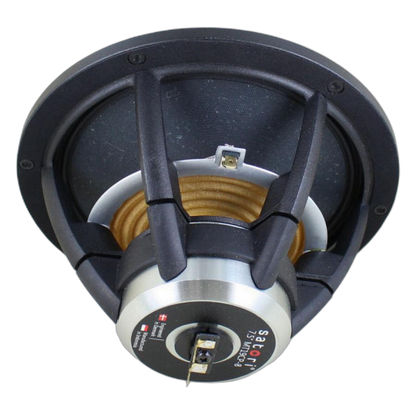

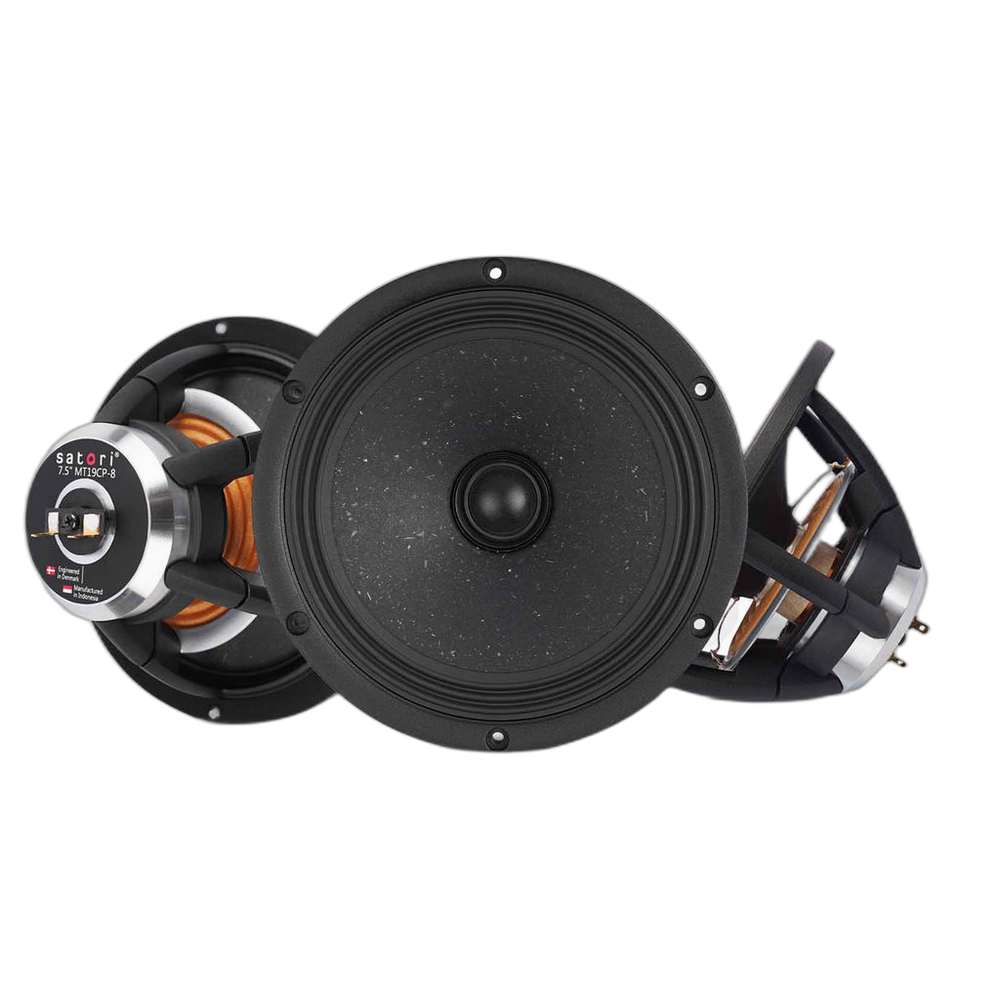

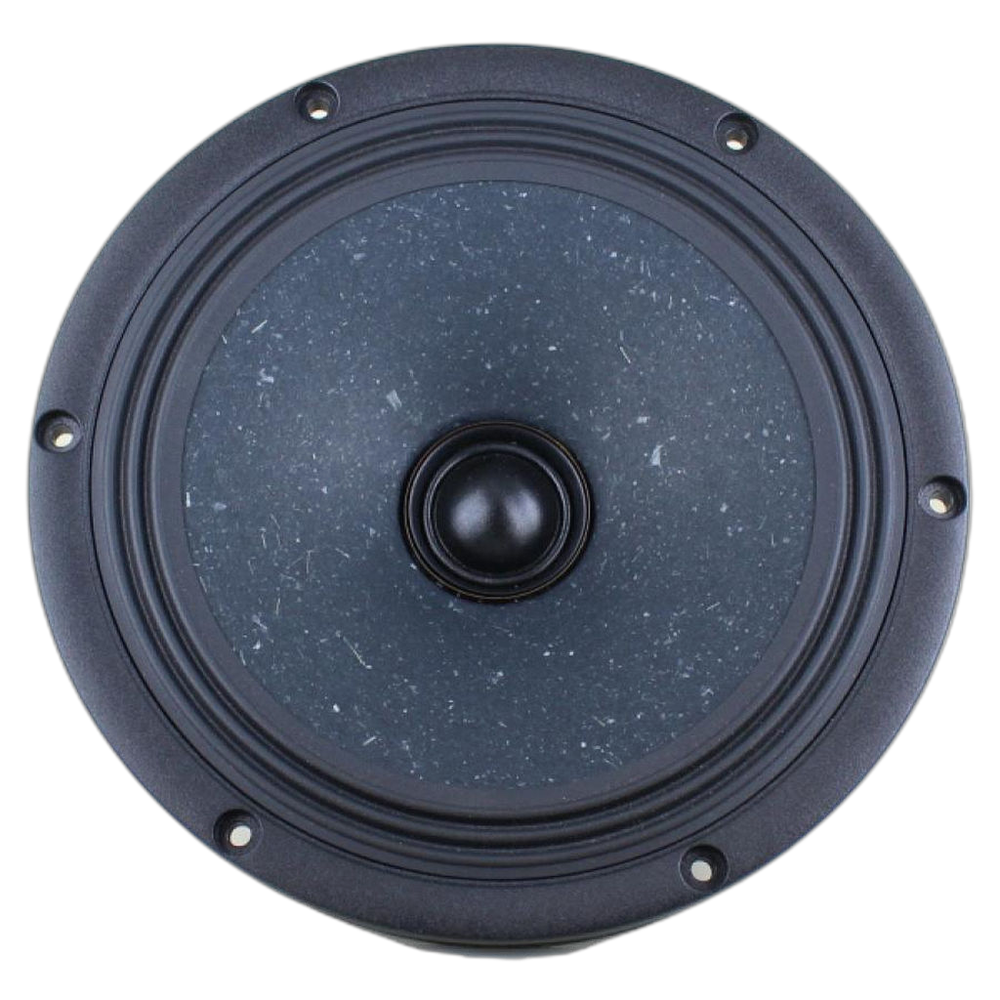

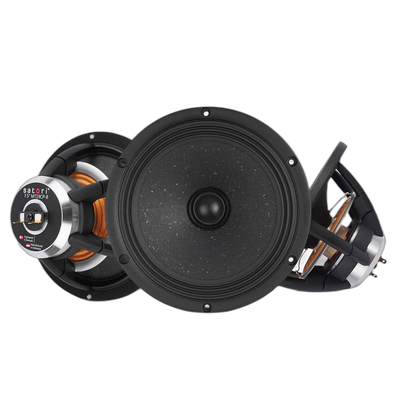

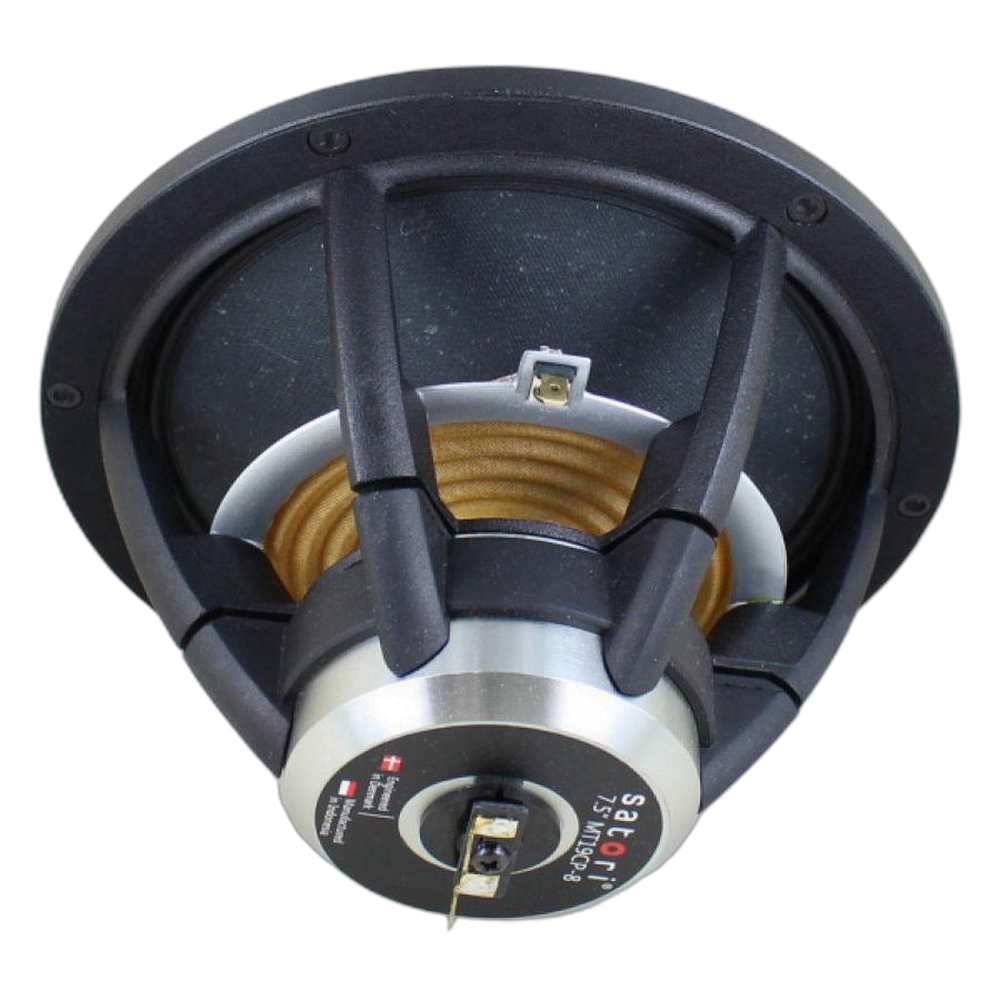

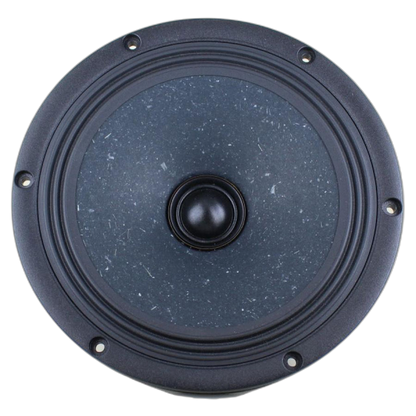

SB Acoustics - 7½" Satori Coaxial - MT19CP-8
SB Acoustics - 7½" Satori Coaxial - MT19CP-8
Couldn't load pickup availability
Description
Coaxial transducers are closer to a true point source compared to separate woofer/tweeter transducer combinations. This brings some advantages with regards to physical time alignment so that the sound source stays time coherent at any listening angle. The new Coaxial Satori MT19CP-8 is our take on a high end Coaxial transducer that is equally suited to midrange/tweeter reproduction in a larger multi-way speaker system or as a midwoofer/tweeter for a smaller monitor style speaker. Adding the MT19CP-8 to the family of high end Satori drivers is an exciting chapter for SB Acoustics. The Satori line of products are the flagship products within SB Acoustics and the MT19CP-8 is the newest addition to the Satori family and is the first Coaxial driver to appear in the Satori line which currently consists of a wide range of Midwoofer, Midrange and Tweeter transducers.
Features
- Vented aerodynamic cast aluminium chassis for optimum strength and low compression
- Proprietary cone material with Egyptian Papyrus fibres made in house
- Powerful low distortion neodymium motor system with extended copper sleeve
- Soft rubber surround with triple roll low profile for minimum high frequency diffraction and optimum transient response
- Light weight CCAW voice coil on fibres glass former
- Vented pole piece for reduced compression
- Long life silver lead wires
- 26mm high performance soft dome tweeter with neodymium motor, copper cap and CCAW voice coil
Specifications
| Power | 60Wrms |
|---|---|
| Colour | Black Cone |
| Coil | 39mmØ |
| Width | 165mmØ |
| Mag. | 0.13kg |
| Grille | SAT16-GRL |
| Sens. | 90dB |
| Re | 6.5Ω |
| Qms | 6.54 |
| Qes | 0.33 |
| Qts | 0.31 |
| Vas | 37.1L |
| Sd | 152cm² |
| Cms | 1.13mm/N |
| Bl | 8.05Tm |
| Fs | 43Hz |
| Mms | 12.1g |
| Zn | 0.12mH |
| Le | 0.12mH |
| Rms | 0.5kg/s |
| Xmax | 7.2mm |
| Diam. | 187mmØ |
| Sold As | Single |
