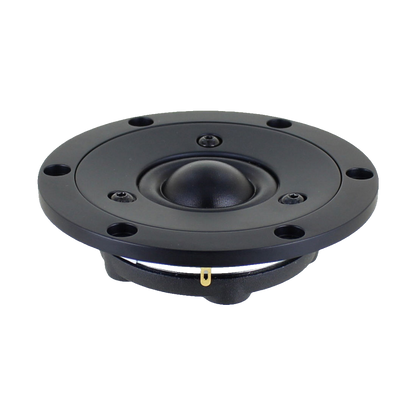

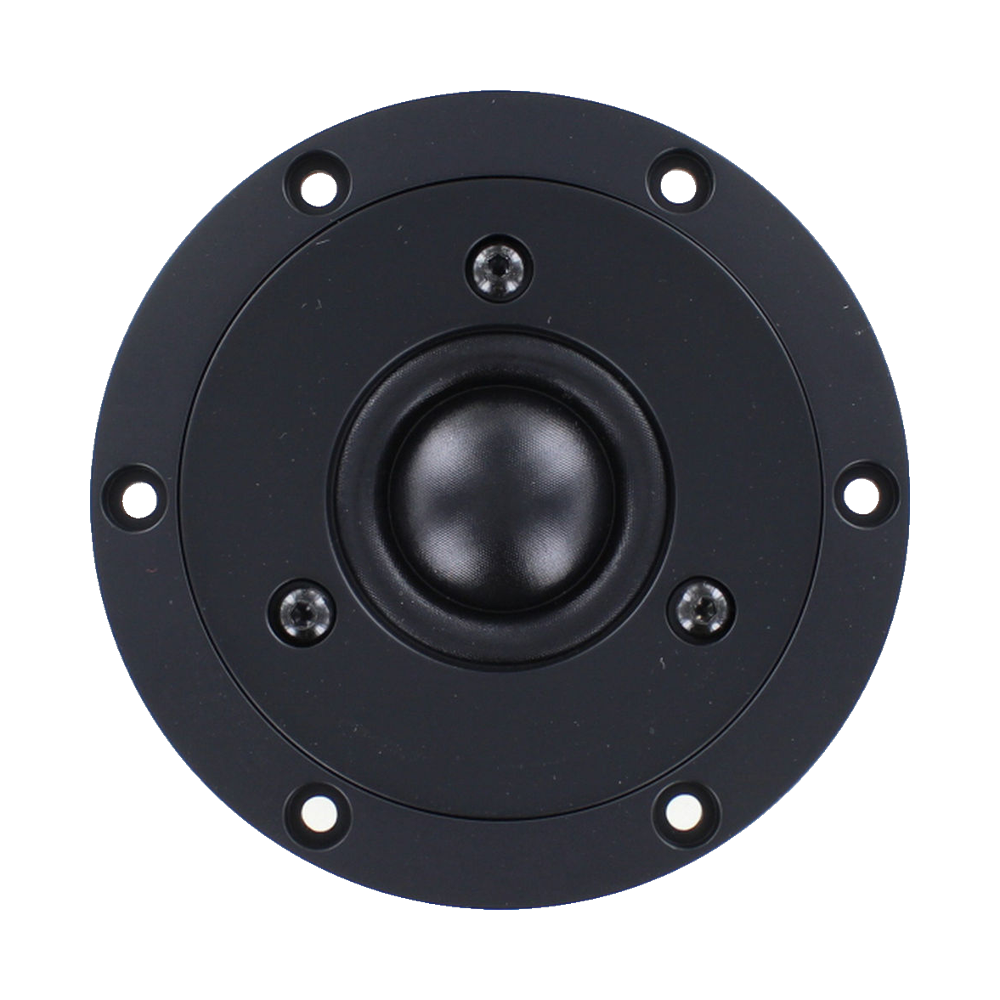

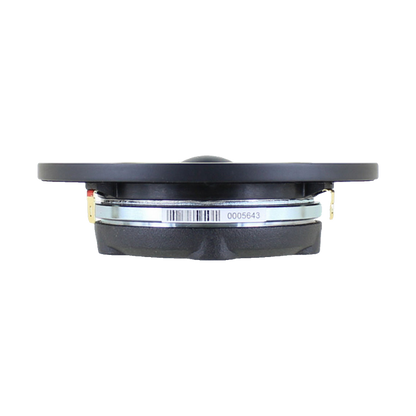

SB Acoustics - 1 1/4" Satori Dome Tweeter Textile Neo - TW29DN-B-8
SB Acoustics - 1 1/4" Satori Dome Tweeter Textile Neo - TW29DN-B-8
Regular price
$239.95 AUD
Regular price
Sale price
$239.95 AUD
Unit price
/
per
Description:

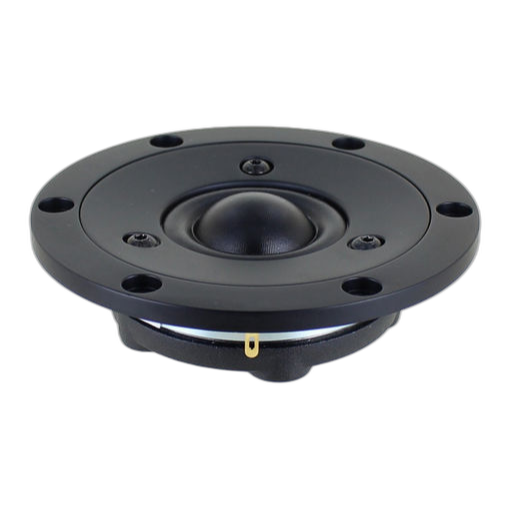

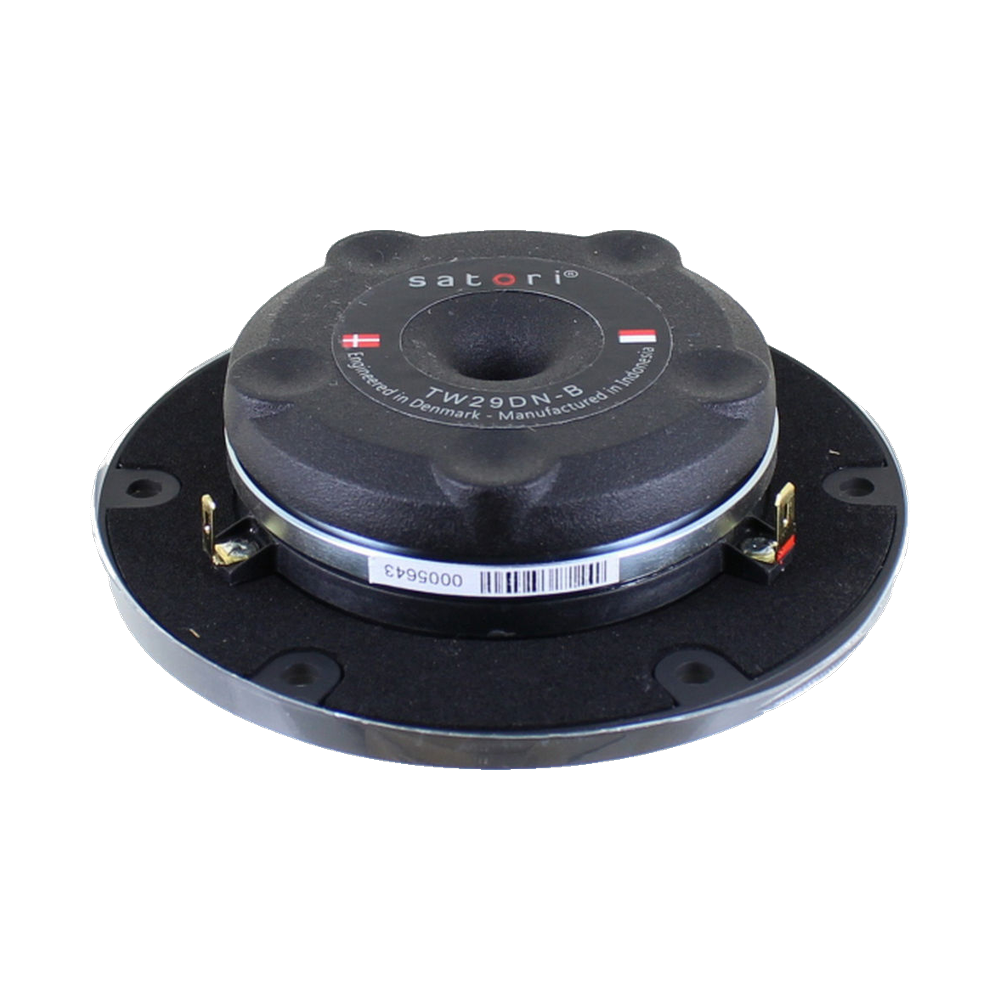

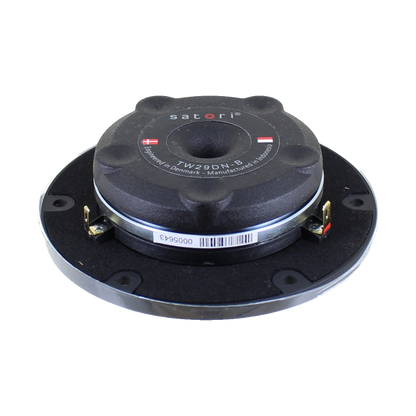

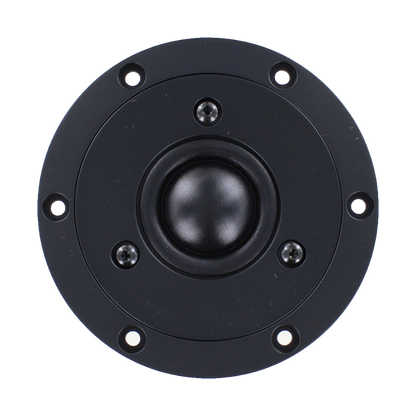

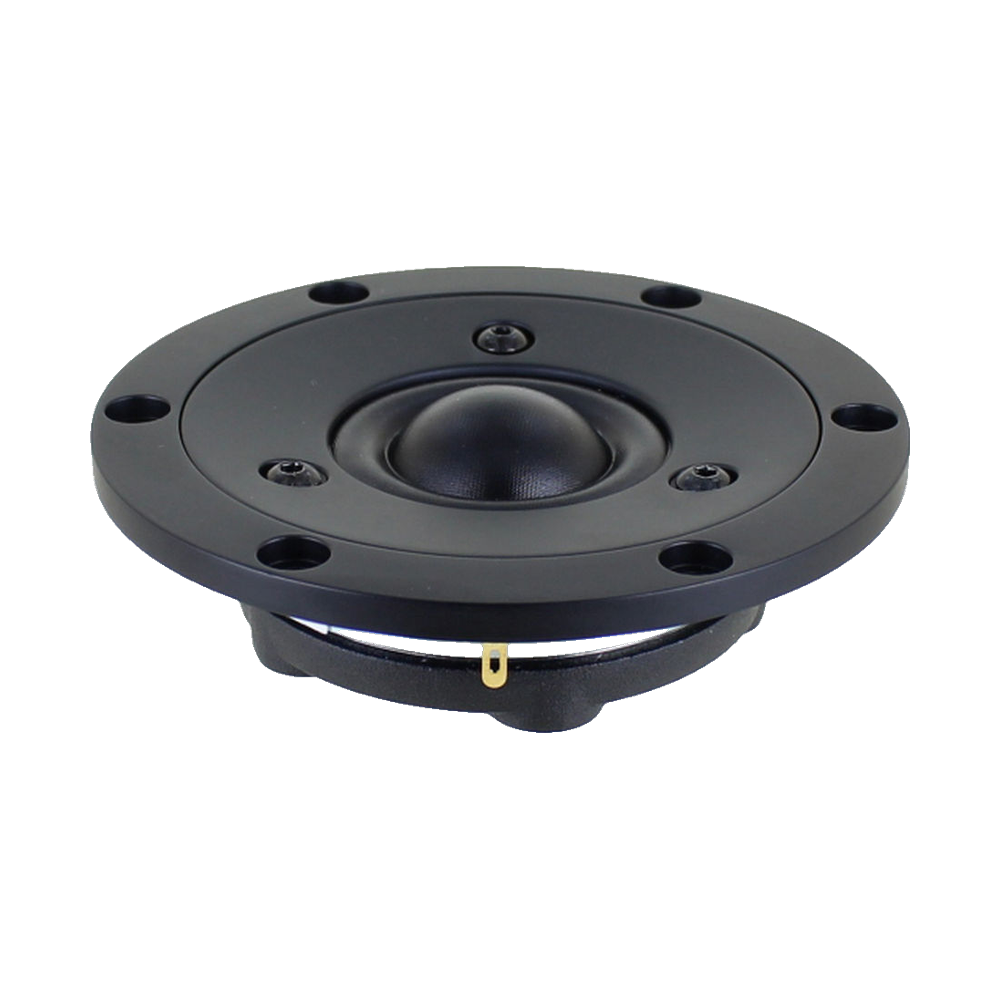

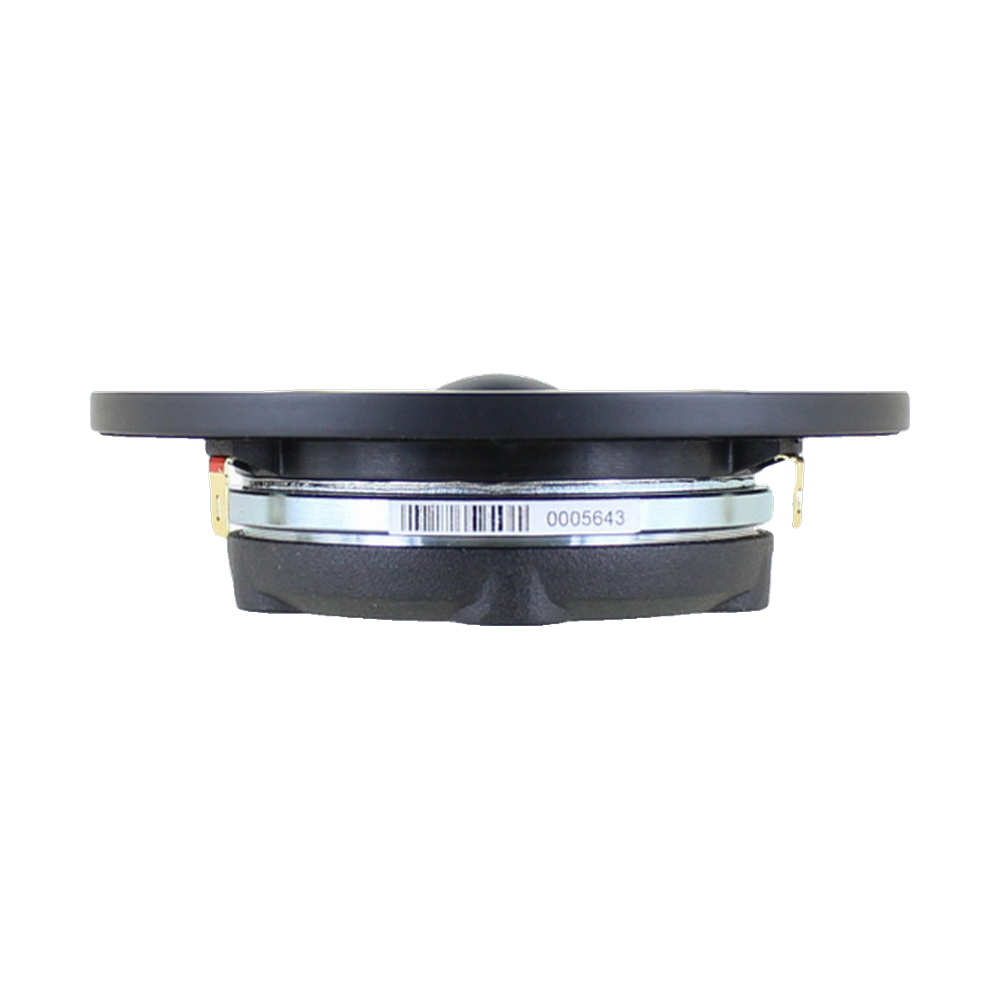

Satori large-surround dome tweeter with Neodymium magnets for high-output plus many advanced features, including two-part faceplate, dual chamber, and t-shaped pole-piece.
Features:
- Large surround dome for increased acoustic output.
- Dual balanced compression chamber for improved dynamics.
- Dual copper caps for absolute minimum voice coil inductance and minimum phase shift.
- Two part aluminium faceplate with integrated mechanical decoupling.
- High saturation neodymium motor system with T-shaped pole piece for lower distortion.
- Non-reflective cast aluminium chamber with optimized damping for improved dynamics.
- Shallow flow optimized magnet structure for optimum coupling to rear chamber.
- CCAW voice coil for low moving mass.
- Long life silver lead wires.
- Low resonance frequency for extended range.

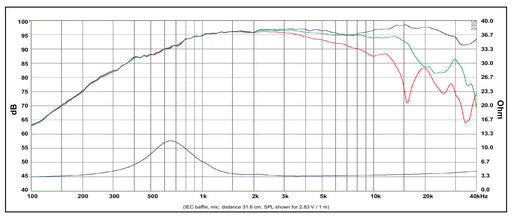

Specifications:
Code | TW29DN-B-8 |
Description | Satori Tweeter Dome Neo Black |
Impedance | 8Ω (Re 6.2Ω) |
Fs | 650Hz |
Sens. | 93dB |
Power | 80Wrms |
Qms | 1.61 |
Qes | 0.65 |
Qts | 0.46 |
Coil | 29mmØ |
Depth | 21.7mm |
Diam. | 25mmØ |
Impedance (Ohm) | 8 ohm |
Le | 0.02mH |
Mag. | 0.10kg |
Materials | Textile Dome Neo |
Mms | 0.43g |
Power (RMS) | 51-100 Watt |
Re | 6.2Ω |
Sd | 9.6cm² |
Series | Satori |
Size | 1" |
Type | Tweeter |

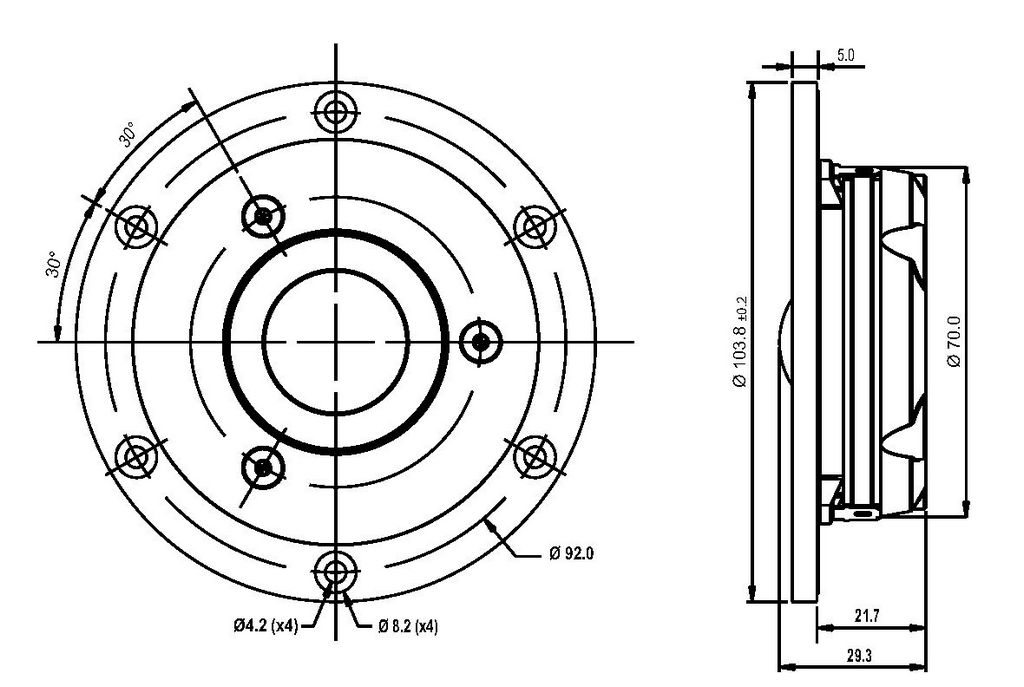

Width | 103.8mmØ |
Zn | 0.04mH |
Colour | Black |
Bl | 4.1Tm |
Xmax | 0.5mm |
Flux (lm) | 1.5T |
Grille | SAT29-GRL |
