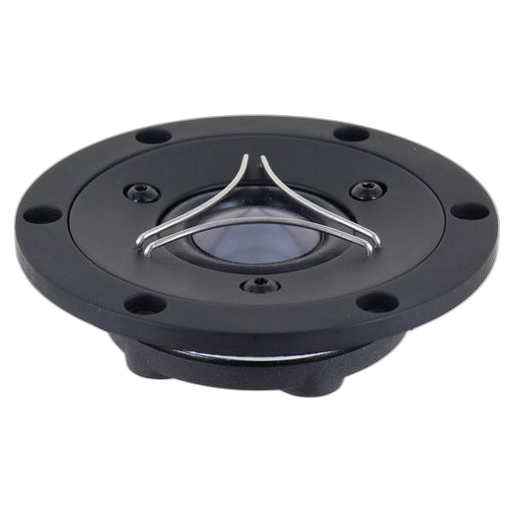

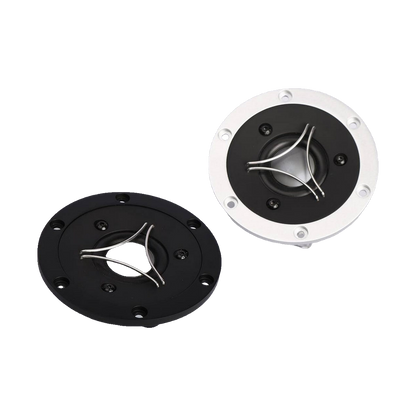

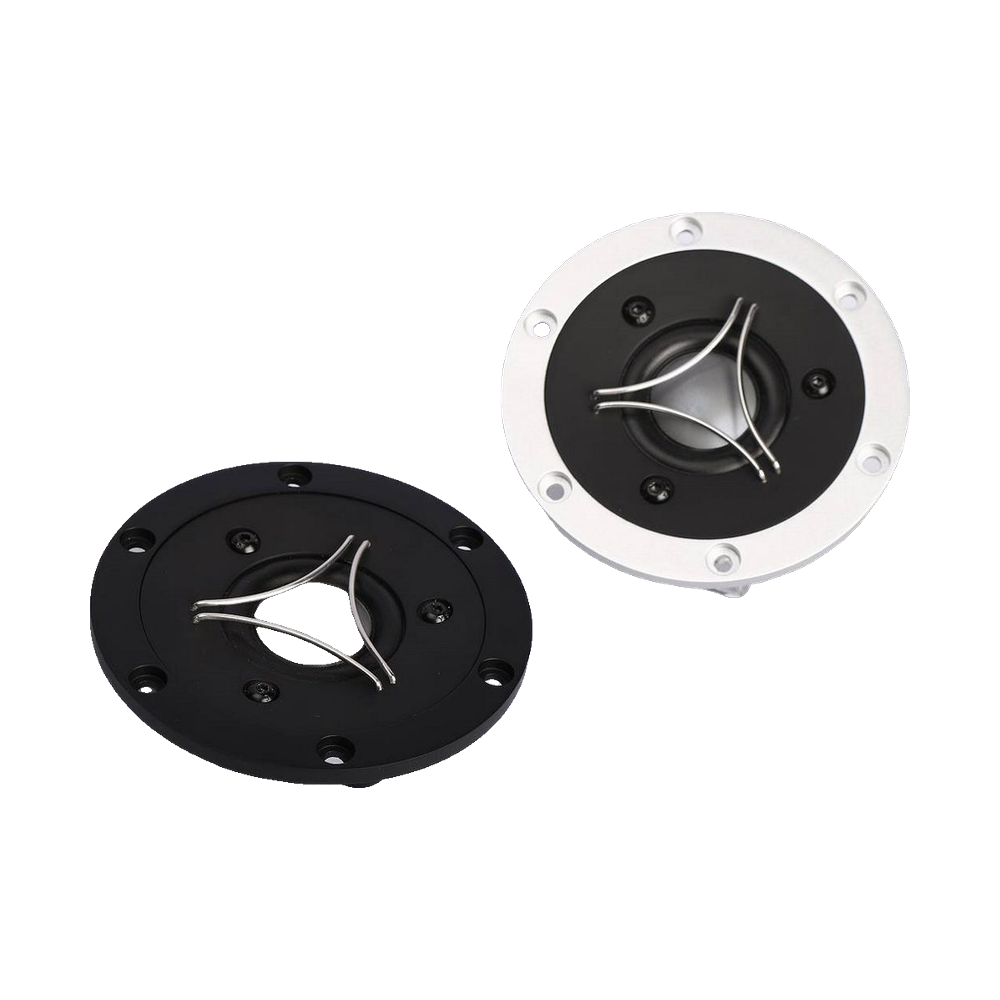

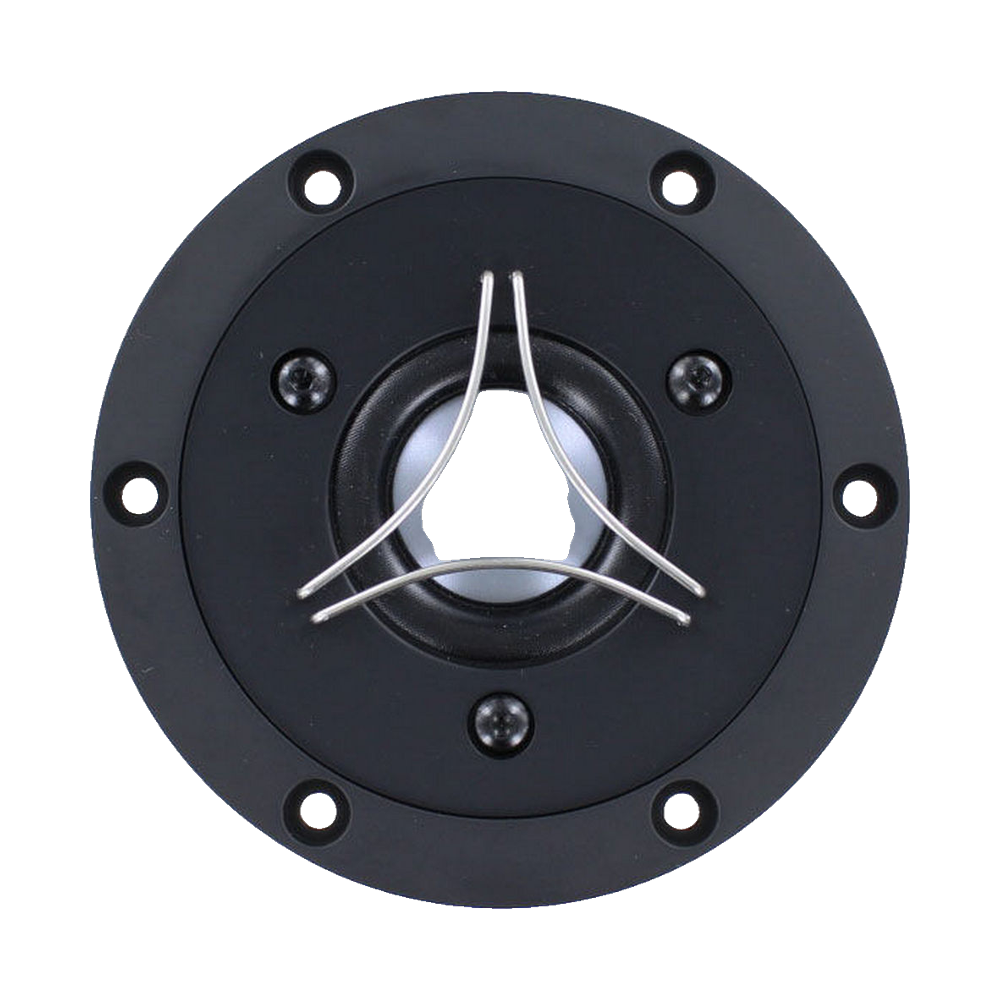

SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium Neo - TW29BN-B
SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium Neo - TW29BN-B
Regular price
$894.95
Regular price
Sale price
$894.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Beryllium dome for non-resonant high frequency extension
- Two part aluminium faceplate with integrated mechanical decoupling
- Dual balanced compression chambers for improved dynamics
- Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
- High saturation neodymium motor system with T-shaped pole piece for lower distortion
- Non-reflective cast aluminium chamber with optimised damping for improved dynamics
- Shallow flow optimised magnet structure for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency for extended range

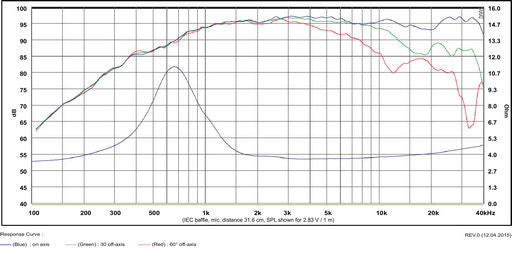

Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 4Ω |
| Series | Satori |
| Power handling (RMS) | 80 W |
| Sensitivity | 95 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 700 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 2.1 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.46 |
| Compliance (Cms) | 0.1124 mm/N |
| Moving mass (Mms) | 0.46 g |
| Mechanical resistance (Rms) | 0.9634 kg/s |
| Force factor (Bl) | 3.1 T·m |
| Effective piston area (Sd) | 9.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Displacement volume (Vd) | 0.24 cm³ |
| Efficiency bandwidth product (EBP) | 1,167 |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.5 T |
| Magnet weight | 0.11 kg |
Mounting
| Overall diameter | 103.8 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 71.0 mm |
| Mounting depth | 22.5 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 29 mm |
| Weight | 0.41 kg |
Materials
| Cone | Beryllium |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- SATORI TW29BN-B Datasheet
- TW29BN-B Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
