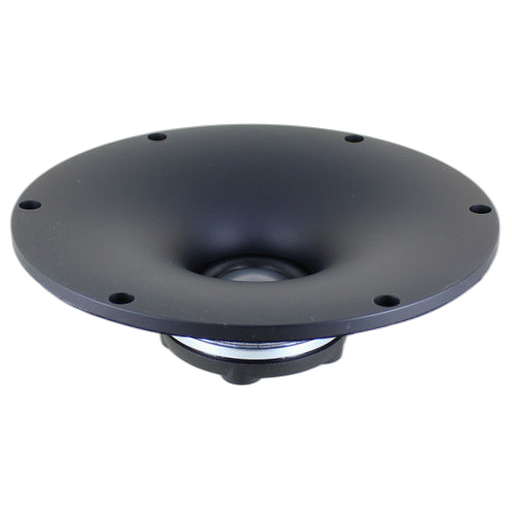

SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium Neo with 170mm Waveguide - TW29BNWG-4

SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium Neo with 170mm Waveguide - TW29BNWG-4

Regular price $669.95 AUD
Regular price Sale price $669.95 AUD
Sale Sold out
Shipping calculated at checkout.

Description:

Tweeter with 29mm Beryllium dome, neodymium motor, aluminium waveguide, with chamber. Beryllium is known for its open and spatial sound, often described as holographic. The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing a experience unlike all other dome materials.

Features:

  • Beryllium dome for non-resonant high frequency extension
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimised damping for improved dynamics
  • Shallow flow optimised magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range
  • Solid aluminium waveguide
  • Controlled directivity
  • Adaptor ring for bolt-less mounting to driver

Specifications:

Code TW29BNWG-4
Description 29mm Beryllium dome, neodymium motor, aluminium waveguide, with chamber
Coil 29mmØ
Depth 46.7mm
Fs 700Hz
Impedance 4Ω (Re 3.0Ω)
Impedance (Ohm) 4 ohm
Inch 1.14"
Le 0.02mH
Mag. 0.1kg
Mms 0.46g
Power 80Wrms
Power (RMS) 51-100 Watt
Price Type each
Prms 80W
Qes 0.6
Qms 2.1
Qts 0.46
Re 3.0Ω
Sd 9.6cm²
Sens. 97dB
Series Satori
Size 1.17"
Type Dome Tweeter
Width 103.8mmØ
Zn 0.02mH
Flux (lm) 1.5T
Xmax 1mm
Bl 3.1Tm
Sold As Single
