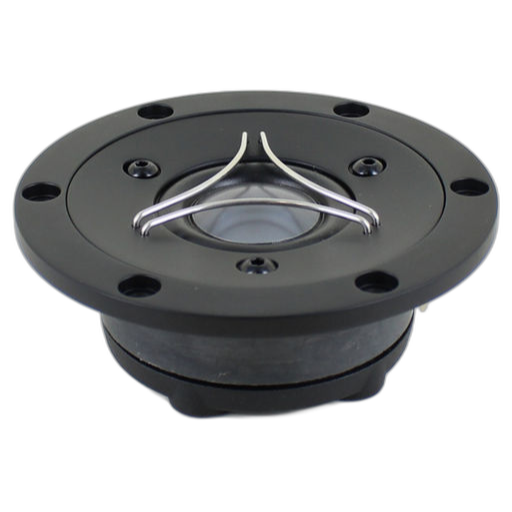

SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium - TW29B-B
SB Acoustics - 1 1/4" Satori Dome Tweeter Beryllium - TW29B-B
Regular price
$874.95
Regular price
Sale price
$874.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Beryllium dome for non-resonant high frequency extension
- Two part aluminium faceplate with integrated mechanical decoupling
- Dual balanced compression chambers for improved dynamics
- Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
- Non-reflective cast aluminium chamber with optimised damping for improved dynamics
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency for extended range

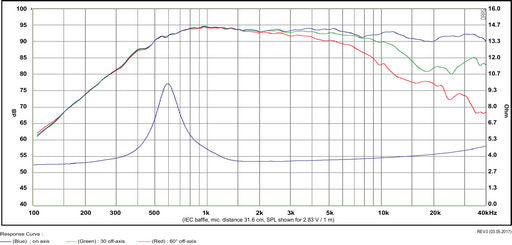

Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 4Ω |
| Series | Satori |
| Power handling (RMS) | 80 W |
| Sensitivity | 92 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 600 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 2.9 |
| Electrical Q (Qes) | 1.3 |
| Total Q (Qts) | 0.9 |
| Compliance (Cms) | 0.153 mm/N |
| Moving mass (Mms) | 0.46 g |
| Mechanical resistance (Rms) | 0.598 kg/s |
| Force factor (Bl) | 2 T·m |
| Effective piston area (Sd) | 9.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Displacement volume (Vd) | 0.24 cm³ |
| Efficiency bandwidth product (EBP) | 461.5 |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1 T |
| Magnet weight | 0.22 kg |
Mounting
| Overall diameter | 103.8 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 71.0 mm |
| Mounting depth | 32.3 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 29 mm |
| Weight | 0.53 kg |
Materials
| Cone | Beryllium |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- SATORI TW29B-B Datasheet
- TW29B-B Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
