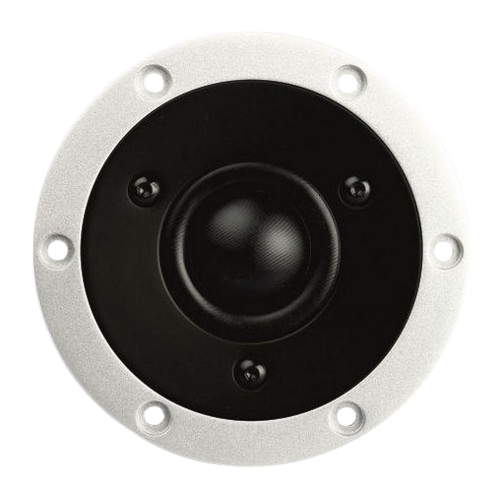

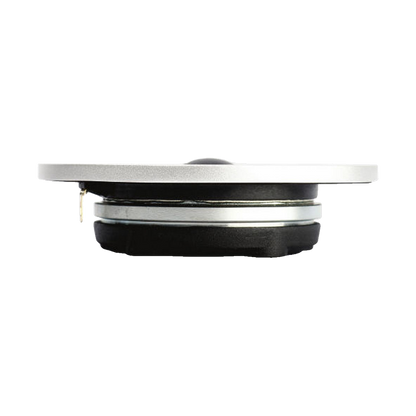

SB Acoustics - 1 1/4" Satori Textile Dome Neo Tweeter - TW29DN

Description:

Satori large-surround dome tweeter with Neodymium magnets for high-output and two part aluminium faceplate with integrated mechanical decoupling. Dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift. High saturation ferrite motor system with T-shaped pole piece for lower distortion. Non-reflective cast aluminium chamber with optimized damping for improved dynamics. Shallow flow optimized magnet structure for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency for extended range.

Features:

• Large surround dome for increased acoustic output.
• Dual balanced compression chamber for improved dynamics.
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift.
• Two part aluminium faceplate with integrated mechanical decoupling.
• High saturation neodymium motor system with T-shaped pole piece for lower distortion.
• Non-reflective cast aluminium chamber with optimized damping for improved dynamics.
• Shallow flow optimized magnet structure for optimum coupling to rear chamber.
• CCAW voice coil for low moving mass.
• Long life silver lead wires.
• Low resonance frequency for extended range.


Specifications:
