SB Acoustics

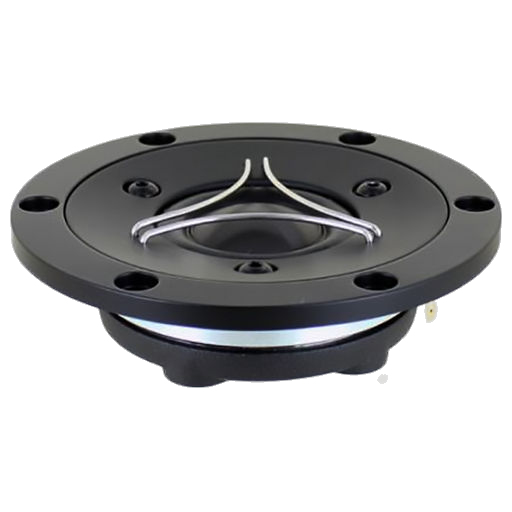

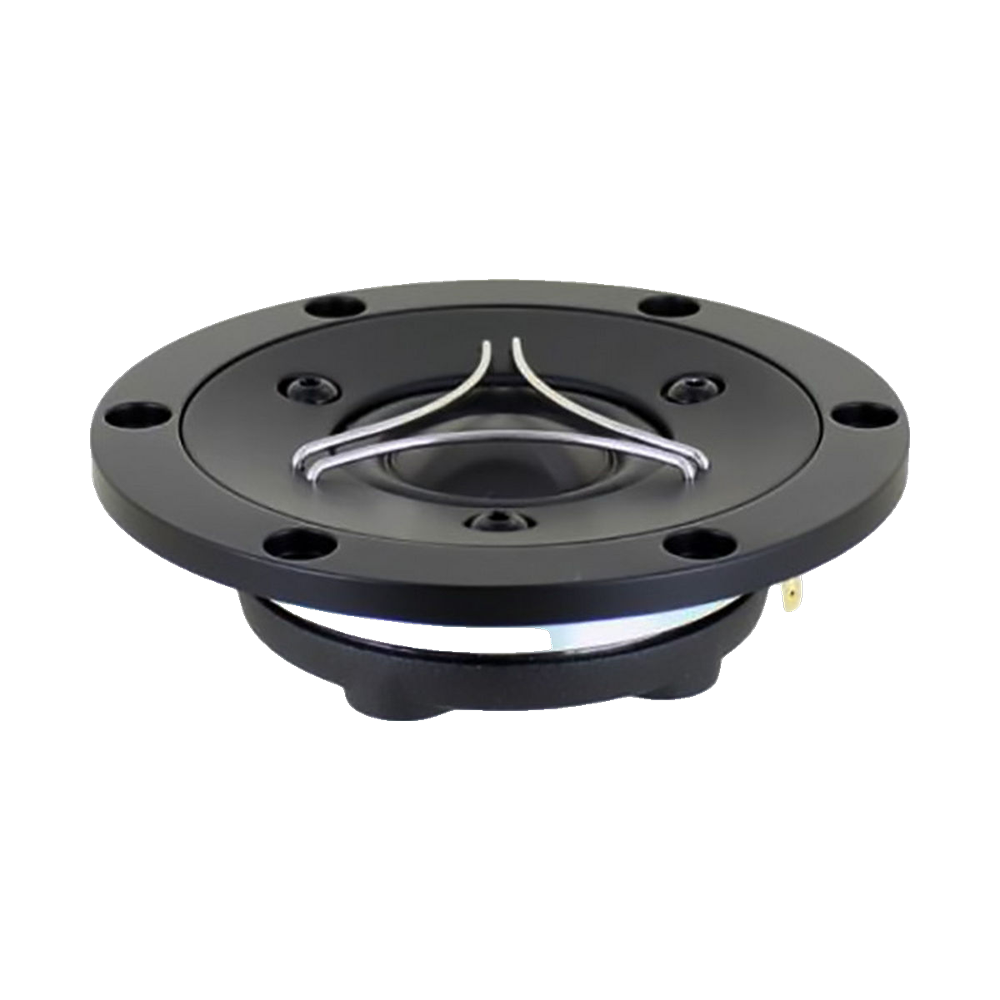

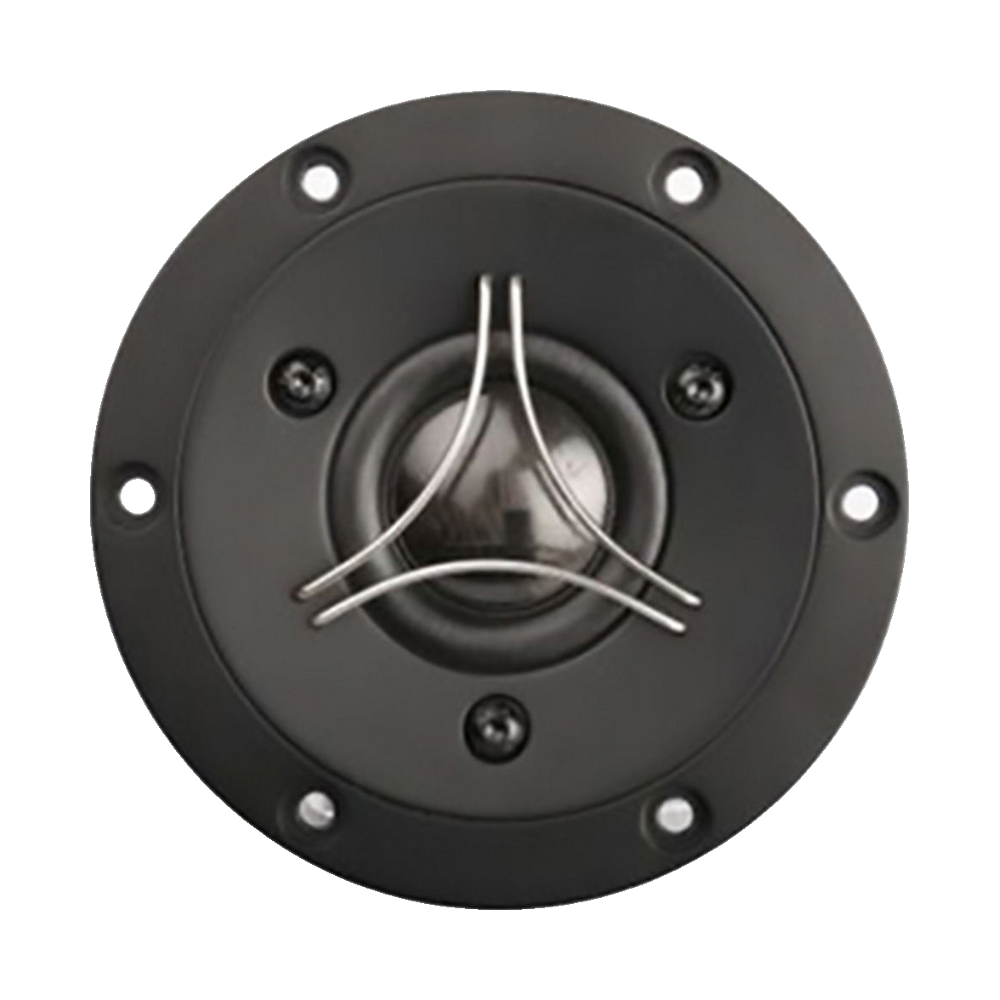

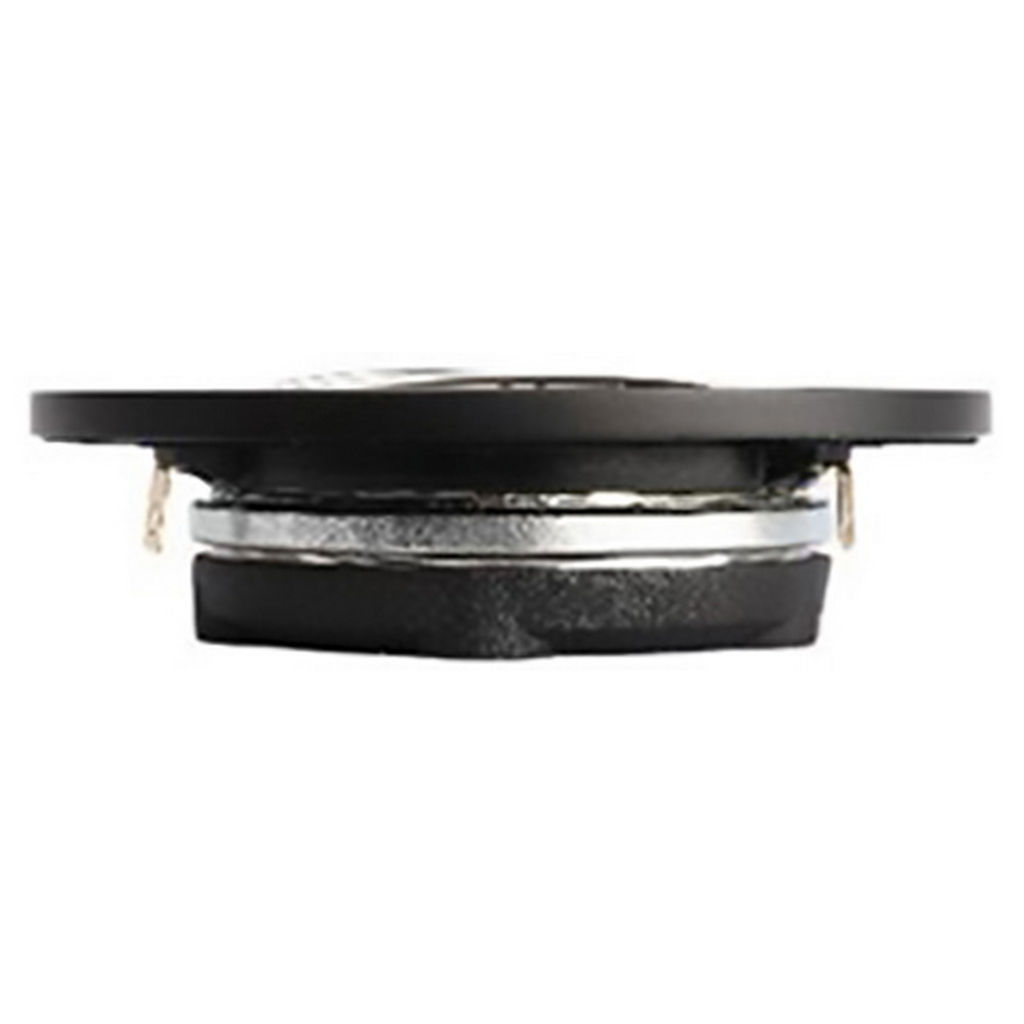

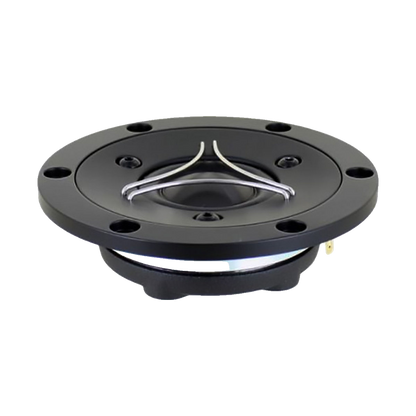

SB Acoustics - 1 1/4" Satori TeXtreme Dome Tweeter - TW29TXN-B-8

SB Acoustics - 1 1/4" Satori TeXtreme Dome Tweeter - TW29TXN-B-8

Regular price $379.95 AUD
Regular price Sale price $379.95 AUD
Sale Sold out
Shipping calculated at checkout.

Description:

New in the premium SB Acoustic Satori line is the 4 ohm version of their premium tweeter with Neodymium magnet and TeXtreme dome. TeXtreme is an advanced, super thin carbon fiber fabric that maximises the strength-to-weight ratio. This unit features smooth frequency response allowing for minimal effort in network design.

Features:

  • Advanced TeXtreme® dome
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range

Specifications:

Code TW29TXN-B-8
Description Satori 29mm Textreme dome, neodymium motor, black aluminium faceplate
Colour Black

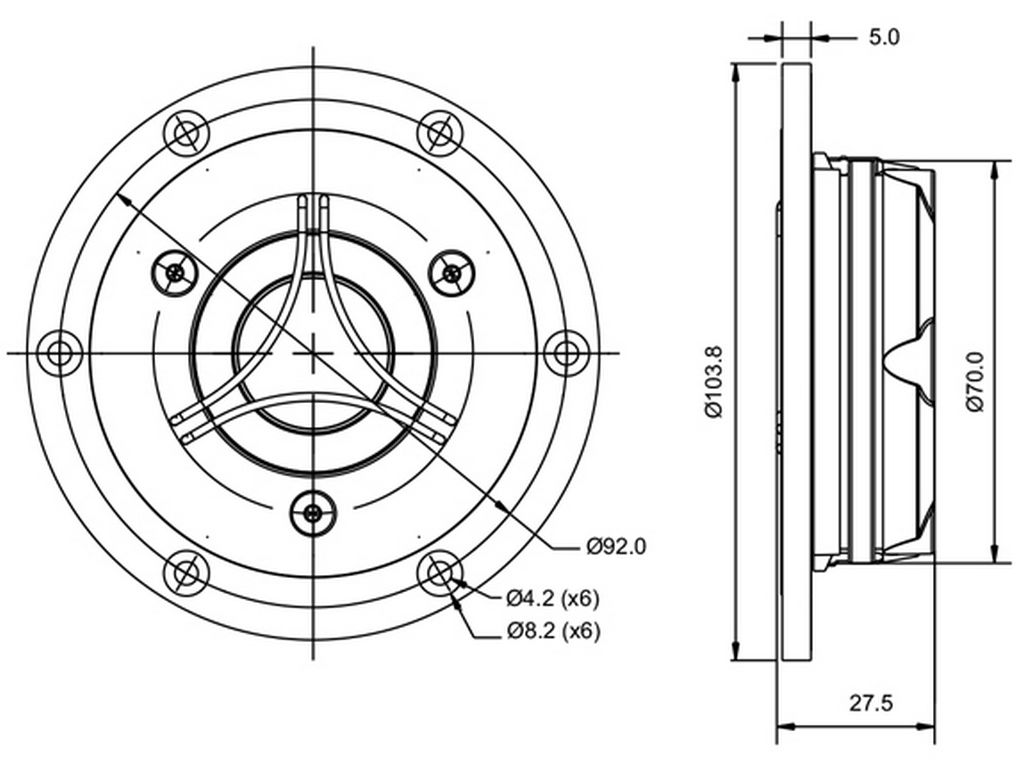

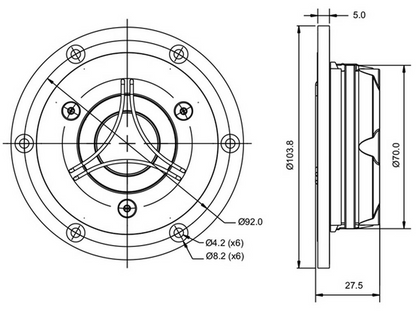

Coil 29mmØ
Depth 27.5mm
Fs 680Hz
Impedance 8Ω (Re 6.2Ω)
Impedance (Ohm) 8 ohm
Le 0.04mH
Mag. 0.1kg
Mms 0.49g
Power 80Wrms
Power (RMS) 51-100 Watt
Prms 80W
Qes 0.77
Qms 1.63
Qts 0.52
Re 6.2Ω
Sd 9.6cm²
Sens. 93.5dB
Series Satori
Type Dome Tweeter
Width 103.8mmØ
Zn 0.04mH
Bl 4.1Tm
Xmax 0.4mm
Flux (lm) 1.5T
Grille SAT29-GRL
