SB Acoustics - 1" Neo BNC Tweeter - SB29BNC-C000-4
SB Acoustics - 1" Neo BNC Tweeter - SB29BNC-C000-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Beryllium is incredibly rigid (seven times more rigid than Titanium or Aluminium) and is considered one of the best materials in the world for tweeter domes. Extended frequency response past 20 kHz provides exceptional airiness and spatial quality with superb transients and micro-instrumentation. The result is a subtle, detailed, dynamic tweeter with fast response but without the typical harshness of metal domes that can cause listener fatigue. Low resonance, very high output, excellent power handling and protective grille, compact facia for high density facias. Beryllium is incredibly rigid (seven times more rigid than Titanium or Alumiinum) and is considered one of the best materials in the world for tweeter domes. Extended frequency response past 20 kHz provides exceptional airiness and spatial quality with superb transients and micro-instrumentation. The result is a subtle, detailed, dynamic tweeter with fast response but without the typical harshness of metal domes that can cause listener fatigue. With low resonance, very high output, excellent power handling and protective grille, this tweeter will work equally well for home hi-fi use or for high-end autosound applications.
Features
- Beryllium dome for non-resonant high frequency extension
- Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
- CCAW voice coil for low moving mass
- Internal pressure equalisation and flow resistor for non-resonant coupling of cavities
- Long life flexible lead wires
- Inherently shielded neodymium motor system
- Compact design
- Low resonance frequency
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 80 W |
| Sensitivity | 95 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 950 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.05 mH |
| Mechanical Q (Qms) | 1.36 |
| Electrical Q (Qes) | 1.4 |
| Total Q (Qts) | 0.69 |
| Compliance (Cms) | 0.06101 mm/N |
| Moving mass (Mms) | 0.46 g |
| Mechanical resistance (Rms) | 2.019 kg/s |
| Force factor (Bl) | 2.6 T·m |
| Effective piston area (Sd) | 9.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Displacement volume (Vd) | 0.24 cm³ |
| Efficiency bandwidth product (EBP) | 678.6 |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.2 T |
| Magnet weight | 0.031 kg |

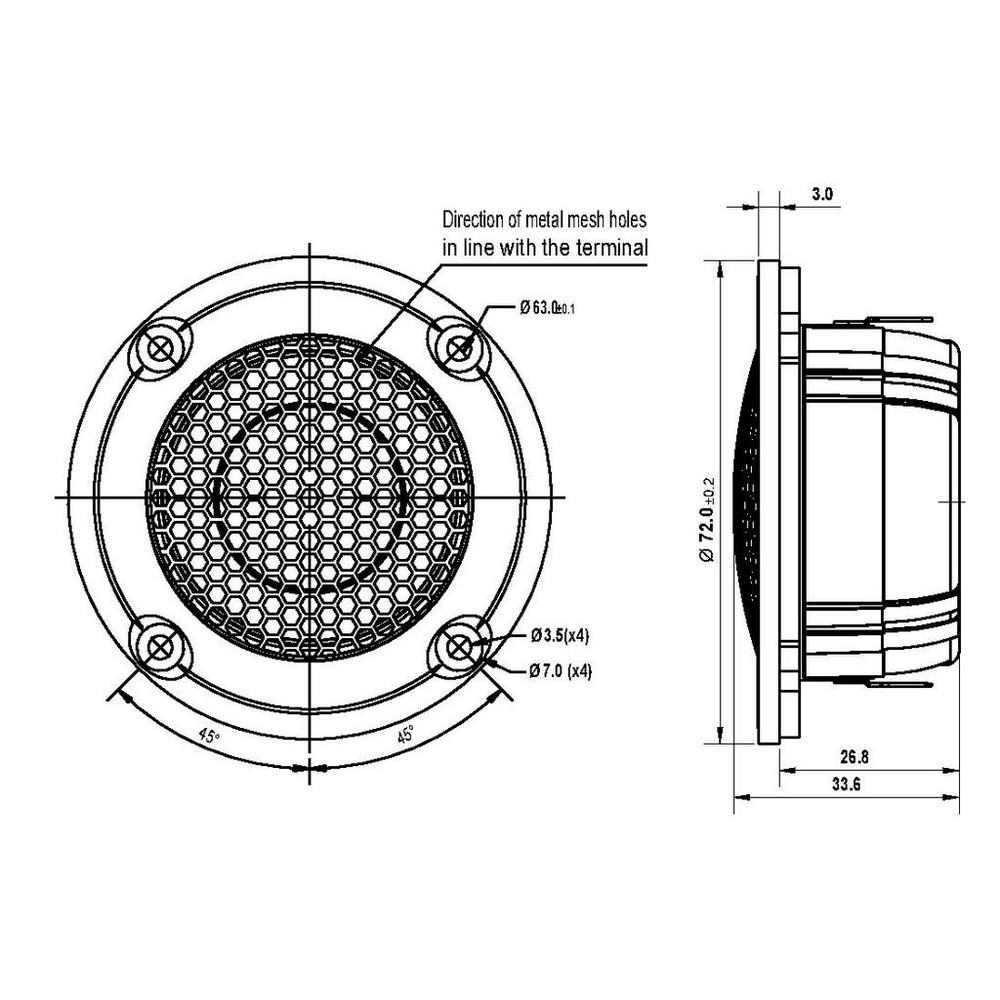

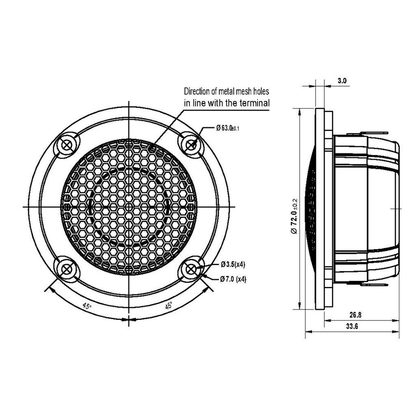

Mounting
| Overall diameter | 72 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 56.7 mm |
| Mounting depth | 26.8 mm |
| Flange thickness | 3 mm |
| Bolt circle diameter | 63 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 3.5 mm |
| Voice coil diameter | 29 mm |
| Weight | 0.17 kg |
Materials
| Cone | Beryllium |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- SB29BNC-C000-4 Datasheet
- SB29BNC-C000-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
