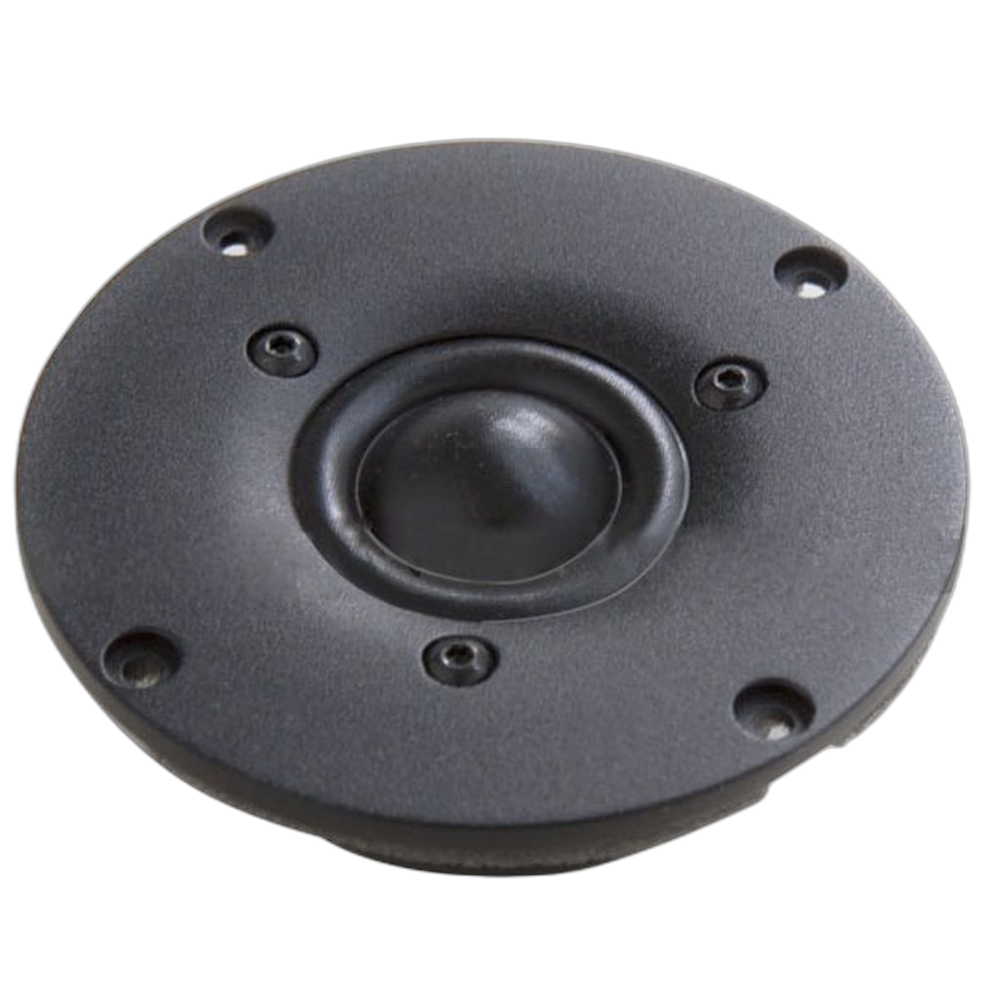

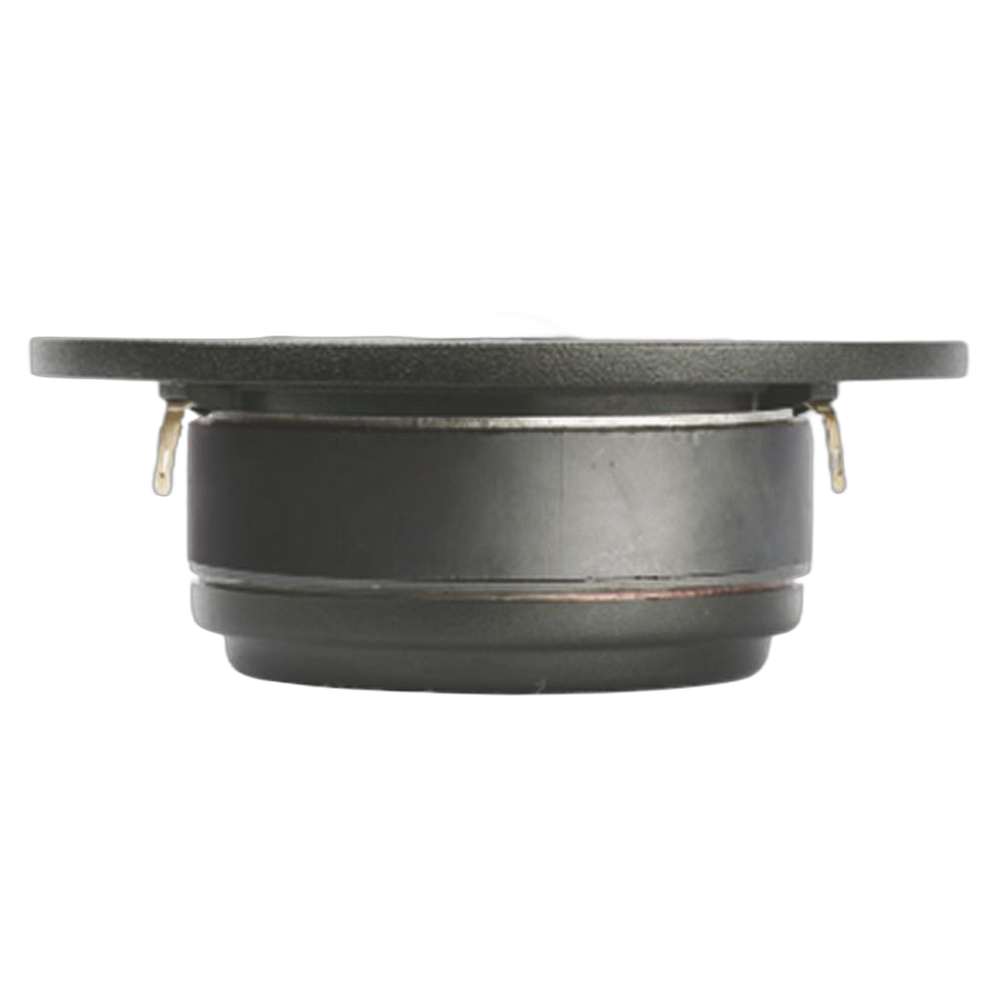

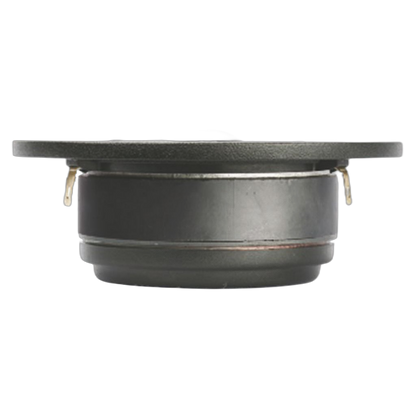

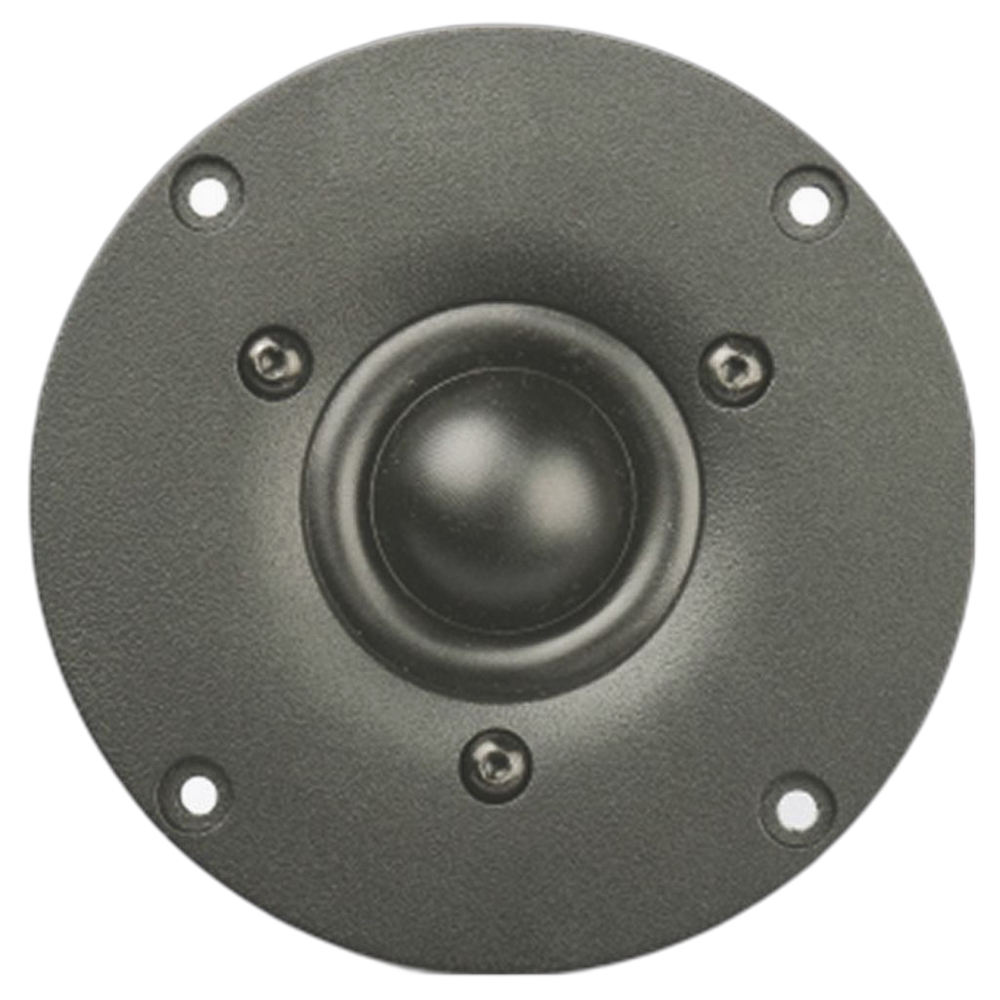

SB Acoustics - 1¼" SDAC Tweeter - SB29SDAC-C000-4
SB Acoustics - 1¼" SDAC Tweeter - SB29SDAC-C000-4
Regular price
$88.95
Regular price
Sale price
$88.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Large surround dome for increased acoustic output
- Dual balanced compression chamber for improved dynamics
- Copper cap for reduced voice coil inductance and minimum phase shift
- Saturation controlled motor system for low distortion
- Non-reflective rear chamber with optimised damping for improved dynamics
- Flow optimised vented pole piece for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
- Cast aluminium faceplate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.25" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 60 W |
| Sensitivity | 93 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 600 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.05 mH |
| Mechanical Q (Qms) | 2.94 |
| Electrical Q (Qes) | 1.09 |
| Total Q (Qts) | 0.8 |
| Compliance (Cms) | 0.1564 mm/N |
| Moving mass (Mms) | 0.45 g |
| Mechanical resistance (Rms) | 0.577 kg/s |
| Force factor (Bl) | 2.4 T·m |
| Effective piston area (Sd) | 9.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Displacement volume (Vd) | 0.24 cm³ |
| Efficiency bandwidth product (EBP) | 550.5 |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.1 T |
| Magnet weight | 0.22 kg |

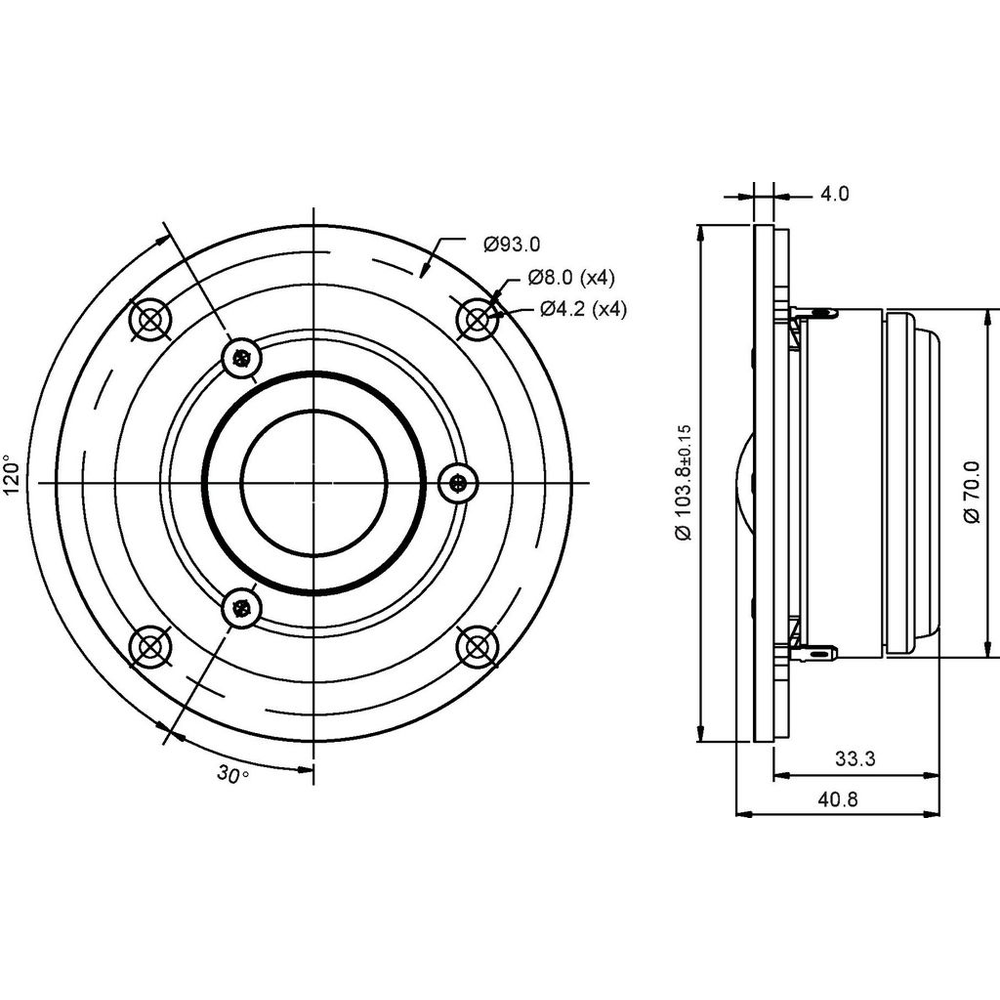

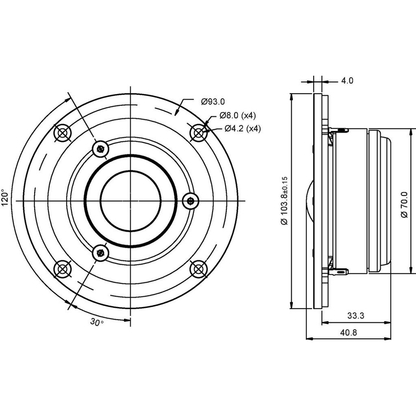

Mounting
| Overall diameter | 103.8 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 71.0 mm |
| Mounting depth | 33.3 mm |
| Bolt circle diameter | 93 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 29 mm |
| Weight | 0.5 kg |
Materials
| Cone | Fabric |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- SB29SDAC-C000-4 Datasheet
- SB29SDAC-C000-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
