SB Acoustics

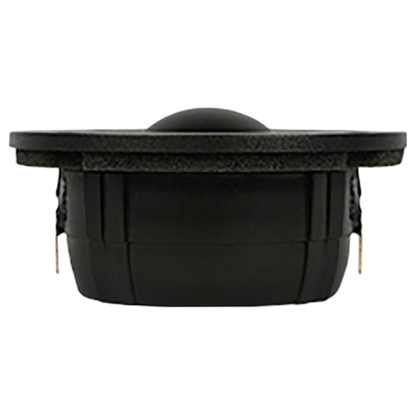

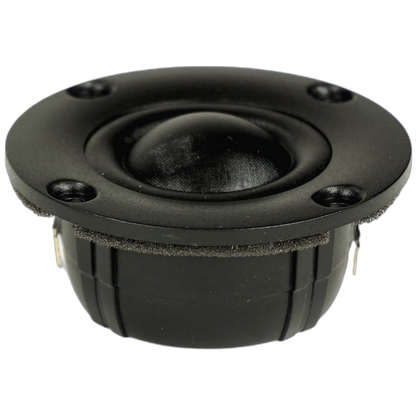

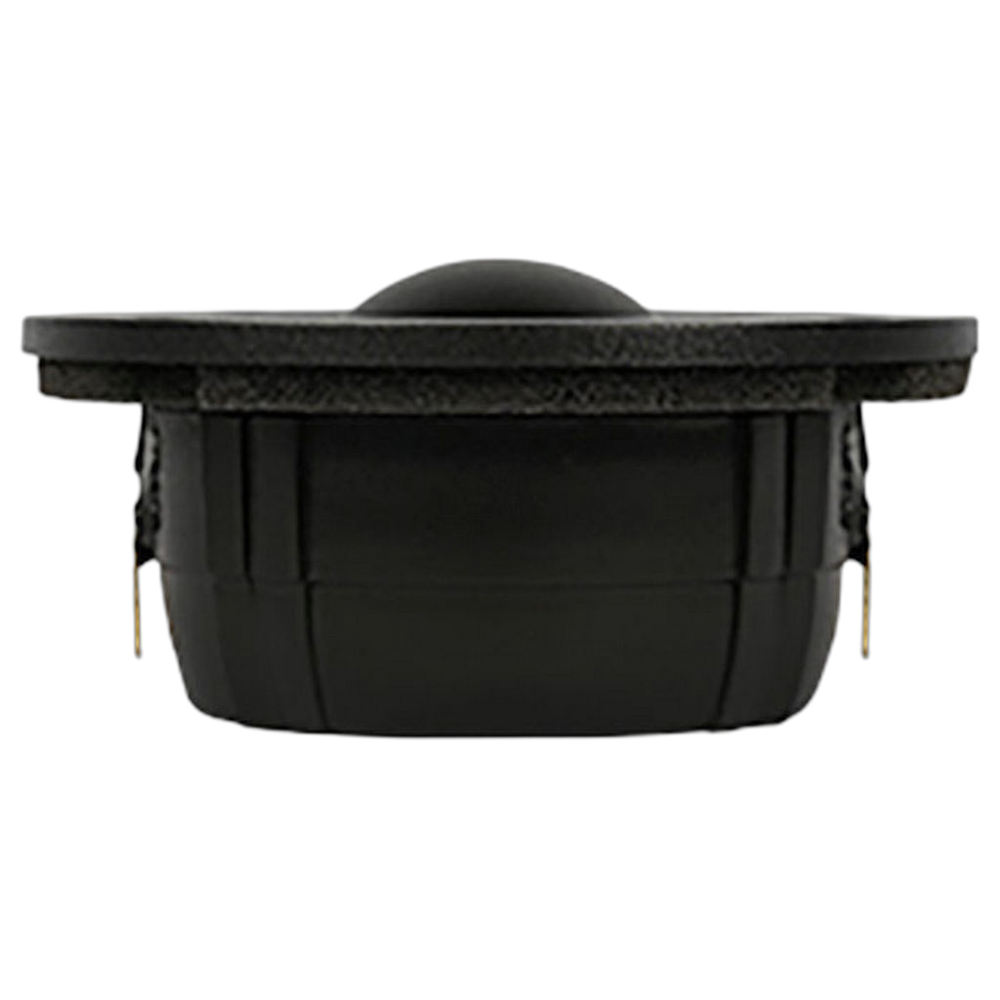

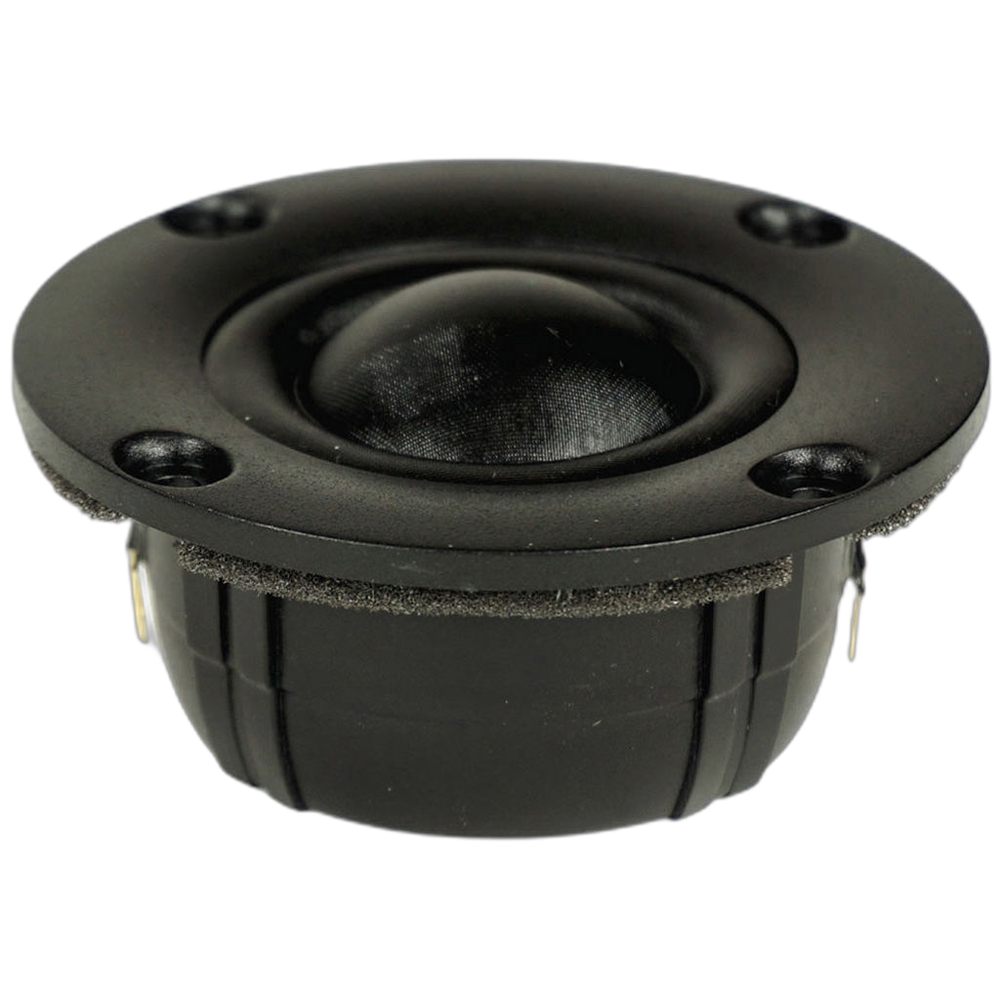

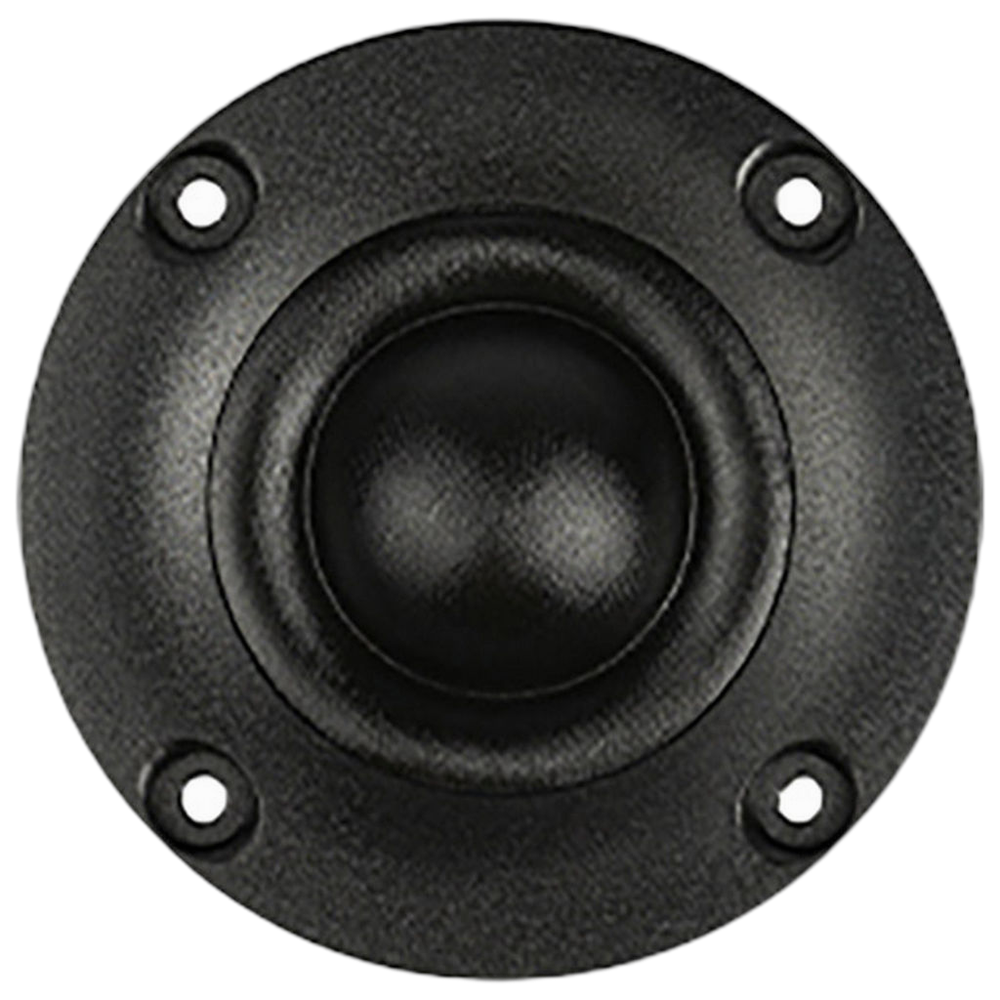

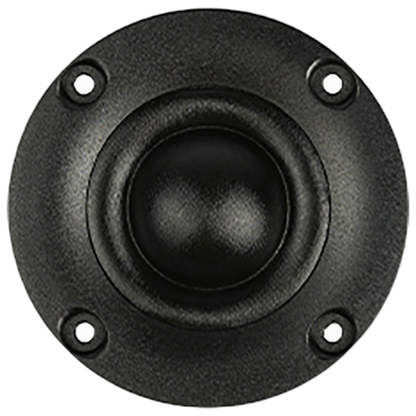

SB Acoustics - 1¼" SDNC Tweeter - SB29SDNC-C000-4
SB Acoustics - 1¼" SDNC Tweeter - SB29SDNC-C000-4
Regular price
$104.95 AUD
Regular price
Sale price
$104.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Large surround dome for increased acoustic output. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency. Copper cap on pole piece for reduced voice coil inductance and minimum phase shift. Inherently shielded neodymium motor system. Internal pressure equalization and flow resistor for non-resonant coupling of cavities. Compact design.
Features
- Large surround dome for increased acoustic output
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
- Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
- Inherently shielded neodymium motor system
- Internal pressure equalization and flow resistor for non-resonant coupling of cavities
- Compact design
Specifications
| Coil | 29mmØ |
|---|---|
| Diam. | Ref |
| Fs | 630Hz |
| Le | 0.05mH |
| Mag. | 0.031kg |
| Mms | 0.45g |
| Power | 80Wrms |
| Qes | 0.79 |
| Qms | 1.3 |
| Qts | 0.49 |
| Re | 3.0Ω |
| Sd | 9.6cm² |
| Sens. | 95.5dB |

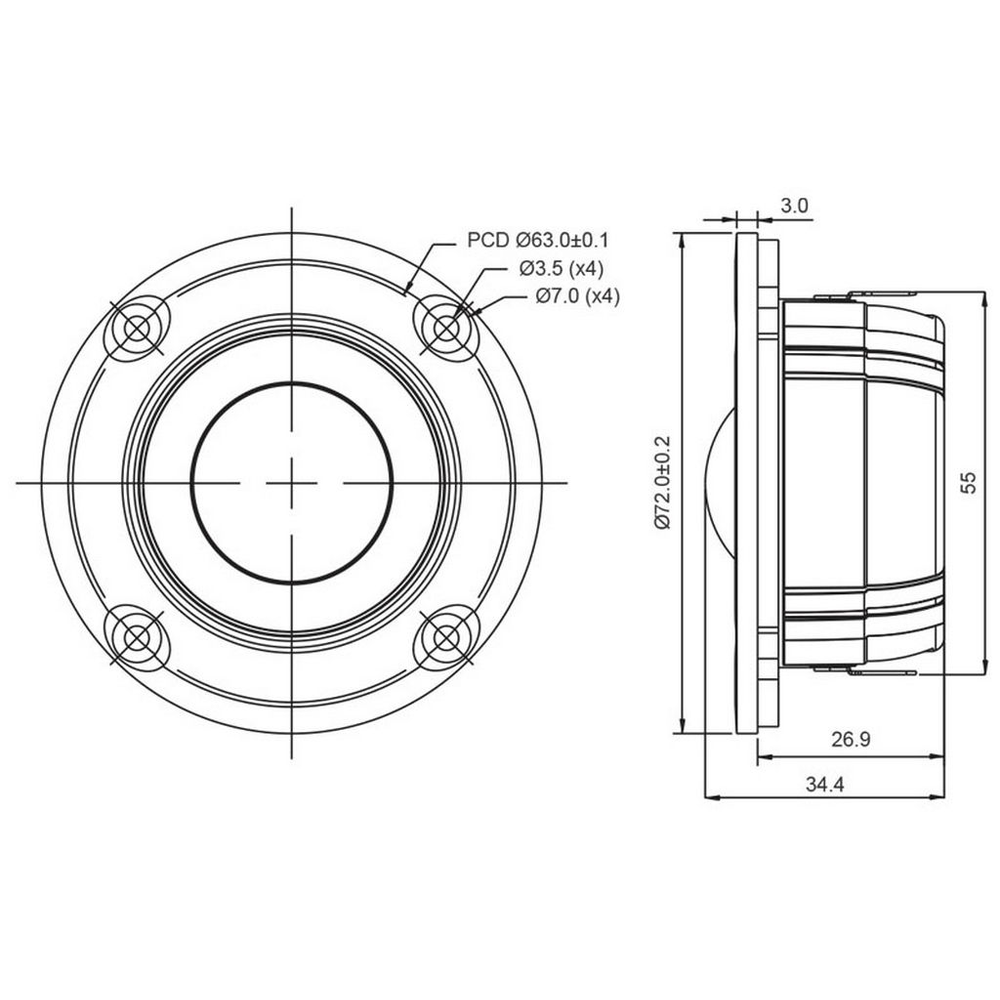

| Width | 72mmØ |
| Zn | 4Ω |
| Hole | 55mmØ |
