SB Acoustics - 1" ST Neo Tweeter - SB14ST-C000-4
SB Acoustics - 1" ST Neo Tweeter - SB14ST-C000-4
Regular price
$44.95
Regular price
Sale price
$44.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

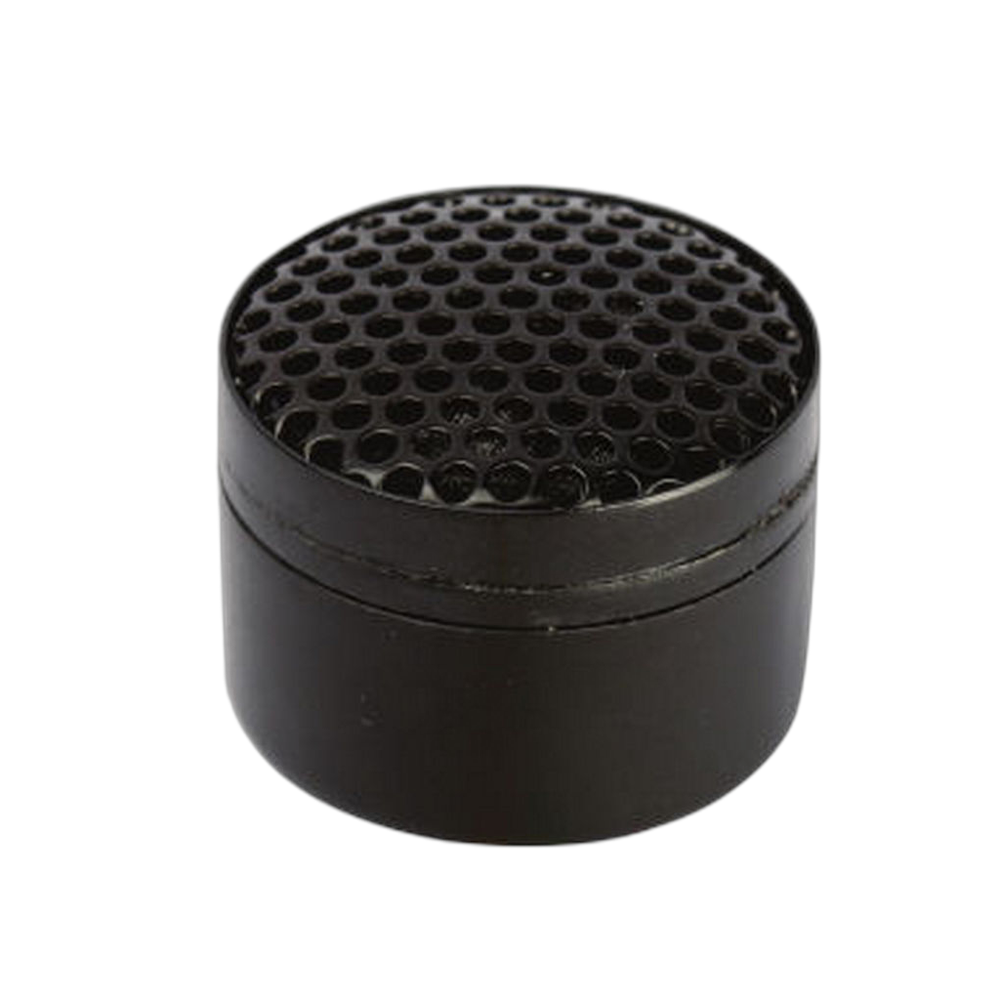

Tiny 1" diameter module containing a half inch dome textile tweeter and neodymium magnet in a very compact package. Sold in singles.
Features
- Very compact design
- Excellent piston diameter to OD ratio
- Large surround for smooth dispersion
- Threaded rear centre hole for easy mounting
- Long insulated lead wires for versatile integration
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 10 W |
| Sensitivity | 86 dB |
| Recommended crossover | >2.5KHz 12dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 1,300 Hz |
|---|---|
| DC resistance (Re) | 4 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Compliance (Cms) | 0.1363 mm/N |
| Moving mass (Mms) | 0.11 g |
| Force factor (Bl) | 0.92 T·m |
| Effective piston area (Sd) | 2.2 cm² |
| Linear excursion (Xmax, one-way) | 0.15 mm |
| Displacement volume (Vd) | 0.033 cm³ |
Motor
| Voice coil height | 1.2 mm |
|---|---|
| Air gap height | 1.5 mm |
| Magnetic flux density | 0.97 T |
| Magnet weight | 0.0034 kg |

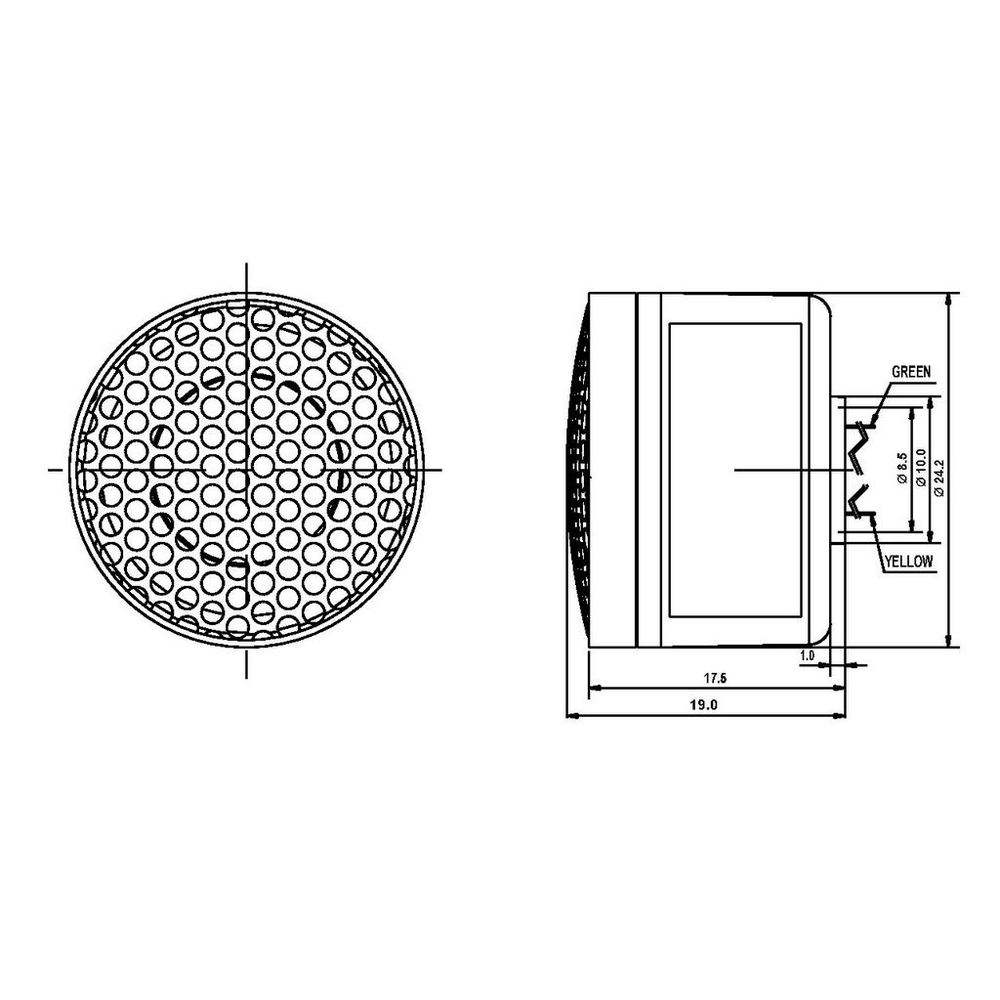

Mounting
| Overall diameter | 24.2 mm |
|---|---|
| Mounting depth (estimate) | ≈ 17.5 mm |
| Voice coil diameter | 12.4 mm |
| Weight | 0.014 kg |
Materials
| Cone | Fabric |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.

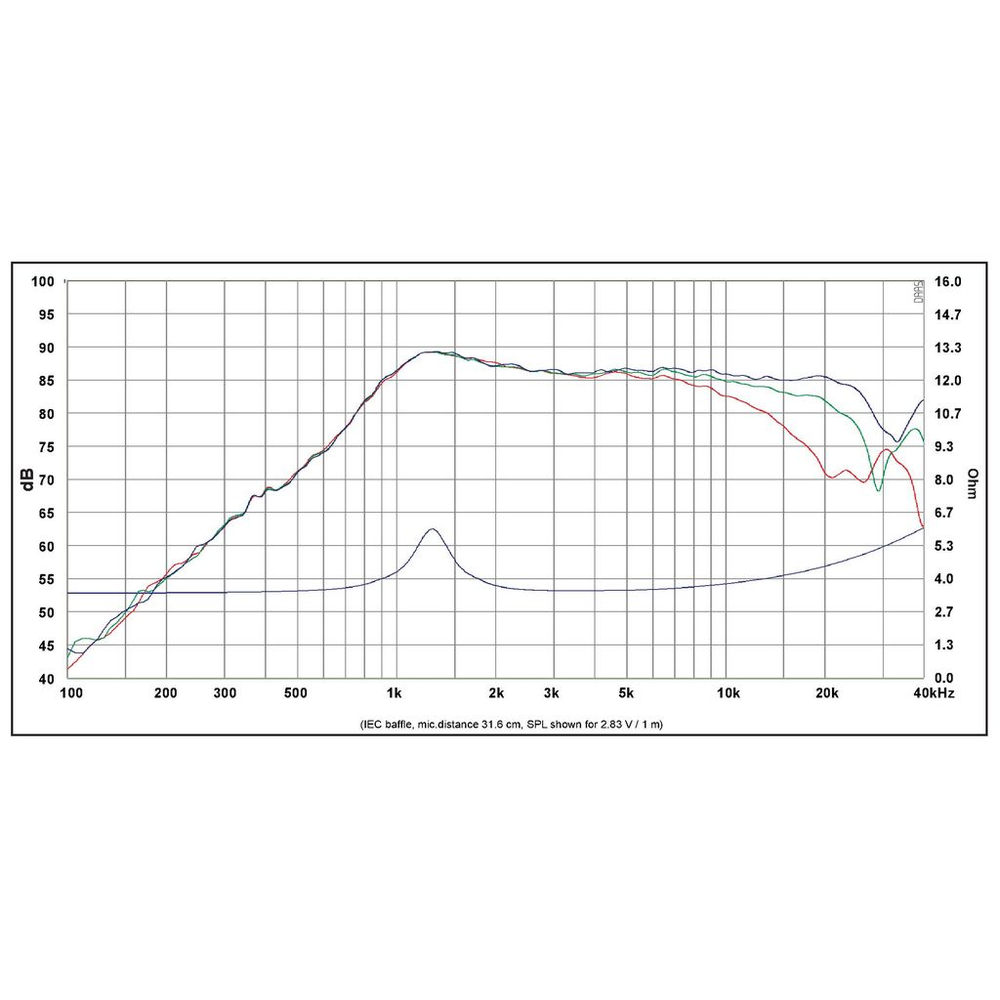

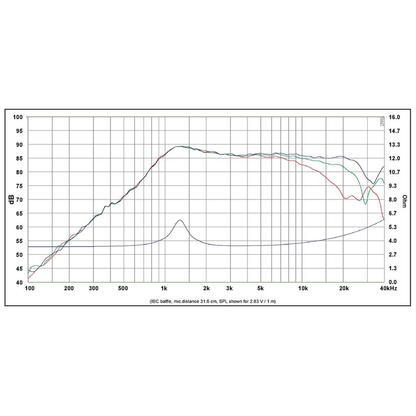

- Sensitivity measured at 2.83V/1m.
Downloads
Some figures here aren't checked against SB Acoustics' datasheet yet. See which
