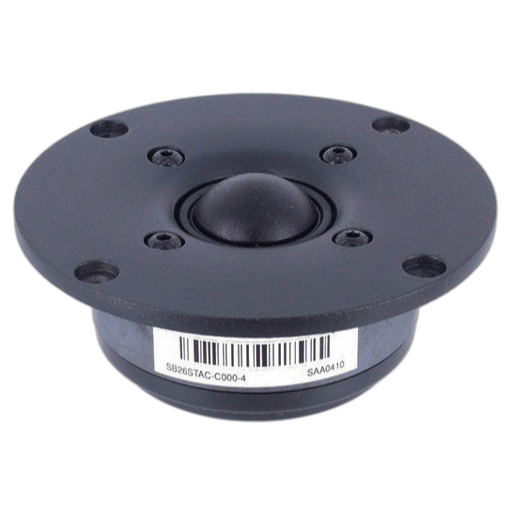

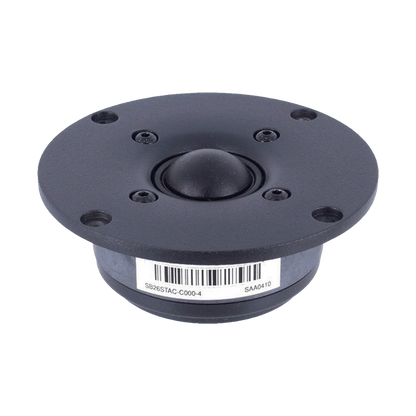

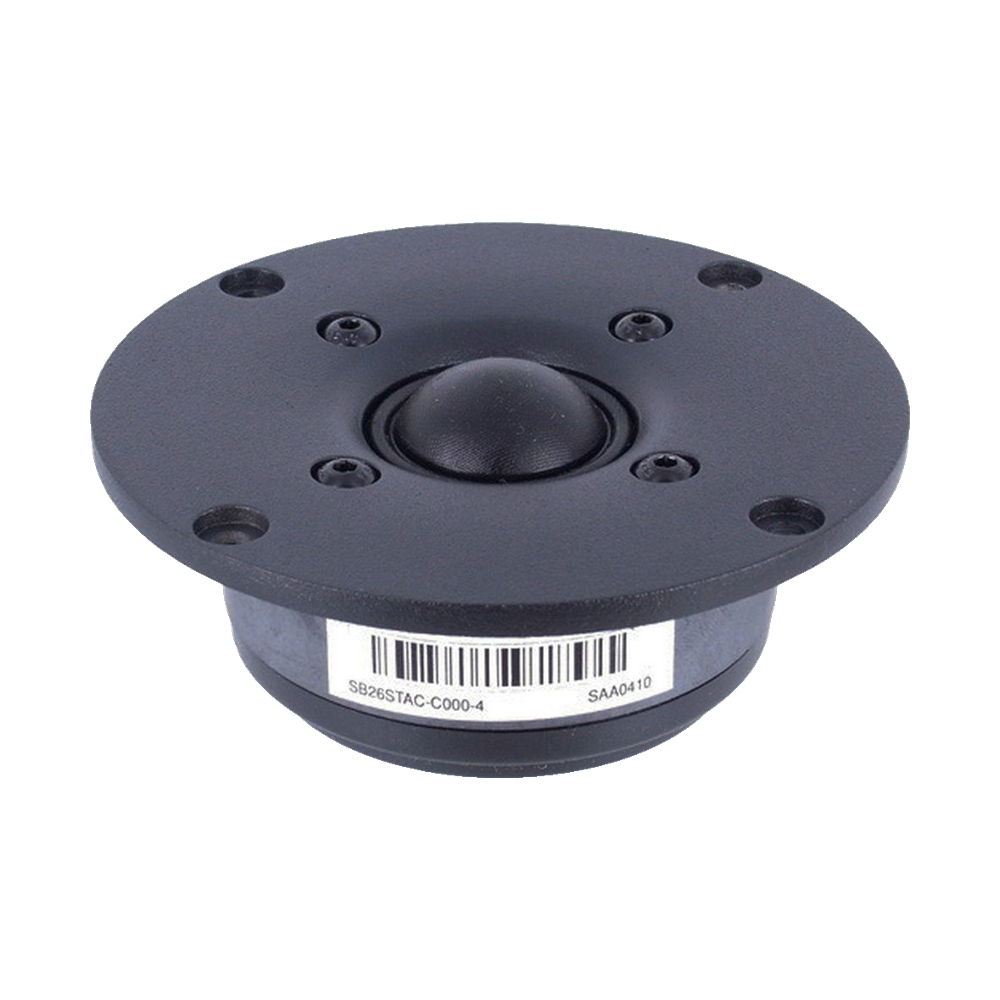

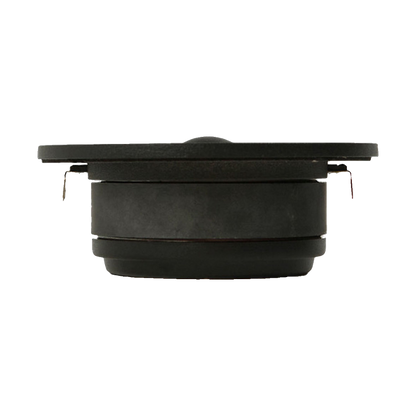

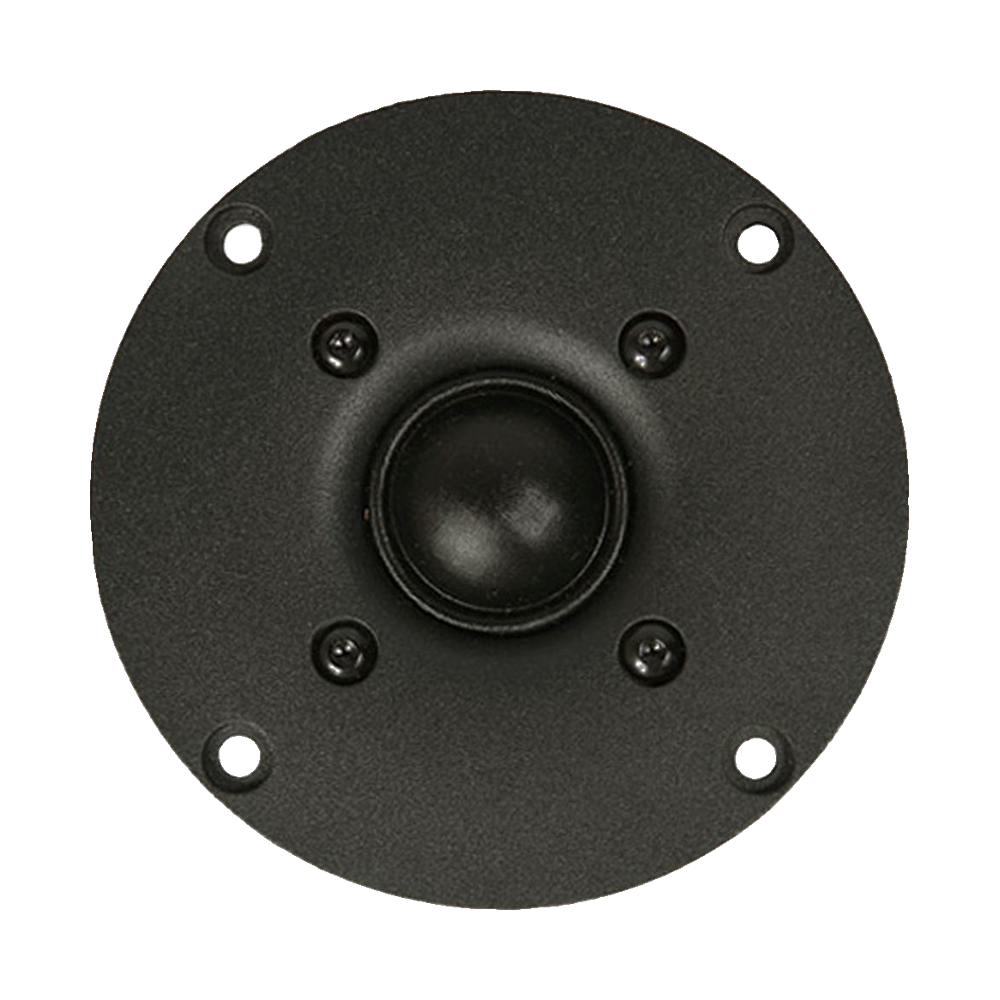

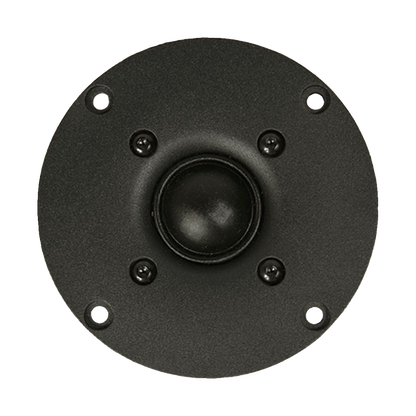

SB Acoustics - 1" STAC Dome Tweeter - SB26STAC-C000-4
SB Acoustics - 1" STAC Dome Tweeter - SB26STAC-C000-4
Regular price
$74.95
Regular price
Sale price
$74.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Backordered Product. Contact us for lead time
More stock expected 20 January 2027
Couldn't load pickup availability
Description
Features
- Cast aluminium faceplate
- Copper cap for reduced voice coil inductance and minimum phase shift
- Non-reflective rear chamber with optimised damping for improved dynamics
- Flow optimised vented pole piece for optimum coupling to rear chamber
- Fine weave soft fabric dome for smooth frequency response
- Saturation controlled motor system for low distortion
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Dome Tweeter |
| Power handling (RMS) | 120 W |
| Sensitivity | 91.5 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 750 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3 |
| Electrical Q (Qes) | 1.78 |
| Total Q (Qts) | 1.12 |
| Compliance (Cms) | 0.1501 mm/N |
| Moving mass (Mms) | 0.3 g |
| Mechanical resistance (Rms) | 0.4712 kg/s |
| Force factor (Bl) | 1.6 T·m |
| Effective piston area (Sd) | 6.2 cm² |
| Linear excursion (Xmax, one-way) | 0.6 mm |
| Displacement volume (Vd) | 0.372 cm³ |
| Efficiency bandwidth product (EBP) | 421.3 |
Motor
| Voice coil height | 1.3 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.15 T |
| Magnet weight | 0.22 kg |

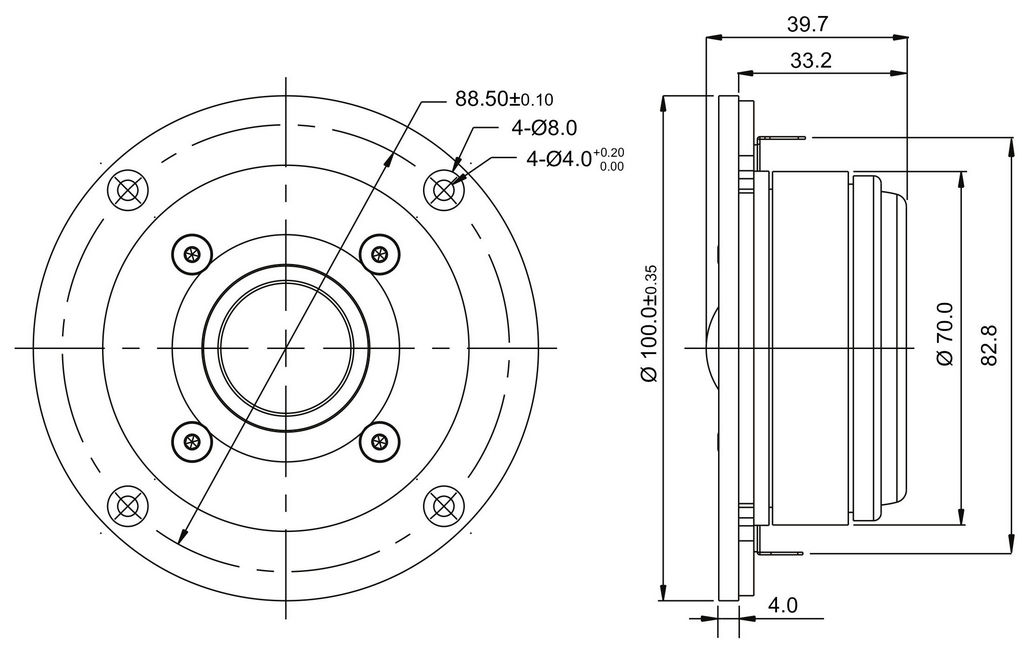

Mounting
| Overall diameter | 100 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 83.8 mm |
| Mounting depth | 33.2 mm |
| Flange thickness | 4 mm |
| Bolt circle diameter | 88.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.53 kg |
Materials
| Cone | Fabric |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- SB26STAC-C000-4 Datasheet
- SB26STAC-C000-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
